1

1

2

3

1

Clean all
relevant
surfaces then
correctly
position and
bond the glass
seal to the roof
opening panel.

GO to G5

.

G5: DRIP LIP - LOCATION

Carry out a
visual
inspection of
the drip lip on
the glass panel
for location and
security.

Is the drip lip
correctly located on
the glass panel?
Yes

GO to G7

.

No

Replace the
glass panel
(The drip lip is
not a
serviceable
part).

GO to

G6

.

G6: INITIALIZATION

Perform the
manual roof
opening panel
initialization
procedure.
REFER to:

Motor
Synchronization

(501-17 Roof
Opening Panel,
General
Procedures).
Operate the
roof opening
panel through
all possible
positions (slide
open / slide
close / tilt open
/ tilt close)
using the roof
mounted
switch.
Check the
vehicle for wind
noise from the
roof opening
panel.

Is the wind noise
still evident?
Yes

Contact dealer
technical
support.

No

No further
action required.

G7: INITIALIZATION

Perform the
manual roof
opening panel
initialization
procedure.
REFER to:

Motor
Synchronization

(501-17 Roof
Opening Panel,
General
Procedures).

2

1

1

Check the
vehicle for wind
noise from the
roof opening
panel.

Is the wind noise
still evident?
Yes

Contact dealer
technical
support.

No

No further
action required.

PINPOINT TEST H : SEALS LOOSE OR ADRIFT

TEST CONDITIONS

DETAILS/RESULTS

/ACTIONS

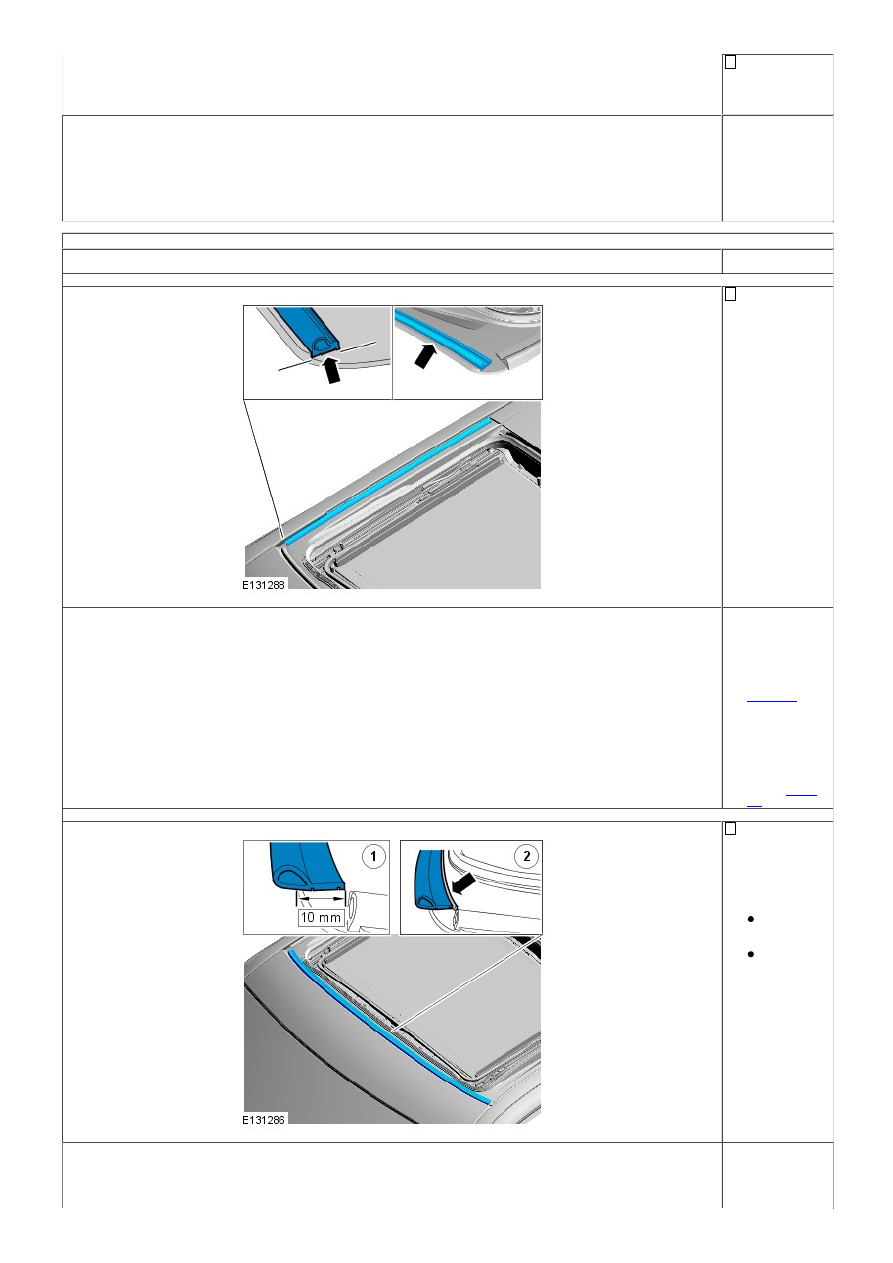

H1: SIDE ACOUSTIC SEAL - LOCATION

Carry out a
visual
inspection of
the side
acoustic seals
for location and
security.

Are the side
acoustic seals
correctly located
and bonded to the
roof opening panel
frame?
Yes

GO to H2

.

No

Correctly
relocate and
bond the side
acoustic seals
to the roof
opening panel
frame.

GO to

H2

.

H2: FRONT ACOUSTIC SEAL - LOCATION

Carry out a
visual
inspection of
the front
acoustic seals
for location and
security.

Vehicles
built up to
VIN 154971.
Vehicles
built from
VIN 154972.

Is the front acoustic
seal correctly
located and bonded
to the roof opening
panel frame?

1

1

Yes

GO to H3

.

No

Correctly
relocate and
bond the front
acoustic seal to
the roof
opening panel
frame.

GO to

H3

.

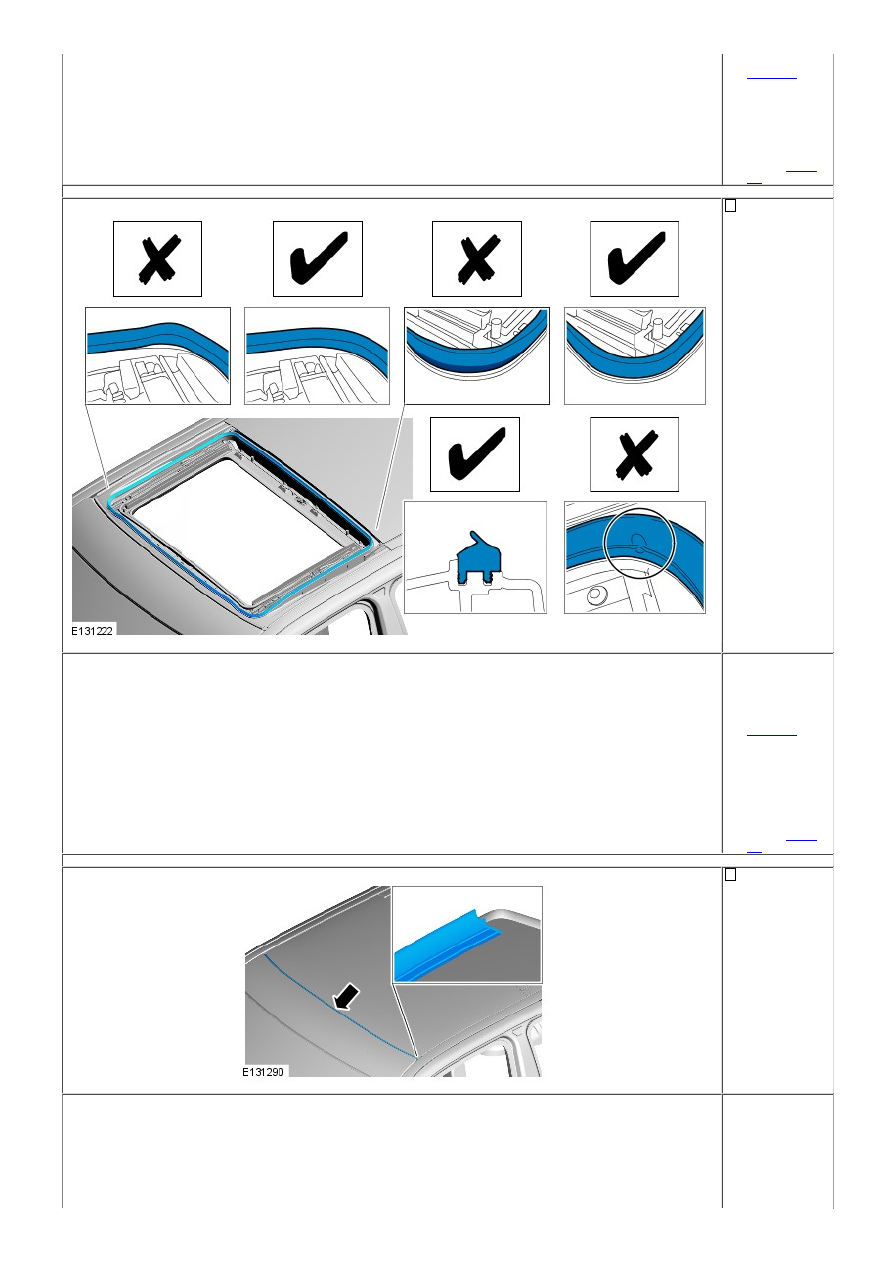

H3: GLASS SEAL - LOCATION

Carry out a
visual
inspection of
the glass seal
for location and
security.

Is the glass seal
correctly located
and bonded to the
roof opening panel
frame?
Yes

GO to H4

.

No

Replace the
glass seal and
bond the four
corners of the
glass seal to
the roof
opening panel
frame.

GO to

H4

.

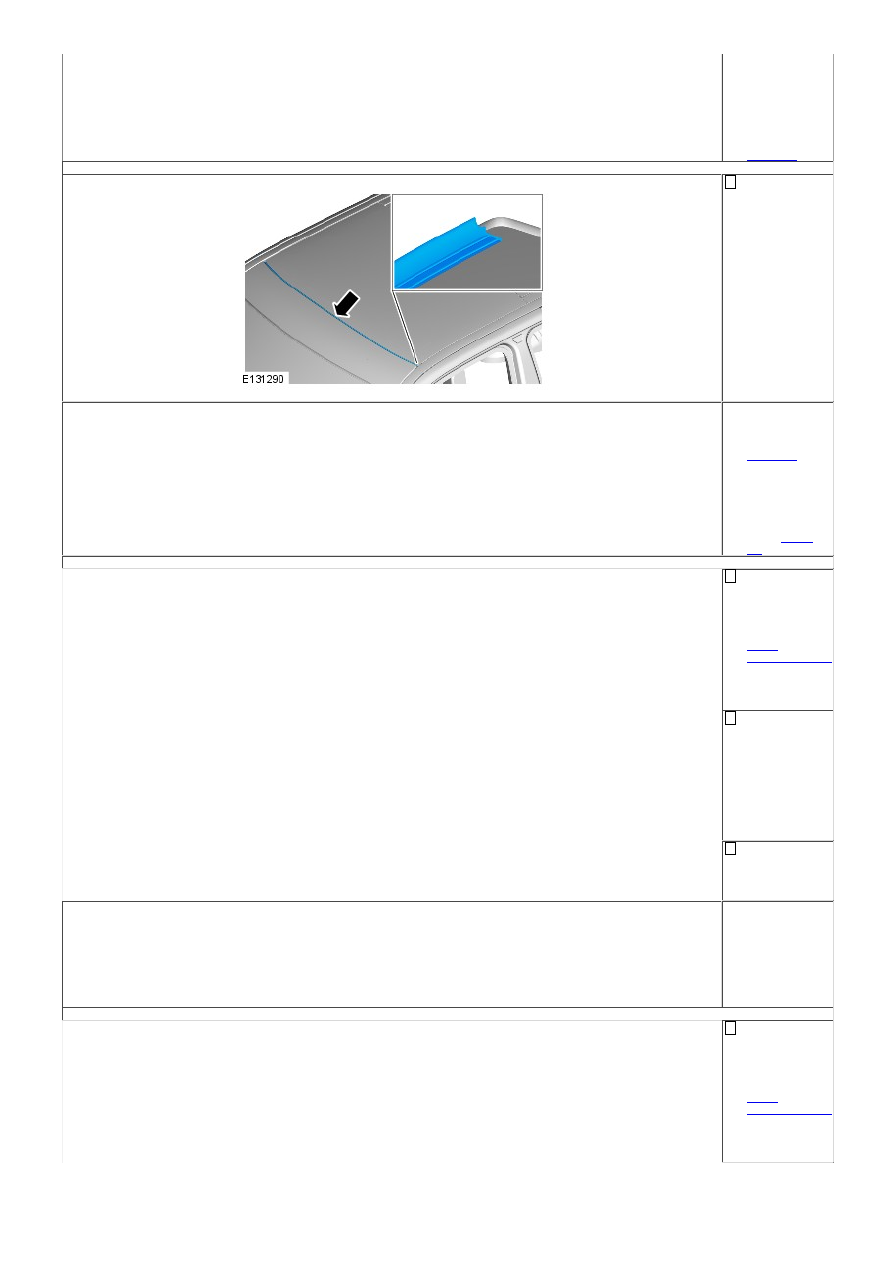

H4: DRIP LIP - LOCATION

Carry out a
visual
inspection of
the drip lip on
the glass panel
for location,
condition and
security.

Is the drip lip
correctly located on
the glass panel and
in good condition?
Yes

The drip lip is
correctly
located on the
glass panel. No

further action
required.

No

Replace the
glass panel
(The drip lip is
not a
serviceable
part).

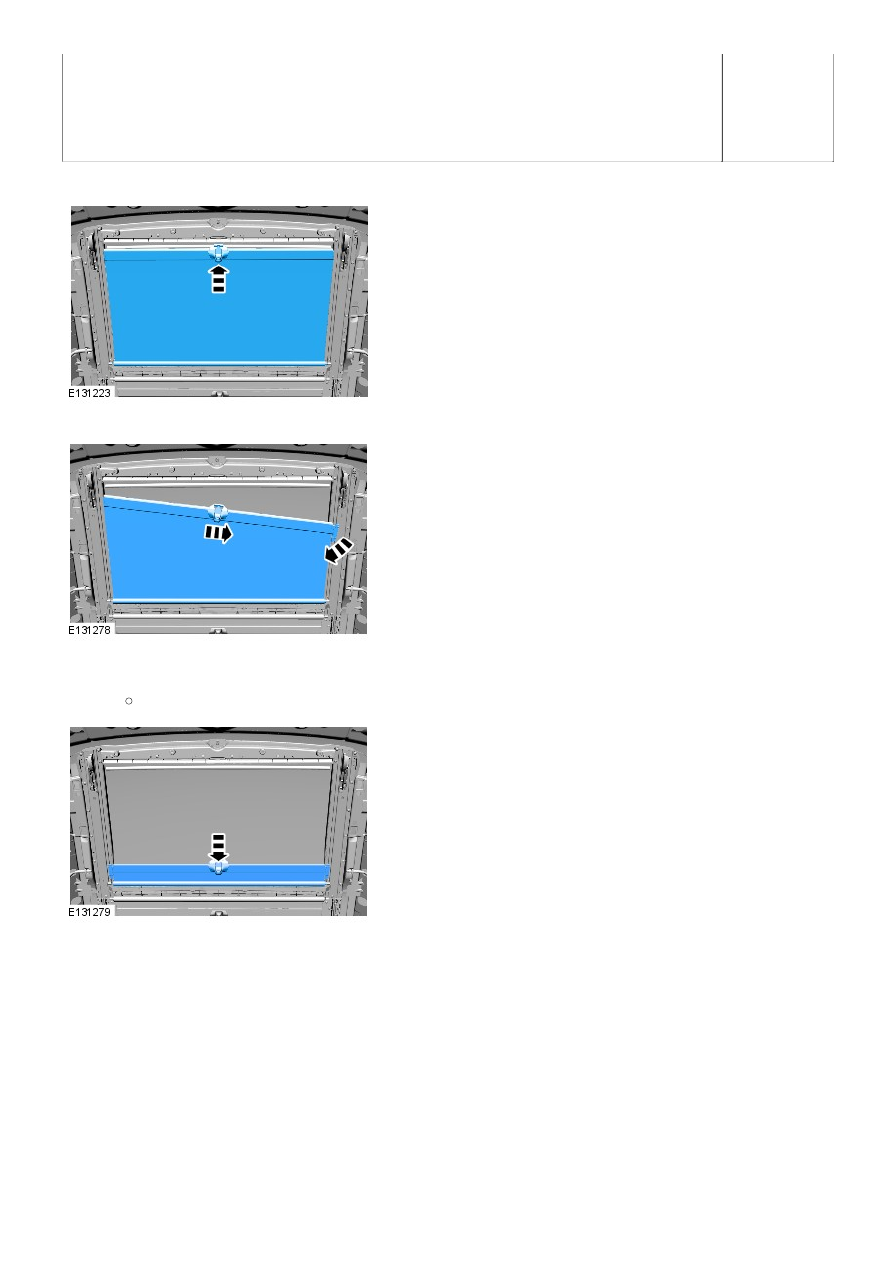

Roof opening panel blind rewind procedure - Vehicles built up to VIN 154971

1. Close the roof opening panel blind (but do not latch the handle to the frame) .

1.

• NOTE: Rotate the roof opening panel in the directions illustrated.

2. Release the roof opening panel blind from the runners.

Rotate the left-hand edge counter clockwise and release the right-hand edge from the frame.

2.

3. Open the roof opening panel blind.

3.
