Frelander 2. Manual - part 590





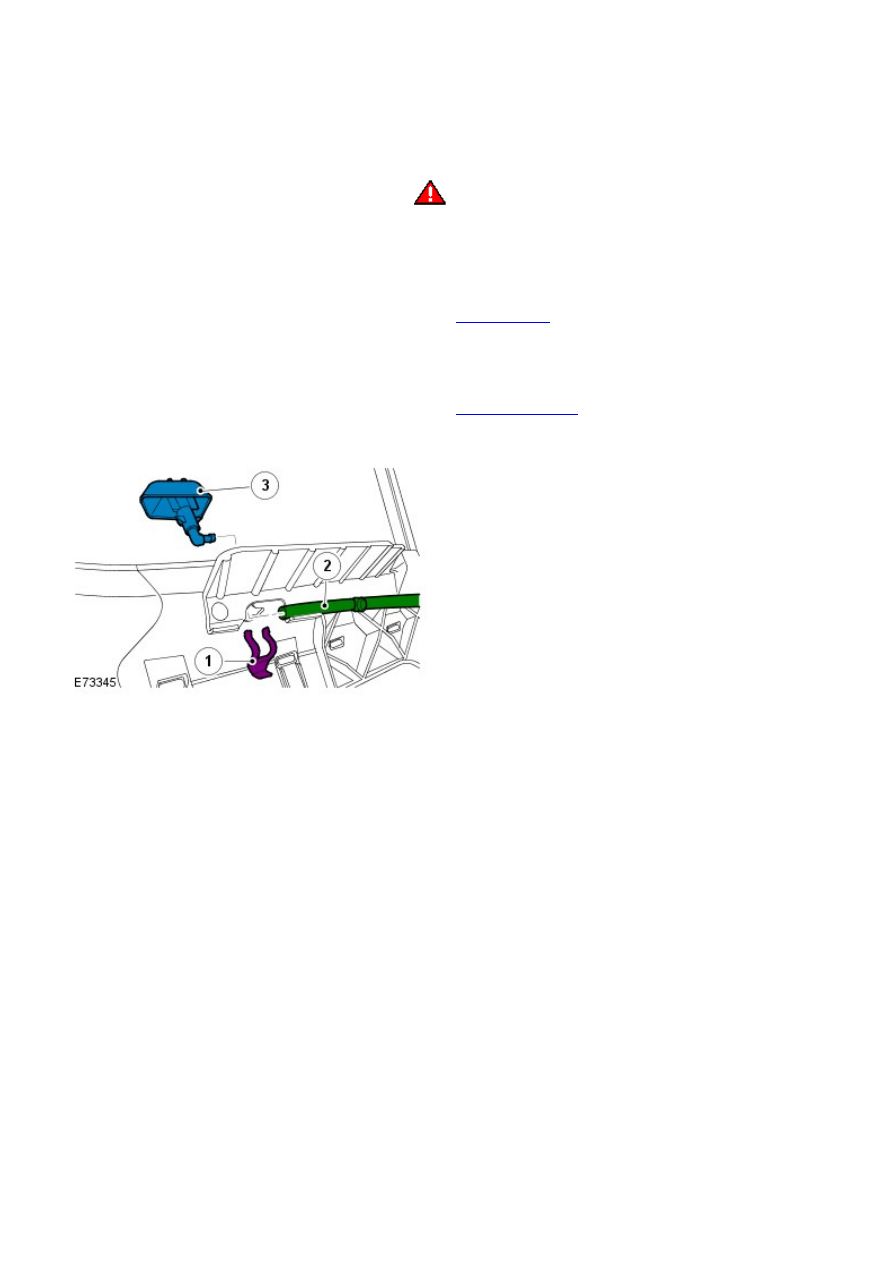

Wipers and Washers - Headlamp Washer Jet

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the front bumper cover.

Refer to:

Front Bumper Cover

 (501-19 Bumpers, Removal and

Installation).

3.

4.

Installation

To install, reverse the removal procedure.

1.

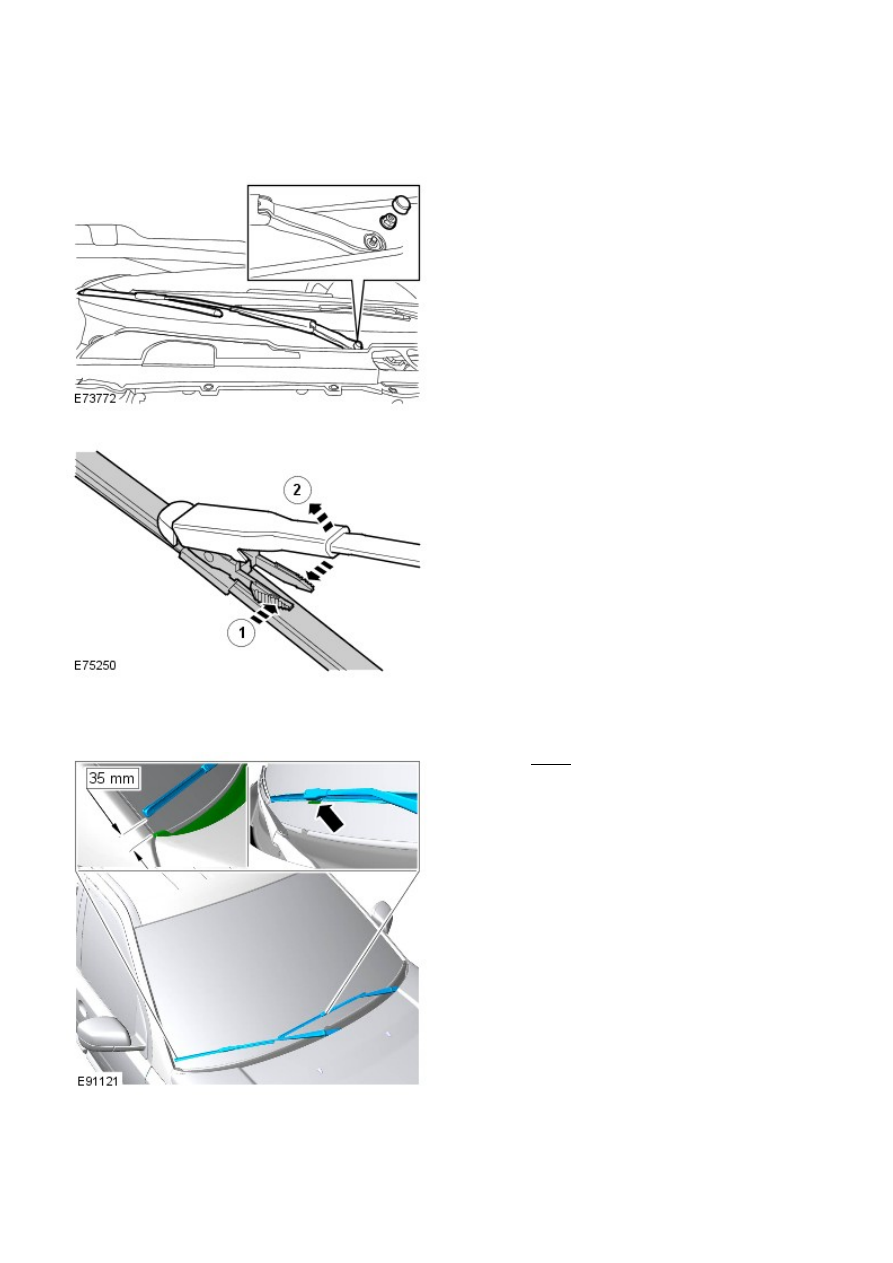

Wipers and Washers - Wiper Pivot Arm

Removal and Installation

Removal

1.

2. NOTE: Do not disassemble further if the component
is removed for access only.

2.

Installation

Torque: 25 Nm

1.

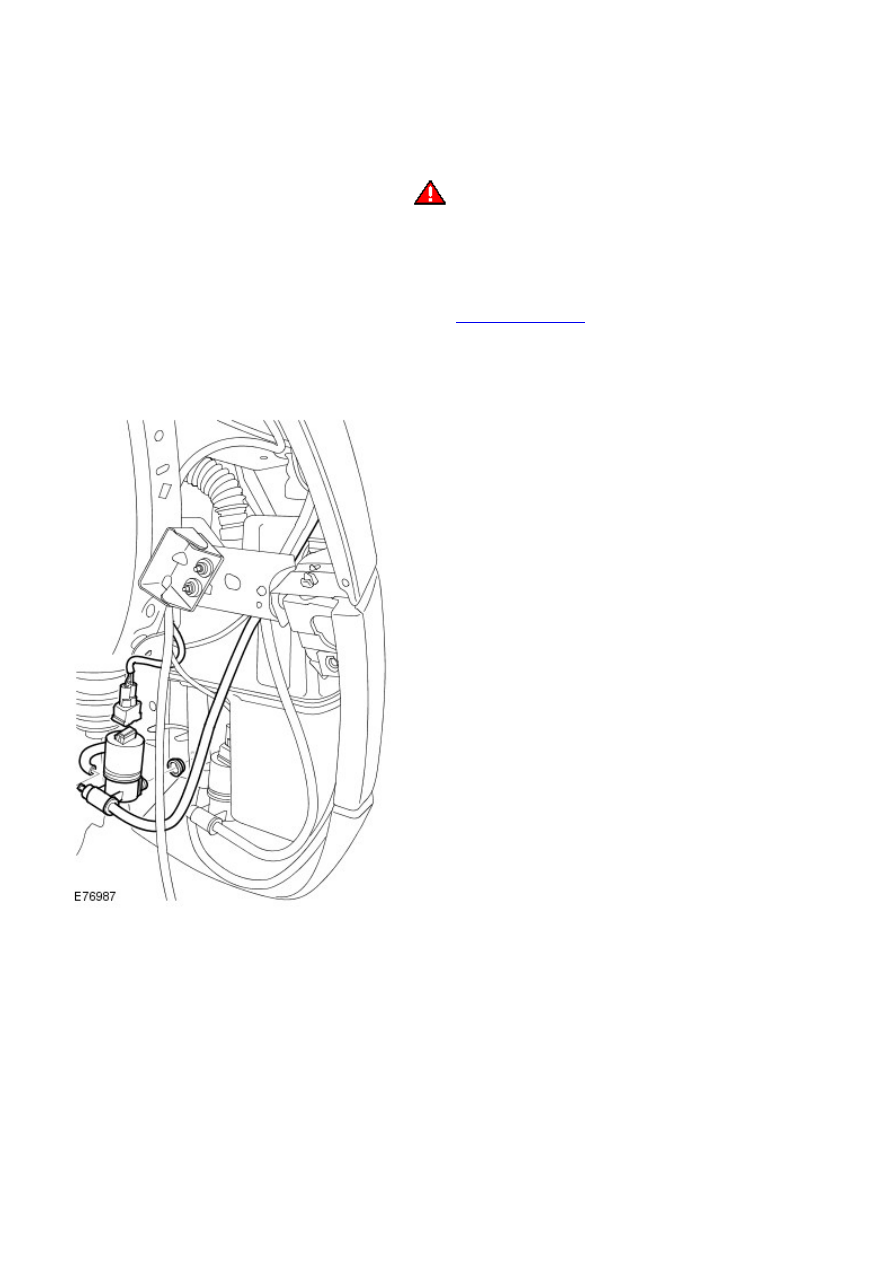

Wipers and Washers - Windshield Washer Pump

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the RH fender splash shield.

Refer to:

Fender Splash Shield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

Drain the washer reservoir fluid.

3.

4. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the windshield washer pump.

4.

Installation

To install, reverse the removal procedure.

1.

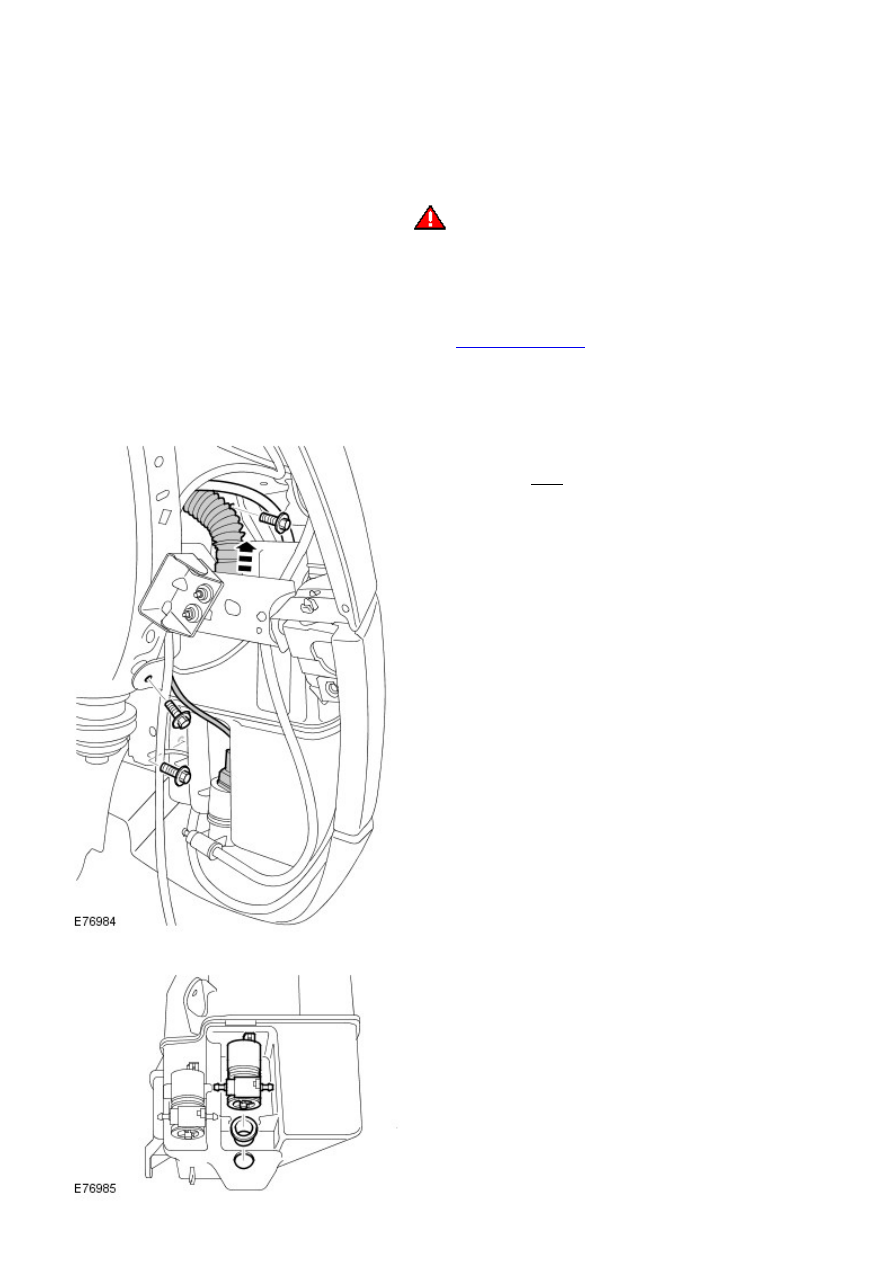

Wipers and Washers - Windshield Washer Reservoir

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the RH fender splash shield.

Refer to:

Fender Splash Shield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

Drain the washer reservoir fluid.

3.

Remove the windshield washer reservoir.

Torque: 6 Nm

4.

5. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the windshield washer pump.

5.
