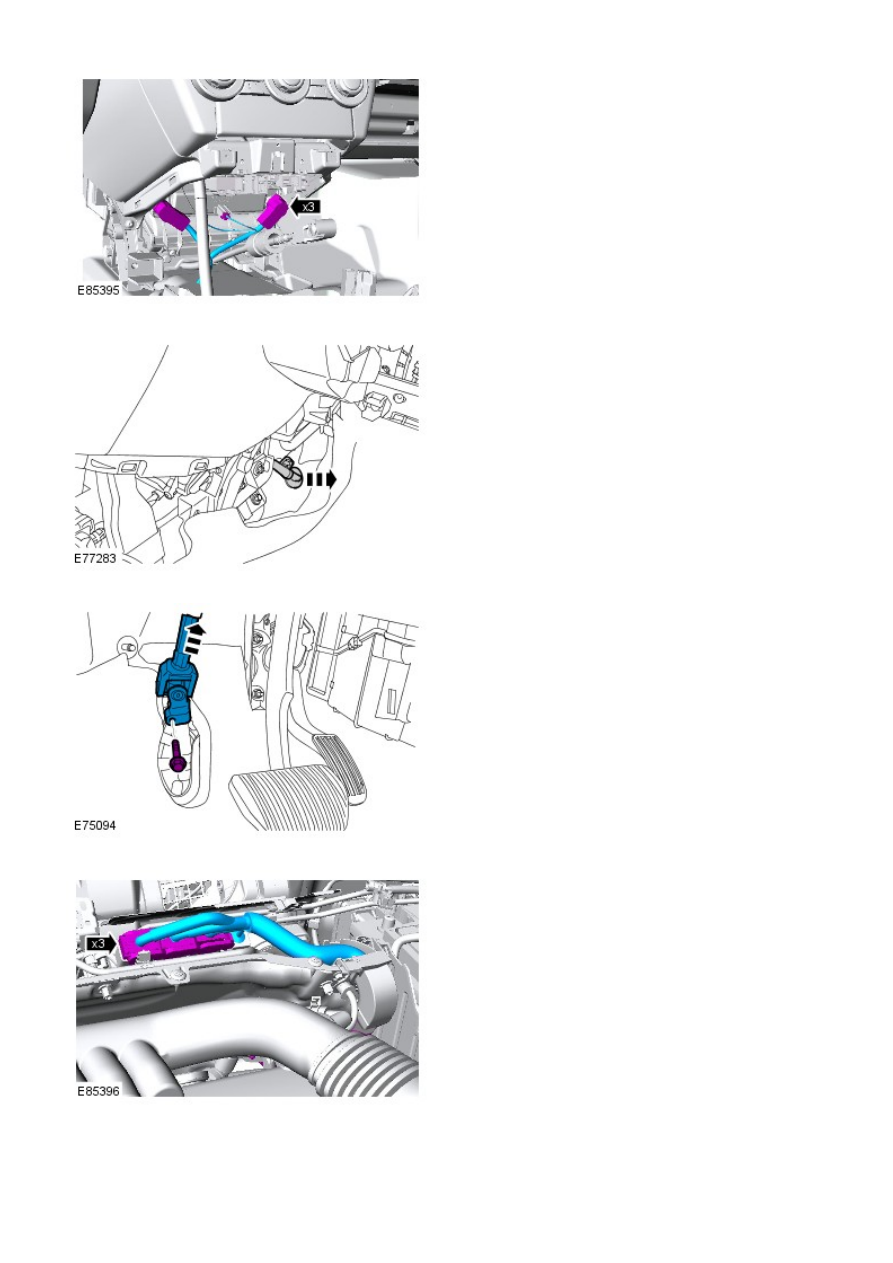

Disconnect the electric booster heater core.

20.

Disconnect the drain tube from the heater housing.

21.

Disconnect the steering column lower shaft from the
steering column.

22.

Disconnect the ECM electrical connectors.

23.

Remove the ECM bracket assembly.

24.

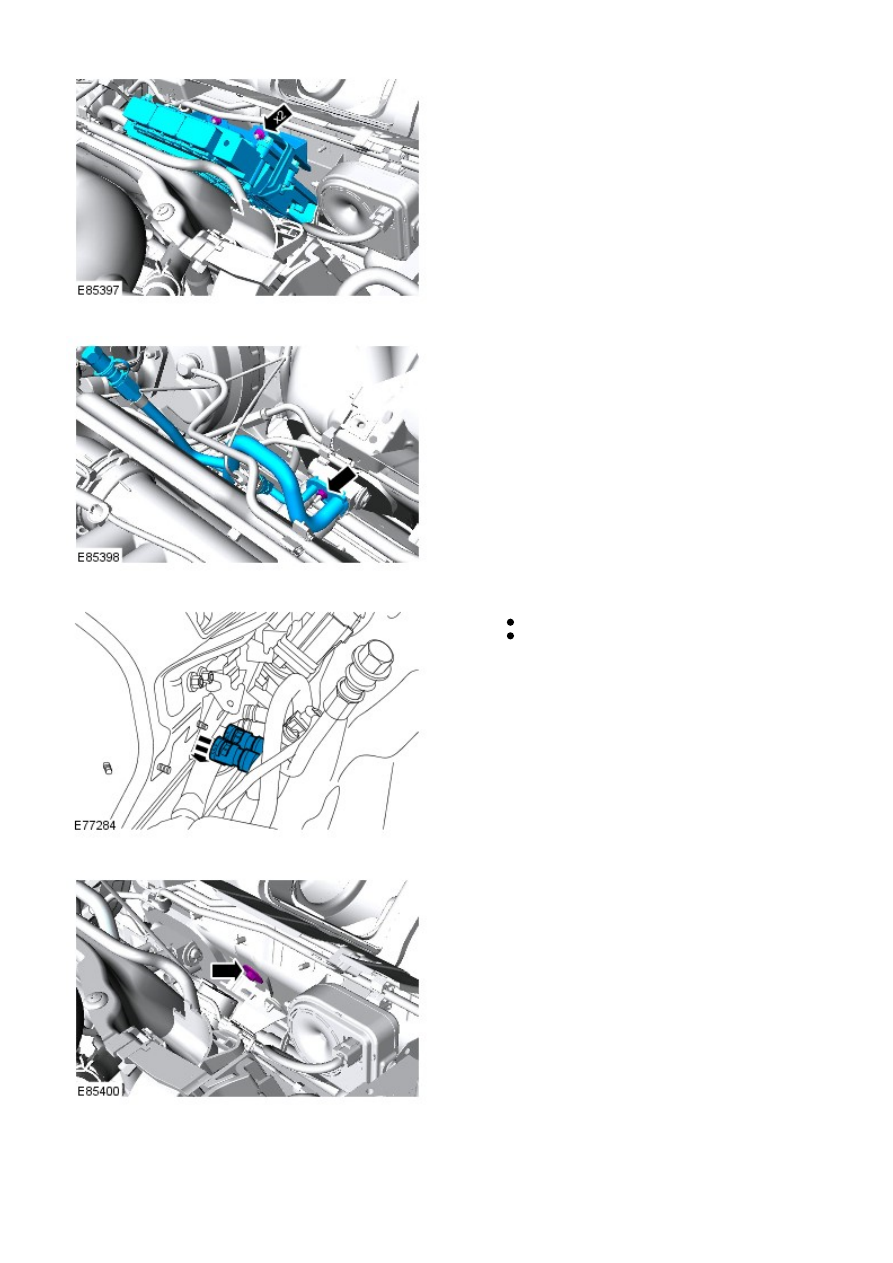

Disconnect the A/C pipes from the TXV.

25.



Clamp the hoses to minimize coolant loss.
Rotate the outer ring counter-clockwise and
disconnect the hose.

26.

27.

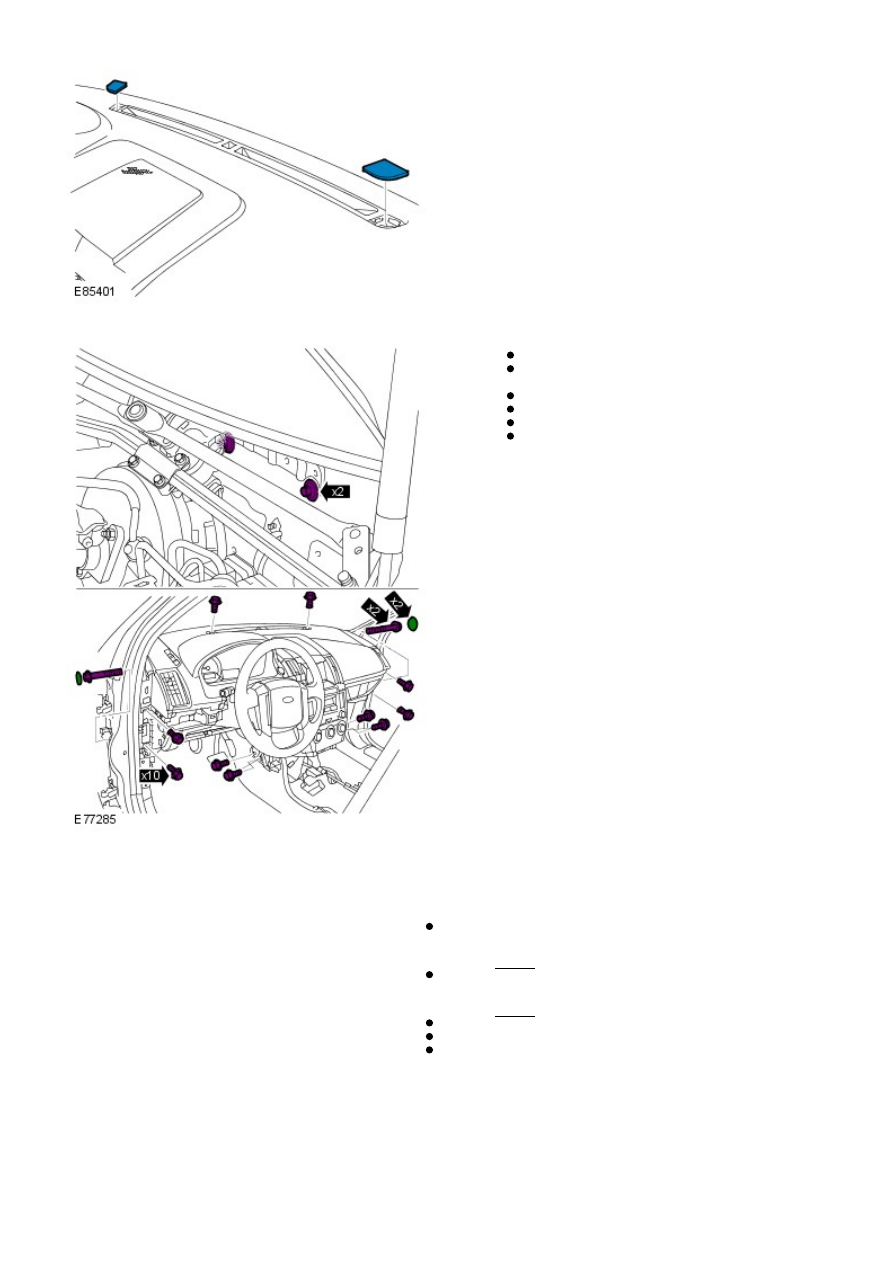

Remove the windshield defroster outer finishers.

28.



Remove the A-pillar bolt covers.
Protect the surrounding bodywork and remove
the 2 side fixing bolts.
Remove the 10 bolts.
Remove the 2 screws.
Install protective covers to interior trim.
W ith assistance, remove the instrument panel.

29.

Installation



Install and tighten the M8 bolts.

Torque: 24 Nm
Install and tighten the M12 bolts.

Torque: 40 Nm
Install the 2 screws.
Remove protective tape and covers.
Install the bolt covers.

1.

Install the windshield defroster outer finishers.

2.

Install the heater housing bolt.

3.

Install the heater core inlet and outlet hoses.

4.

Remove the coolant hose clamps.

5.

Connect the A/C pipes to the TXV and tighten the M6 nut.

Torque: 10 Nm

6.

Install the ECM bracket assembly and tighten the nuts.

Torque: 10 Nm

7.

Connect the ECM electrical connectors.

8.

9.

WARNING: Make sure that a new bolt is installed.

Connect the steering column lower shaft and tighten the bolt.

Torque: 25 Nm

9.

Connect the drain tube to the heater housing.

10.

Connect the electric booster heater core.

11.

Install the center, lower ducts to the heater housing.

12.

Install the NVH pad.

13.

Install the instrument panel wiring harness.

14.

Install the auxiliary junction box access cover.

15.

Secure the instrument panel harness to the transmission tunnel.

16.

Secure and tighten the earth lead.

Torque: 10 Nm

17.

Connect the body harness to the instrument panel.

18.

Install the floor console extensions.

19.

Install the selector lever mounting bracket.

20.

Install the transmission selector lever.

Refer to:

Selector Lever Assembly

 (307-05 Automatic

Transmission/Transaxle External Controls, Removal and
Installation).

21.

Install the LH front seat.

Refer to:

Front Seat

 (501-10 Seating, Removal and Installation).

22.

Install both cowl side trim panels.

Refer to:

Cowl Side Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

23. Secure both scuff plate trim panels.

24.

Install the A-pillar center trim panels.

25.
