Frelander 2. Manual - part 560





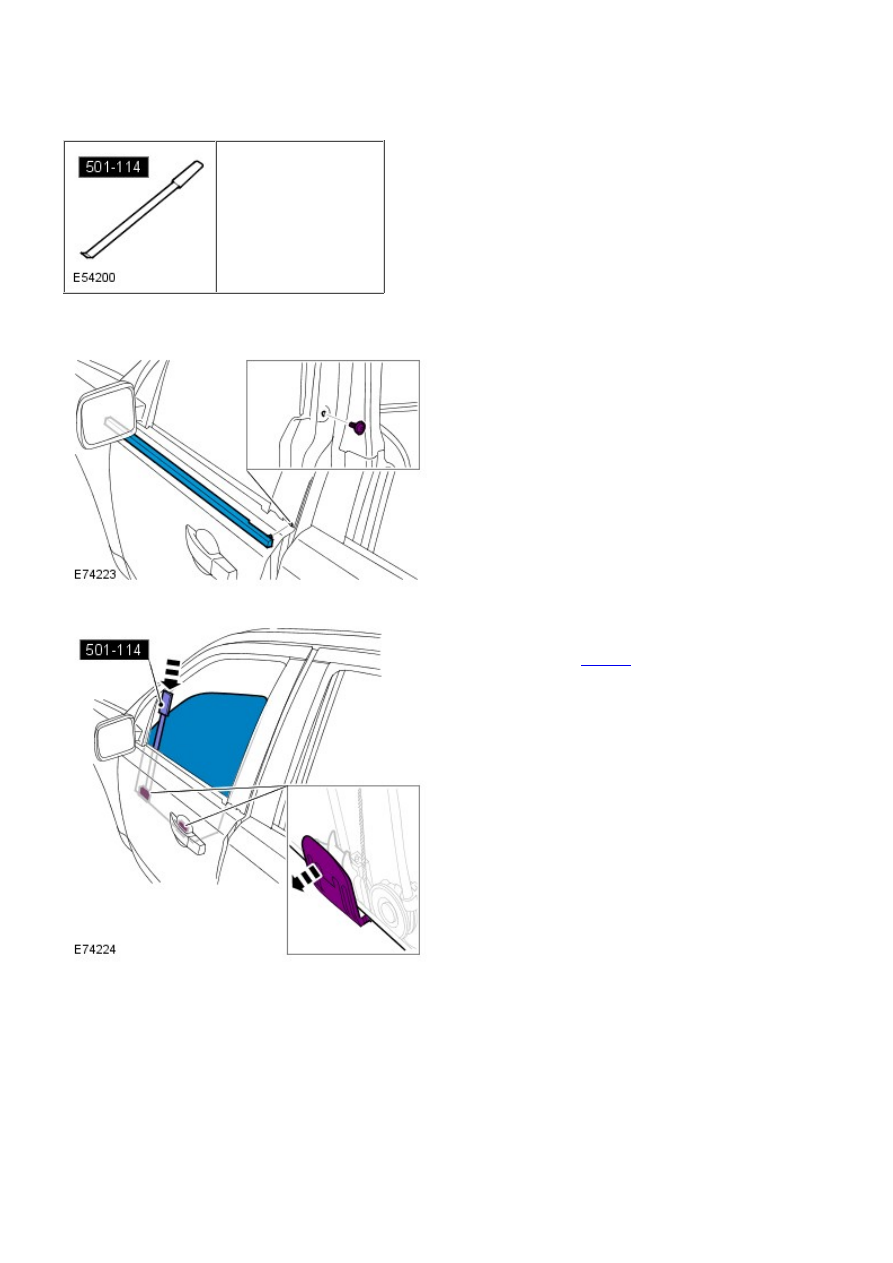

Glass, Frames and Mechanisms - Front Door Window Glass

Removal and Installation

Special Tool(s)

501-114
Release Lever, Door Glass

Removal

1.

Release the door window glass.

Special Tool(s):

501-114

2.

3.

Installation

To install, reverse the removal procedure.

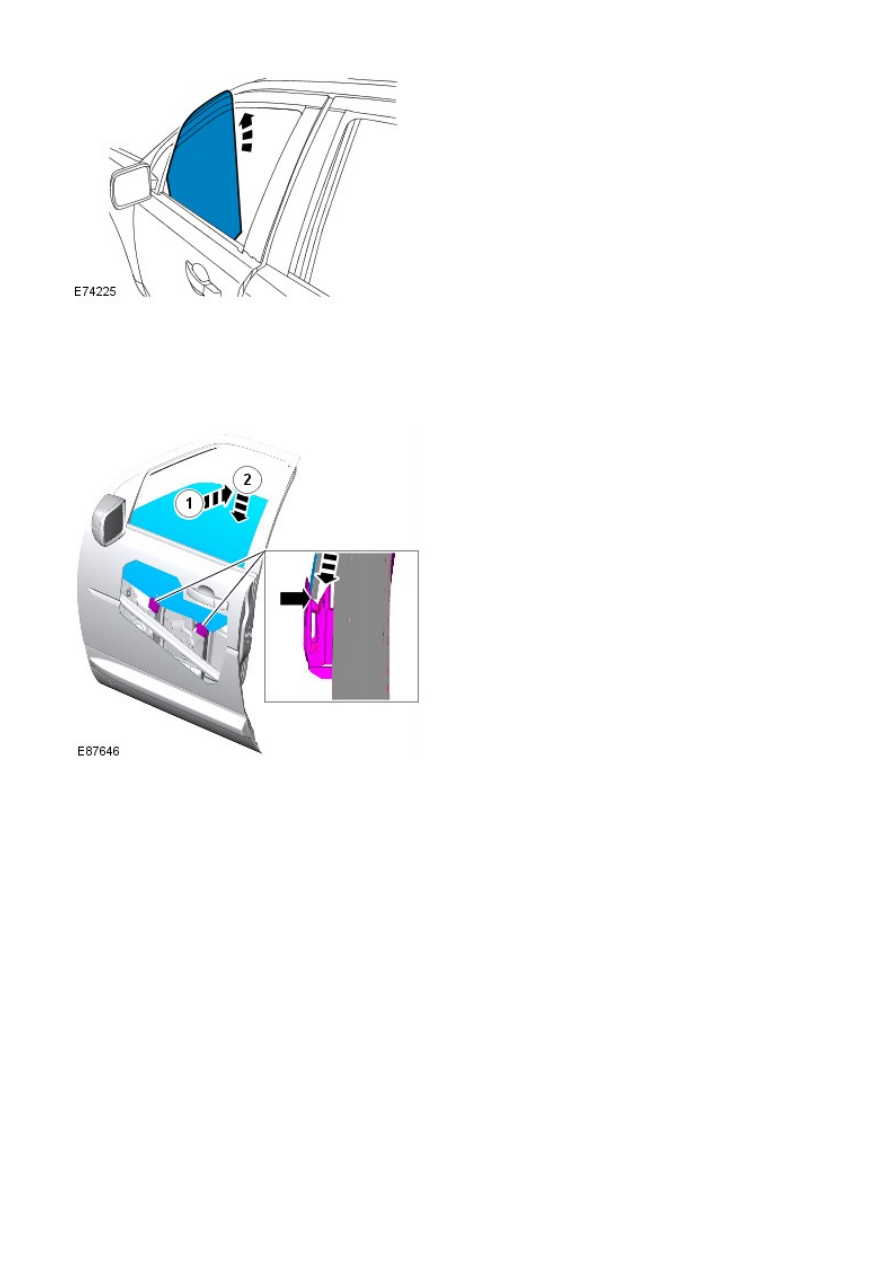

1.

To secure the door glass to the door glass mechanism,
lower the glass squarely to rest within the latches.
W ith slight pressure applied to top of glass as shown,
push the glass down to fully engage.

2.

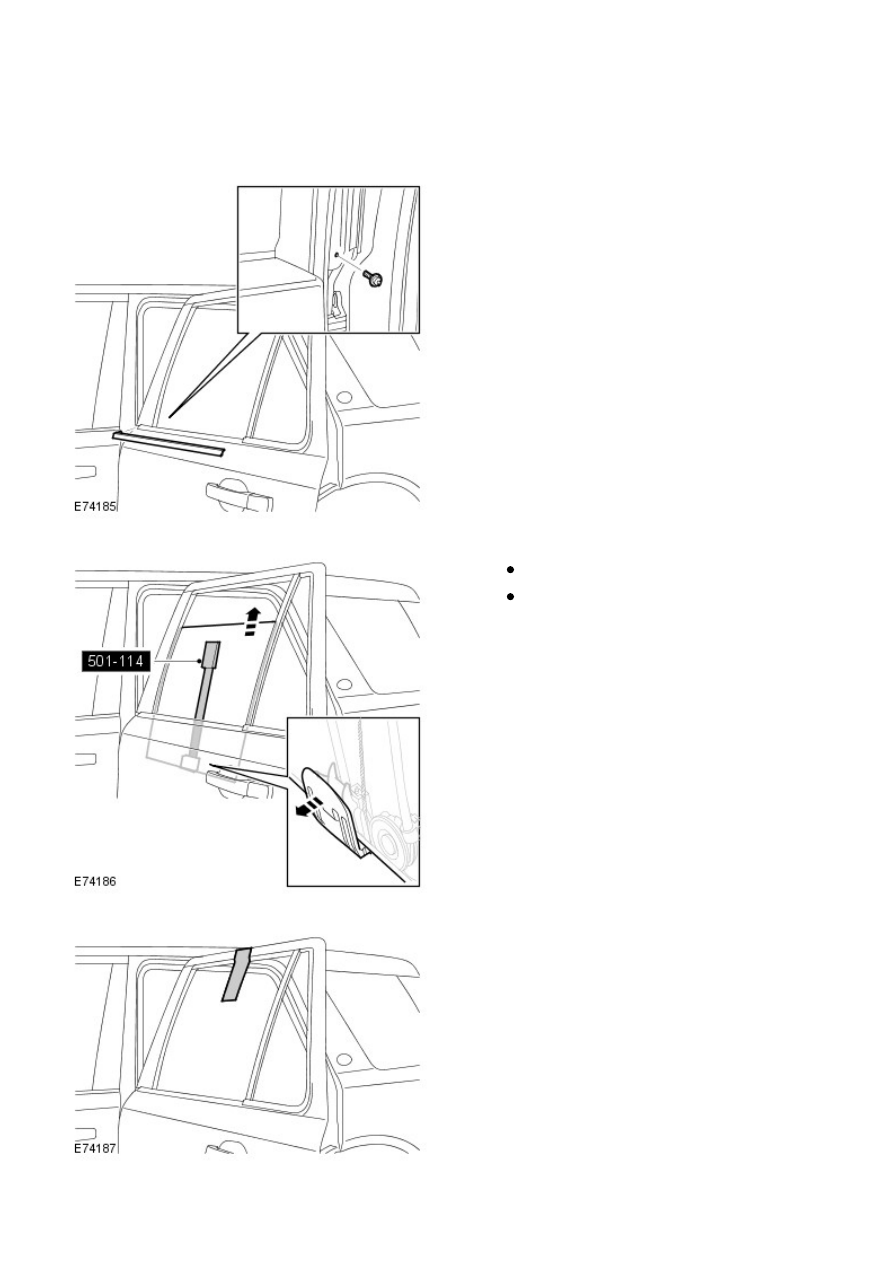

Glass, Frames and Mechanisms - Rear Door Window Glass

Removal and Installation

Removal

Carefully remove the outer waist seal.

1.



If possible, lower the window glass by
approximately one third of its travel.
Using the special tool, release the door window
glass from the window lift mechanism and raise
the glass to the top of the door frame.

2.

Secure the glass to the top of the frame.

3.

Lower the window lift mechanism.

4.



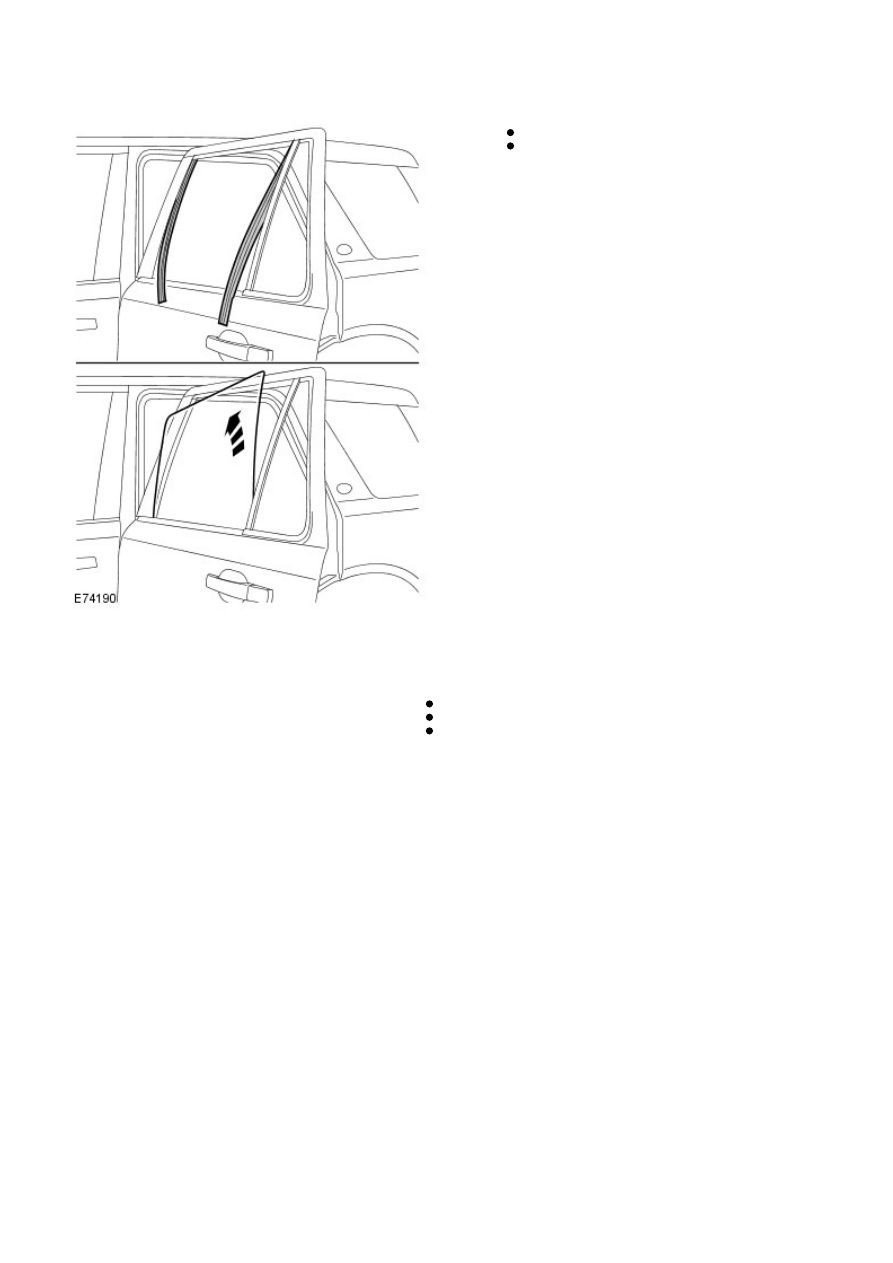

Lower the door glass to the bottom of the door.
Release the lining from both guide channels.

5.

Installation



Install the rear door window glass.
Install the guide channel lining.
Secure the glass to the top of the frame.

1.

Raise the window lift mechanism.

2.

Secure the door window glass to the window lift mechanism.

3.

Install the outer waist seal and secure with the Torx screw.

4.
