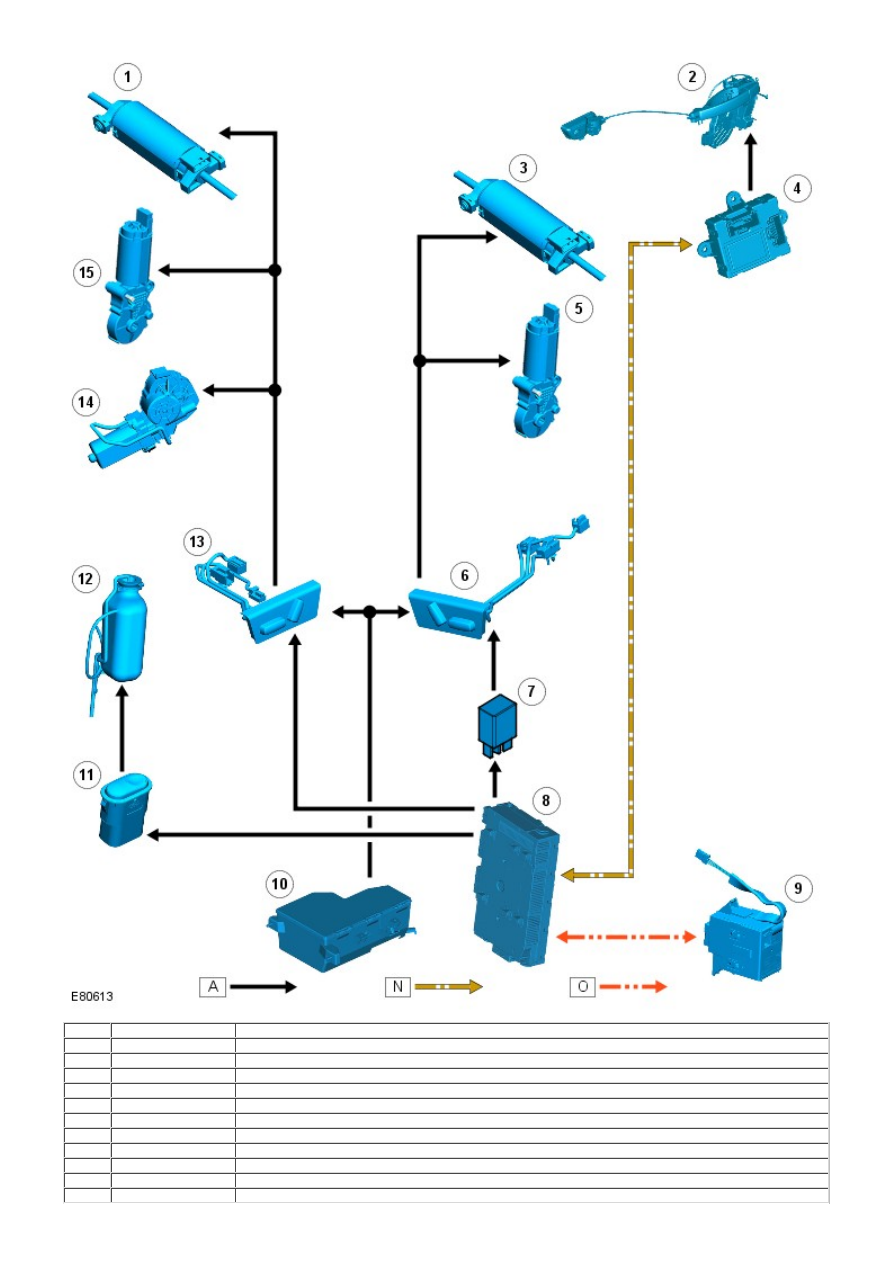

1

-

Driver's power operated non-memory seat slide motor

2

-

Driver's door latch with ajar switch

3

-

Passenger power operated non-memory seat slide motor

4

-

Driver's door control module

5

-

Passenger power operated non-memory seat squab recline motor

6

-

Passenger power operated non-memory seat switch pack

7

-

Passenger seat relay

8

-

CJB with internal battery-saver timer relay

9

-

Start control module

10

-

AJB

11

-

Power operated lumbar support switch

12

-

Power operated lumbar support motor

13

-

Driver's power operated non-memory seat switch pack

14

-

Driver's power operated non-memory seat height motor

15

-

Driver's power operated non-memory seat squab recline motor

CONTROL DIAGRAM - DRIVER'S POWER OPERATED MEMORY SEAT (SHEET 2 OF 3)

• NOTE: A = Hardwired; N = Medium speed CAN bus; O = LIN bus.

Item

Part Number

Description

1

-

Driver's power operated memory seat slide motor

2

-

Driver's door latch with ajar switch

3

-

Driver's door control module

4

-

LH exterior mirror

5

-

Passenger door control module

6

-

RH exterior mirror

7

-

Instrument cluster

8

-

CJB with battery-saver timer relay

9

-

Start control module

10

-

AJB

11

-

Power operated lumbar support switch

12

-

Power operated lumbar support motor

13

-

Driver's power operated memory seat switch pack

14

-

Driver's power operated memory seat height motor

15

-

Driver's power seat module

16

-

Driver's power operated memory seat squab recline motor

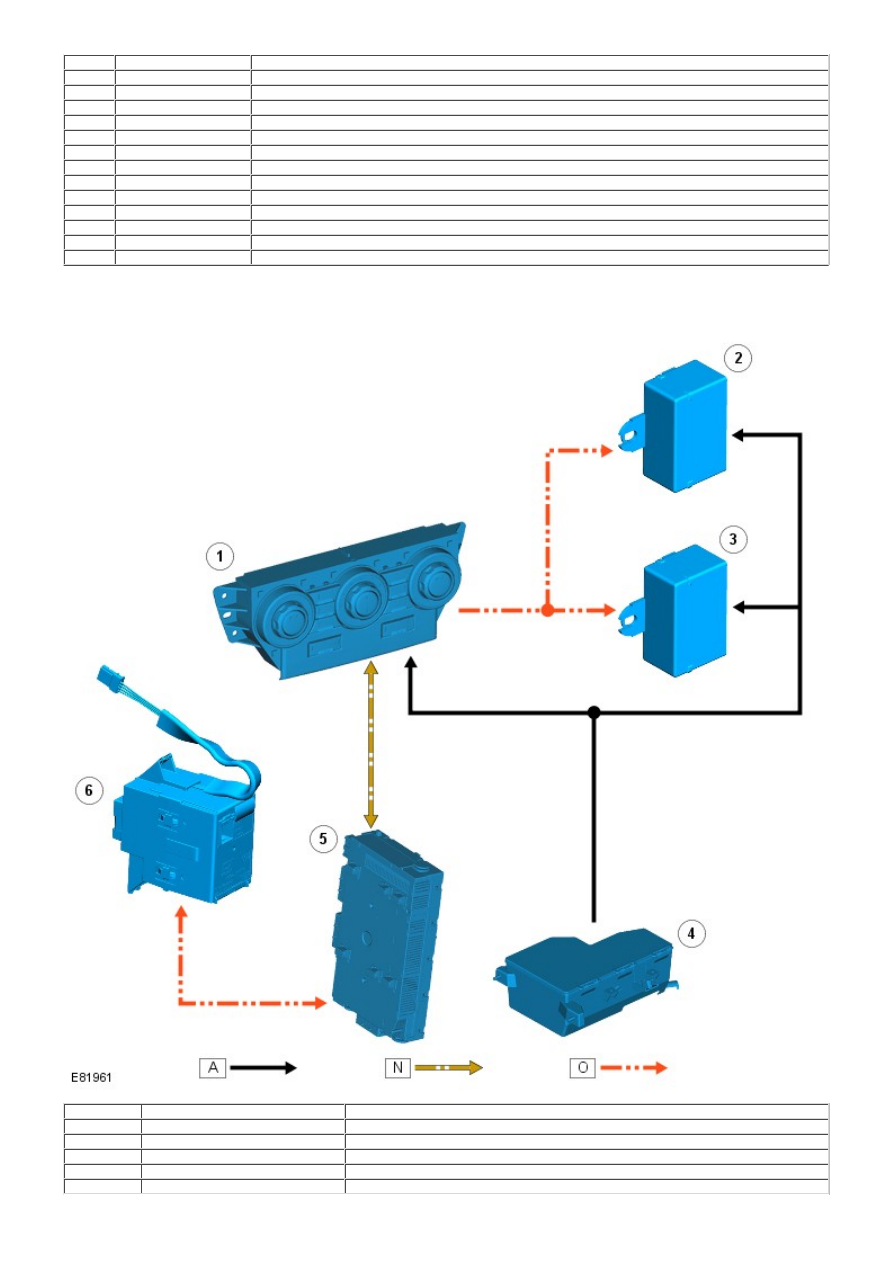

CONTROL DIAGRAM - FRONT SEAT HEATING (SHEET 3 OF 3)

• NOTE: A = Hardwired; N = Medium speed CAN bus; O = LIN bus.

Item

Part Number

Description

1

-

ATC module

2

-

Driver's seat heating module

3

-

Passenger seat heating module

4

-

AJB

5

-

CJB

6

-

Start control module

PRINCIPLES OF OPERATION

Front Power Operated Non-Memory Seats

The driver's non-memory seat will operate in all ignition power modes. The passenger non-memory seat will only operate
when the ignition is in power mode 6 (Ignition).

Power for front passenger seat operation is supplied from the AJB via a passenger seat power relay to the passenger seat
control switch pack. Power for the driver's seat operation is supplied directly from the AJB to the driver's seat control
switch pack. The front passenger and driver seat power supplies are controlled by the CJB. The seat switch pack directs the
voltage to the relevant seat adjustment motor when a seat control switch is pressed. Two pins within each of the seat
switch packs control the seat motors. Both pins are normally connected to ground.

The driver and passenger switch packs are also connected in circuit with a battery-saver timer relay that is located in, and
controlled by the CJB. The battery-saver timer relay allows operation of the driver and passenger seat controls for 10
minutes after the engine is switched off, and the ignition is then selected to an appropriate power mode. The 10 minute
timer is reset if the appropriate ignition power mode is retained and the driver's door is opened or closed. The driver and
passenger seat operation is inhibited immediately following central locking of the vehicle.

Operating a seat motor control switch applies voltage to one of the pins while the other pin remains connected to ground.
Operating the seat motor control switch in the opposite direction reverses the power and ground connections to the motor,
allowing the motor pinion to rotate in the opposite direction. In the event that a motor seizes or sticks, an internal
thermal cut-out switch will trip to remove voltage from the motor.

Driver's Power Operated Memory Seat

The driver's memory seat will operate when the ignition is in power modes 4 (Accessory) and 6 (Ignition), and will not
operate during power mode 9 (Engine crank).

Power for the driver's memory seat operation is supplied directly from the AJB to the power seat module. The memory seat
switch pack is connected to the power seat module that controls the operation and memory position of the individual seat
motors. The power seat module is connected on the medium speed CAN bus to the CJB and the front LH and RH door
control modules.

The power seat module is also connected in circuit with a battery-saver timer relay that is located within, and controlled by
the CJB. The battery-saver timer relay allows operation of the seat controls for 10 minutes after the engine is switched off,
and the ignition is then selected to an appropriate power mode. The 10 minute timer is reset if the appropriate ignition
power mode is retained and the driver's door is opened or closed. The driver's seat operation is inhibited immediately
following central locking of the vehicle.

Requests for memory exterior mirror movements for a memory recall are transmitted on the medium speed CAN bus by the
power seat module to the front door control modules. The front door control modules directly control the memory store and
recall positions for the memory exterior mirrors.
For additional information, refer to:

Rear View Mirrors

 (501-09 Rear View Mirrors, Description and Operation).

Power Seat Module

The power seat module features driver selectable functions, and automatic monitoring functions.

Driver Selectable Functions

Seat and exterior mirror memory recall
Immediate seat adjustment.

Seat and exterior mirror memory recall function

The memory recall function sets the driver's seat to a stored position, and is activated when a switch pack memory
position button is pressed. When memory recall is initiated, only 2 seat adjustment motors will operate at any one time to
limit the overall current consumption. To further minimize the current load as the motors energize, the initiation of each of
the 2 operating motors is phased with a 10 millisecond delay. The cushion slide and backrest will move first, followed by
the cushion height.

As soon as the seat switch pack memory position button is pressed, a message is transmitted by the power seat module
on the medium speed CAN bus to the front door control modules. The door control modules then activate the memory
recall positions for the exterior mirrors. The instrument cluster message center will display memory recall messages when
a memory recall is activated.

The memory recall function operates with 2 separate modes; the operation of each mode is dependant on the vehicle
status when the seat memory position button is pressed.

Memory recall operating modes:

One-touch mode
Proportional mode.

One-Touch Mode

When the vehicle is stationary and a switch pack memory position button is pressed, the memory recall function will
operate in 'one-touch' mode. One touch mode allows the seat and exterior mirrors to immediately move to the requested
stored memory position.

If a seat adjustment or memory position button is operated during memory recall 'one-touch' mode, the current memory
recall will be cancelled and the seat (and exterior mirrors via the medium speed CAN bus) will immediately stop moving.
The seat will then commence moving in the direction that corresponds to the pressed switch.
