Frelander 2. Manual - part 540





Rear View Mirrors -

Interior Rear View Mirror Types

Item

Land Rover Part No.

Prismatic / manual dipping mirror

6H52 17K695 AB

Electrochromatic mirror

6H52 17e678 AB

Electrochromatic mirror with Humidity sensor

6H52 17E678 BB

Torque Specifications

Description

Nm

lb-ft

Exterior mirror bolts

10

7

Rear View Mirrors - Rear View Mirrors

Description and Operation

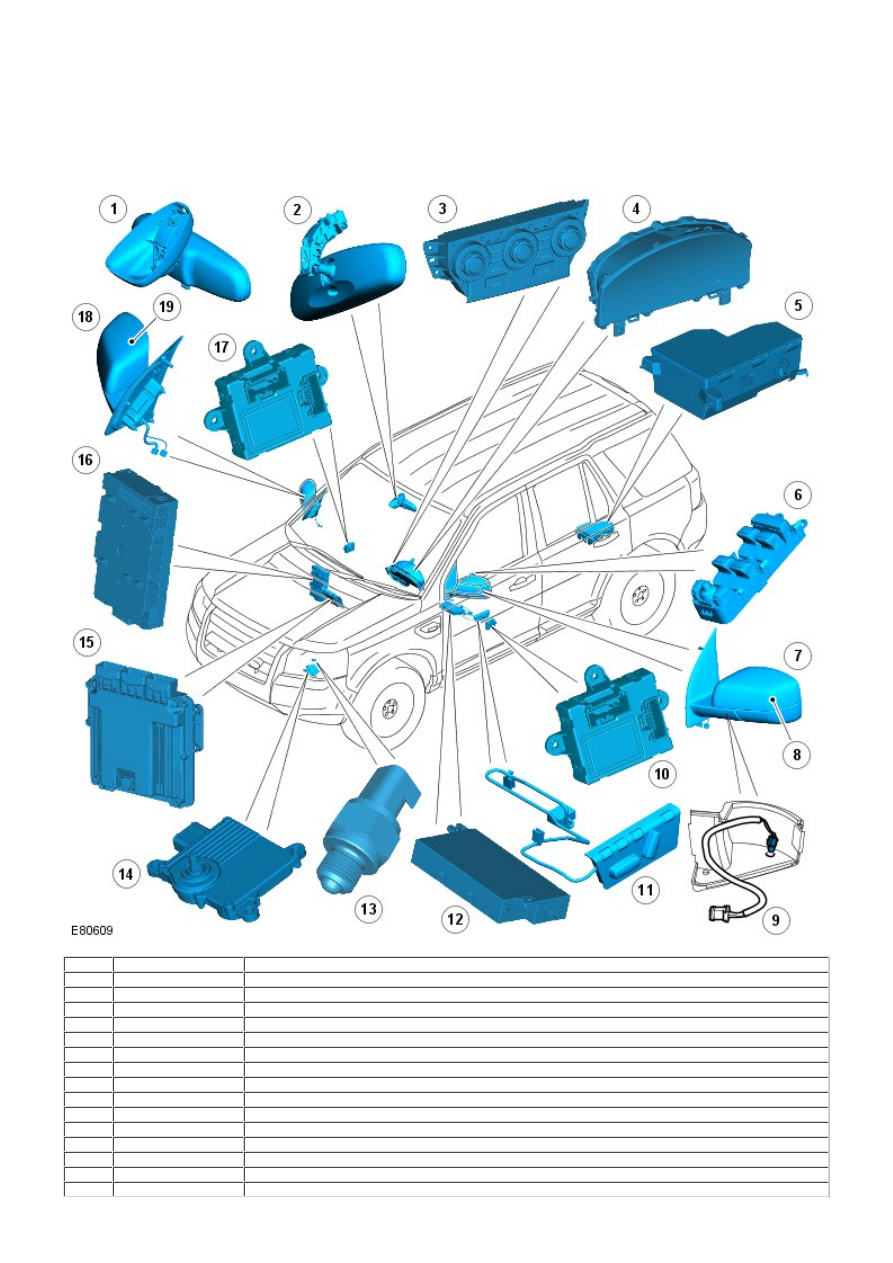

COMPONENT LOCATION

• NOTE: Left-Hand Drive (LHD) shown; Right-Hand Drive (RHD) similar.

Item

Part Number

Description

1

-

Manual dimming interior mirror

2

-

Automatic dimming interior mirror

3

-

Automatic Temperature Control (ATC) module

4

-

Instrument cluster

5

-

Auxiliary Junction Box (AJB)

6

-

Exterior mirror switch pack

7

-

Left-Hand (LH) exterior mirror

8

-

LH exterior mirror motor

9

-

Ambient air temperature sensor

10

-

LH door control module

11

-

Driver's memory seat switch pack

12

-

Driver's memory seat control module

13

-

Reverse gear switch - manual transmission

14

-

Transmission Control Module (TCM) - automatic transmission

15

-

Engine Control Module (ECM)

16

-

Central Junction Box (CJB)

17

-

Right-Hand (RH) door control module

18

-

RH exterior mirror

19

-

RH exterior mirror motor

OVERVIEW

The rear view mirrors comprise an interior mirror mounted to the windshield, and an exterior mirror mounted on each front
door cheater.

For Japanese specification vehicles, a driver proximity mirror is installed on the LH front corner of the hood.

The types of mirrors and associated operating functions installed depend on the specification and trim level of the vehicle.

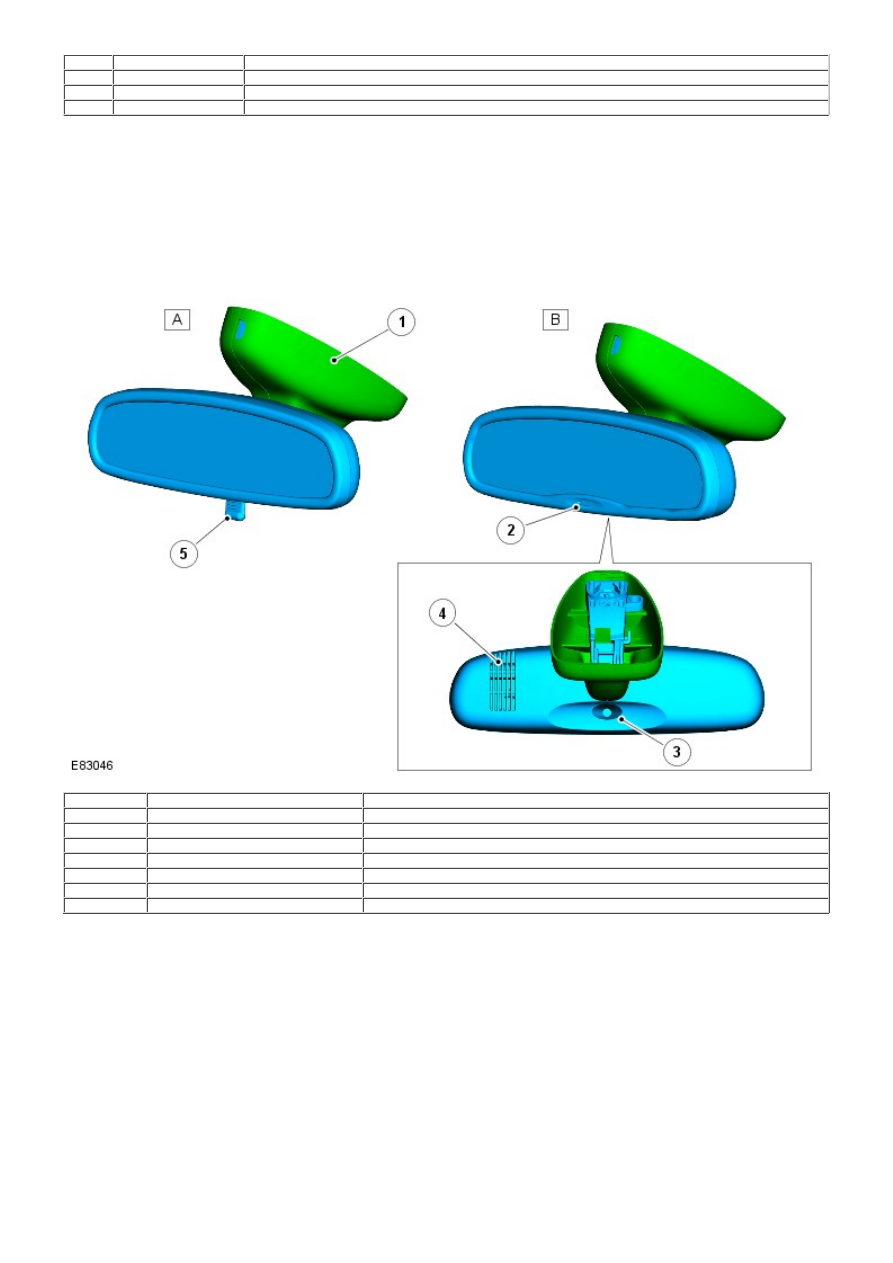

INTERIOR MIRROR

Item

Part Number

Description

A

-

Manual dimming mirror

B

-

Automatic dimming mirror

1

-

Mirror stem cover (2 piece)

2

-

Rearward facing light sensor

3

-

Forward facing light sensor

4

-

Cabin humidity sensor

5

-

Manual dimming mirror lever

The interior rear view mirror is provided as a manual dimming or an electrically operated automatic dimming type. On
certain vehicles, a cabin humidity sensor is incorporated in the electrically operated mirror casing.

Manual Dimming Mirror

The manual dimming mirror comprises a prismatic glass housed within a surrounding case that is attached with a ball joint
connector to the mirror stem.

Manual dimming of the mirror is achieved using the lever mounted on the underside of the mirror body. Operating the lever
will tilt the mirror head from the 'day' position to the 'night' position.

Automatic Dimming Mirror

The automatic dimming mirror comprises an electro-chromatic glass housed within a surrounding case that is attached with
a ball joint connector to the mirror stem. The mirror stem incorporates an 8-pin electrical connector that is connected to
the roof panel wiring harness. The wiring harness provides hardwired and a Local Interconnect Network (LIN) connection to
the CJB.

Light sensors are mounted on the front and rear of the mirror surround case. The sensors control the automatic dimming
feature to reduce glare from the headlights of following vehicles.

The automatic dimming function is permanently active when the ignition is in power mode 4 (Accessory) and power mode 6

(Ignition). The forward facing light sensor monitors the ambient light level at the front of the vehicle; the rearward facing
light sensor monitors the light level coming from the rear of the vehicle. W hen light from the rear of the vehicle exceeds
the ambient light level from the front of the vehicle, the automatic dimming circuit darkens the interior mirror surface.

Automatic dimming is inhibited when reverse gear is selected to provide the driver with maximum vision. On vehicles with
automatic transmission, the reverse gear signal is provided by the TCM via the high speed Controller Area Network (CAN)
bus to the CJB. The CJB then provides a power feed to the mirror. On vehicles with manual transmission, the reverse gear
signal is provided by a transmission switch that is hardwired to the CJB.

Cabin Humidity Sensor

Depending on the vehicle specification, the automatic dimming interior mirror may also incorporate a cabin humidity
sensor. The cabin humidity sensor is located in the mirror rear casing near to the windshield, and provides the ATC module
with information regarding the probability of windshield misting. This information is used to vary the automatic operation
of the climate control system.
For additional information, refer to:

Control Components

 (412-01 Climate Control, Description and Operation).

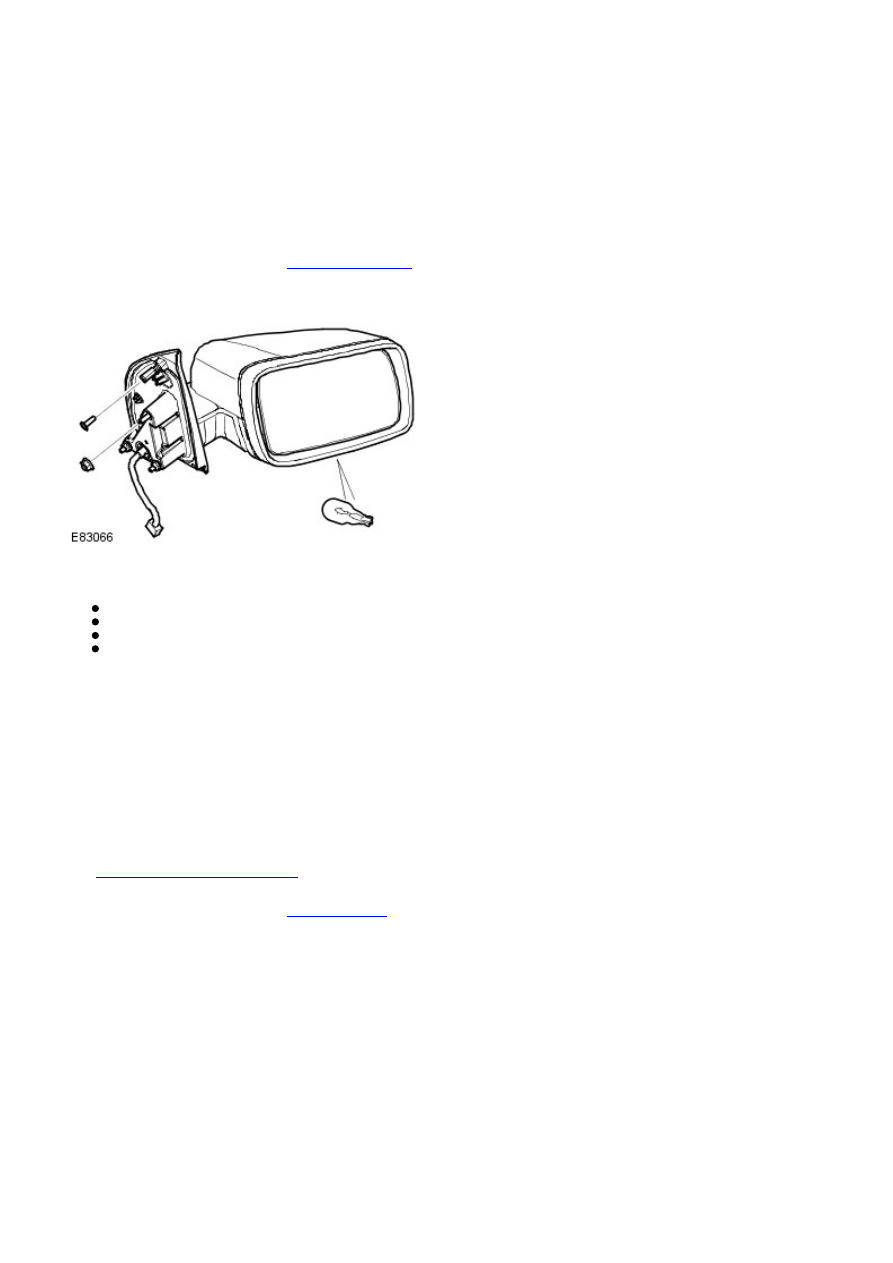

EXTERIOR MIRRORS

Electrically operated and heated exterior mirrors are installed as standard. Depending on the specification and trim level of
the vehicle, the following options are available:

Power fold (switch pack operated feature) and auto fold (remote handset operated feature)
Memory recall
Reverse gear mirror dip
Exterior mirror lamps.

The power fold/auto fold feature is available only when power fold mirrors are installed to the vehicle.

The auto fold and reverse gear mirror dip functions are not customer configurable, but may be enabled or disabled by the
dealer using the Land Rover approved diagnostic system. The diagnostic system enables or disables either or both
functions by setting the EEPROM contained within the instrument cluster.

The LH door mirror incorporates an ambient air temperature sensor that is hardwired to the ECM. The ECM is connected to
the CJB and other control modules via the high speed CAN bus. The sensor provides information to the ECM that is then
transmitted on the medium speed CAN bus for use by other control modules. On vehicles installed with a high-line
instrument cluster, the CJB transmits the temperature signal to the instrument cluster that provides a display of the
ambient temperature to the driver.

For additional information, refer to:

Electronic Engine Controls - 2.2L Diesel (303-14 Electronic Engine Controls - 2.2L Diesel, Description and Operation),

Information and Message Center

 (413-08 Information and Message Center, Description and Operation).

The exterior mirror lamps are controlled by the interior lighting function.
For additional information, refer to:

Interior Lighting

 (417-02 Interior Lighting, Description and Operation).

Exterior Mirror Adjustment
