Frelander 2. Manual - part 537

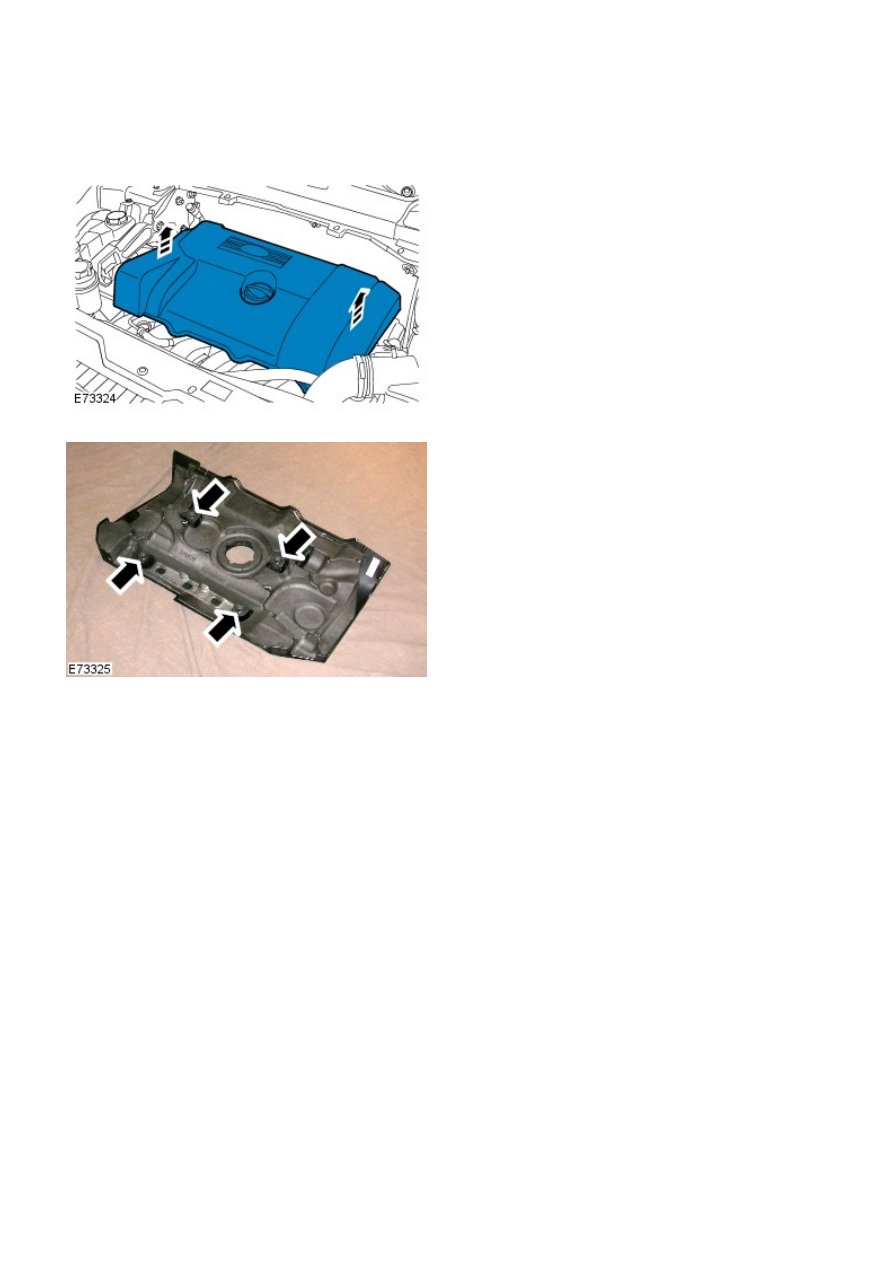

Interior Trim and Ornamentation - Engine CoverI6 3.2L Petrol

Removal and Installation

Removal

1.

2. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the 4 clips.

2.

Installation

To install, reverse the removal procedure.

1.

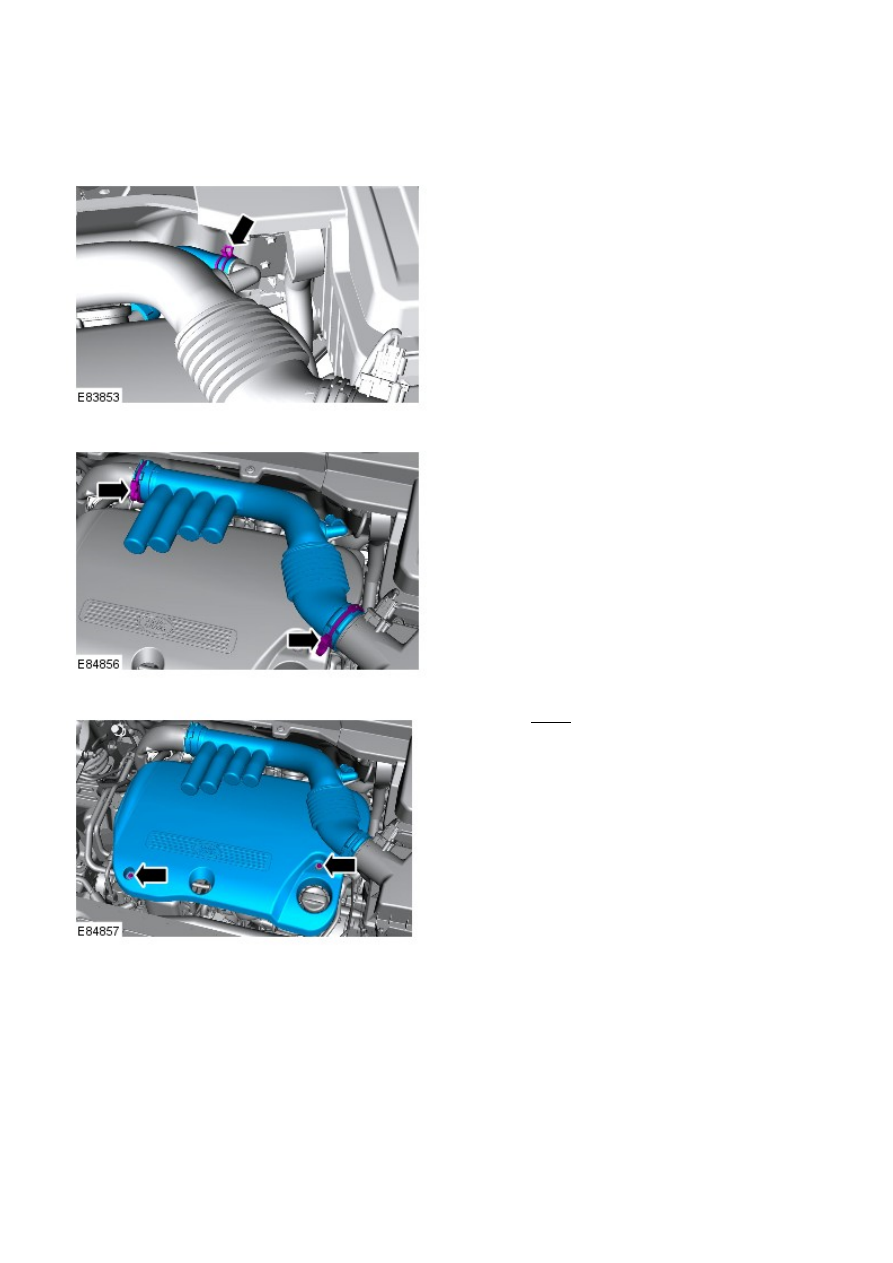

Interior Trim and Ornamentation - Engine CoverTD4 2.2L Diesel

Removal and Installation

Removal

1.

2.

Torque: 10 Nm

3.

Torque: 10 Nm

4.

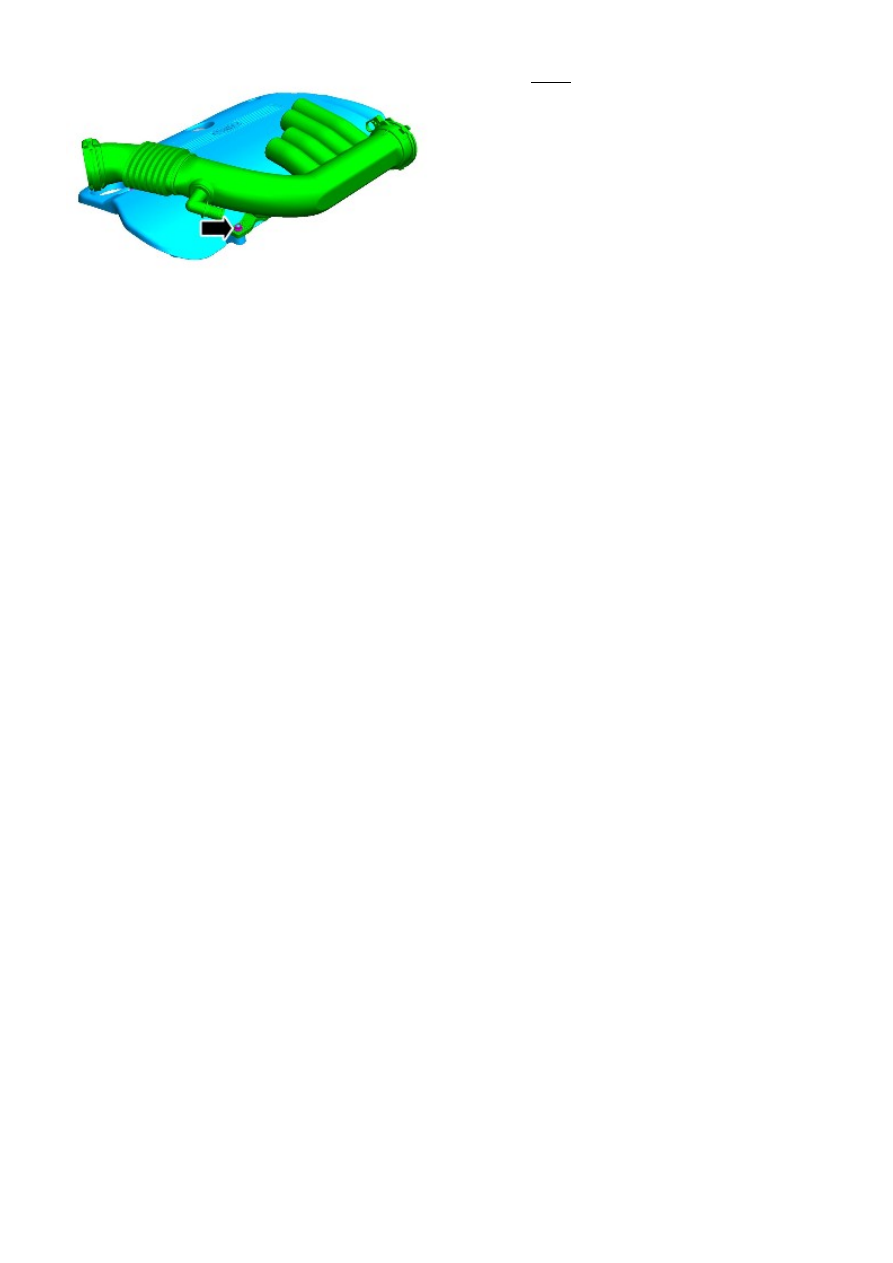

Installation

To install, reverse the removal procedure.

1.

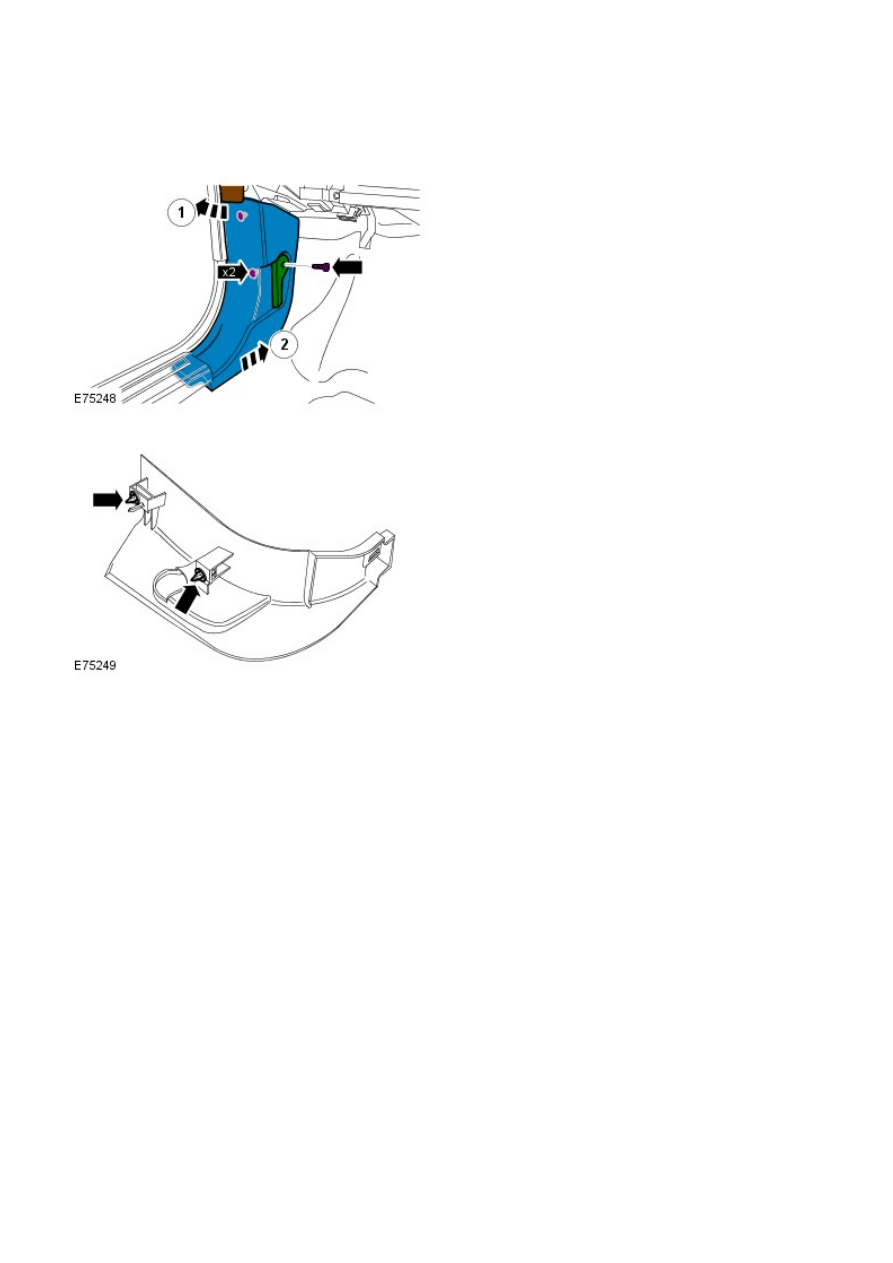

Interior Trim and Ornamentation - Cowl Side Trim Panel

Removal and Installation

Removal

1.

2. NOTE: Do not disassemble further if the component
is removed for access only.

2.

Installation

To install, reverse the removal procedure.

1.
