Body Closures - Power Liftgate Switch

Removal and Installation

Removal

Remove the liftgate trim panel.

Refer to:

Liftgate Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

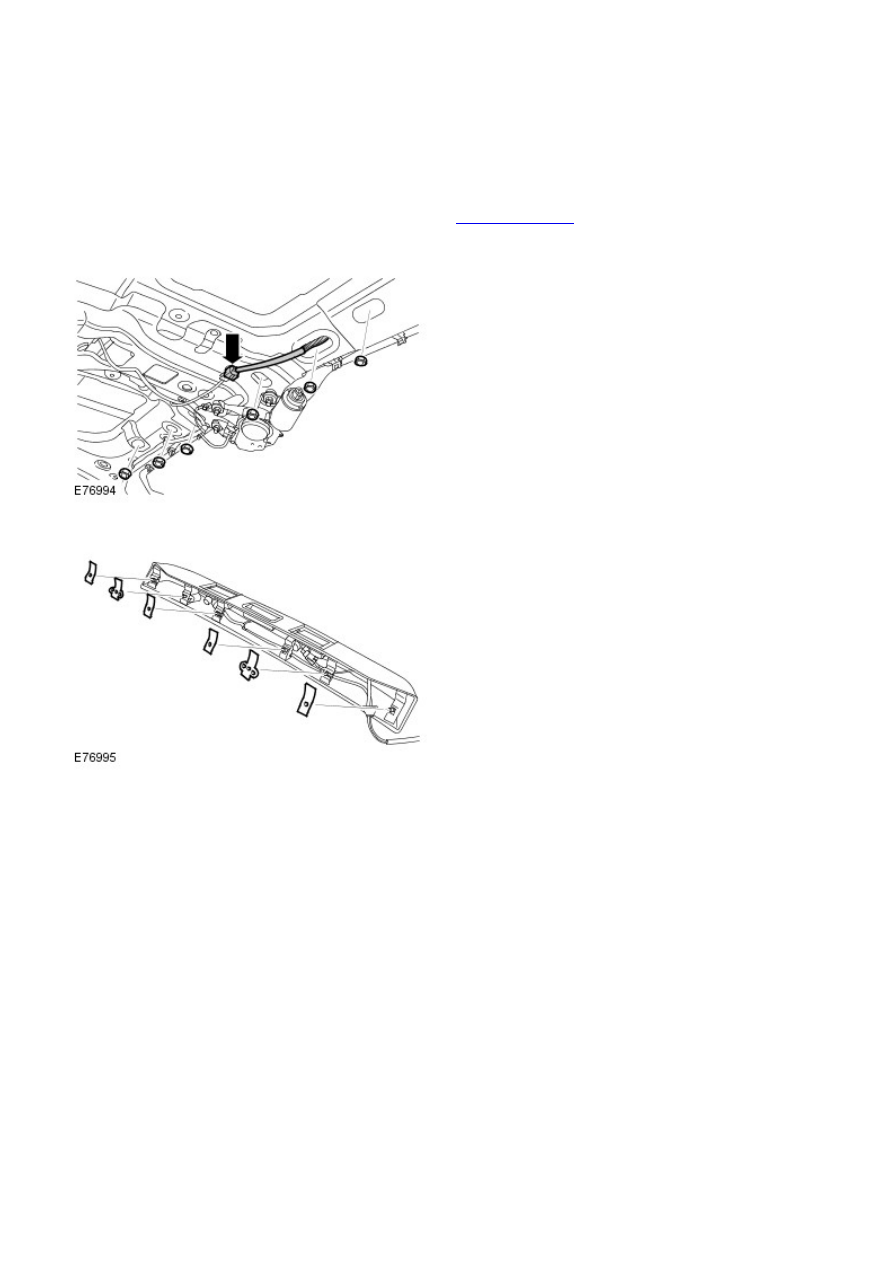

Remove the license plate lamp housing.

2.

Remove and discard the 6 license plate housing
gaskets.

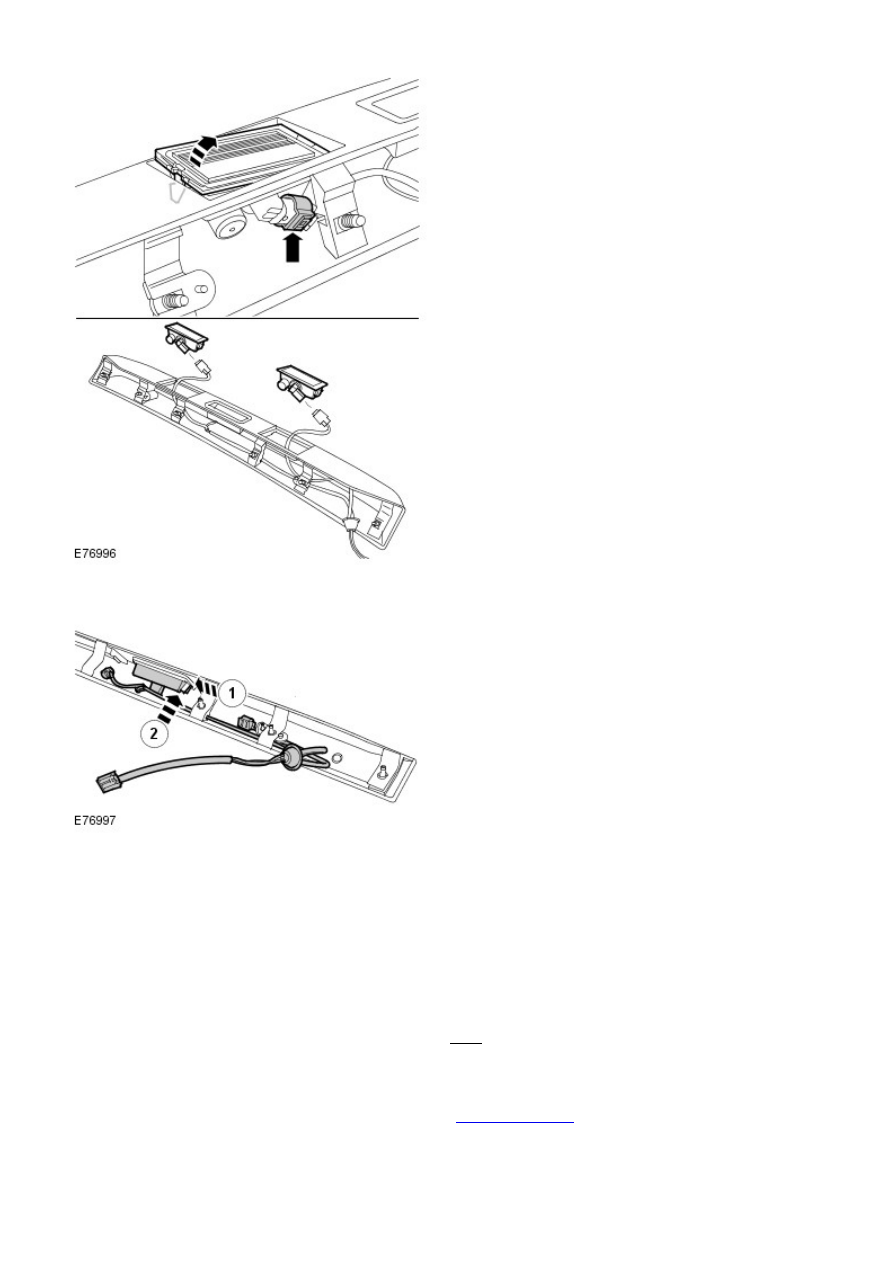

3.

Remove the license plate lamps.

4.

Remove the power liftgate switch.

5.

Installation

Install the power liftgate switch.

1.

Install the license plate lamps.

2.

Install the license plate housing and tighten the nuts.

Torque: 5 Nm

3.

Install the liftgate trim panel.

Refer to:

Liftgate Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

4.

Body Closures - Liftgate

Removal and Installation

Removal

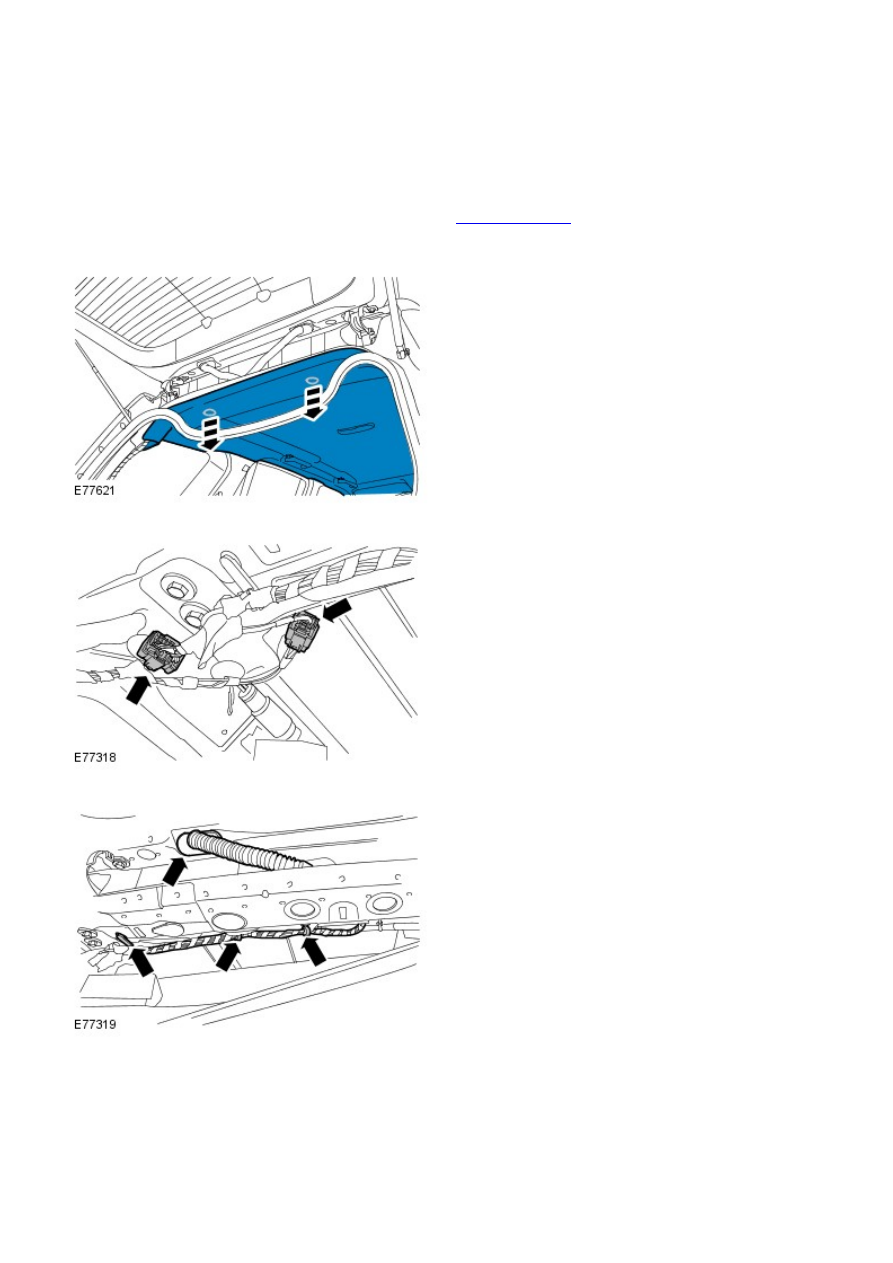

Remove the LH D-pillar upper trim panel.

Refer to:

D-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

Release the rear of the headliner.

2.

3.

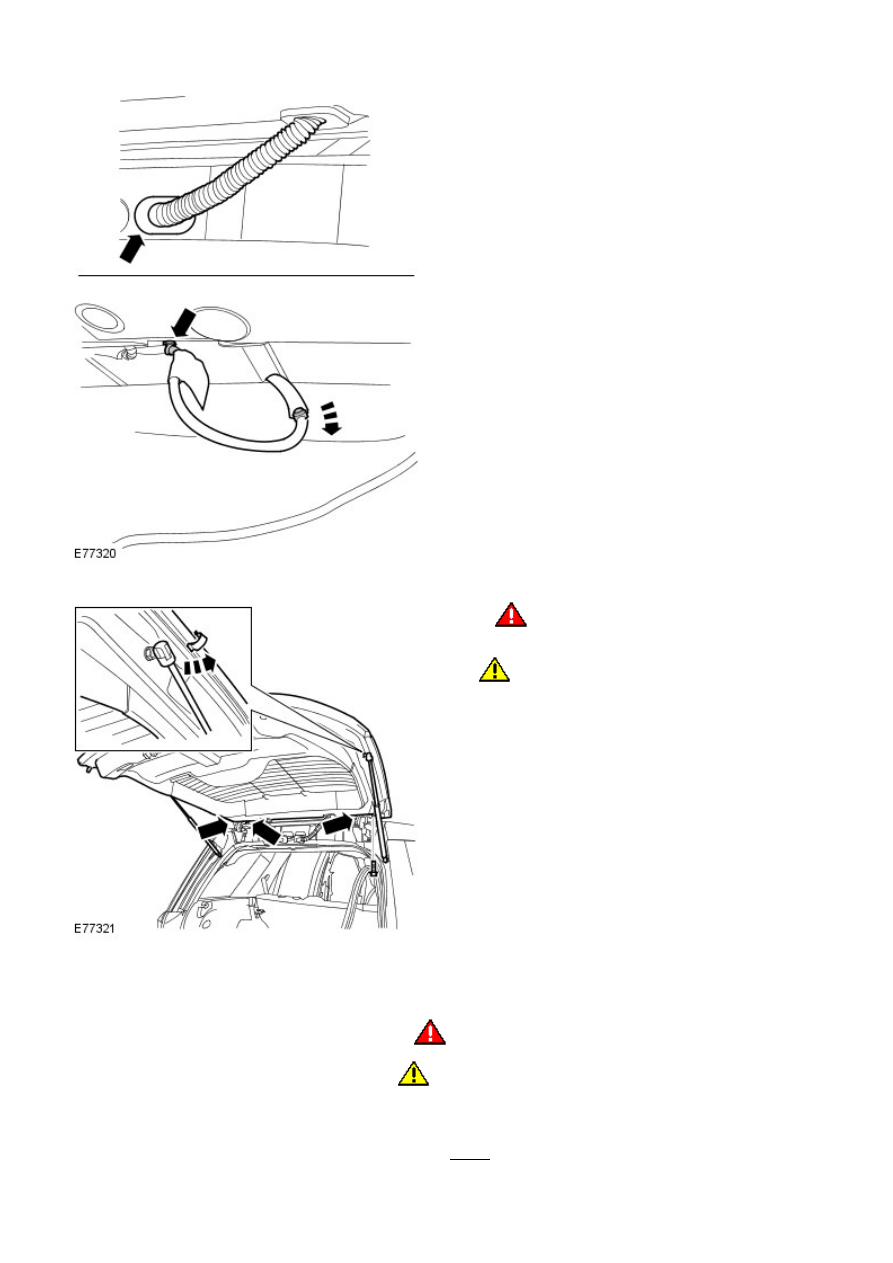

Release the liftgate wiring harness.

4.

5.

6.

WARNING: This step requires the aid of

another technician.

CAUTION: Mark the components to aid

installation.

Remove the liftgate.

6.

Installation

1.

WARNING: This step requires the aid of another technician.

CAUTION: Make sure that the area around the component is

clean and free of foreign material.

Install the liftgate.

Torque: 24 Nm

1.

Connect the washer jet hose.

2.
