Frelander 2. Manual - part 518





8

-

TCM

9

-

Engine Control Module (ECM)

10

-

Diagnostic socket

11

-

Occupant Classification Sensor (OCS - NAS only

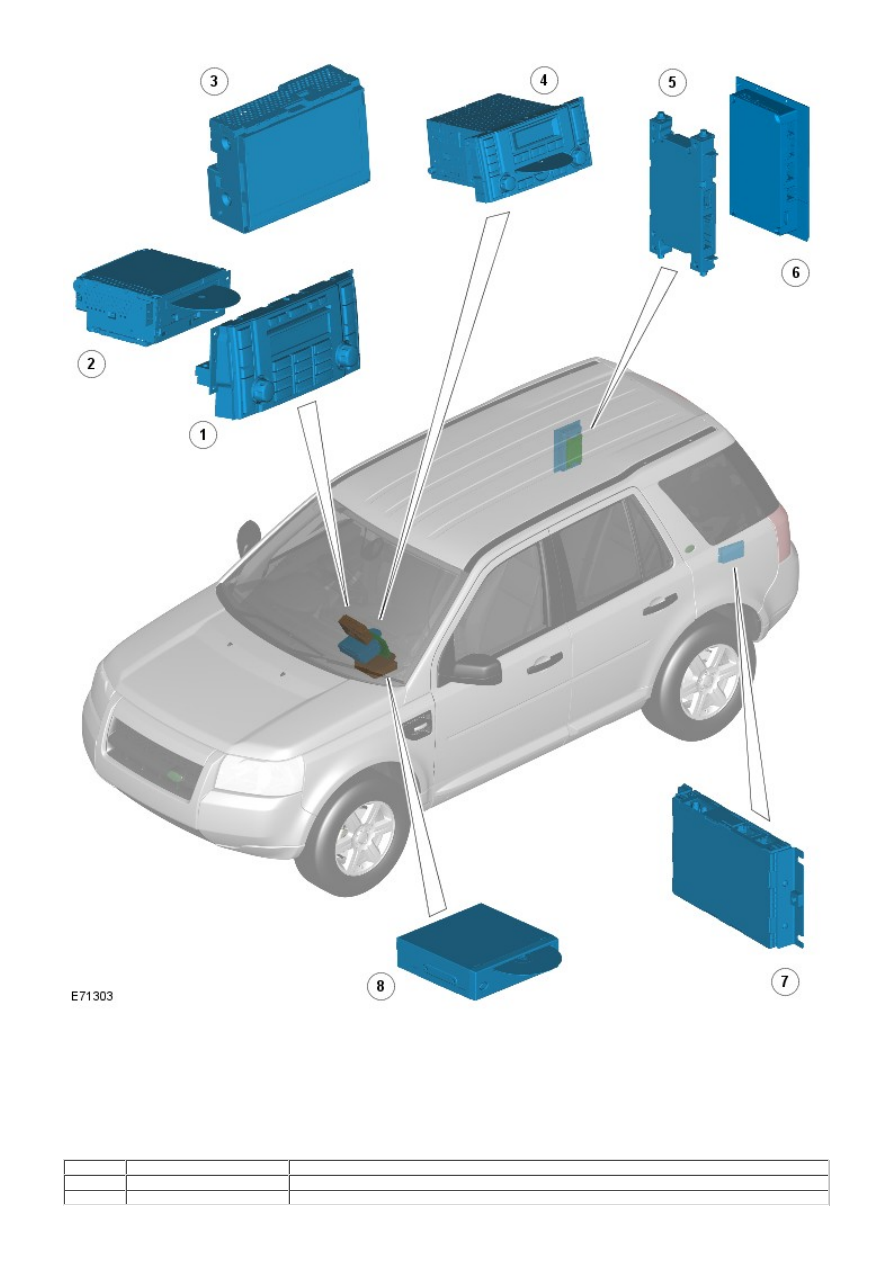

COMPONENT LOCATION - MOST

Item

Part Number

Description

1

-

Integrated control Module (ICM) - Face plate

2

-

Integrated Head Unit (IHU) - Hi-Line

3

-

Touch Screen Display (TAD)

4

-

Integrated Head Unit (IHU) - Hi-Line

5

-

Bluetooth phone module

6

-

Amplifier/tuner

7

-

Digital Audio Broadcast (DAB) receiver

8

-

Navigation computer

OVERVIEW

The vehicle electrical system comprises a number of control modules which are interconnected via several network
systems.

The following network systems are used on the vehicle:

High Speed Controller Area Network bus
Medium speed CAN bus
Local Interconnect Network (LIN) bus
Media Orientated Systems Transport (MOST) system.

The CJB is the 'gateway' for the network systems which allows information to be exchanged between networks.

The entertainment system components are connected on a fiber optic MOST system. The MOST system can send and
receive information to/from the other network systems via a 'gateway' in the Integrated Control Module.

The following table shows each vehicle control module, the network system to which it is connected, its function and
location in the vehicle.

Module

Network

System

Function

Vehicle Location

CJB

High speed
CAN bus

Controls body functions and power distribution

Passenger footwell, behind
glovebox

Steering angle sensor

High speed
CAN bus

Transmits steering positional information

Integral with the steering wheel
clockspring

Diagnostic socket

High speed
CAN bus

Allows the transfer of vehicle information using IDS
or other diagnostic tool

Driver's footwell on underside of
instrument panel

RCM

High speed
CAN bus

Controls deployment of supplementary restraint
components

Rear of centre console, below
arm rest

TCM

High speed
CAN bus

Controls automatic transmission operation

Mounted on the top of the
transmission housing

ECM

High speed
CAN bus

Controls engine management and fuel system
operation

Mounted between the bulkheads
in the engine compartment

ABS module

High speed
CAN bus

Controls all aspects of the braking system

Mounted between the bulkheads
on LH side of engine
compartment

Headlamp levelling
module

High speed
CAN bus

Controls the dynamic headlamp levelling function

Passenger footwell, behind the
glovebox

Occupant classification
sensor (NAS only)

High speed
CAN bus

Detects when a passenger is in the front passenger
seat

Underside of passenger seat

Terrain Response
module

High speed
CAN bus

Controls the Terrain Response system using data
from other vehicle systems

Integral with Terrain Response
rotary control

Electronic differential
control module

High speed
CAN bus

Controls the operation of the electronic differential

Mounted on front of rear
differential

CJB

Medium
speed CAN
bus

Controls body functions and power distribution

Passenger footwell, behind
glovebox

Fuel fired heater
module

Medium
speed CAN
bus

Controls operation of the fuel fired heater

Integrated with the ATC module

Diagnostic socket

Medium
speed CAN
bus

Allows the transfer of vehicle information using IDS
or other diagnostic tool

Driver's footwell on underside of
instrument panel

Passenger door module Medium

speed CAN
bus

Controls window and locking functions

Mounted in passenger door

Parking aid module

Medium
speed CAN
bus

Controls parking aid system

Mounted on LH rear suspension
turret

Seat memory module

Medium
speed CAN
bus

Controls driver seat positioning and also memory
functions of other driver personalised functions

Under driver's seat

Trailer module

Medium
speed CAN
bus

Controls operation of trailer lamps and also informs
CJB that trailer connected

LH side of luggage
compartment, behind
suspension turret

Instrument
cluster/Driver
Information Module

Medium
speed CAN
bus

Receives data from other systems to provide driver
information

Instrument panel

Driver's door module

Medium
speed CAN
bus

Controls window and locking functions

Mounted in driver's door

ATC module

Medium
speed CAN
bus

Contains controls for the heating and air
conditioning systems

Mounted in centre console

Module

Network

System

Function

Vehicle Location

Integrated Control
Module

Medium
speed CAN
bus

Contains controls for the entertainment system and
gateway between audio system and other vehicle
systems

Integral part of head unit,
located in centre console

Integrated Head Unit
(IHU)

Medium
speed CAN
bus

Contains controls for the entertainment system

Integral part of head unit,
located in centre console

RH rear door module

LIN

Controls window and locking operation

Mounted in RH rear door

LH rear door module

LIN

Controls window and locking operation

Mounted in LH rear door

Generator

LIN

Provide load signal to ECM

Located in engine compartment.
Location on engine dependent
on engine fitment.

RH front seat heat
module

LIN

Used by ATC to control seat heater temperature

Underside of seat

LH front seat heat
module

LIN

Used by ATC to control seat heater temperature

Underside of seat

Air quality sensor

LIN

Measures air quality in the vehicle interior

Fitted to the heater assembly

Flap actuator module 1 LIN

Moves flaps within the heater assembly to direct air
flow to different parts of the interior

Part of the heater assembly

Flap actuator module 2 LIN

Moves flaps within the heater assembly to direct air
flow to different parts of the interior

Part of the heater assembly

Flap actuator module 3 LIN

Moves flaps within the heater assembly to direct air
flow to different parts of the interior

Part of the heater assembly

Flap actuator module 4 LIN

Moves flaps within the heater assembly to direct air
flow to different parts of the interior

Part of the heater assembly

Flap actuator module 5 LIN

Moves flaps within the heater assembly to direct air
flow to different parts of the interior

Part of the heater assembly

Humidity sensor

LIN

Measures air quality in the vehicle interior

Integral with the interior rear
view mirror

HVAC control module

LIN

Controls operation of the HVAC system functions

Integral with HVAC controls
panel in centre console

Steering wheel module LIN

Converts analogue signals from steering wheel
switches into digital messages

Behind steering wheel
clockspring

Battery backed sounder LIN

Activated by CJB when alarm trigger is received

Mounted in a central position
between the bulkheads in the
engine compartment

Electric steering
column lock

LIN

Controls the locking and unlocking of the steering
column

On underside of steering
column, under lower column
shroud

CJB

LIN

Control body functions and power distribution

Passenger footwell, behind
glovebox

Light switch module

LIN

Control of headlamp operation and levelling

Driver's side of instrument panel

Volumetric sensor

LIN

Detects movement in vehicle interior and activates
anti-theft alarm system

In housing in centre of
headlining

Rain sensor module

LIN

Detects moisture on the windshield

At top of windshield

Start control unit

LIN

Used to identify the remote handset - component of
the keyless start system

In instrument panel, adjacent to
the steering column

RF receiver

LIN

Receives RF transmissions from the TPMS system
and the remote handset

Positioned adjacent to the rear
interior lamp, behind the
headlining

Headlamp levelling
module

LIN

Controls the dynamic headlamp levelling functions

Passenger footwell, behind
glovebox, integral with
headlamp levelling module

RH headlamp

LIN

Provides positional information to the headlamp
levelling module

Attached to the headlamp
assembly

LH headlamp

LIN

Provides positional data to the headlamp levelling
module

Attached to the headlamp
assembly

Driver's window switch LIN

Controls operation of the driver's window

Mounted in driver's door

Driver's door module

LIN

Controls window and locking functions

Mounted in driver's door

Passenger door module LIN

Controls window and locking functions

Mounted in passenger door

Transmission selector
lever module

LIN

Sends selector lever position to the TCM

Located below centre console

TCM

LIN

Receives selector lever position information to
control transmission operation

Mounted on the top of the
transmission housing

Integrated Control
Module

MOST

Contains controls for the entertainment system and
gateway between audio system and other vehicle
systems

Integral part of head unit,
located in centre console

Integrated Head Unit

MOST

Contains controls for the entertainment system

Integral part of head unit,
located in centre console

Digital Audio Broadcast
(DAB) receiver

MOST

Receives digital radio broadcasts

Mounted in LH side of the
luggage compartment

Bluetooth phone
module

MOST

Controls the operation of the Bluetooth phone
system

Mounted in RH side of the
luggage compartment

Amplifier/Tuner

MOST

Provides amplification for the entertainment
systems and reception of radio RF broadcasts

Mounted in RH side of the
luggage compartment

Navigation computer

MOST

Reads map data from a DVD to calculate and display
visual route guidance information via the TAD and
audible guidance via the amplifier to the driver

Below the IHU in the centre
console
