Frelander 2. Manual - part 434





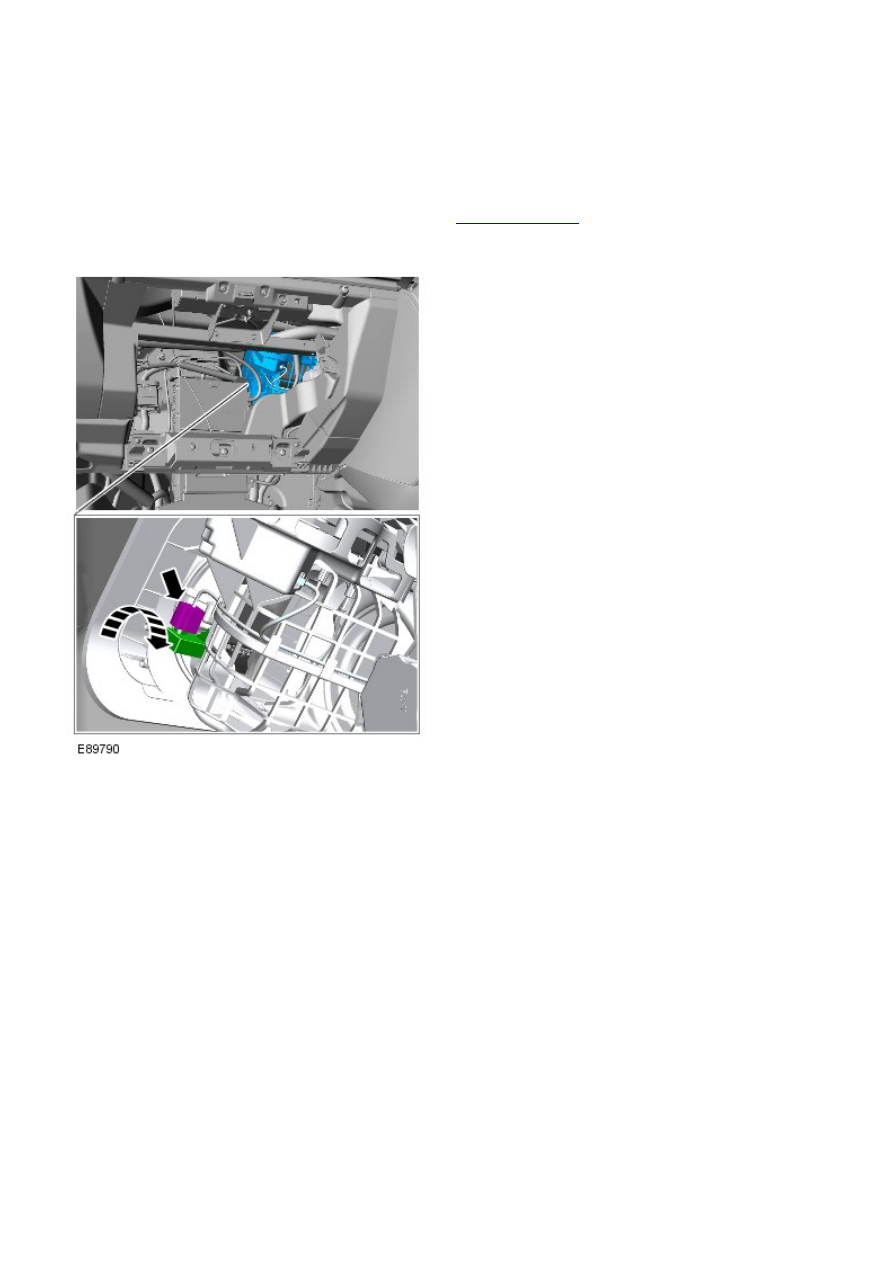

Climate Control - Defrost Vent/Register Blend Door ActuatorRHD AWD

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

1.

Remove the steering column.

Refer to:

Steering Column

 (211-04 Steering Column, Removal and

Installation).

2.

Remove the driver lower air bag module support
bracket.

Torque: 7 Nm

3.

4.

Installation

To install, reverse the removal procedure.

1.

If a new component has been installed, configure using Land Rover
approved diagnostic equipment.

2.

Climate Control - Ambient Air Quality SensorLHD AWD

Removal and Installation

Removal

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the CJB.

Refer to:

Central Junction Box (CJB)

 (418-00 Module Communications

Network, Removal and Installation).

2.

3.

Installation

To install, reverse the removal procedure.

1.

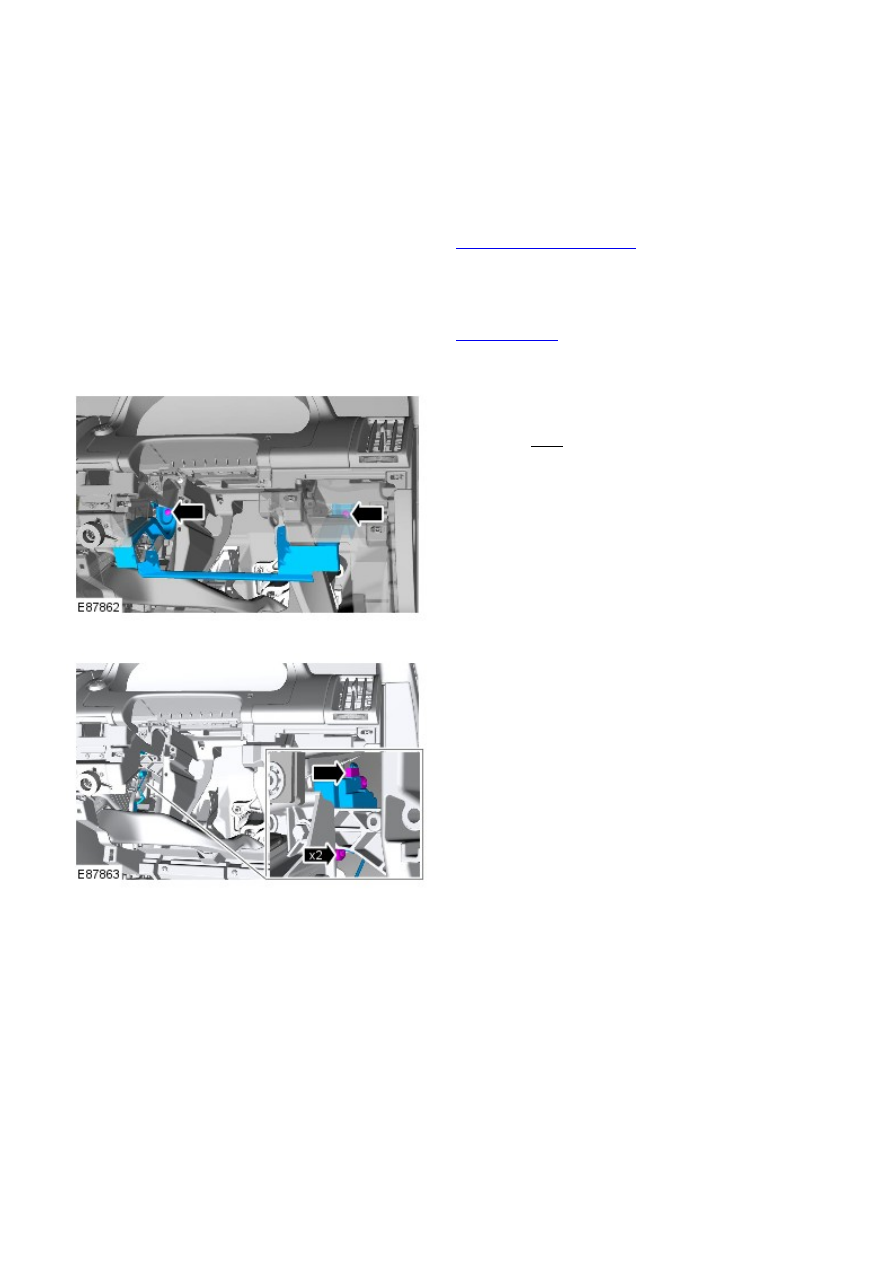

Climate Control - Ambient Air Quality SensorRHD AWD

Removal and Installation

Removal

Remove the glove compartment.

Refer to:

Glove Compartment

 (501-12 Instrument Panel and

Console, Removal and Installation).

1.

2.

Installation

To install, reverse the removal procedure.

1.

Auxiliary Heating - Fuel Fired Booster Heater

Diagnosis and Testing

Overview

For information on the description and operation of the system, refer to section 412-02 -REFER to:

Fuel Fired Booster Heater

 (412-02B Auxiliary Climate Control, Description and Operation),

Fuel Fired Booster Heater (412-02B, Description and Operation),

Fuel Fired Booster Heater

 (412-02B Auxiliary Climate Control, Removal and Installation),

Fuel Fired Booster Heater Fuel Pump

 (412-02B Auxiliary Climate Control, Removal and Installation),

Fuel Fired Booster Heater Coolant Pump

 (412-02B Auxiliary Climate Control, Removal and Installation),

Fuel Fired Booster Heater Glow Plug And Burner Assembly

 (412-02B Auxiliary Climate Control, Removal and

Installation).

Auxiliary Heating in the workshop manual.

Inspection and Verification

1. Verify the customer concern.

1.

2. Visually inspect for obvious mechanical or electrical faults.

2.

Visual inspection

Mechanical

Electrical

Fuel fired heater assembly

- Combustion air fan
- Coolant inlet/outlet
- Heat exchanger
- Temperature sensor
- Exhaust
- Fuel inlet
- Air inlet
- Evaporator

Auxiliary fuel pump and lines
Auxiliary coolant pump

Fuses
Harnesses
Electrical connector(s)
Controller area network (CAN) circuits
Control module(s)

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step

3.

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving

onto the symptom chart or DTC index.

4.

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

• NOTE: If the control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the
Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval programme is in operation, prior
to the installation of a new module/component.

• NOTE: Generic scan tools may not read the codes listed, or may read only 5-digit codes. Match the 5 digits from the scan
tool to the first 5 digits of the 7-digit code listed to identify the fault (the last 2 digits give extra information read by the
manufacturer-approved diagnostic system).

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may
be the cause. Always check for loose connections and corroded terminals.

The table below lists all Diagnostic Trouble Codes (DTCs) that could be logged in the Fuel Fired Booster Heater Module, for
additional Diagnosis and Testing information refer to the relevant Diagnosis and Testing Section

DTC index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section
100-00. REFER to:

Diagnostic Trouble Code (DTC) Index - DTC: Auxiliary Heater Control Module (AHCM)

 (100-00 General

Information, Description and Operation).
