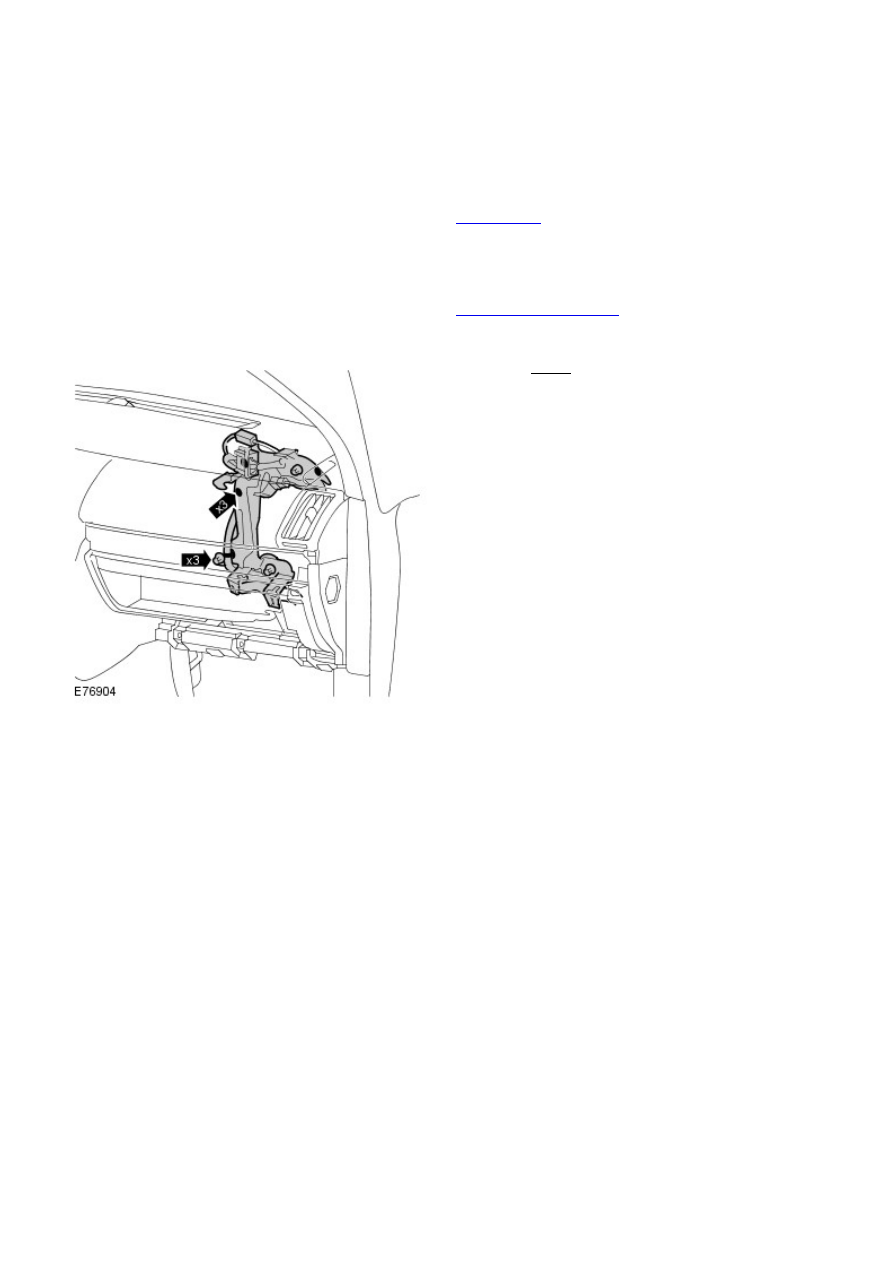

Climate Control - Pollen Filter

Removal and Installation

Removal

Remove the glove compartment.

Refer to:

Glove Compartment

 (501-12 Instrument Panel and

Console, Removal and Installation).

1.

2.

3.

Installation

To install, reverse the removal procedure.

1.

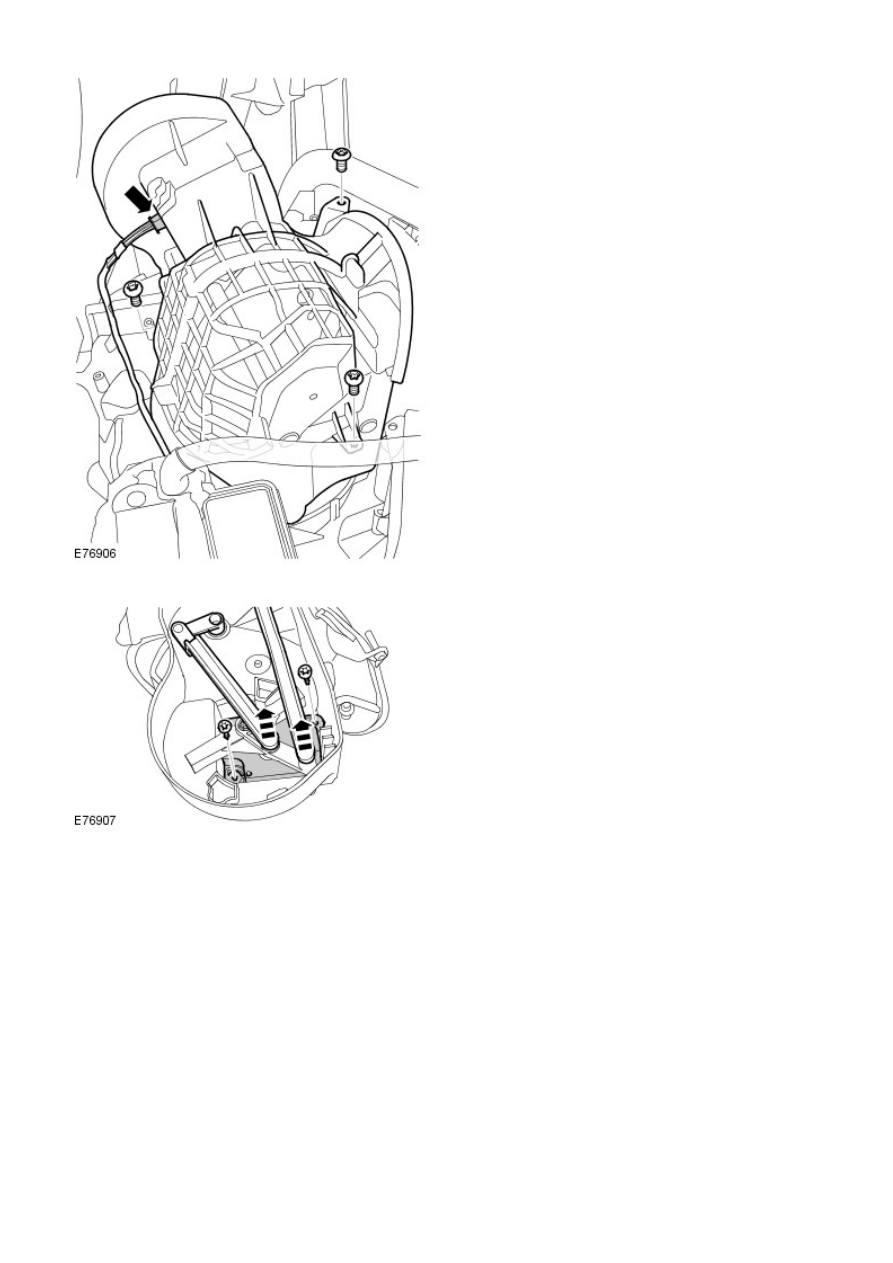

Climate Control - Recirculation Blend Door Actuator

Removal and Installation

Removal

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

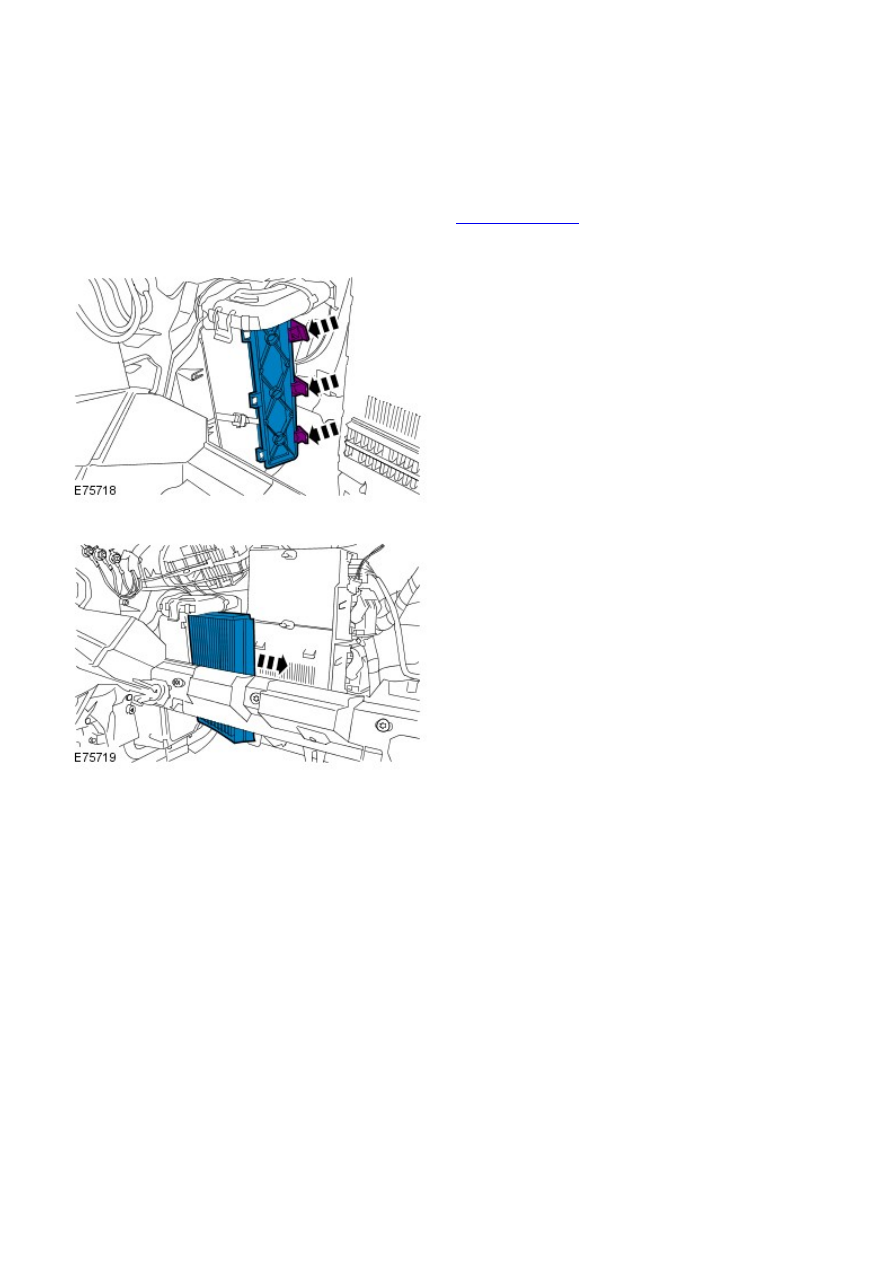

Remove the CJB.

Refer to:

Central Junction Box (CJB)

 (418-00 Module Communications

Network, Removal and Installation).

2.

Torque: 10 Nm

3.

4. NOTE: Note the fitted position.

4.

5.

Installation

To install, reverse the removal procedure.

1.

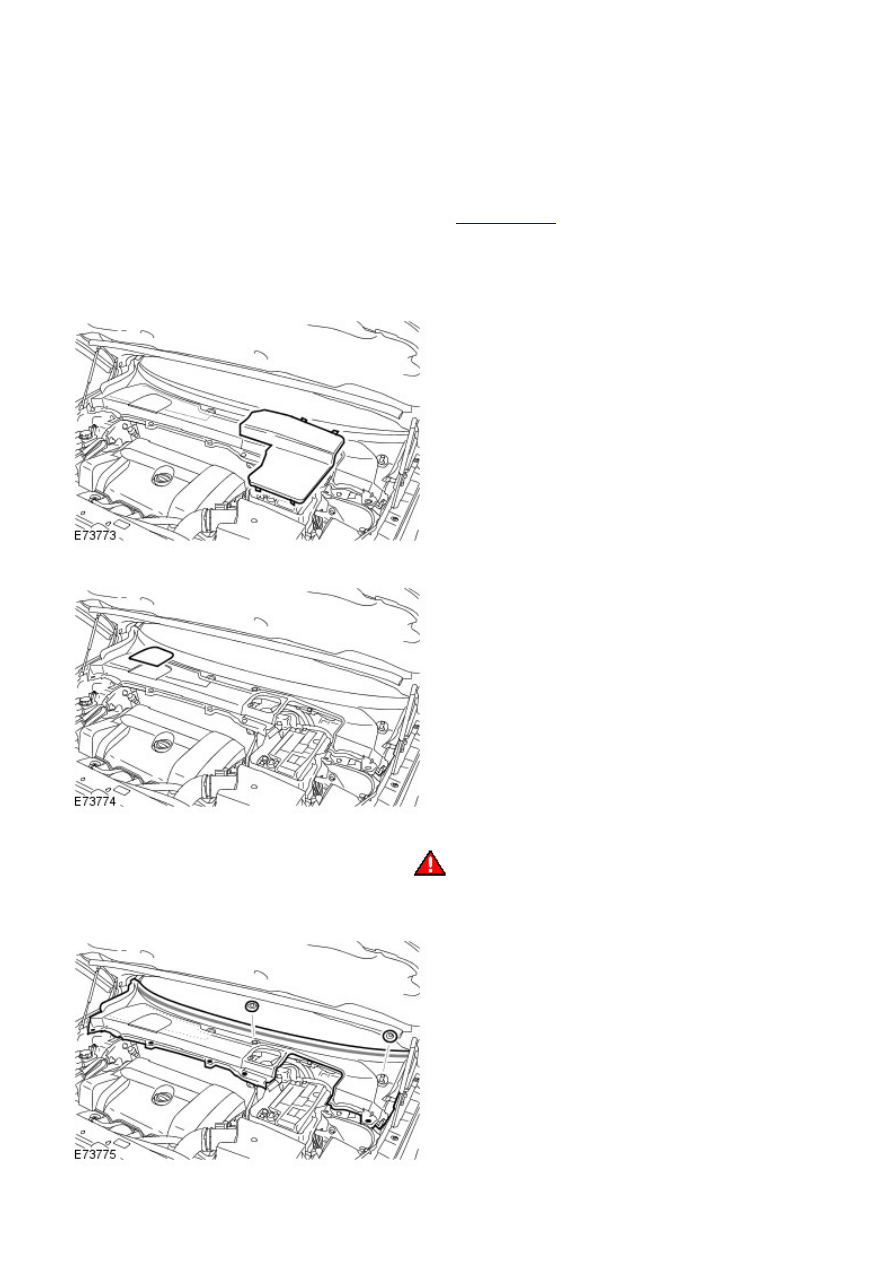

Climate Control - Plenum Chamber

Removal and Installation

Removal

Remove the RH wiper arm.

Refer to:

Wiper Pivot Arm

 (501-16 W ipers and W ashers, Removal

and Installation).

1.

Repeat the above procedure for the other wiper arm.

2.

3.

4.

5.

WARNING: This step requires the aid of another technician.

Remove the plenum chamber panel.

5.

6. NOTE: Do not disassemble further if the component
is removed for access only.

6.
