Frelander 2. Manual - part 418





Connect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

14.

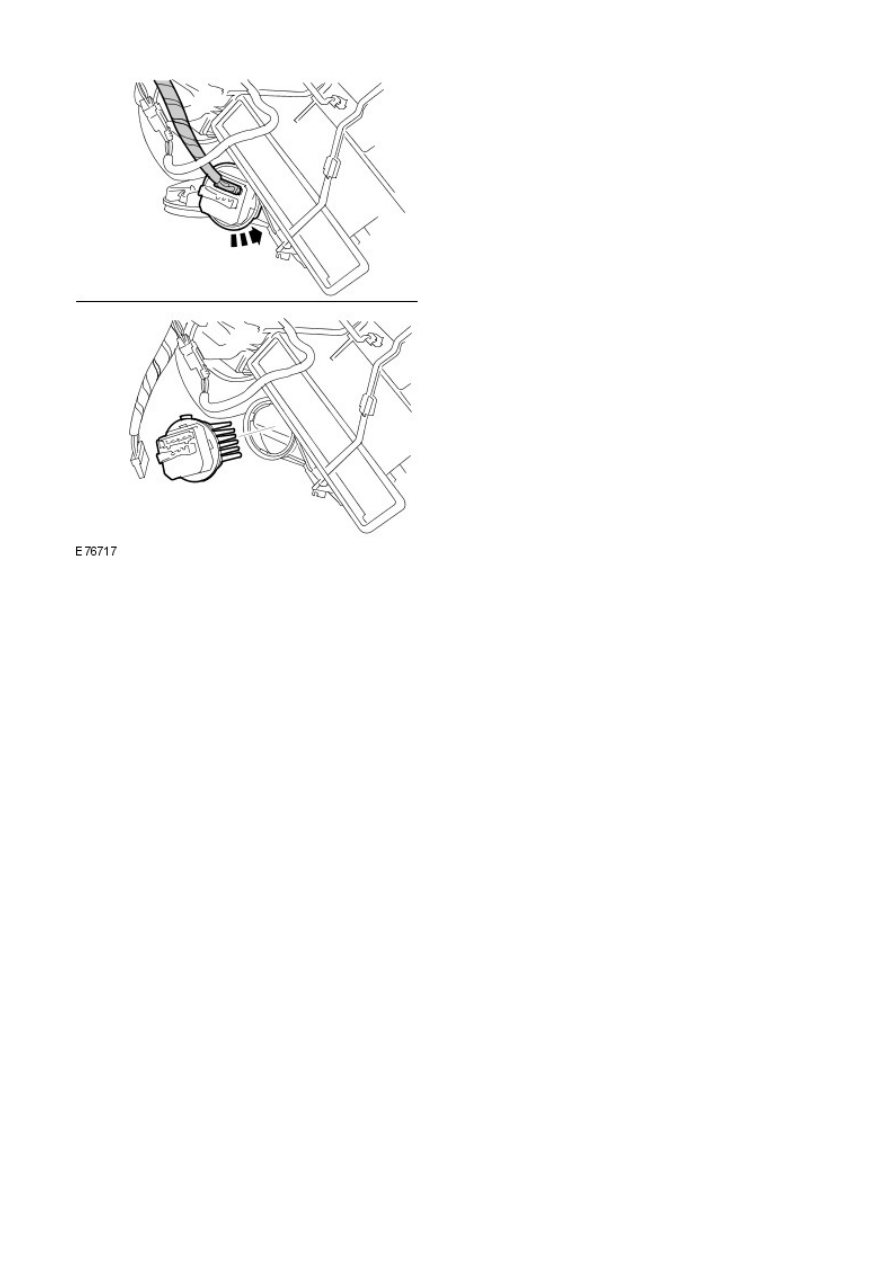

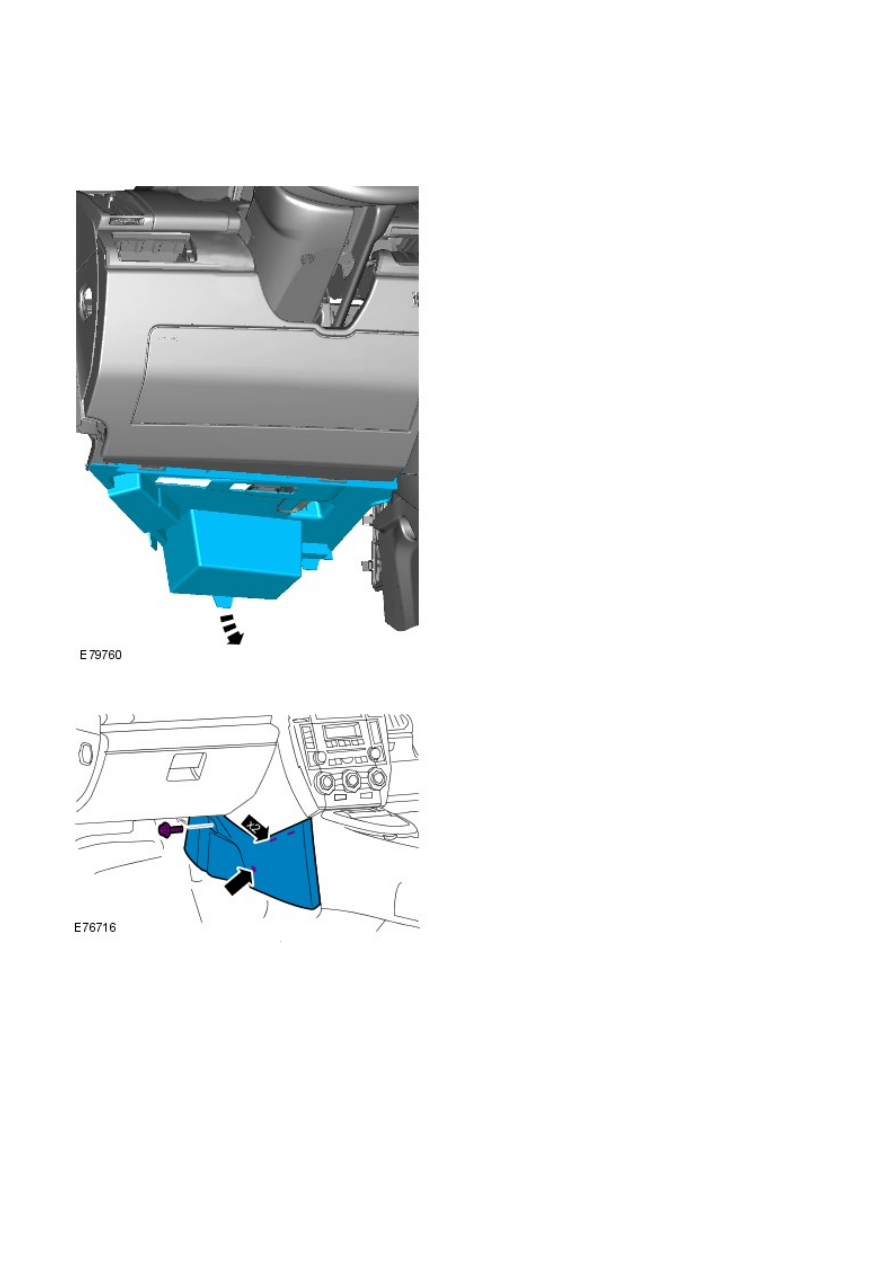

Climate Control - Blower Motor Resistor

Removal and Installation

Removal

1.

2.

3.

Installation

To install, reverse the removal procedure.

1.

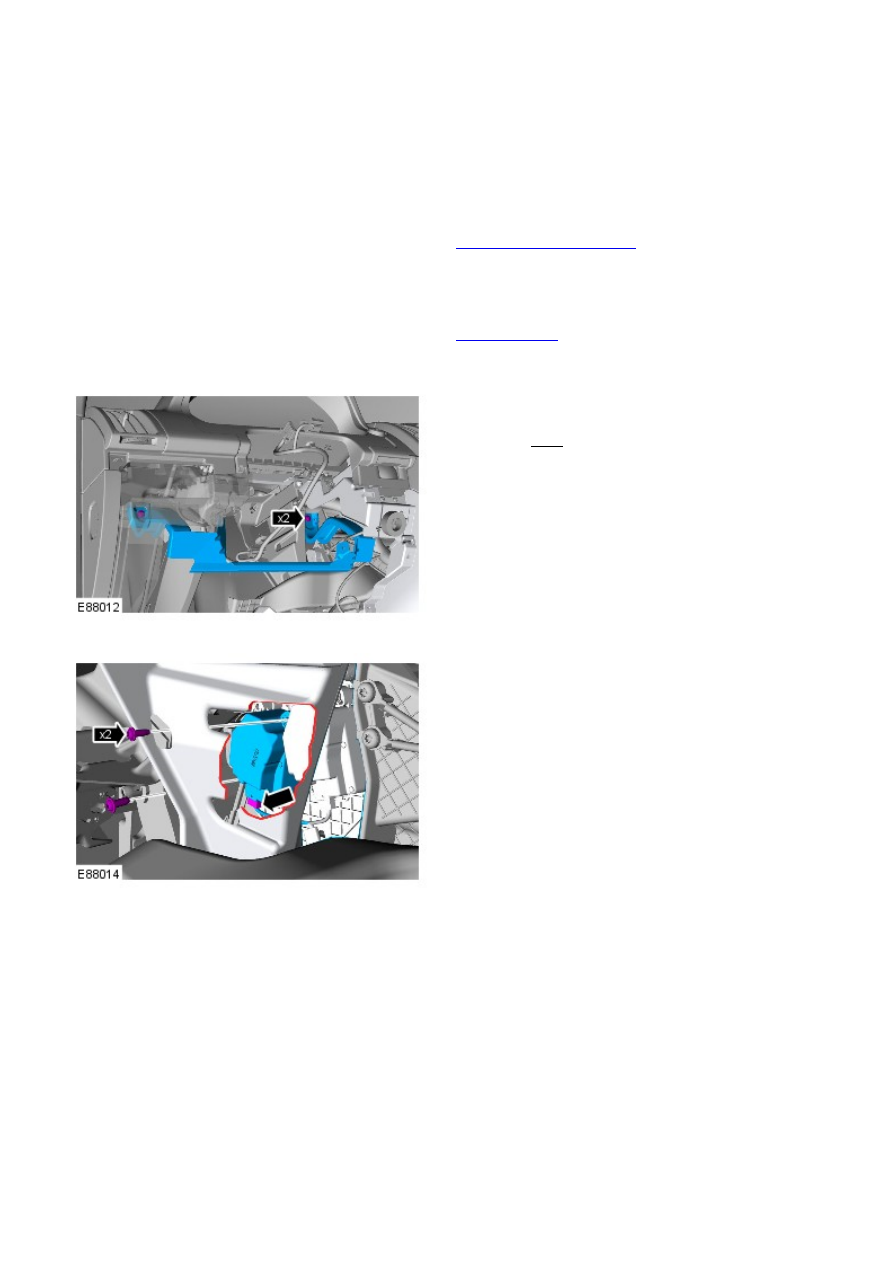

Climate Control - Footwell Vent/Duct Blend Door ActuatorLHD AWD

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

1.

Remove the steering column.

Refer to:

Steering Column

 (211-04 Steering Column, Removal and

Installation).

2.

Remove the driver lower air bag module support
bracket.

Torque: 7 Nm

3.

4.

Installation

To install, reverse the removal procedure.

1.

If a new component has been installed, configure using Land Rover
approved diagnostic equipment.

2.
