Fuel Tank and Lines - I6 3.2L Petrol - Fuel Pump and Sender Unit

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the fuel filter.

Refer to:

Fuel Filter Element

 (310-01A Fuel Tank and Lines - I6 3.2L

Petrol, Removal and Installation).

2.

3.

CAUTION: Extreme cleanliness must be

exercised when handling these components.

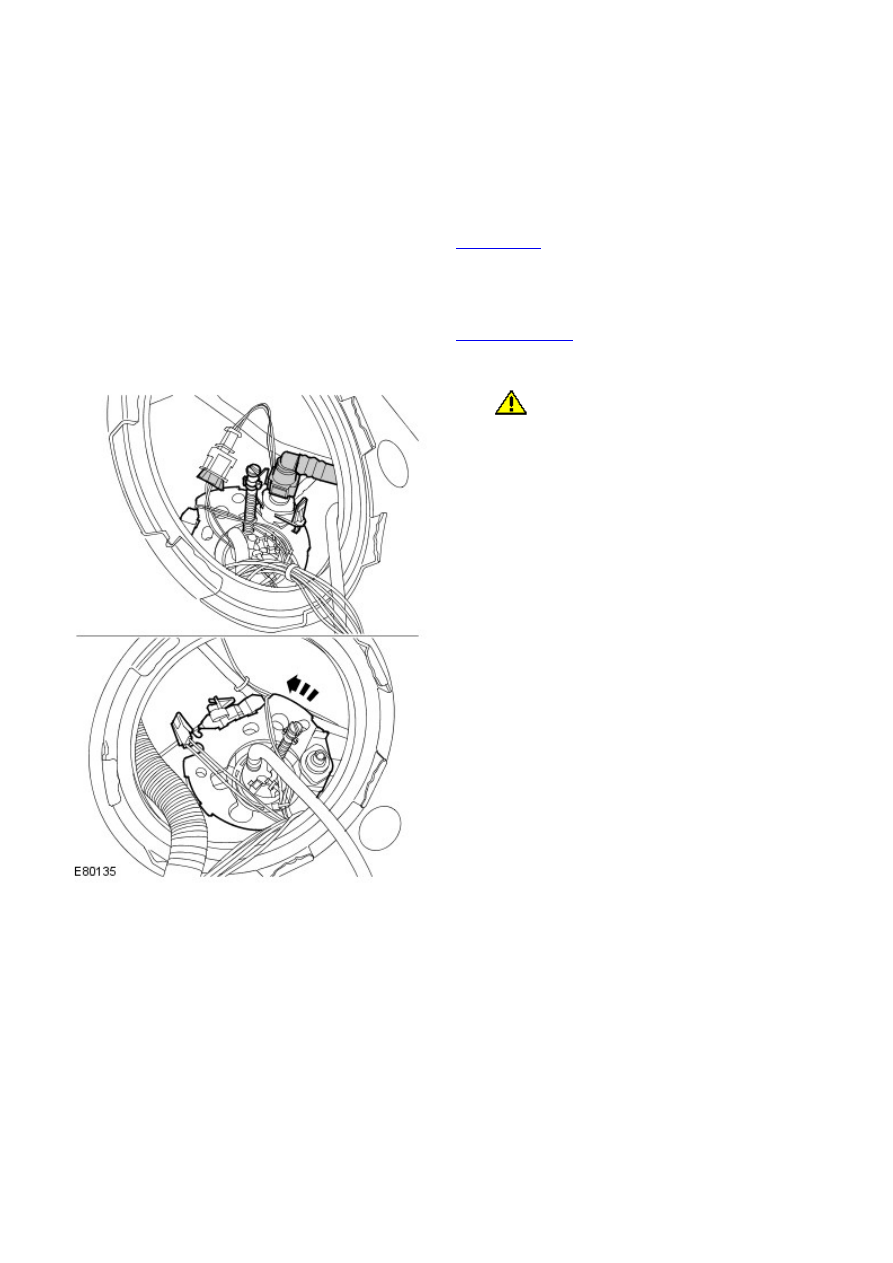

Remove the fuel pump module.

3.

Installation

To install, reverse the removal procedure.

1.

Fuel Tank and Lines - I6 3.2L Petrol - Fuel Level Sender

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

2.

Remove the fuel pump module.

Refer to:

Fuel Pump and Sender Unit

 (310-01A Fuel Tank and Lines -

I6 3.2L Petrol, Removal and Installation).

3.

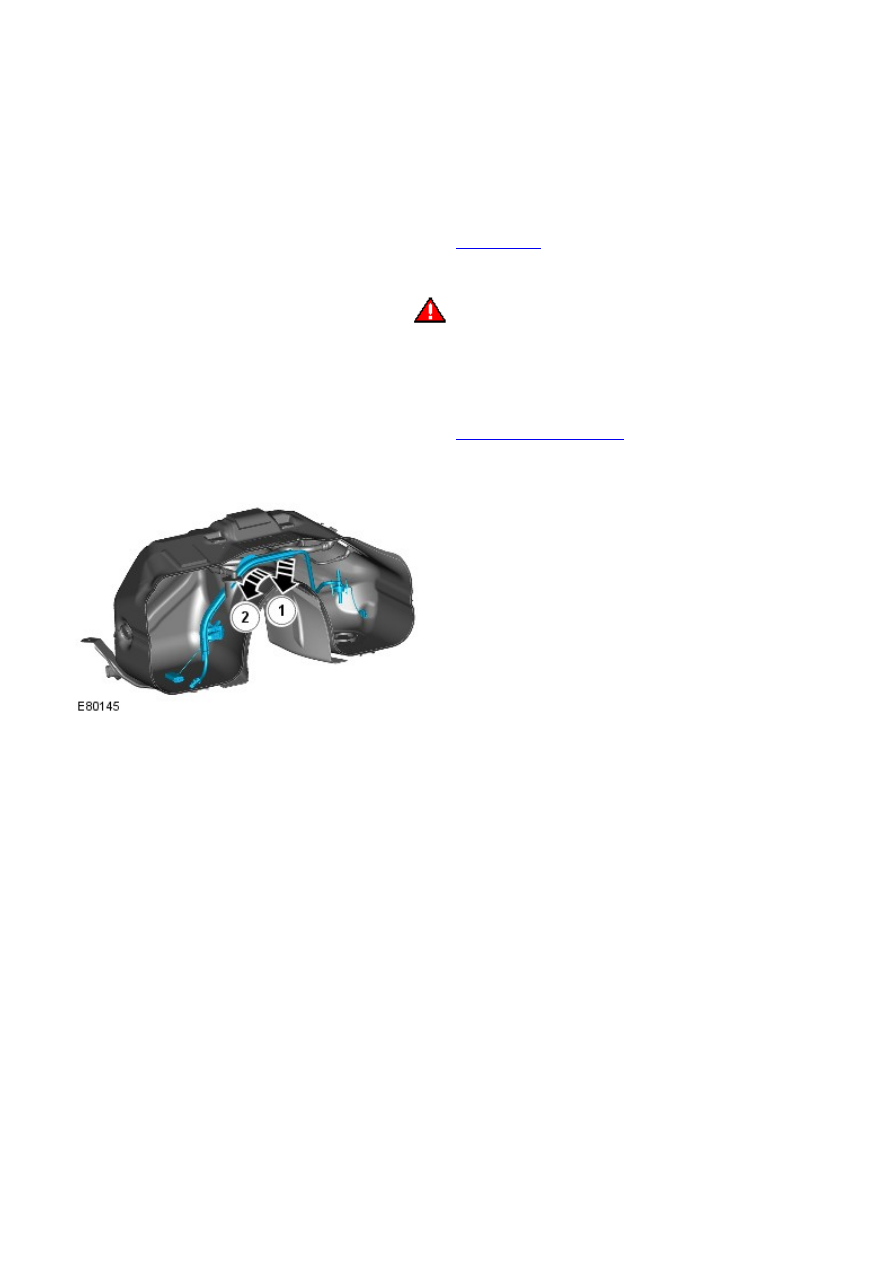

Remove the LH fuel level sender.

4.

Installation

To install, reverse the removal procedure.

1.

Fuel Tank and Lines - I6 3.2L Petrol - Fuel Pump and Sender Unit Filter

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

• NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to:

Fuel Pump and Sender Unit

 (310-01A Fuel Tank and Lines - I6 3.2L Petrol,

Removal and Installation).

1.

2.

3.
CAUTION:
Care must
be taken
not to
damage the
component.

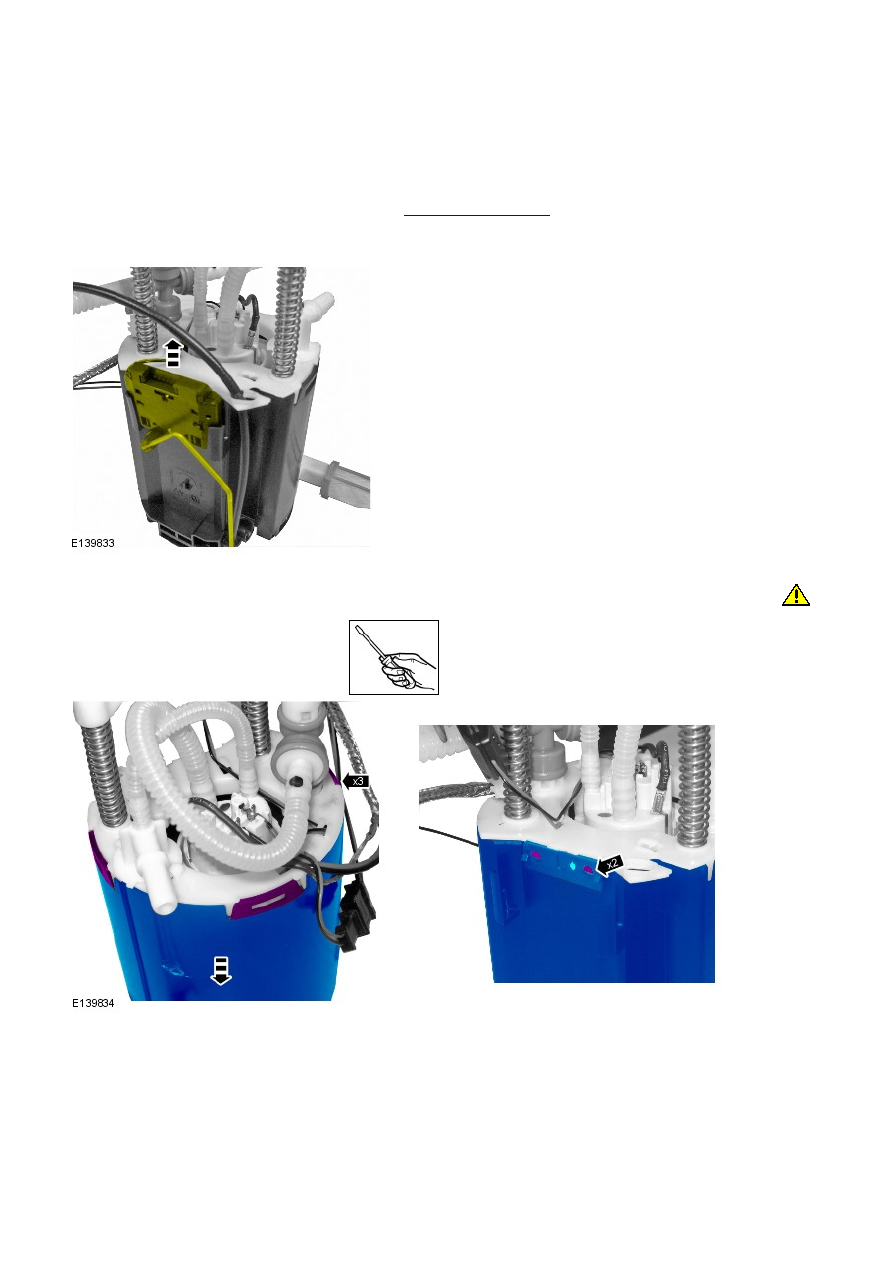

Using a
suitable
screwdriver,
release the
locking
tangs and
remove the
housing.

3.

4.

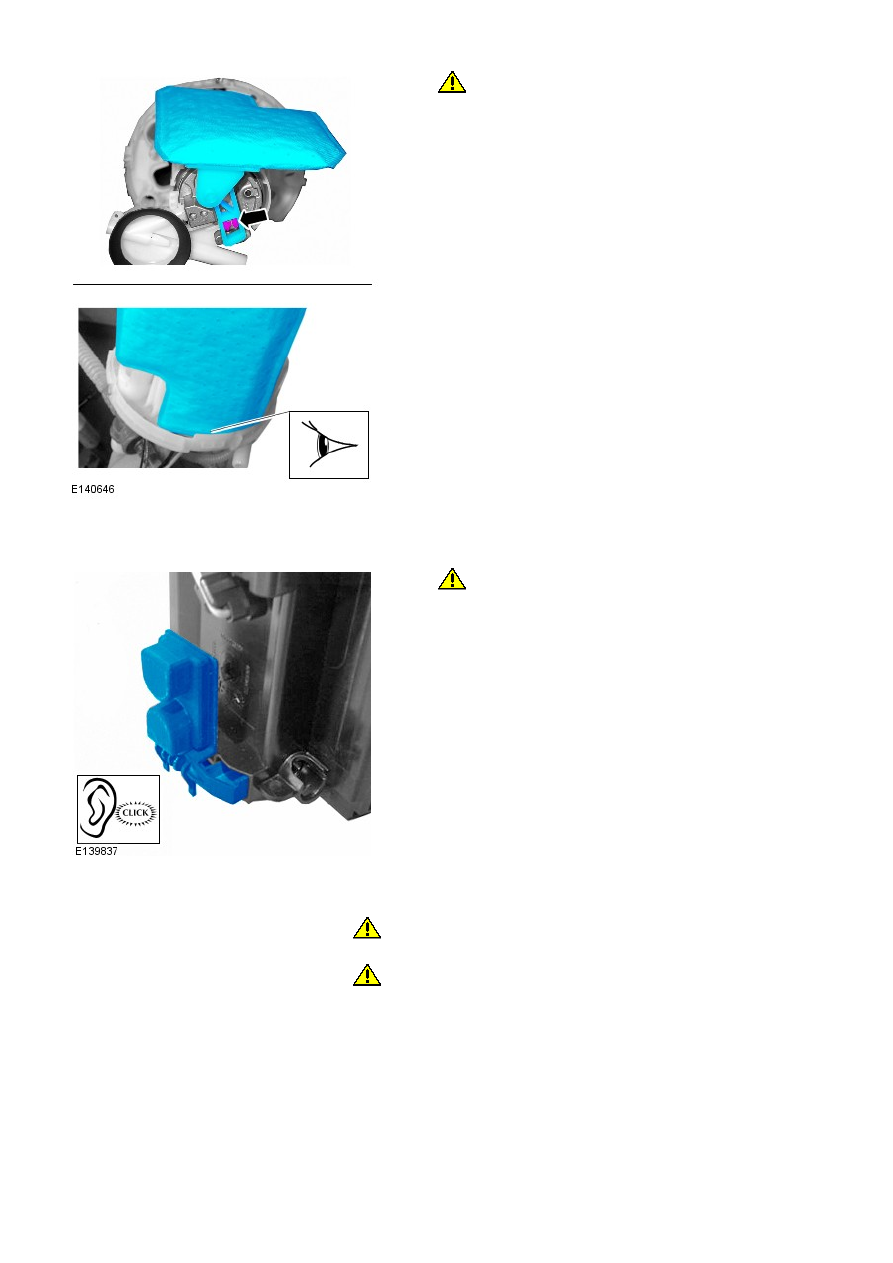

CAUTION: Make sure that the fuel pump and sender unit filter

remains located behind the lip of the fuel pump and sender unit prior to
installation.

• NOTE: Note the orientation of the component prior to removal.

Release the locking tangs and remove the filter from the fuel pump and
sender unit.

4.

Installation

1.

CAUTION: Install the magnet from the service kit. If the magnet

has already been installed, check the magnet for foreign material and
remove as necessary.

1.

2. CAUTIONS:

 Make sure that all components are installed fully home to the fuel pump and

sender unit.

 Make sure that the components are installed to the noted position in the removal

steps.

To install, reverse the removal procedure.

2.
