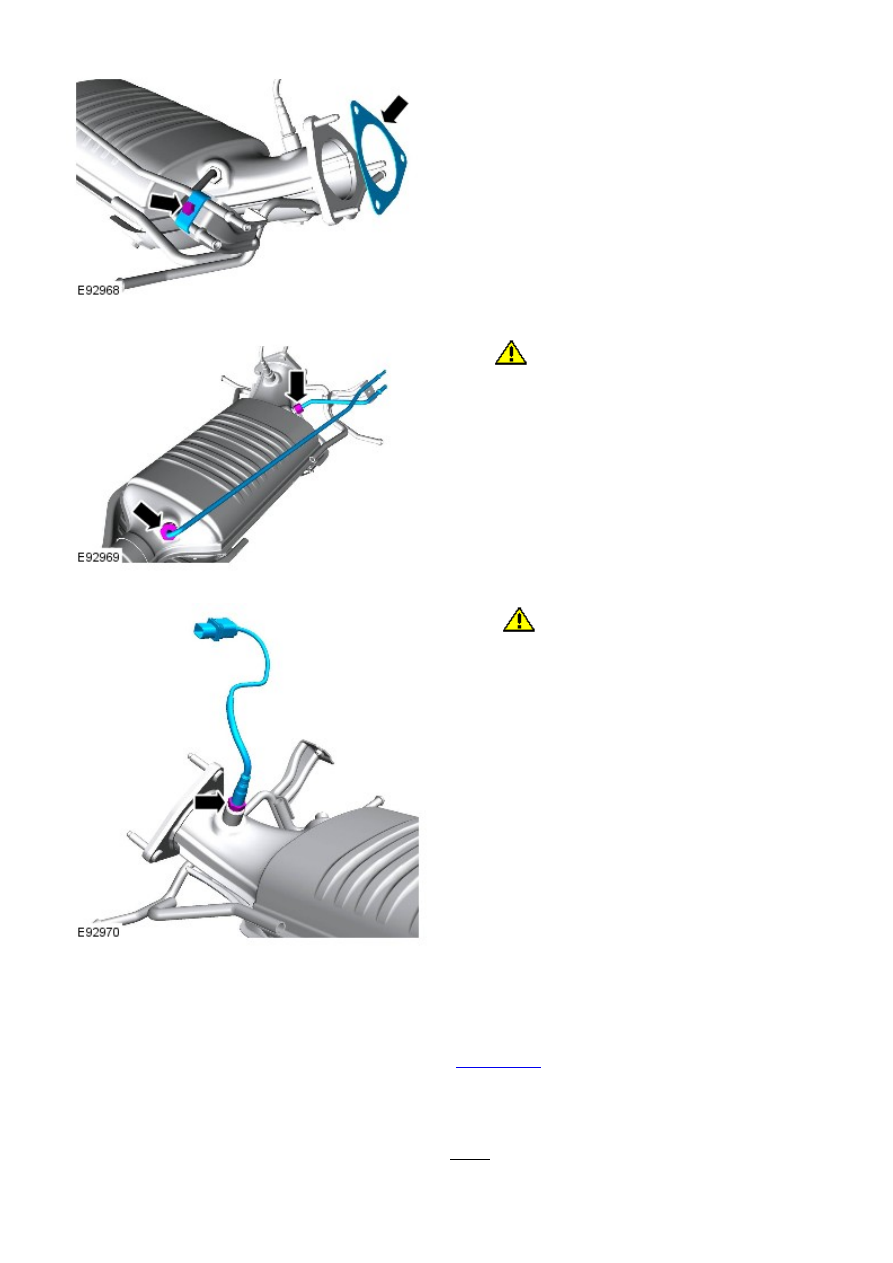

Frelander 2. Manual - part 387



  Index      Land Rover     Land Rover Frelander 2 - service repair manual 2006-2010 year



Search



















Content   ..  385  386  387  388   ..





Frelander 2. Manual - part 387





8.

9.

CAUTION: Before disconnecting or removing the

components, make sure the area around the joint faces
and connections are clean. Plug open connections to
prevent contamination.

9.

10.

CAUTION: Before disconnecting or removing

the components, make sure the area around the joint
faces and connections are clean. Plug open connections
to prevent contamination.

10.

Installation

Apply anti-seize compound to the sensor and pipe union thread.

Refer to:

Specifications

 (303-08B Engine Emission Control - TD4 2.2L

Diesel, Specifications).

1.

Install the temperature sensor.

Torque: 35 Nm

2.

Install the pressure sensing pipes.

Torque: 25 Nm

3.

Install the pipe clamp.

Torque: 10 Nm

4.

5.

WARNING: Make sure that new nuts are installed.

CAUTION: Make sure that the mating faces are clean and free

of foreign material.

• NOTE: Install a new gasket.

Install the diesel particulate filter.

Torque: 25 Nm

5.

6.

CAUTION: Make sure that the wiring harnesses are correctly

located.

Connect the temperature sensor electrical connector.

6.

7. CAUTIONS:

 Make sure that the installation marks are aligned.

 Secure the high pressure hose with a clip.

Connect the sensor hoses.

7.

Install the exhaust system.

Refer to:

Exhaust System

 (309-00A Exhaust System - I6 3.2L Petrol,

Removal and Installation).

8.

Install the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

9.

Exhaust System - TD4 2.2L Diesel - Diesel Particulate Filter (DPF)
Differential Pressure Sensor

Removal and Installation

Removal

WARNING: Observe due care when working near a hot exhaust system.

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

3. CAUTIONS:

 Make sure that these components are installed to

the noted removal position.

 Always plug any open connections to prevent

contamination.

Torque: 6 Nm

3.

Installation

To install, reverse the removal procedure.

1.

Fuel System - General Information - Fuel Tank Draining

General Procedures

• W ARNINGS:

 Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the

vehicle.

 Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable

vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

 Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related

components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in
personal injury.

 The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent

fire and explosion.

CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are

clean. Plug open connections to prevent contamination.

• NOTE: It is possible that up to 18 litres of fuel may be left in the tank after draining.

Open the fuel filler door and remove the cap.

1.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-01 Battery, Mounting and Cables,

Specifications).

2.

Connect the fuel tank drain equipment ground cable to the vehicle.

3.

4.

WARNING: Fuel may still be present in the fuel tank after

draining.

Remove the fuel from the fuel tank, via the filler neck, using the fuel
tank draining equipment. Follow the manufacturer's operating
instructions.

4.

To install, reverse the removal procedure.

5.
