Frelander 2. Manual - part 344





DTC

Description

Possible Cause

Action

P085A00 Gear shift module B

communication circuit

LIN circuit fault between the
gear selector module (GSM)
and transmission control
module (TCM)

Check the LIN circuits. Refer to the electrical
guides. Rectify as necessary.

P086011 Gear shift module A

communication circuit

LIN circuit fault between the
gear selector module (GSM)
and transmission control
module (TCM)

Check the LIN circuits. Refer to the electrical
guides. Rectify as necessary.

P086012 Gear shift module A

communication circuit

LIN circuit fault between the
gear selector module (GSM)
and transmission control
module (TCM)

Check the LIN circuits. Refer to the electrical
guides. Rectify as necessary.

P086013 Gear shift module A

communication circuit

LIN circuit fault between the
gear selector module (GSM)
and transmission control
module (TCM)

Check the LIN circuits. Refer to the electrical
guides. Rectify as necessary.

P086087 Gear shift module A

communication circuit -
missing message

LIN circuit fault between the
gear selector module (GSM)
and transmission control
module (TCM)

Check the LIN circuits. Refer to the electrical
guides. Rectify as necessary.

P092800 Gear shift lock solenoid

circuit open

Gear shift lock solenoid
circuit: short circuit to
ground
Gear shift lock solenoid
circuit: open circuit
Gear shift lock solenoid
circuit: short circuit to power
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and circuits.
Refer to the electrical guides. Rectify as
necessary.

P092811 Gear shift lock solenoid

circuit open

Gear shift lock solenoid
circuit: short circuit to
ground
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and circuits.
Refer to the electrical guides. Rectify as
necessary.

P092812 Gear shift lock solenoid

circuit open

Gear shift lock solenoid
circuit: short circuit to power
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and circuits.
Refer to the electrical guides. Rectify as
necessary.

P092813 Gear shift lock solenoid

circuit open

Gear shift lock solenoid LIN
circuit: open circuit
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and LIN circuits.
Refer to the electrical guides. Rectify as
necessary.

P093000 Gear shift lock solenoid

circuit low

Gear shift lock solenoid
circuit: short circuit to
ground
Gear shift lock solenoid
circuit: open circuit
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and circuits.
Refer to the electrical guides. Rectify as
necessary.

P093100 Gear shift lock solenoid

circuit high

Gear shift lock solenoid
circuit: short circuit to power
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and circuits.
Refer to the electrical guides. Rectify as
necessary.

P093111 Gear shift lock solenoid

circuit high

Gear shift lock solenoid LIN
circuit: short circuit to
ground
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and LIN circuits.
Refer to the electrical guides. Rectify as
necessary.

P093112 Gear shift lock solenoid

circuit high

Gear shift lock solenoid LIN
circuit: short circuit to power
Gear shift lock solenoid
fault

Check the gear shift lock solenoid and LIN circuits.
Refer to the electrical guides. Rectify as
necessary.

P173D00 Ignition key lock solenoid

circuit open

Shift lock solenoid circuit:
open circuit
Shift lock solenoid fault

Check the shift lock solenoid and circuits (between
the gear selector module and the transmission
control module). Refer to the electrical guides.
Rectify as necessary.

P173E00 Ignition key lock solenoid

circuit low

Shift lock solenoid circuit:
short circuit to ground
Shift lock solenoid fault

Check the shift lock solenoid and circuits (between
the gear selector module and the transmission
control module). Refer to the electrical guides.
Rectify as necessary.

DTC

Description

Possible Cause

Action

P173F00 Ignition key lock solenoid

circuit high

Shift lock solenoid circuit:
short circuit to power
Shift lock solenoid fault

Check the shift lock solenoid and circuits (between
the gear selector module and the transmission
control module). Refer to the electrical guides.
Rectify as necessary.

U210511 Switch Pack Signal "A"

Shift Lock position signal
circuit - short to ground,
open circuit

Refer to electrical circuit diagrams and check shift
lock position signal circuit for short to ground,
open circuit

U210512 Switch Pack Signal "A"

Shift Lock position signal
circuit - short to power

Refer to electrical circuit diagrams and check shift
lock position signal circuit for short to power

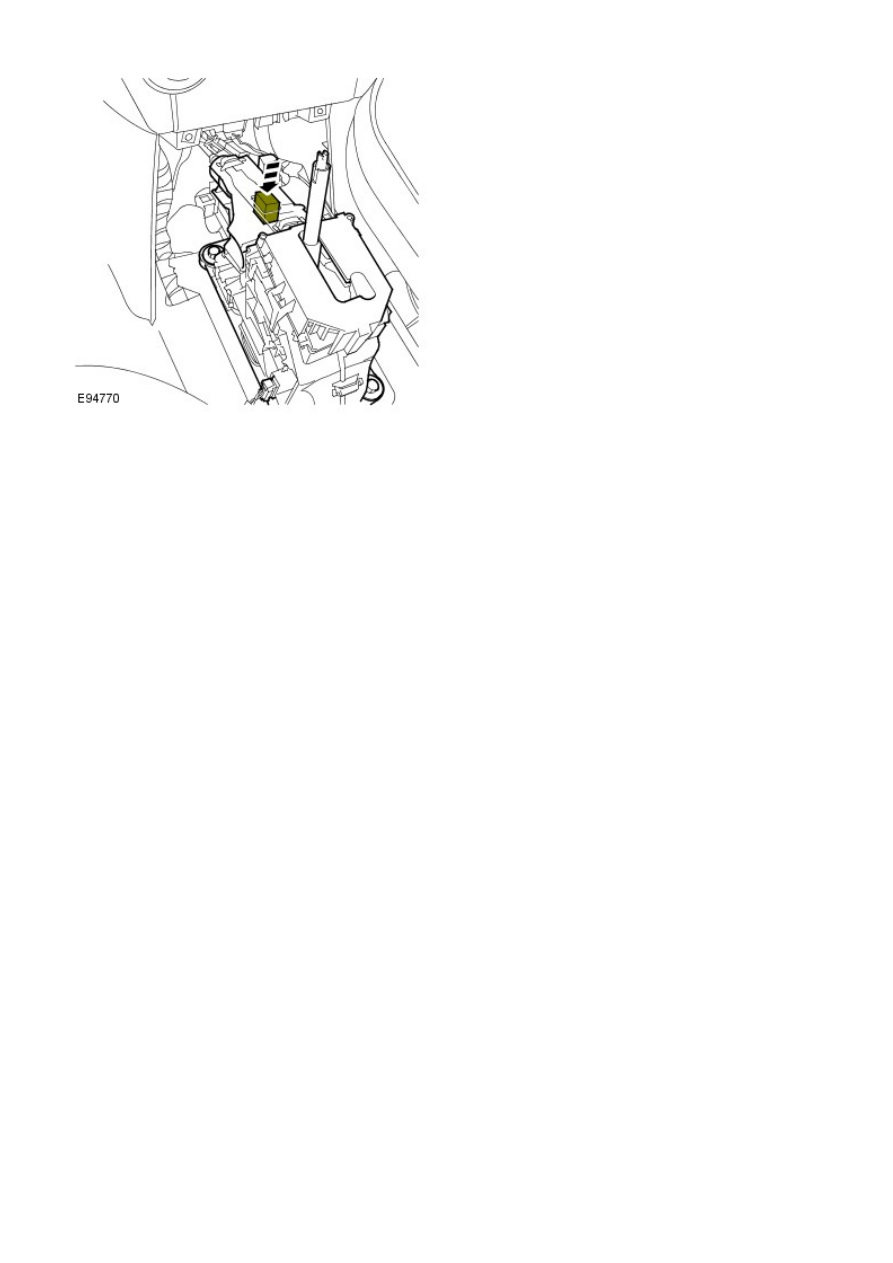

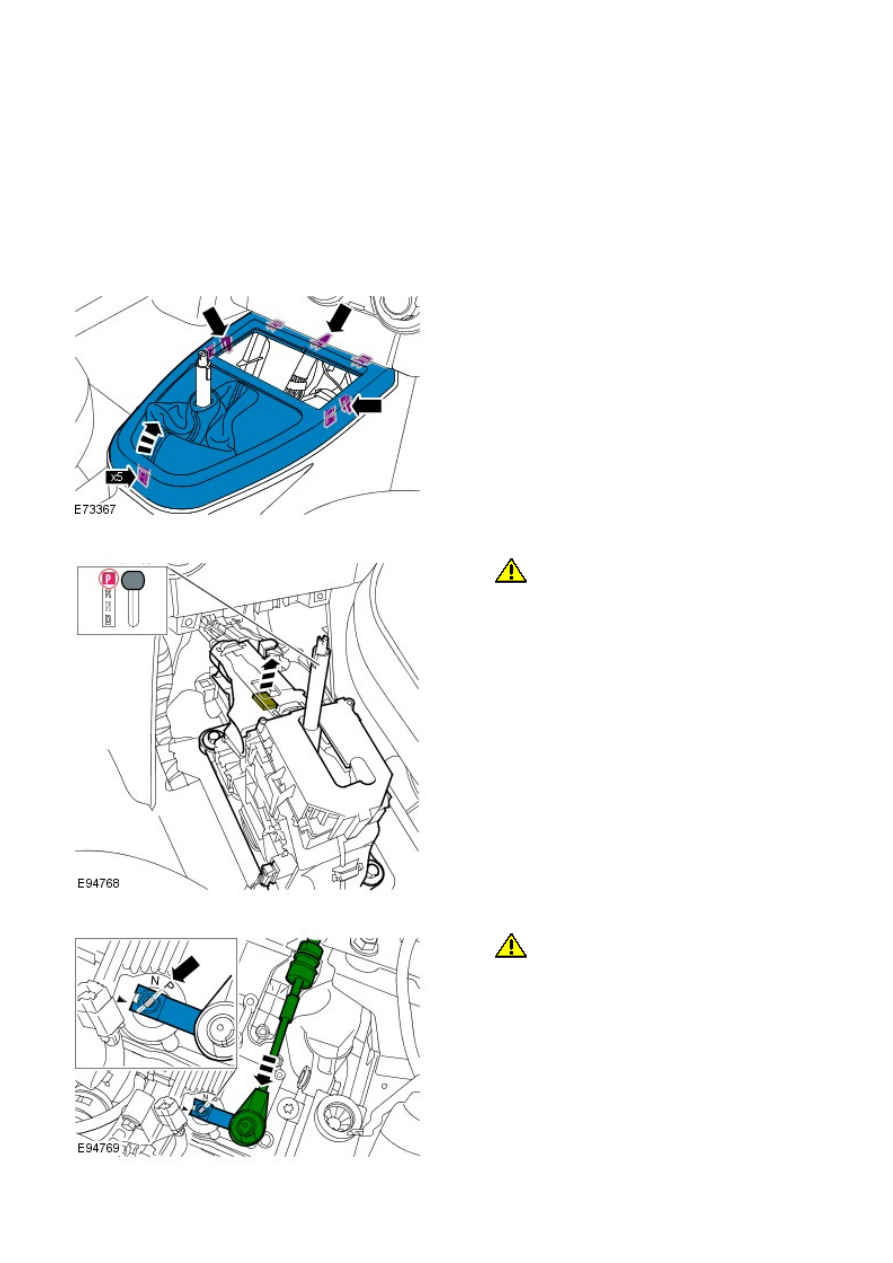

Automatic Transmission/Transaxle External Controls - Selector Lever Cable
Adjustment

General Procedures

Check the operation of the transmission selector lever.

1.

Remove the gear selector knob.

Refer to: Selector Lever Knob (307-05, Removal and Installation).

2.

3.

4.

CAUTION: Make sure that the selector lever

and the gearshift mechanism are in the park (P)
position.

Release the selector cable adjuster.

4.

5.

CAUTION: Make sure that the selector lever

and the gearshift mechanism are in the park (P)
position.

5.

Lock the selector cable adjuster.

6.

Secure the gear selector cover.

7.

Install the gear selector knob.

Refer to: Selector Lever Knob (307-05, Removal and Installation).

8.
