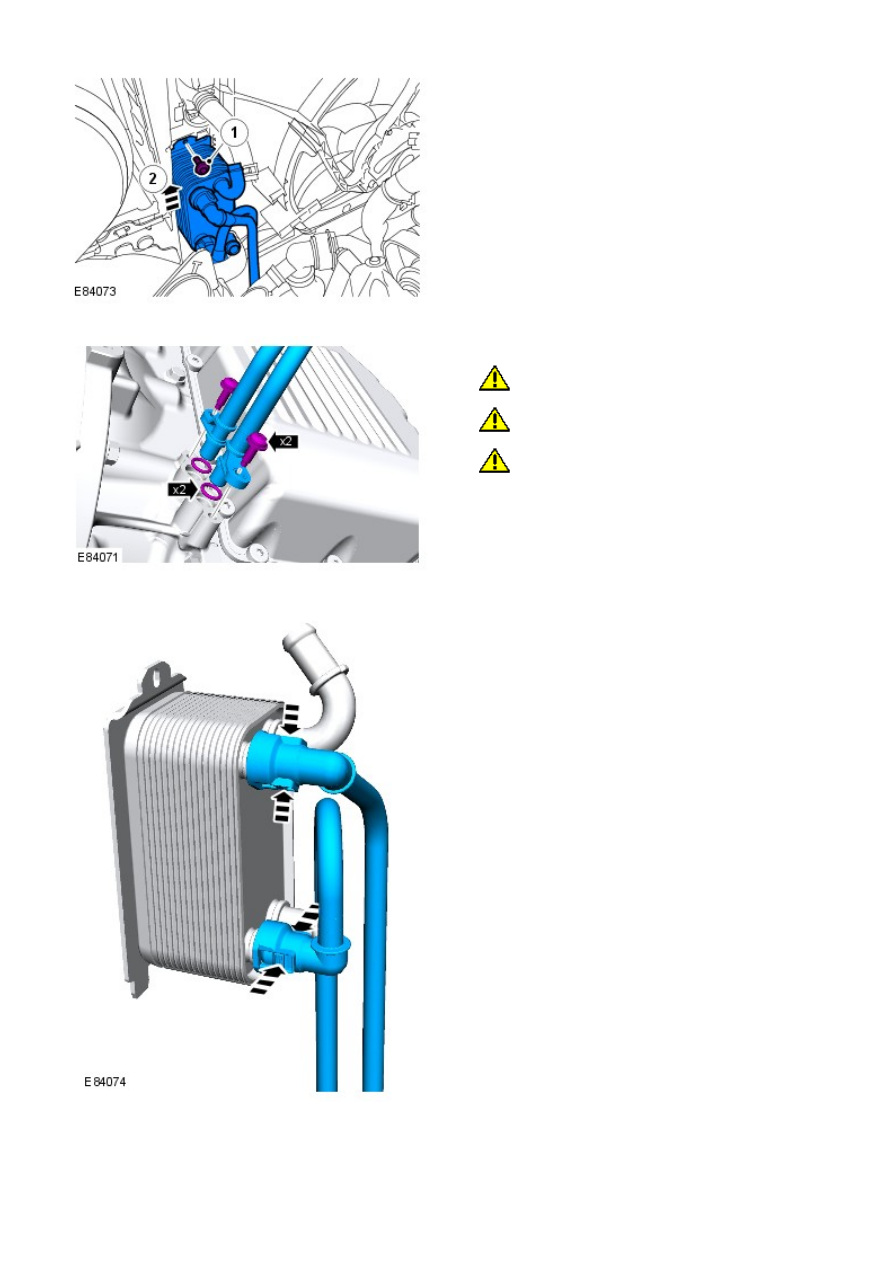

Release the automatic transmission fluid cooler.

6.

7. CAUTIONS:

 Be prepared to collect escaping fluids.

 Make sure that all openings are sealed.

 Discard the seals.

• NOTE: Do not disassemble further if the component is
removed for access only.

Remove the transmission fluid cooler.

7.

8. NOTE: Do not disassemble further if the component
is removed for access only.

8.

Installation

Install the fluid cooler hoses.

1.

Connect and secure the coolant hoses.

2.

Install the transmission fluid cooler.

Torque: 10 Nm

3.

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

4.

Refill the transmission with fluid.

Refer to:

Transmission Fluid Drain and Refill - TD4 2.2L Diesel

(307-01 Automatic Transmission/Transaxle, General Procedures).

5.

Automatic Transmission/Transaxle External Controls -

General Specification

Item

Specification

Type

Cable shift

Torque Specifications

Description

Nm

lb-ft

Abutment bracket to gearbox bolt

24

18

Shift assembly to floor

10

7

Shift cable grommet to body bolt

7

5

Shift lever to gearbox

14

10

Automatic Transmission/Transaxle External Controls - External Controls

Description and Operation

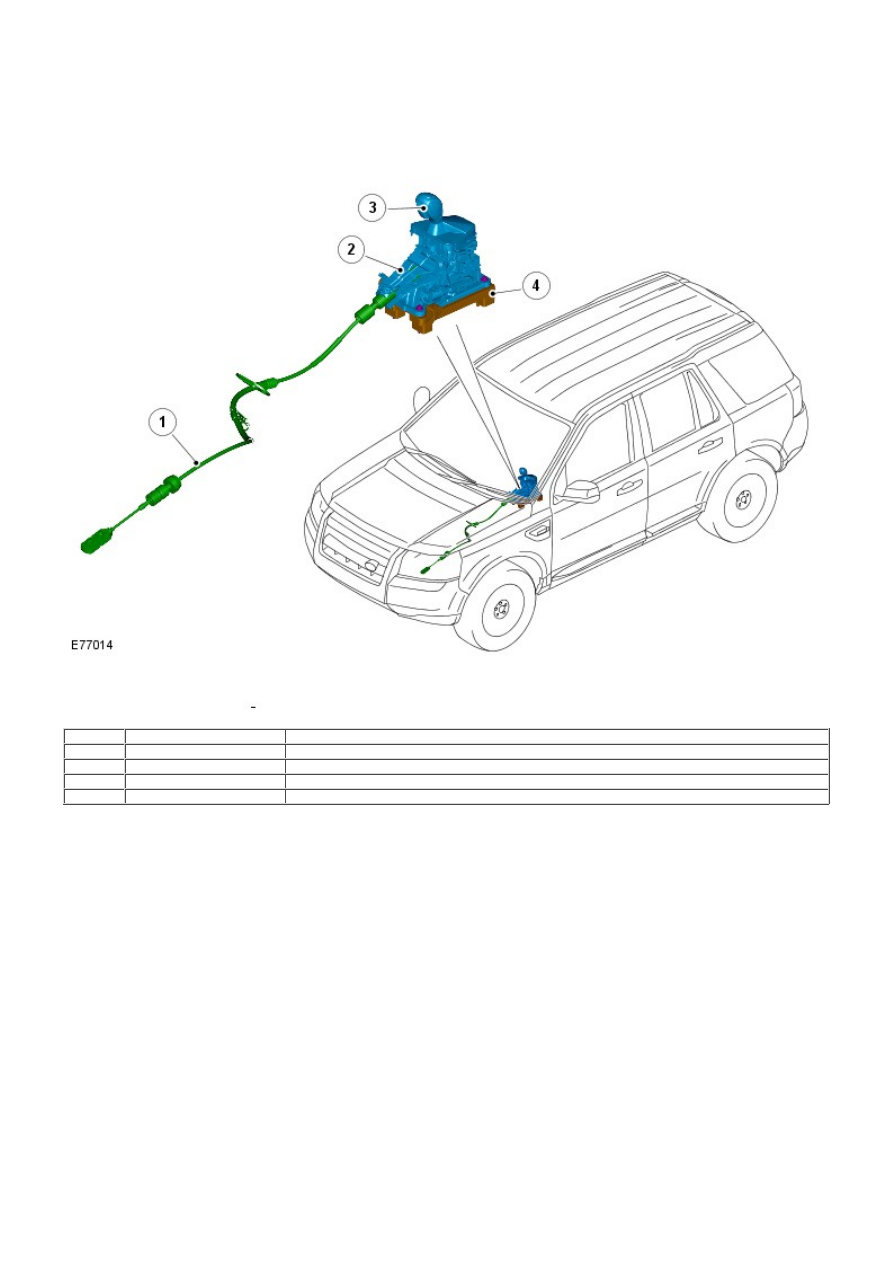

COMPONENT LOCATION

Item

Part Number

Description

1

-

Selector cable

2

-

Selector lever assembly

3

-

Selector knob, gaiter and illumination module

4

-

Selector lever mounting plate

OVERVIEW

The automatic transmission external controls comprise a selector lever assembly and a transmission cable. The selector
lever allows the driver to select forward or reverse gears and also to engage sport or manual 'CommandShift™' modes.

Movement of the selector lever is confirmed to the driver by illumination of the applicable position Light Emitting Diode
(LED) on the selector lever trim finisher and by an applicable message displayed in the instrument cluster message centre.

SELECTOR LEVER

• NOTE: Right Hand (RH) drive version shown
