Frelander 2. Manual - part 309





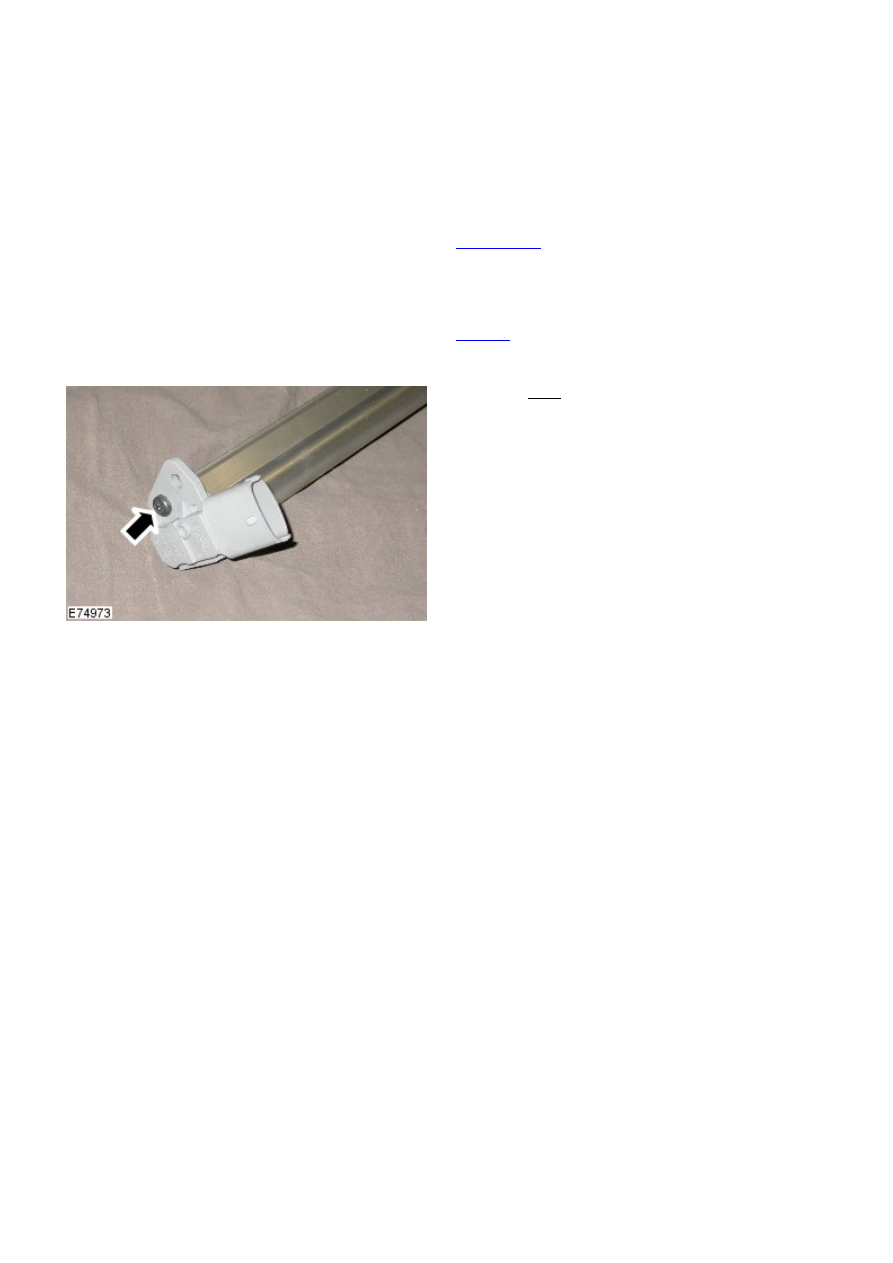

Electronic Engine Controls - I6 3.2L Petrol - Fuel Rail Pressure (FRP) Sensor

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the fuel rail.

Refer to:

Fuel Rail

 (303-04A Fuel Charging and Controls - I6 3.2L

Petrol, Removal and Installation).

2.

Torque: 6 Nm

3.

Installation

To install, reverse the removal procedure.

1.

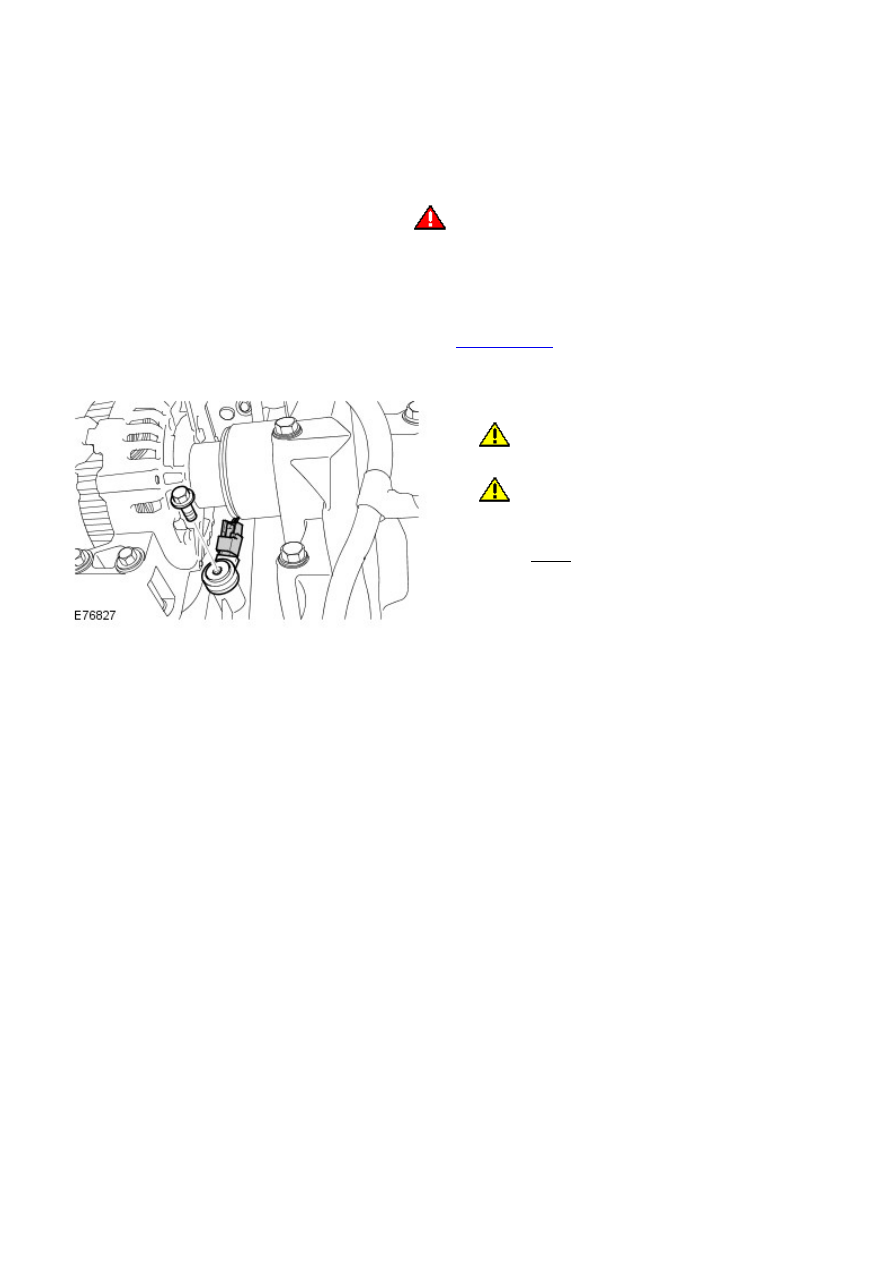

Electronic Engine Controls - I6 3.2L Petrol - Front Knock Sensor (KS)

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the oil cooler assembly.

Refer to:

Oil Cooler

 (303-01A Engine - I6 3.2L Petrol, Removal and

Installation).

2.

3. CAUTIONS:

 Make sure that the mating faces are clean and

free of corrosion and foreign material.

 Mark the components to aid installation.

Remove the knock sensor (KS).

Torque: 20 Nm

3.

Installation

To install, reverse the removal procedure.

1.

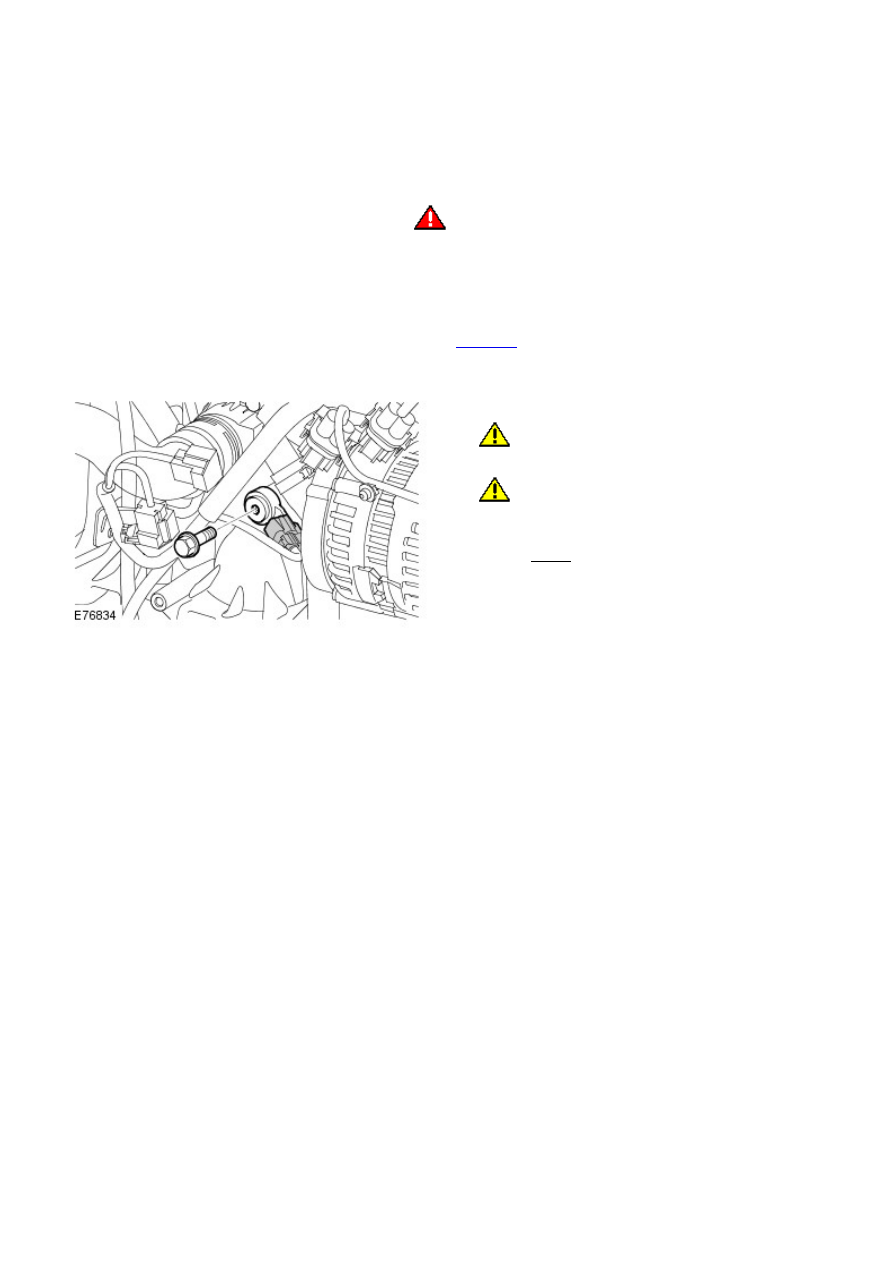

Electronic Engine Controls - I6 3.2L Petrol - Rear Knock Sensor (KS)

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the intake manifold.

Refer to:

Intake Manifold

 (303-01A Engine - I6 3.2L Petrol, Removal

and Installation).

2.

3. CAUTIONS:

 Make sure that the mating faces are clean and

free of corrosion and foreign material.

 Mark the components to aid installation.

Remove the knock sensor (KS).

Torque: 20 Nm

3.

Installation

To install, reverse the removal procedure.

1.

Electronic Engine Controls - TD4 2.2L Diesel -

General Specification

Item

Specification

Engine management system:
Make

BOSCH

Type

EDC 15 C2

Camshaft position sensor:
Make

Electrifil

Type

Hall effect

Crankshaft position sensor:
Make

Electrifil

Type

Hall effect

Torque Specifications

Description

Nm

lb-ft

Camshaft position (CMP) sensor retaining bolt

6

5

Crankshaft position (CKP) sensor retaining bolt

10

7

Engine oil pressure (EOP) sensor

35

26

Intake air temperature sensor (IAT)

10

7

Intake Manifold Runner Control (IMRC) Actuator

10

7

Manifold absolute pressure (MAP) sensor

10

7

Mass air flow (MAF) sensor retaining screws

2

1

Oil temperature/level sensor

27

20

Turbocharger Boost Pressure Sensor

8

7
