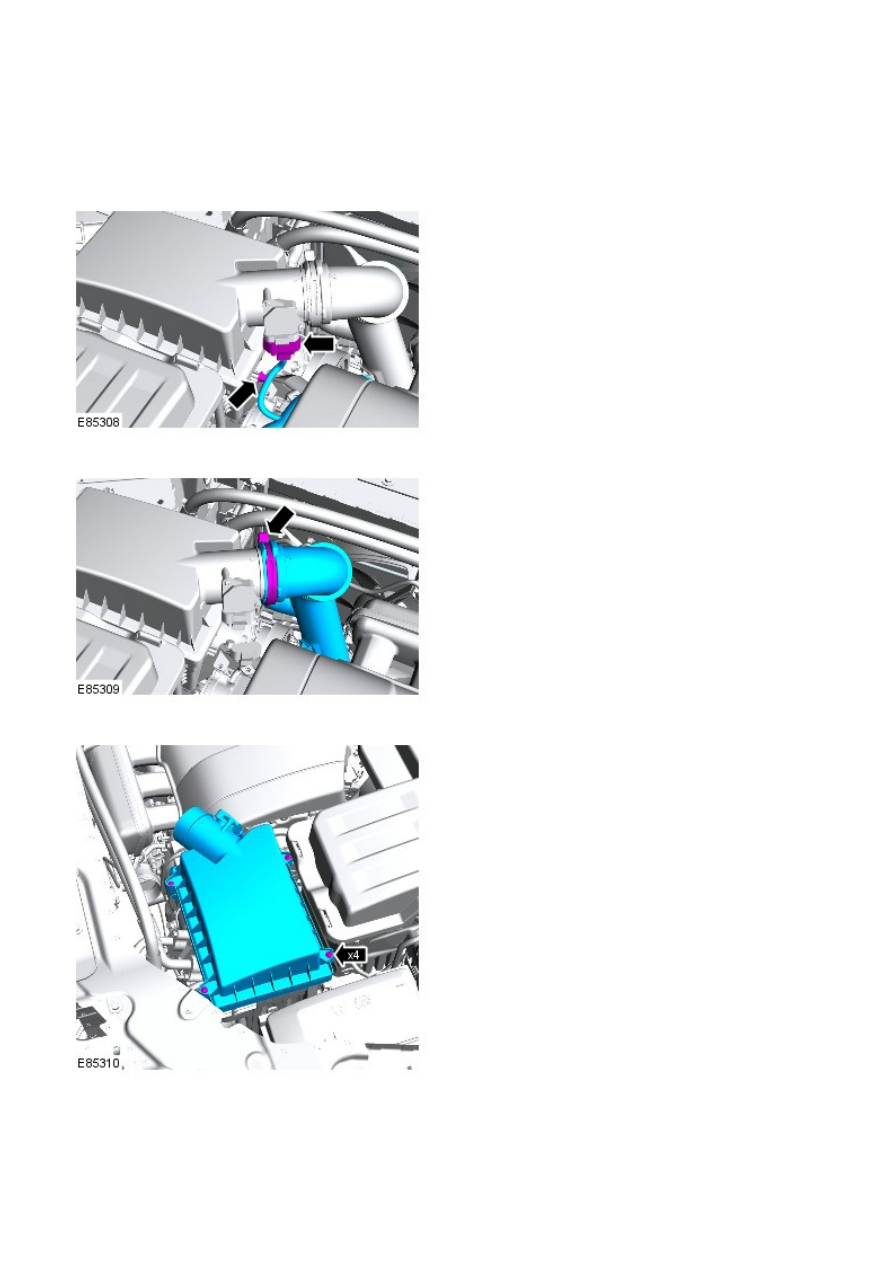

Intake Air Distribution and Filtering - TD4 2.2L Diesel - Air Cleaner

Removal and Installation

Removal

• NOTE: Petrol model shown, diesel similar.

1.

2.

3.

4.

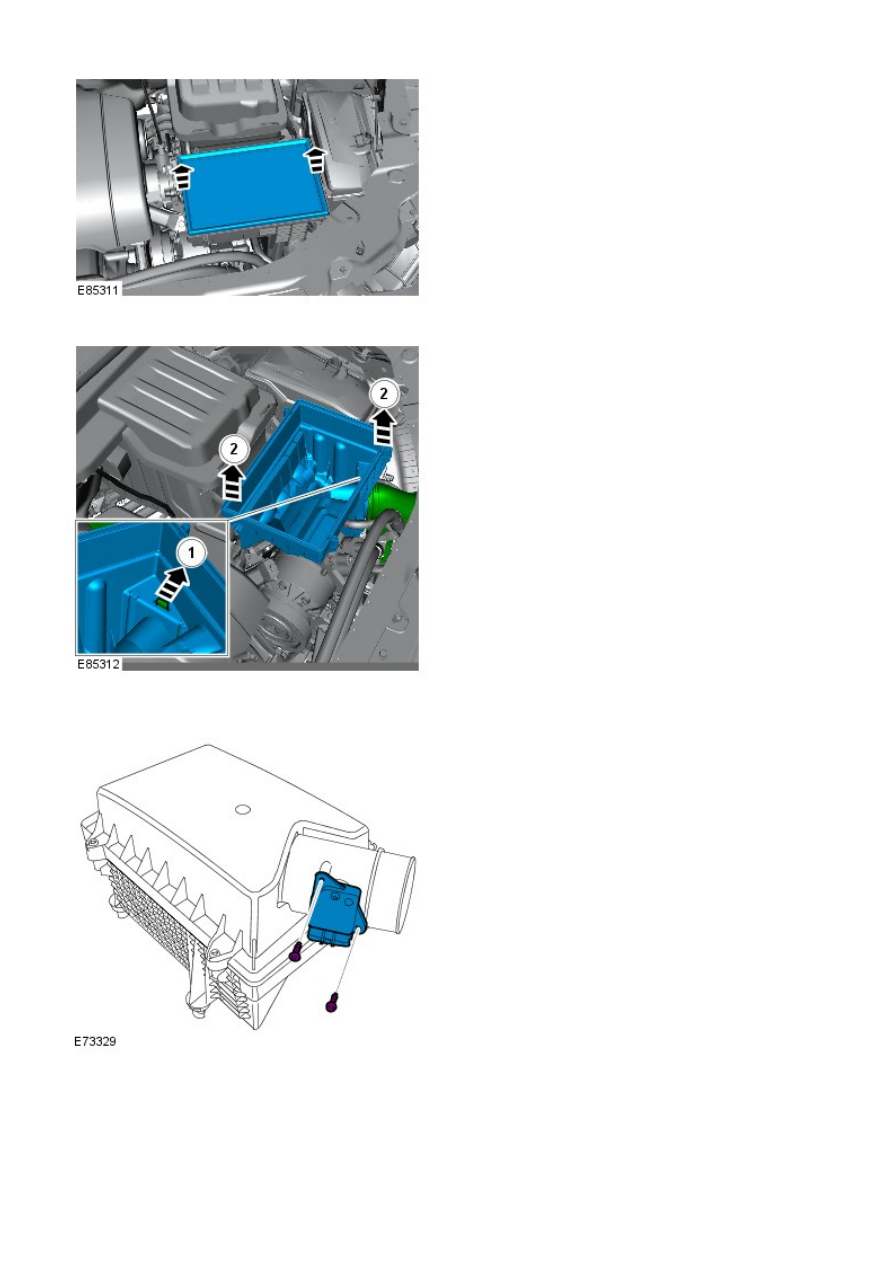

5. NOTE: Note the fitted position.

5.

6. NOTE: Do not disassemble further if the component
is removed for access only.

6.

Installation

Install the air cleaner element.

1.

Install the MAF sensor.

2.

3. NOTE: Align to the position noted on removal.

Install the air cleaner housing.

3.

Install the air cleaner outlet pipes.

4.

Connect the MAF sensor electrical connector.

5.

Intake Air Distribution and Filtering - TD4 2.2L Diesel - Charge Air Cooler

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the front bumper.

Refer to:

Front Bumper

 (501-19 Bumpers, Removal and Installation).

2.

3.

Torque: 5 Nm

4.

Torque: 5 Nm

5.
