Frelander 2. Manual - part 291





DTC

Description

Possible Causes

Action

P011300 Intake air temperature

sensor 1 circuit high

Intake air temperature (IAT)
sensor 1 circuit: short circuit
to power
Intake air temperature (IAT)
sensor 1 circuit: open circuit
Intake air temperature (IAT)
sensor failure

Check the IAT sensor and circuits (the IAT sensor
is incorporated into the MAF sensor). Refer to the
electrical guides. Install a new sensor as
required.
REFER to:

Mass Air Flow (MAF) Sensor

 (303-14A

Electronic Engine Controls - I6 3.2L Petrol,
Removal and Installation).

P011400 Intake air temperature

sensor 1 circuit
intermittent/erratic

Intake air temperature (IAT)
sensor 1 circuit: high
resistance
Intake air temperature (IAT)
sensor failure

Check the IAT sensor and circuits (the IAT sensor
is incorporated into the MAF sensor). Refer to the
electrical guides. Install a new sensor as
required.
REFER to:

Mass Air Flow (MAF) Sensor

 (303-14A

Electronic Engine Controls - I6 3.2L Petrol,
Removal and Installation).

P017100 System too lean (bank 1)

Intake air leak

- Between MAF sensor and
cylinder head

Fuel system restriction
MAF sensor fault

- Low intake flow

Exhaust leak, before catalytic
converter

Check for intake air leaks. Check for low fuel
pressure and MAF sensor DTCs. Rectify as
necessary. Check for exhaust leaks before the
catalytic converter

P017200 System too rich (bank 1)

Restricted air filter
Oil contaminated with fuel

- Too many cold starts with
vehicle subsequently not
getting hot enough for long
enough

Leaking fuel injectors
MAF sensor fault

- High intake flow

Leaking evaporative emission
system purge valve

Check the condition of the air cleaner element:
REFER to:

Air Cleaner

 (303-12A Intake Air

Distribution and Filtering - I6 3.2L Petrol,
Removal and Installation).
Check engine the oil condition. Check for leaking
injectors. Check for MAF sensor, injector and
evaporative emission system DTCs.

P017400 System too lean (bank 2)

Intake air leak

- Between MAF sensor and
cylinder head

Fuel system restriction
MAF sensor fault

- Low intake flow

Exhaust leak, before catalytic
converter

Check for intake air leaks. Check for low fuel
pressure and MAF sensor DTCs. Rectify as
necessary. Check for exhaust leaks before the
catalytic converter

P017500 System too rich (bank 2)

Restricted air filter
Oil contaminated with fuel

- Too many cold starts with
vehicle subsequently not
getting hot enough for long
enough

Leaking fuel injectors
MAF sensor fault

- High intake flow

Leaking evaporative emission
system purge valve

Check the condition of the air cleaner element:
REFER to:

Air Cleaner

 (303-12A Intake Air

Distribution and Filtering - I6 3.2L Petrol,
Removal and Installation).
Check engine the oil condition. Check for leaking
injectors. Check for MAF sensor, injector and
evaporative emission system DTCs.

P050600 Idle air control system

RPM lower than expected

Intake air restriction
Restricted/Contaminated
injector/fuel system
Accessory drive overload
(defective/seized component)
Variable intake system (VIS)
fault
Throttle body fault

Check the intake air system, air cleaner, etc.
Check the fuel system for
restriction/contamination. Check the accessory
drive driven components for excessive resistance
to turning/seizure. Rectify as necessary. Check
for DTCs indicating a VIS or throttle body fault.

P050700 Idle air control system

RPM higher than
expected

Intake air leakage
Variable intake system (VIS)
fault
Throttle body fault

Check the intake air system for leakage. Rectify
as necessary. Check for DTCs indicating a VIS or
throttle body fault.

P050B00 Cold start ignition timing

performance

Blocked intake system
Sticking/slow throttle
Poor engine condition

Check the intake air system, including the air
cleaner element. Carry out a complete vehicle
read for related DTCs. Rectify as necessary.

P061A00 Internal control module

torque performance

Air leakage in the intake
system after the MAF sensor
and throttle body
Throttle body fault
Mass air flow (MAF) sensor
fault
Engine coolant temperature
(ECT) sensor fault
Flywheel sensor fault

Retrieve the flight recorder data and customer
statement for return to engineering for analysis.
Check the intake system for leakage. Check for
DTCs indicating a throttle body, sensor or VVT
fault. Rectify as necessary. Refer to the warranty
policy and procedures manual if a module is
suspect.

DTC

Description

Possible Causes

Action

Manifold air pressure (MAP)
sensor fault
Camshaft reset valve fault
Variable vale timing (VVT)
fault
ECM fault

P061A62 Internal control module

torque performance -
signal compare failure

Air leakage in the intake
system after the MAF sensor
and throttle body
Throttle body fault
Mass air flow (MAF) sensor
fault
Engine coolant temperature
(ECT) sensor fault
Flywheel sensor fault
Manifold air pressure (MAP)
sensor fault
Camshaft reset valve fault
Variable vale timing (VVT)
fault
ECM fault

Retrieve the flight recorder data and customer
statement for return to engineering for analysis.
Check the intake system for leakage. Check for
DTCs indicating a throttle body, sensor or VVT
fault. Rectify as necessary. Refer to the warranty
policy and procedures manual if a module is
suspect.

P061B64 Internal control module

torque performance -
signal plausibility failure

Air leakage in the intake
system after the MAF sensor
and throttle body
Throttle body fault
Mass air flow (MAF) sensor
fault
Engine coolant temperature
(ECT) sensor fault
Flywheel sensor fault
Manifold air pressure (MAP)
sensor fault
Camshaft reset valve fault
Variable valve timing (VVT)
fault
ECM fault

Retrieve the flight recorder data and customer
statement for return to engineering for analysis.
Check the intake system for leakage. Check for
DTCs indicating a throttle body, sensor or VVT
fault. Rectify as necessary. Refer to the warranty
policy and procedures manual if a module is
suspect.

P222700 Barometric pressure

circuit -
range/performance

BARO sensor failure

- the BARO sensor is
internal to the ECM

Refer to the warranty policy and procedures
manual if a module is suspect.

P222721 Barometric pressure

circuit range/performance
- signal amplitude less
than minimum

BARO sensor failure

- the BARO sensor is
internal to the ECM

Refer to the warranty policy and procedures
manual if a module is suspect.

P222722 Barometric pressure

circuit range/performance
- signal amplitude
greater than maximum

BARO sensor failure

- the BARO sensor is
internal to the ECM

Refer to the warranty policy and procedures
manual if a module is suspect.

P222800 Barometric pressure

circuit low

BARO sensor failure

- the BARO sensor is
internal to the ECM

Refer to the warranty policy and procedures
manual if a module is suspect.

P222900 Barometric pressure

circuit high

BARO sensor failure

- the BARO sensor is
internal to the ECM

Refer to the warranty policy and procedures
manual if a module is suspect.

Intake Air Distribution and Filtering - I6 3.2L Petrol - Air Cleaner

Removal and Installation

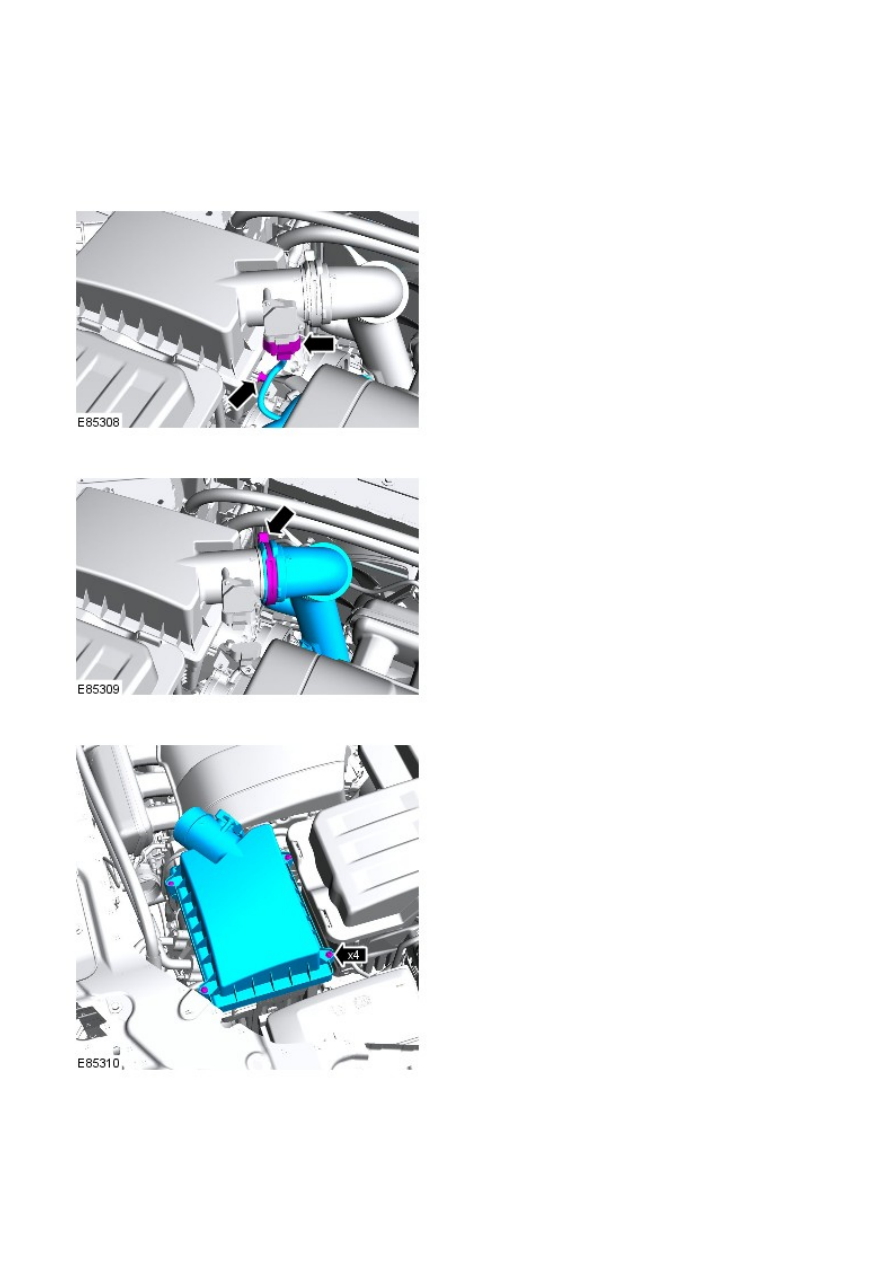

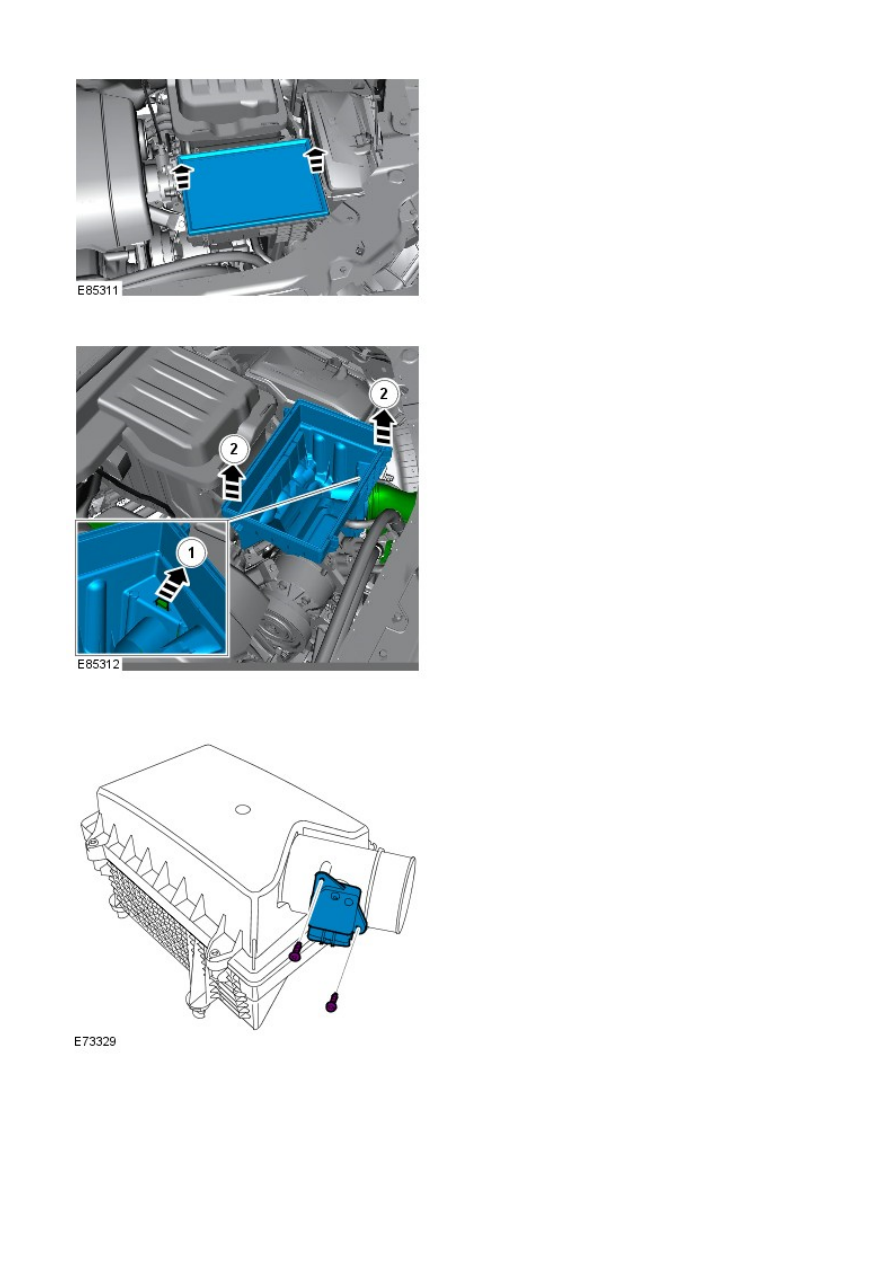

Removal

• NOTE: Petrol model shown, diesel similar.

1.

2.

3.

4.

5. NOTE: Note the fitted position.

5.

6. NOTE: Do not disassemble further if the component
is removed for access only.

6.

Installation

Install the air cleaner element.

1.

Install the MAF sensor.

2.
