Frelander 2. Manual - part 282





Engine Emission Control - I6 3.2L Petrol -

Torque Specifications

Description

Nm

lb-ft

Crankcase vent oil separator retaining bolts

10

7

Exhaust gas recirculation (EGR) cooler to exhaust manifold bolts

25

18

Engine Emission Control - I6 3.2L Petrol - Engine Emission Control3.2L

Description and Operation

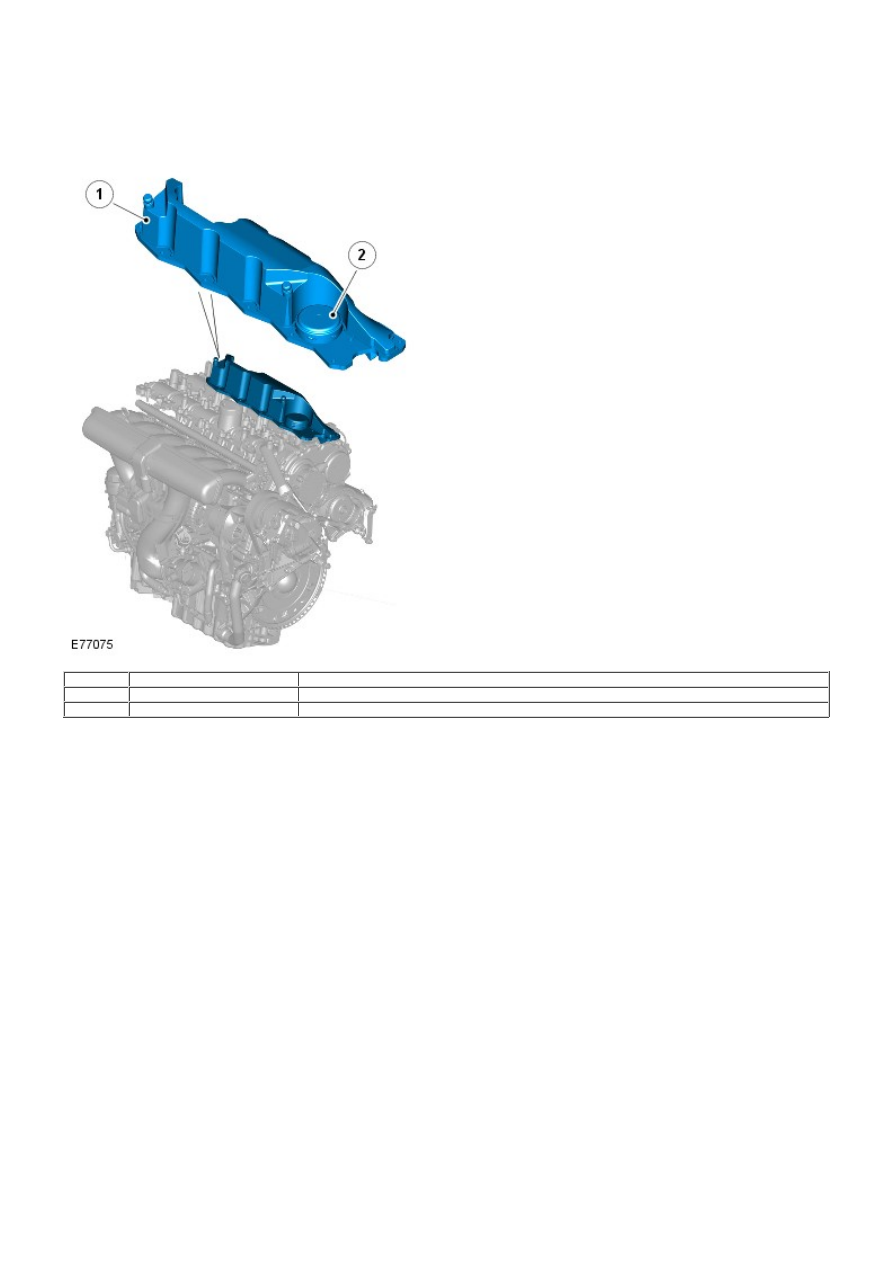

COMPONENT LOCATION

Item

Part Number

Description

1

-

Camshaft cover

2

-

positive crankcase ventilation (PCV) valve

OVERVIEW

The engine crankcase is ventilated through a PCV valve located on the camshaft cover. The crankcase gasses are
transferred internally to the PCV. The PCV valve prevents reverse airflow into the crankcase.

Engine Emission Control - I6 3.2L Petrol - Engine Emission Control

Diagnosis and Testing

Principles of Operation

For a detailed description of the engine emissions systems, refer to the relevant Description and Operation section in the
workshop manual.
REFER to: Engine Emission Control - 3.2L (303-08 Engine Emission Control - 3.2L, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

• NOTE: For diagnostic purposes the cylinders are divided into two banks: Bank 1 - Cylinder numbers 1, 2 and 3. Bank 2 -
Cylinders 4, 5 and 6

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of damage.

2.

Visual Inspection

Mechanical

Engine breather hoses

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

3.

4. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart.

4.

Symptom Chart

Symptom

Possible Cause

Action

Engine cranks, but
does not fire

Engine breather system
disconnected/restricted

Ensure the engine breather system is free from
restriction and is correctly installed

Engine stalls soon
after start

Breather system
disconnected/restricted

Ensure the engine breather system is free from
restriction and is correctly installed

Poor throttle response

Breather system
disconnected/restricted

Ensure the engine breather system is free from
restriction and is correctly installed

Excessive emissions

Engine breather system restricted

Ensure the engine breather system is free from
restriction and is correctly installed

Engine oil leaks

Engine breather system restricted

Ensure the engine breather system is free from
restriction and is correctly installed

Engine Emission Control - I6 3.2L Petrol - Crankcase Vent Oil Separator

Removal and Installation

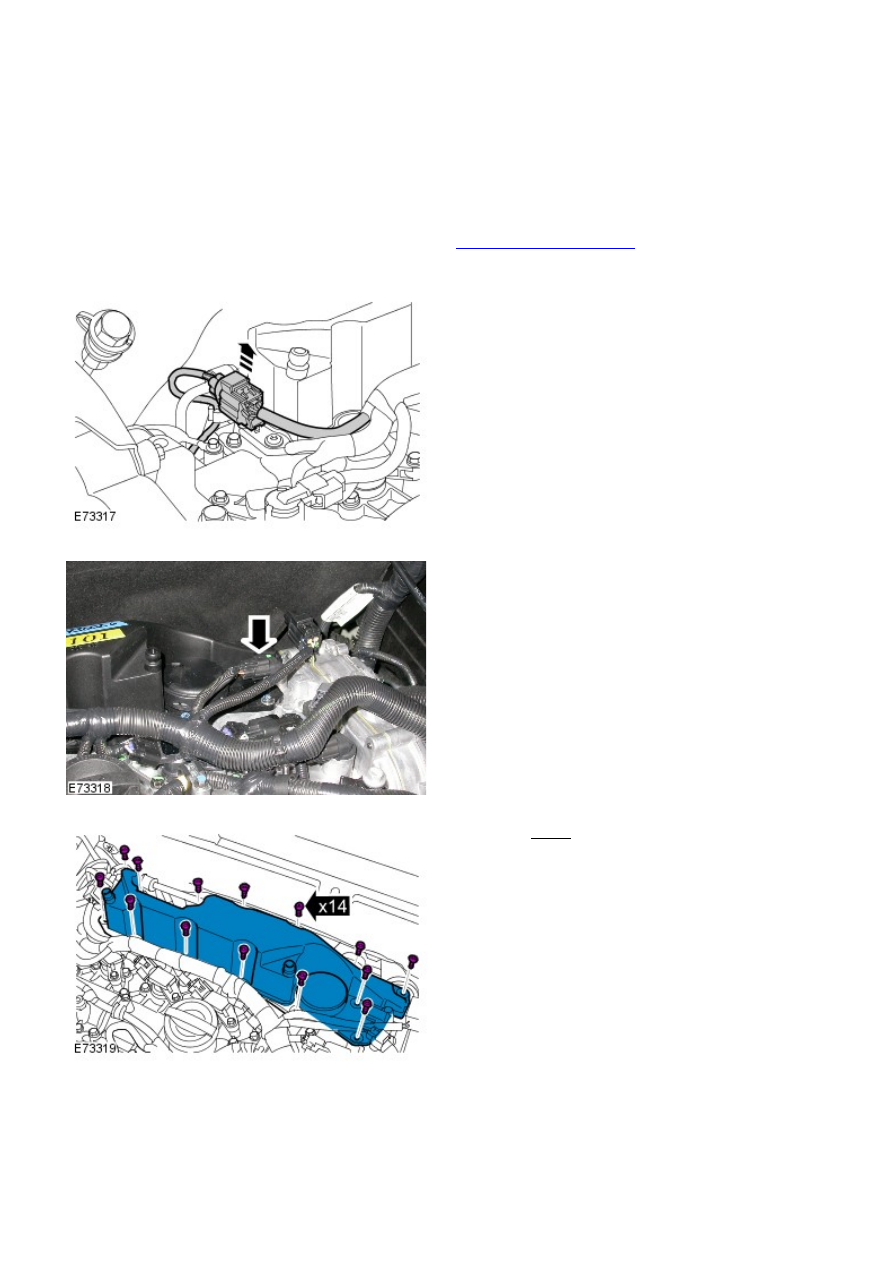

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the engine cover.

Refer to:

Engine Cover - I6 3.2L Petrol

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

2.

3.

Torque: 10 Nm

4.
