Connect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

4.

Starting System - I6 3.2L Petrol - Start Control Unit

Removal and Installation

Removal

1. NOTE: This step must be performed if replacing the start control
unit.

• NOTE: Make sure that all keys (remote control handsets) are
present when performing this procedure.

Using the Land Rover approved diagnostic equipment, interrogate
the start control unit and upload the stored data.

1.

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

2.

Remove the driver lower air bag.

Refer to:

Driver Lower Air Bag Module

 (501-20B Supplemental

Restraint System, Removal and Installation).

3.

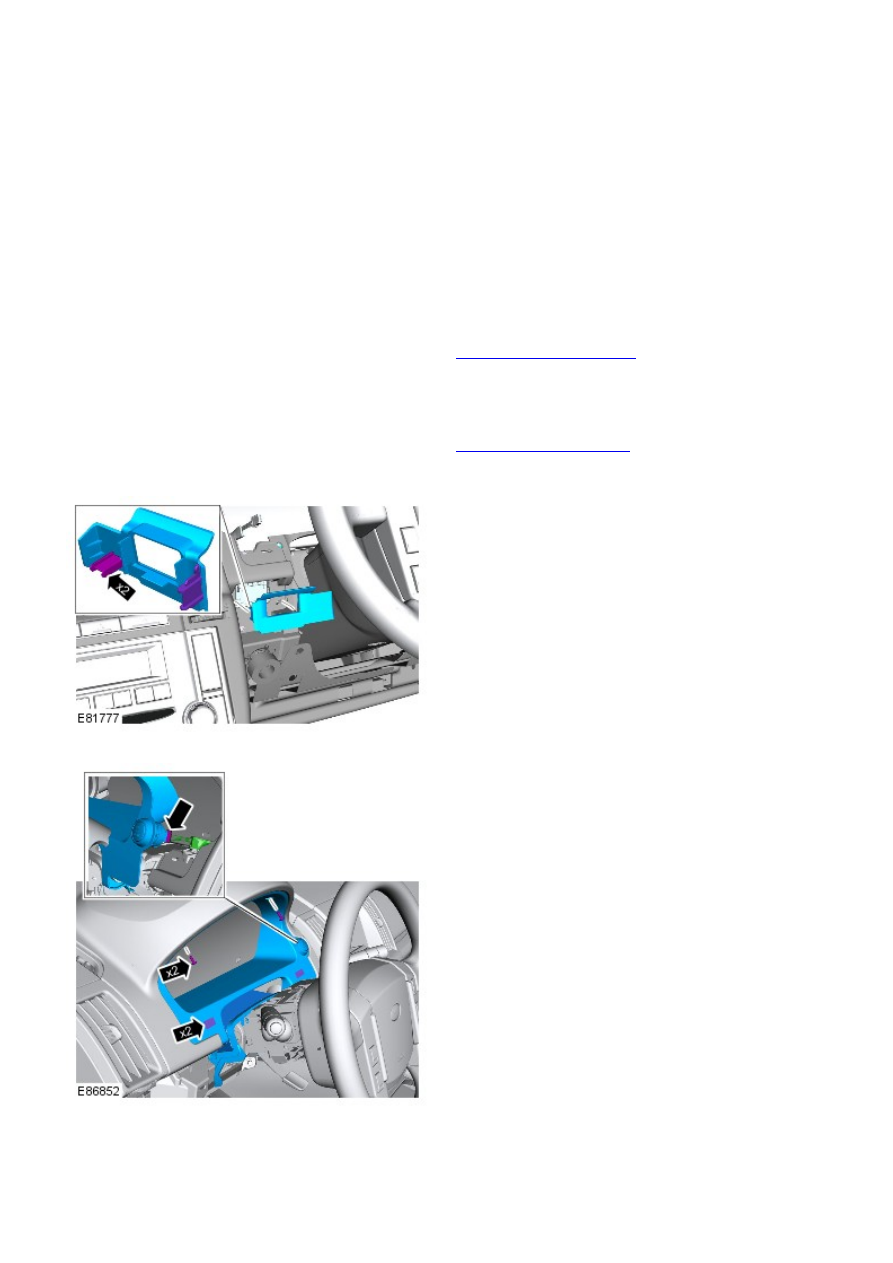

Remove the starter control unit trim cover.

4.

Remove the instrument cluster surround.

5.

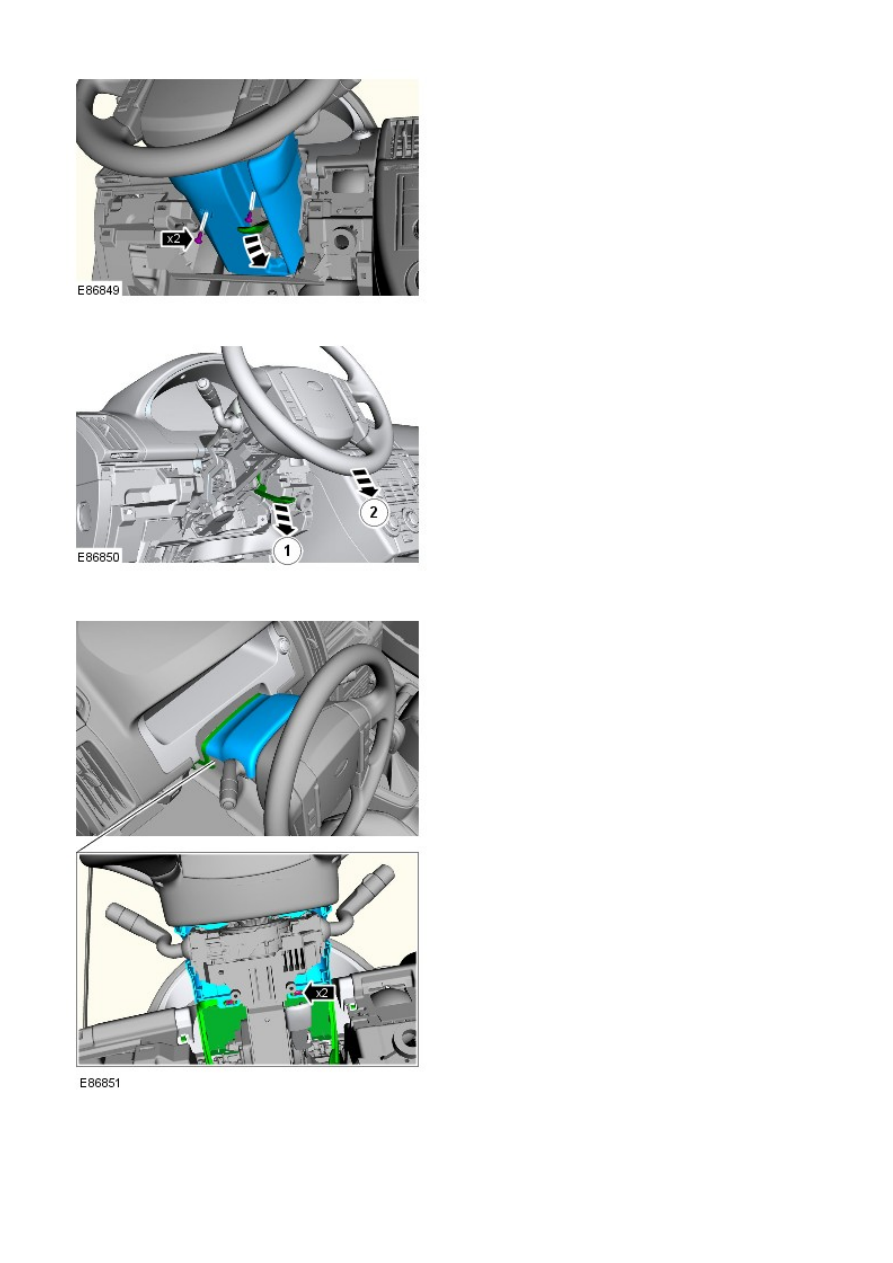

Remove the steering column lower cowl.

6.

Adjust the steering column to its lowest position.

7.

8.

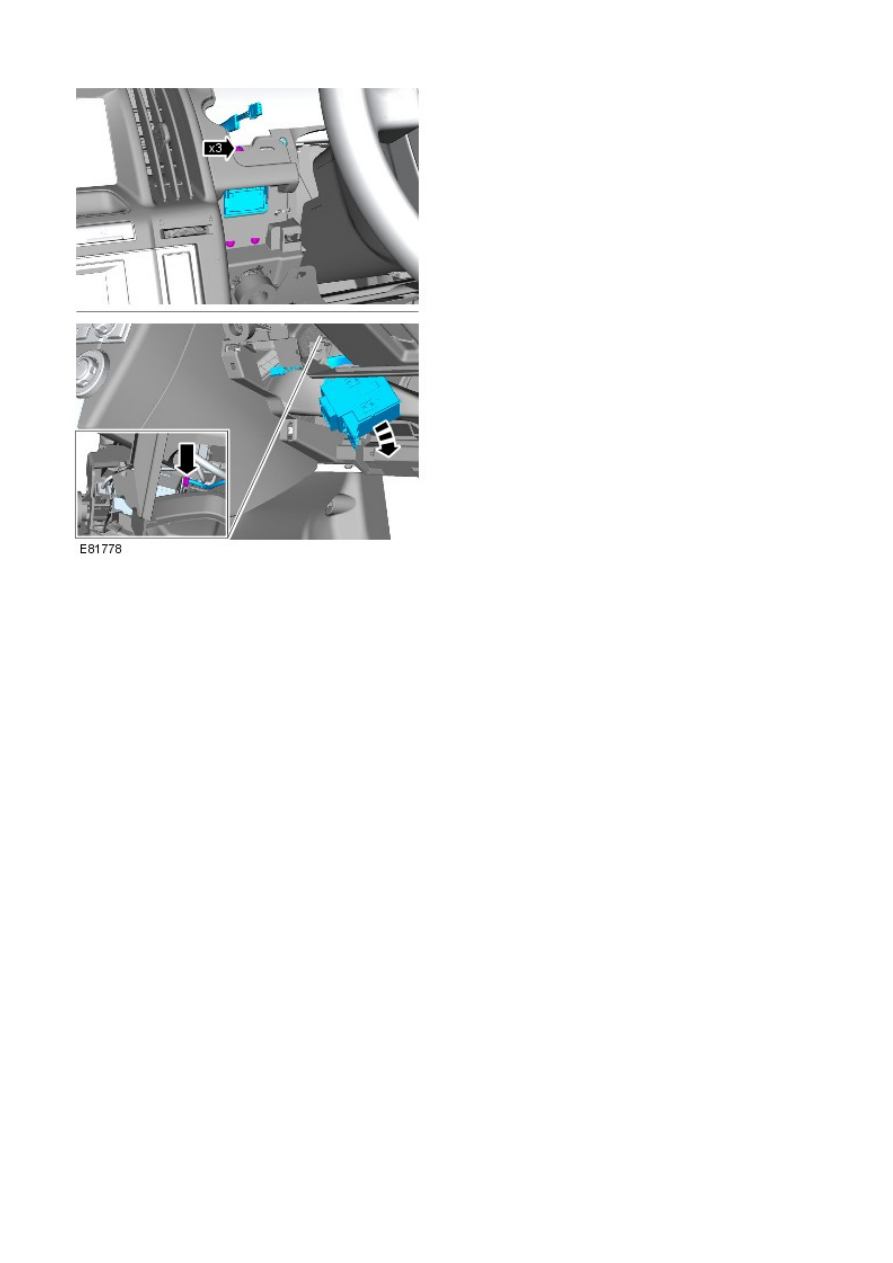

Remove the start control unit.

9.

Installation

To install, reverse the removal procedure.

1.

Using the Land Rover approved diagnostic equipment, download the
previously stored information to a new start control unit.

2.
