Accessory Drive - I6 3.2L Petrol - Accessory Drive Belt Idler Pulley

Removal and Installation

Removal

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the engine cover.

Refer to:

Engine Cover - I6 3.2L Petrol

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

Remove the battery tray.

Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

3.

Remove the air cleaner assembly.

Refer to:

Air Cleaner

 (303-12A Intake Air Distribution and Filtering -

I6 3.2L Petrol, Removal and Installation).

4.

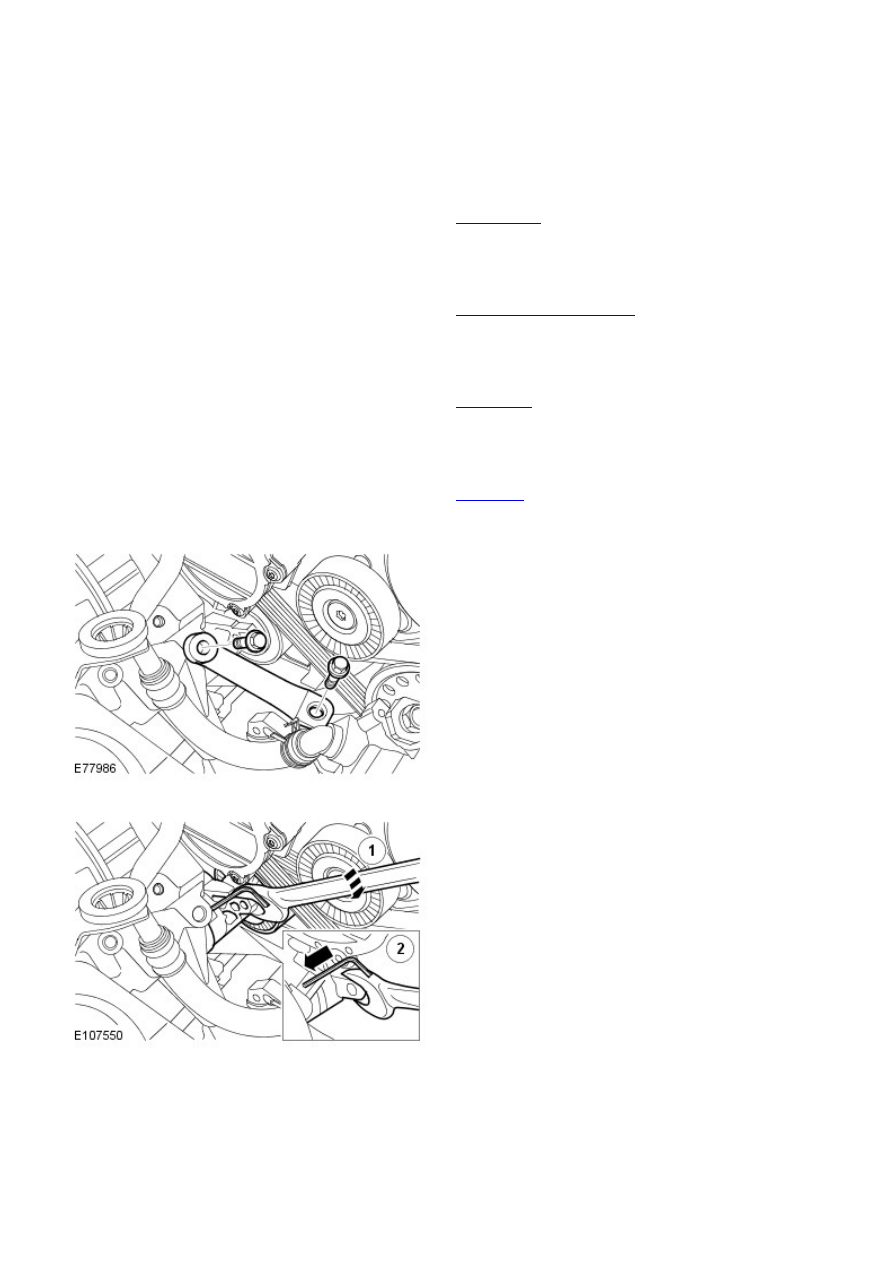

Remove the A/C compressor, lower support bracket.

5.

Using suitable tools, release the accessory drive belt
tension.

6.

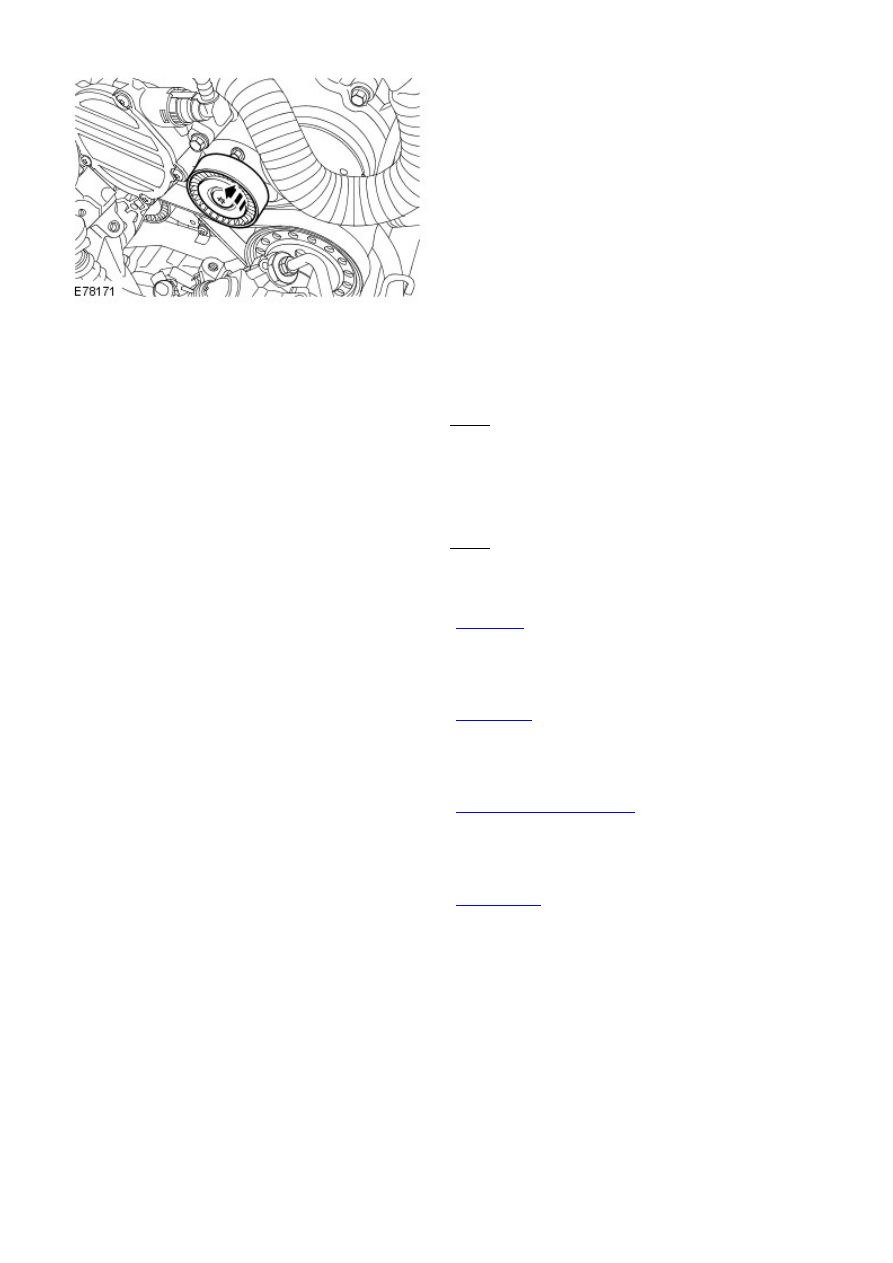

Remove the accessory drive belt idler pulley.

7.

Installation

Install the accessary drive belt idler pulley.

Torque: 25 Nm

1.

Install the accessory drive belt.

2.

Install the A/C compressor, lower support bracket.

Torque: 25 Nm

3.

Install the air cleaner assembly.

Refer to:

Air Cleaner

 (303-12A Intake Air Distribution and Filtering -

I6 3.2L Petrol, Removal and Installation).

4.

Install the battery tray.

Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

5.

Install the engine cover.

Refer to:

Engine Cover - I6 3.2L Petrol

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

6.

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

7.

Accessory Drive - I6 3.2L Petrol - Accessory Drive Pulley

Removal and Installation

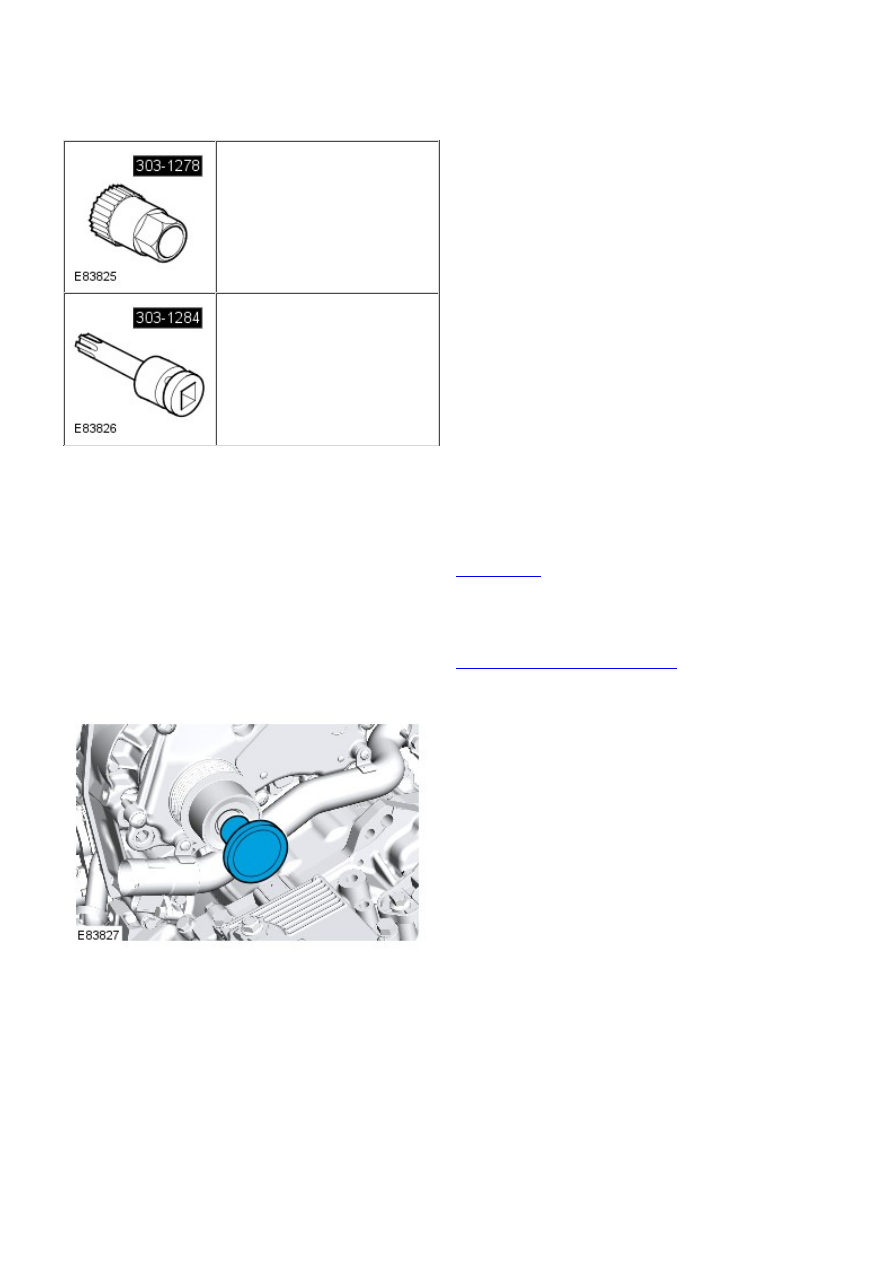

Special Tool(s)

303-1278
Aligner, Timing Cover

303-1284
Torx Socket, Accessory Drive Pulley

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the A/C compressor mounting bracket.

Refer to:

Accessory Drive Component Bracket

 (303-05A Accessory

Drive - I6 3.2L Petrol, Removal and Installation).

2.

3.

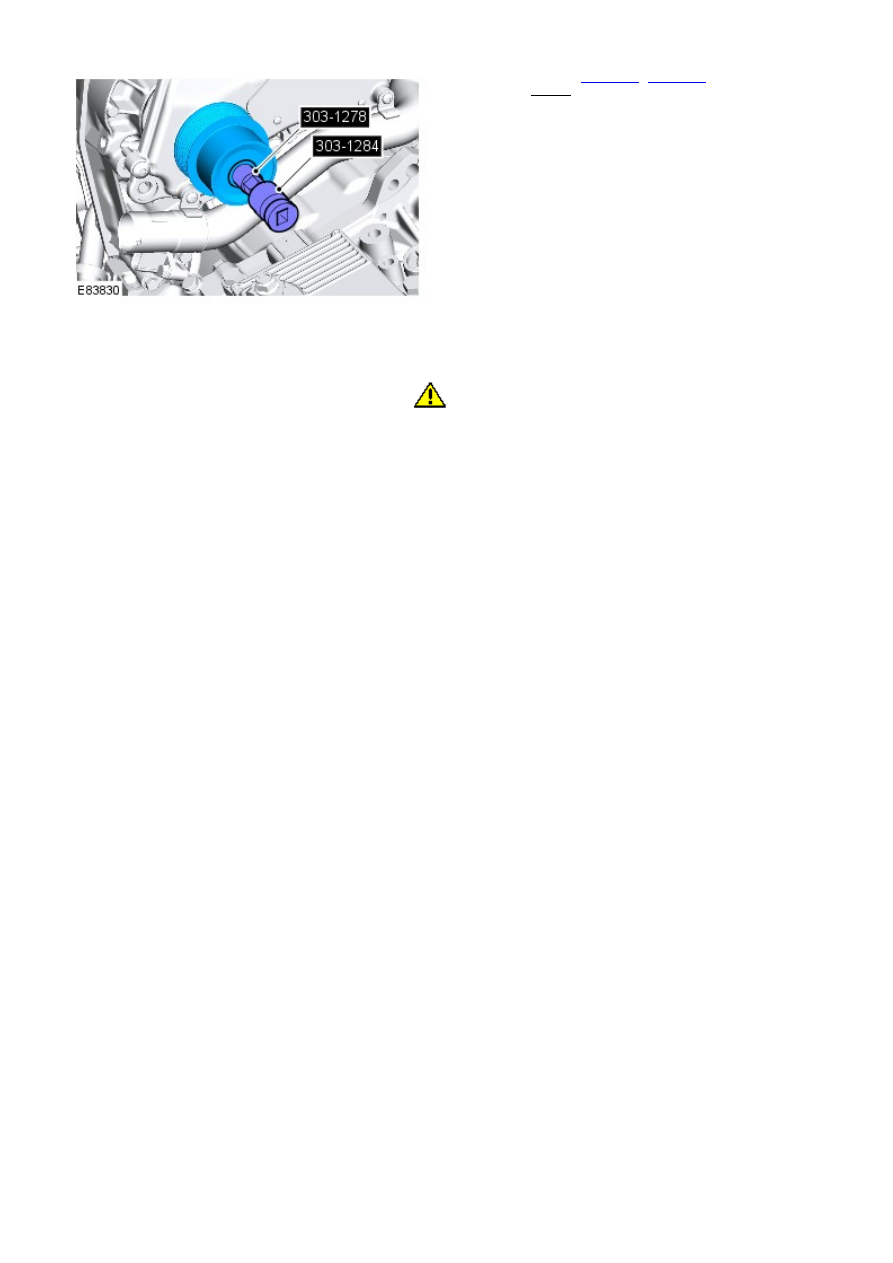

Special Tool(s):

303-1284

303-1278

Torque: 60 Nm

4.

Installation

1.

CAUTION: Make sure that the mating faces are clean and

free of foreign material.

To install, reverse the removal procedure.

1.
