Frelander 2. Manual - part 259
9.
CAUTION: Make sure that all openings are
sealed. Use new blanking caps.
9.
Installation
1. CAUTIONS:
Make sure that the component is clean, free of foreign
material and lubricant.
Make sure that new bolts are installed.

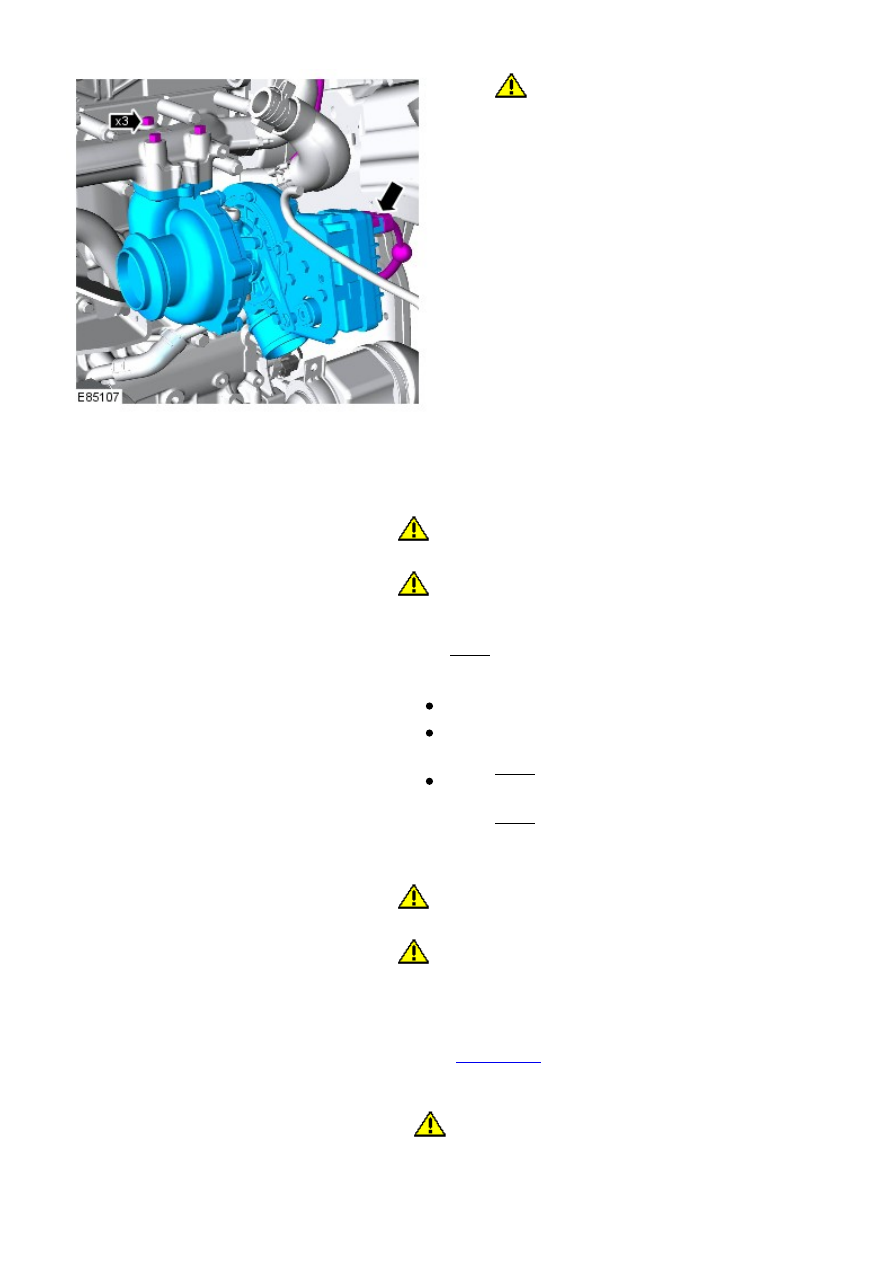

Install the turbocharger.
Torque: 24 Nm
1.
Install the turbocharger support bracket, but do not fully
tighten at this stage.
Tighten the support bracket to turbocharger bolt.
Torque: 24 Nm
Tighten the support bracket to cylinder block bolts.
Torque: 24 Nm
2.
3. CAUTIONS:
Make sure that the area around the component is clean and
free of foreign material.
Make sure that new sealing washers are installed.
• NOTE: For the turbocharger oil feed pipe bolt torque figure, refer to
the specifications section.
Connect the turbocharger oil feed pipe.
Refer to:
Specifications
(303-04C Fuel Charging and Controls -
Turbocharger - TD4 2.2L Diesel, Specifications).
3.
4.
CAUTION: Make sure that the area around the component is
clean and free of foreign material.
• NOTE: Install a new gasket.
Connect the turbocharger oil return pipe.
4.
