25. CAUTIONS:

 Discard the seal.

 Make sure that all openings are sealed.

Disconnect the A/C compressor low-pressure refrigerant
line.

25.

Remove the top hose.

26.

27.

CAUTION: Be prepared to collect escaping fuel.

Disconnect the 2 fuel lines.

27.

Release the 2 fuel lines.

28.

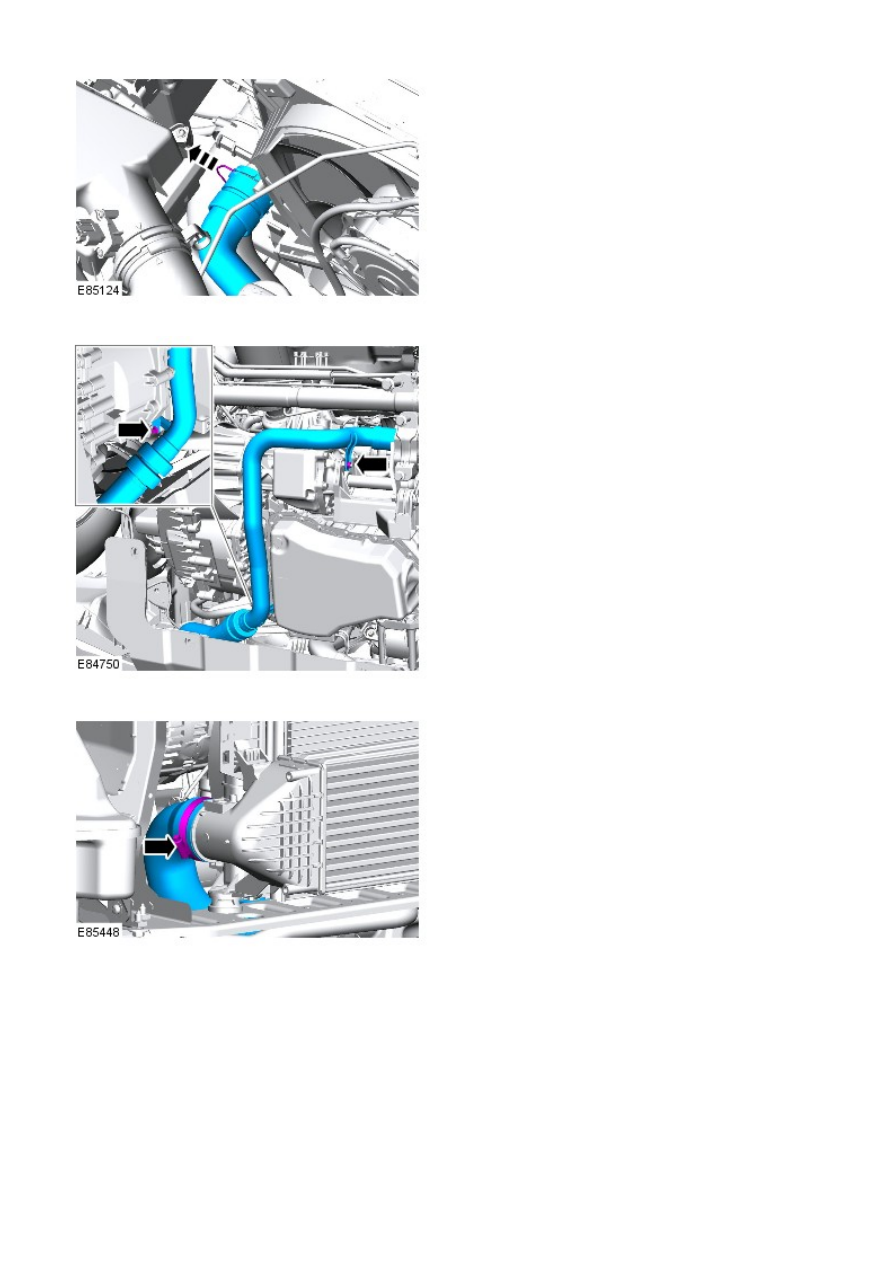

Disconnect the bottom hose.

29.

Remove the charge air cooler inlet pipe.

30.

Disconnect the charge air cooler outlet hose.

31.

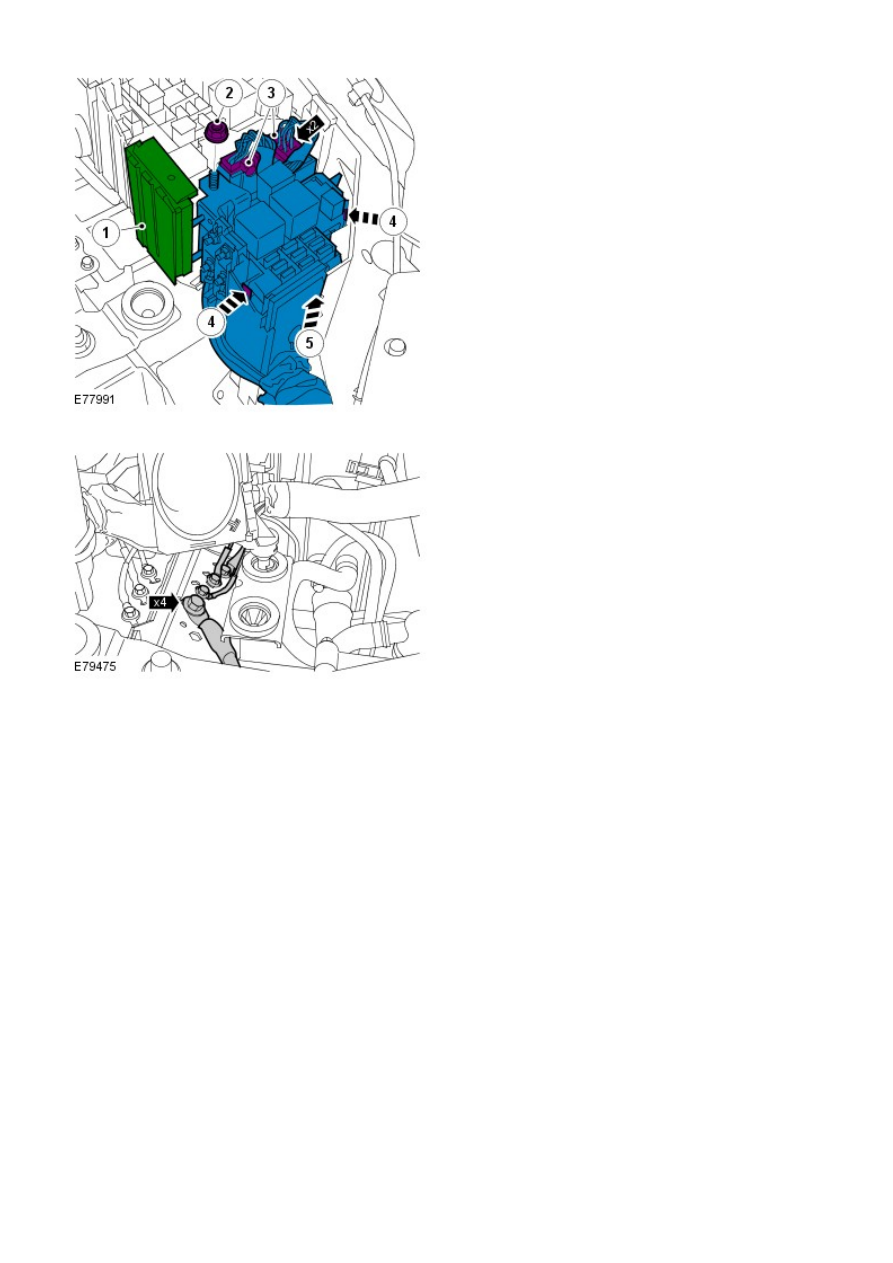

Disconnect the engine wiring harness.

32.

LH side: Release 4 engine compartment ground cables.

33.

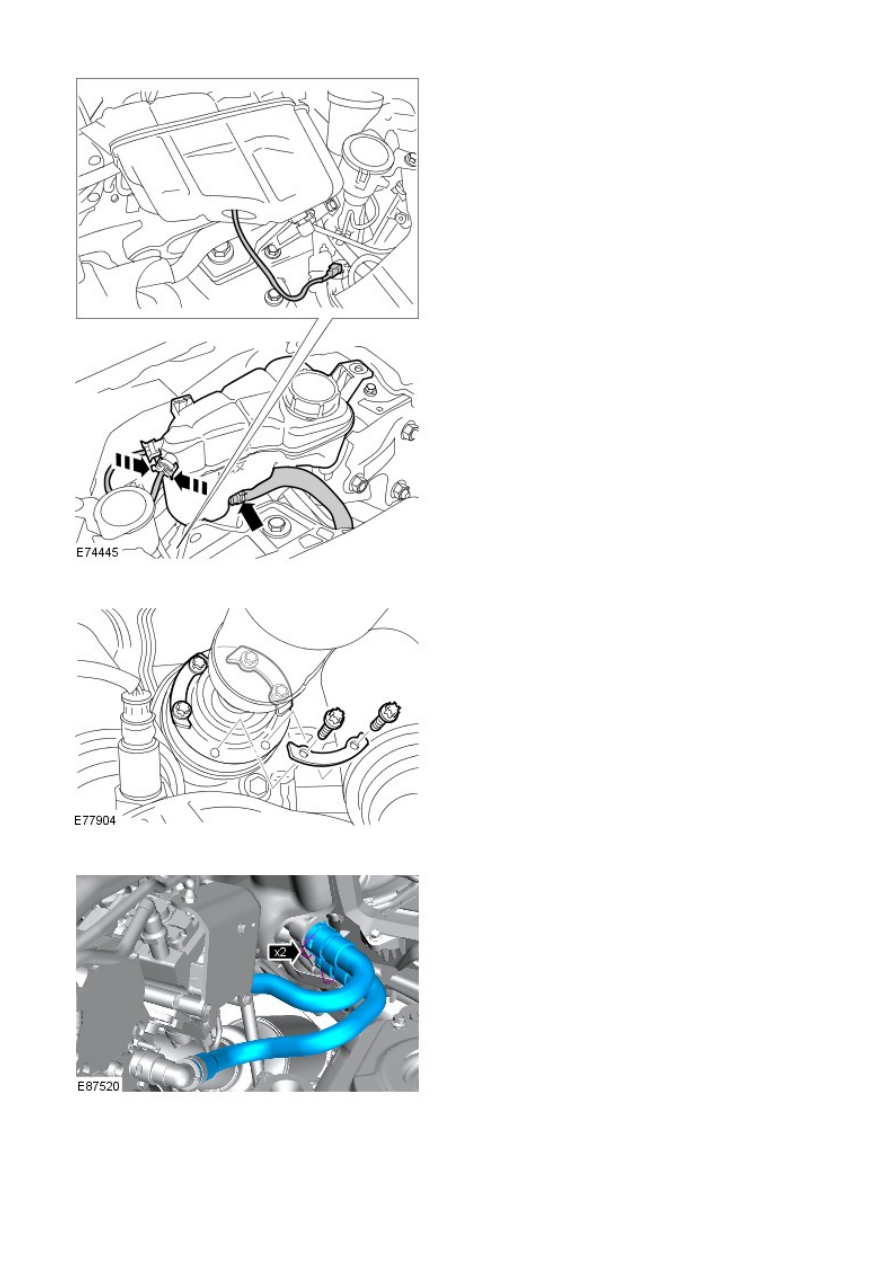

Remove the coolant expansion tank.

34.

Release the driveshaft from the transmission drive
flange.

35.

Disconnect 2 heater hoses from the bulkhead.

36.
