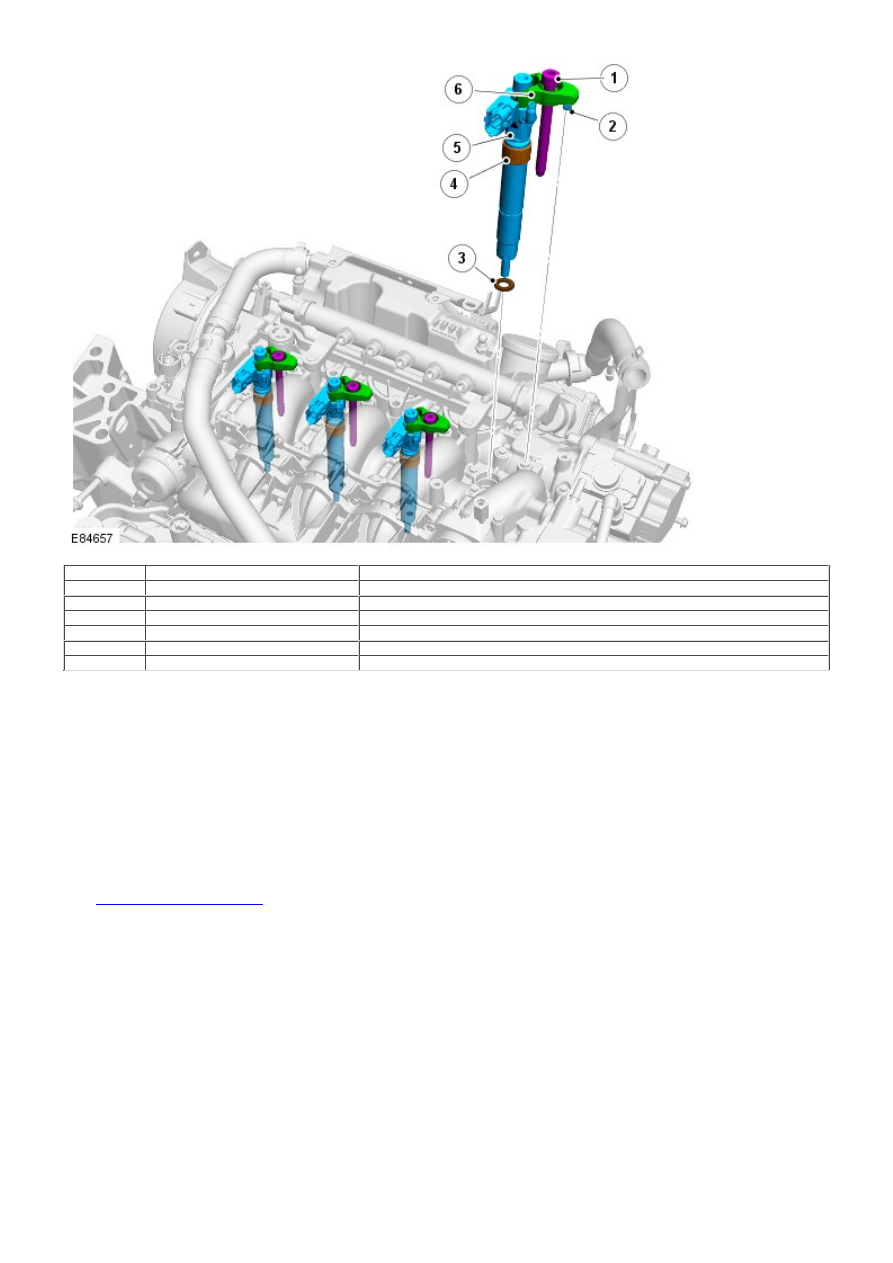

The 4 piezo-electric operated fuel injectors are centrally mounted above each cylinder combustion chamber. Each injector is
sealed against the base of the injector bore with a copper washer. A centering ring installed over the injector body makes
sure the injector is correctly positioned within the injector bore.

• NOTE: A new copper washer must be installed and the old washer discarded, whenever an injector is removed from the
cylinder head. The centering ring may be re-used during injector removal.

The injector pipes are single use only, and must be renewed whenever a pipe connection is released.

The injector is secured to the structural camshaft cover with an injector mounting clamp and bolt. A dowel that is a loose
fit in the camshaft cover provides the anchor point for the opposite end of the injector mounting clamp.

• NOTE: Care must be taken when removing the structural camshaft cover or injectors to prevent accidental loss of the
injector mounting clamp dowels.

Operation of the injectors is controlled directly by the ECM. For additional information, refer to:

Fuel Charging and Controls

 (303-04B Fuel Charging and Controls - TD4 2.2L Diesel, Description and Operation),

Electronic Engine Controls (303-14 Electronic Engine Controls - 2.2L Duratorq - Td4, Description and Operation).

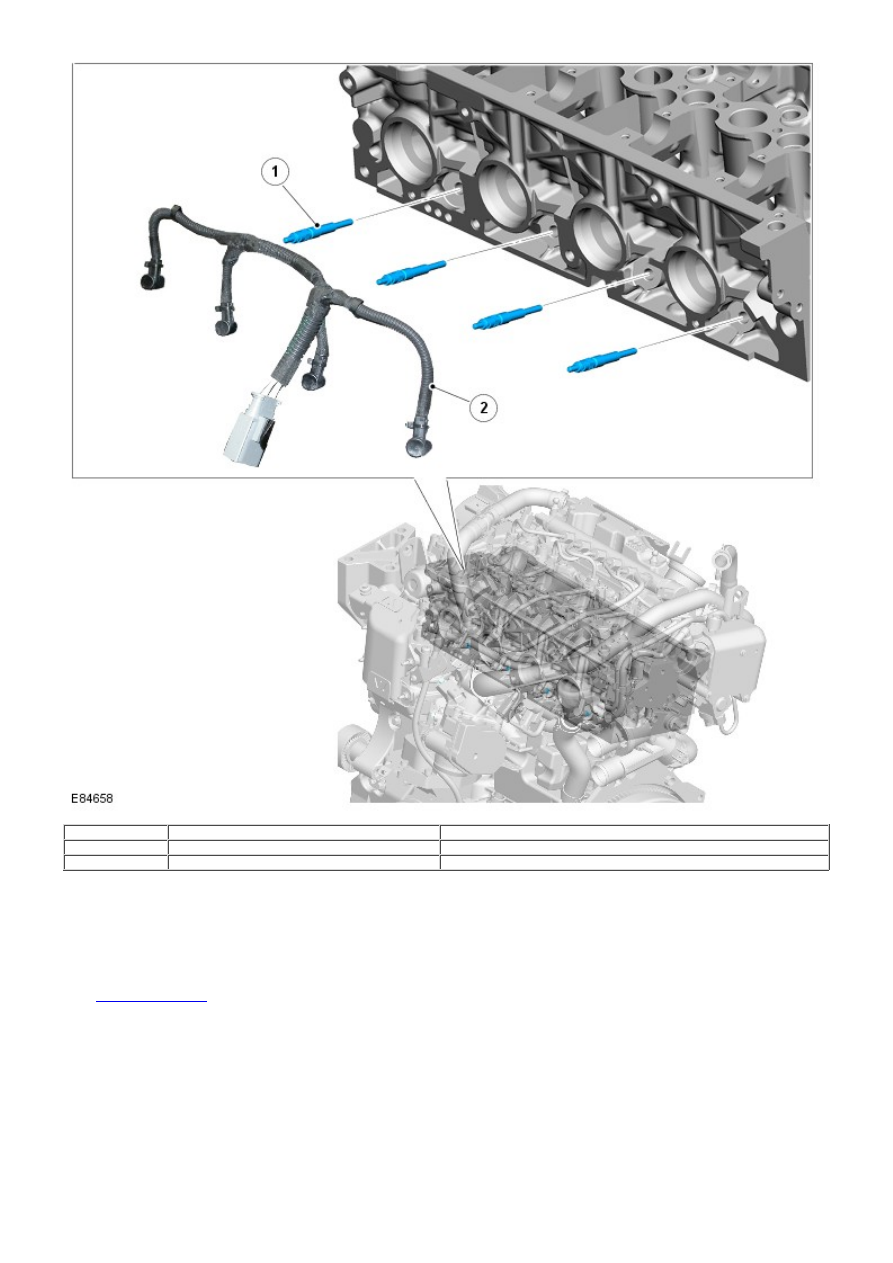

Glow Plugs

Item

Part Number

Description

1

-

Glow plug

2

-

Glow plug harness

The 4 glow plugs are installed at the lower RH side of the cylinder head, adjacent to each intake helical port. Each glow
plug seats in a formed drilling with the tip protruding into the combustion chamber. The glow plugs are connected by a
common electrical harness, and are controlled by the ECM.

The glow plugs pre-heat the combustion chamber before and during engine cranking to promote combustion. The glow
plugs are essential for aiding engine starting, and also reduce emissions and engine noise of a cold engine. For additional
information, refer to:

Electronic Engine Controls (303-14 Electronic Engine Controls - 2.2L Duratorq - Td4, Description and Operation),

Glow Plug System

 (303-07B Glow Plug System, Description and Operation).

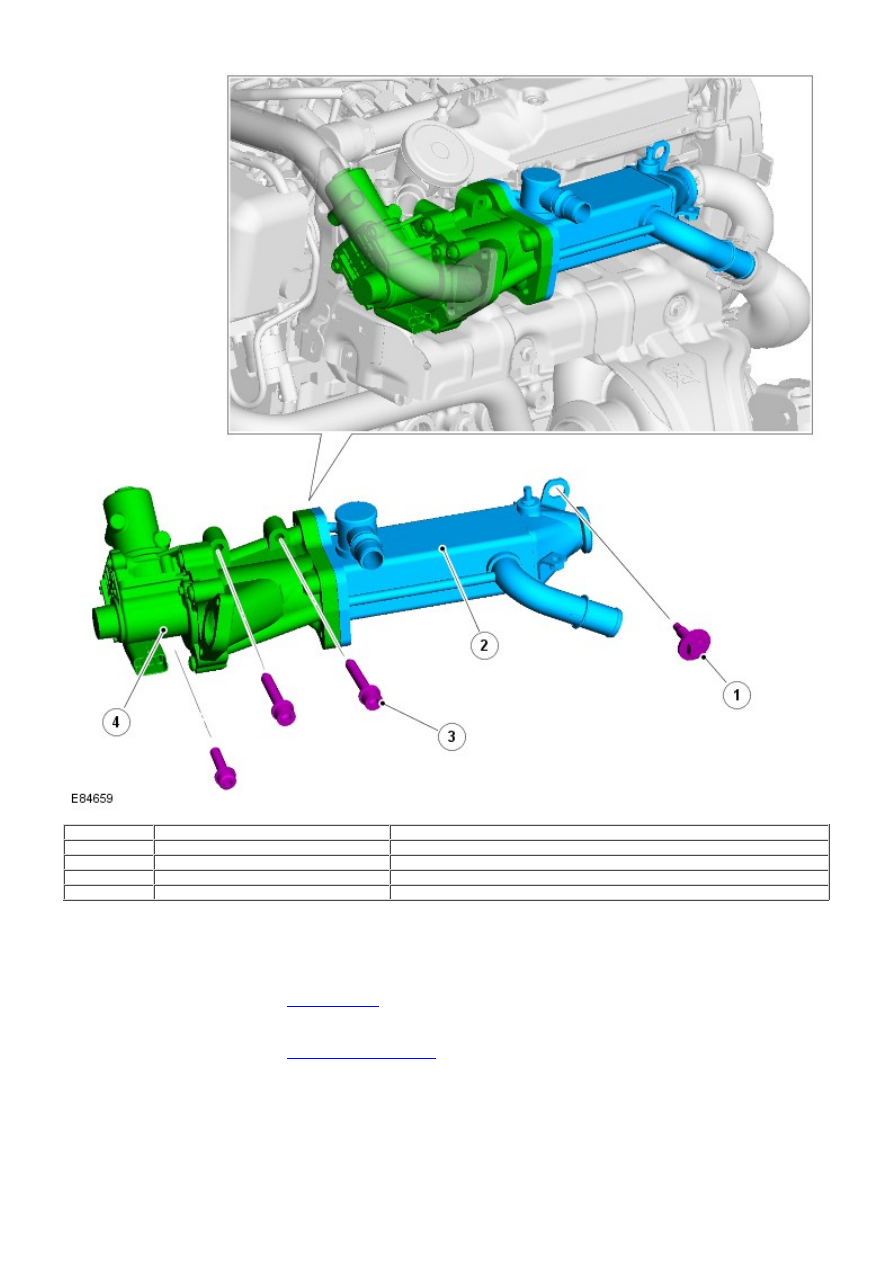

Exhaust Gas Recirculation (EGR) Valve and Cooler Assembly

Item

Part Number

Description

1

-

Fixing to camshaft cover

2

-

EGR cooler

3

-

Bolt (3 off)

4

-

EGR valve

The EGR valve and cooler assembly is located on the RH side of the cylinder head above the exhaust manifold, and
secured with 4 fixings. An inlet pipe connects the EGR cooler to the exhaust manifold. A gas transfer tube is routed across
the engine and connects the EGR valve outlet to the intake manifold housing.

A pipe on the EGR cooler body connects to the climate control heater outlet hose, and provides the coolant supply to the
EGR cooler. The EGR cooler outlet connects to the coolant rail, located on the RH side of the engine. The coolant rail is
connected between the thermal control module and the coolant pump rear housing.
For additional information, refer to:

Engine Cooling

 (303-03B Engine Cooling - TD4 2.2L Diesel, Description and Operation).

The EGR is controlled by the ECM, and is enabled when the engine is at normal operating temperature and under cruising
conditions.
For additional information, refer to:

Engine Emission Control

 (303-08B Engine Emission Control - TD4 2.2L Diesel,

Description and Operation).

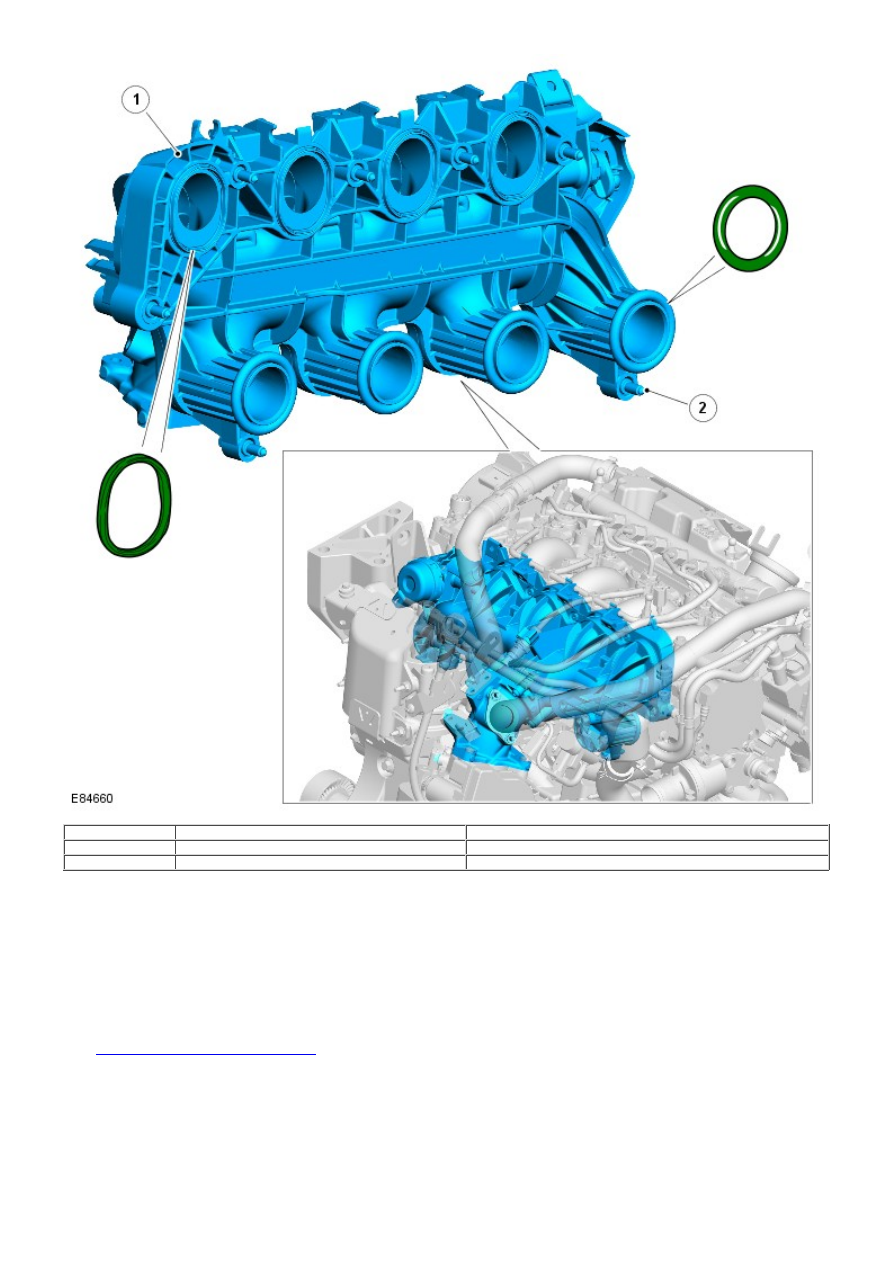

Intake Manifold

Item

Part Number

Description

1

-

Intake manifold

2

-

Bolt (7 off)

The intake manifold is located on the LH side of the engine, and attached to the cylinder head with 7 bolts. The 4 lower
helical swirl ports and 4 upper filling ports are sealed to the cylinder head and structural camshaft cover with a shaped
sealing ring. Care must be taken when installing the intake manifold that the sealing rings are correctly seated within the
ports.

• NOTE: A small quantity of grease may be used to retain the sealing rings in the intake manifold ports during installation
of the intake manifold.

The intake manifold provides the location for the electronic throttle assembly, and the port de-activation device
components. A port on the RH side of the intake manifold provides the connection for the EGR gas transfer tube. For
additional information, refer to:

Electronic Engine Controls (303-14 Electronic Engine Controls - 2.2L Duratorq - Td4, Description and Operation),

Intake Air Distribution and Filtering

 (303-12B Intake Air Distribution and Filtering - TD4 2.2L Diesel, Description and

Operation).
