Frelander 2. Manual - part 184





Engine - I6 3.2L Petrol - Rear End Accessory Drive (READ) Idler Shaft
Assembly

Removal and Installation

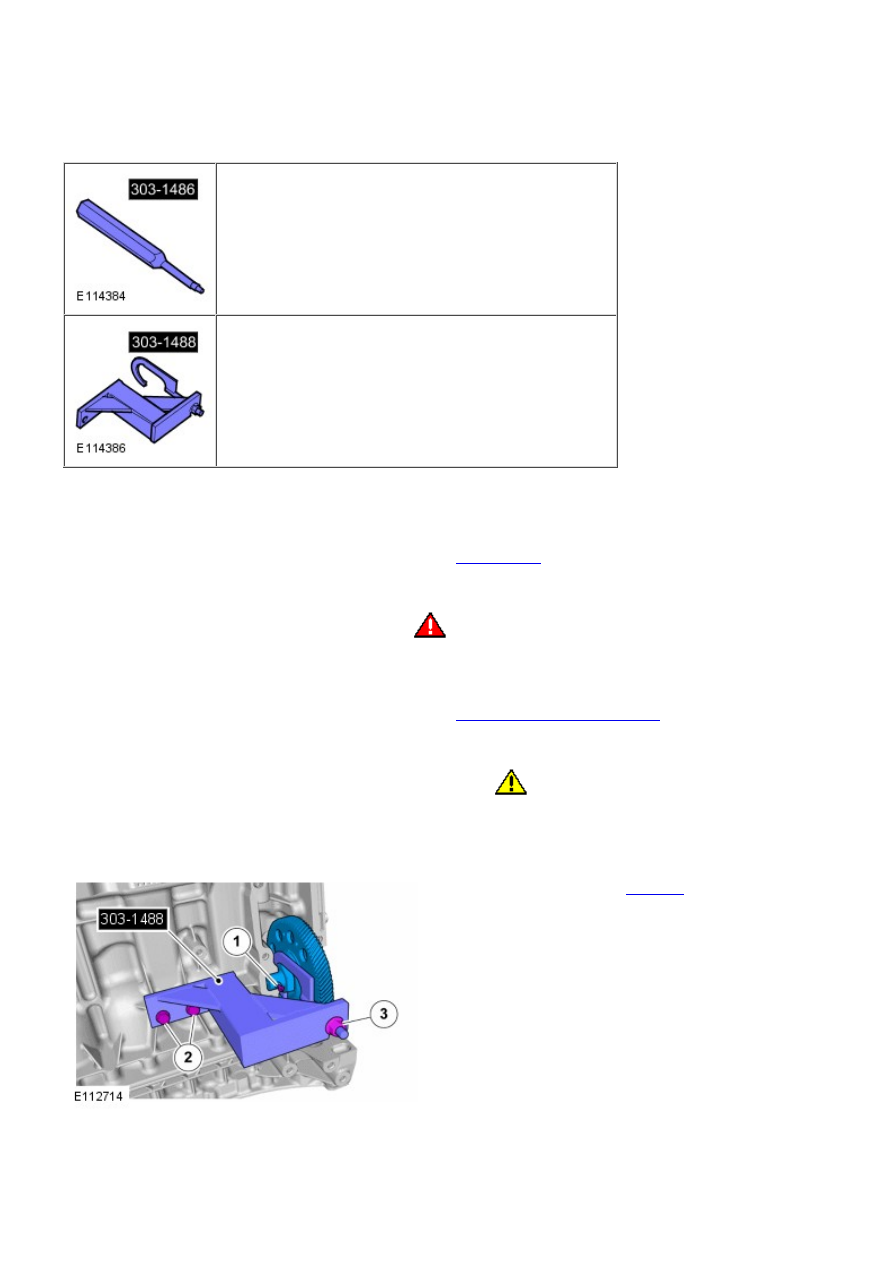

Special Tool(s)

303-1486
Mandrel

303-1488
Rear End Accessory Drive (READ) Idler Shaft Assembly Extractor

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2.

Refer to:

Rear End Accessory Drive (READ)

 (303-05A Accessory Drive

- I6 3.2L Petrol, Removal and Installation).

3.

4.

CAUTION: Make sure that the locking pin is

removed with the READ idler shaft assembly. Failure to
do so may result in damage to the vehicle.

Install a suitable screw into the locking pin.

1.

Install with the special tool.

Special Tool(s):

303-1488

2.

Tighten the nut to remove the READ idler shaft
assembly and the locking pin.

3.

4.

5.

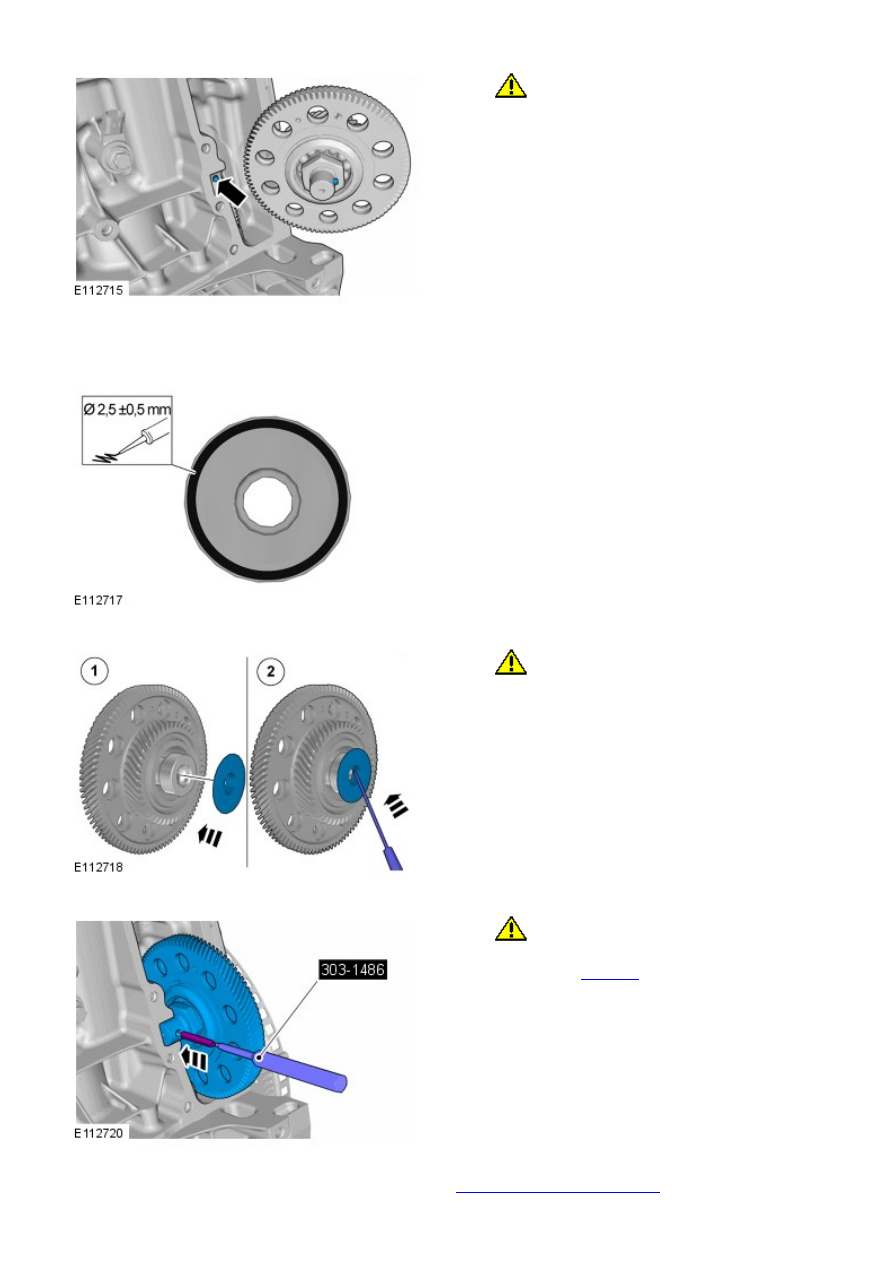

CAUTION: Inspect the locking pin for damage.

If the locking pin is broken in the engine block, the
engine block must be replaced. Failure to follow this
instruction may result in damage to the vehicle.

5.

Installation

Apply a 2.5mm bead of sealant STC50550 (Loctite
5900) to the areas shown.

1.

2.

CAUTION: Make sure that the mating faces are

clean and free of foreign material.

Install the sealing washer to the READ idler
shaft assembly.

1.

Using a suitable tool, deform the sealing washer
to secure it to the READ idler assembly.

2.

2.

3.

CAUTION: Make sure that the mating faces are

clean and free of foreign material.

Special Tool(s):

303-1486

3.

Refer to:

Rear End Accessory Drive (READ)

 (303-05A Accessory Drive

4.

- I6 3.2L Petrol, Removal and Installation).

Lower the vehicle.

5.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

6.

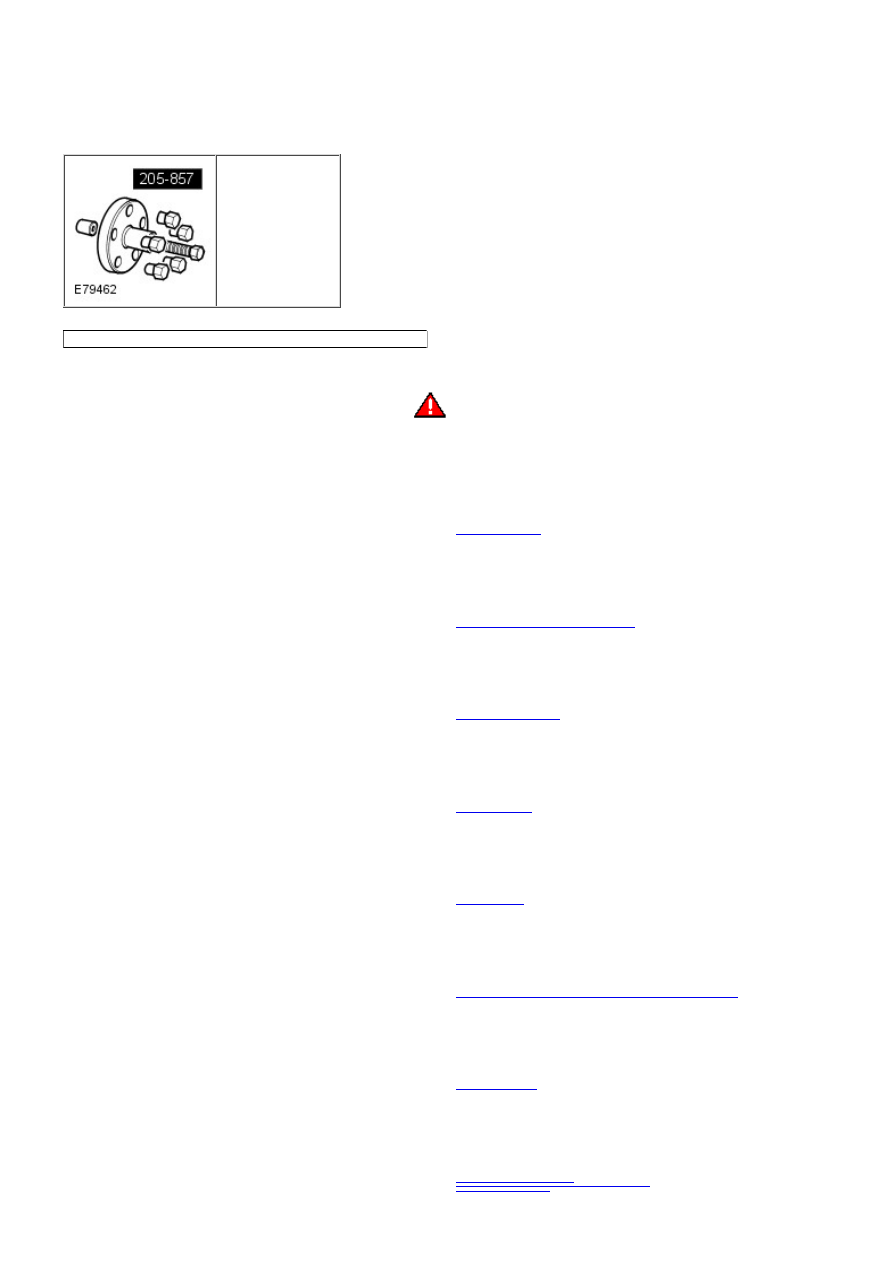

Engine - I6 3.2L Petrol - Engine

Removal

Special Tool(s)

205-857
Remover, Halfshaft

General Equipment

Powertrain Jack

• NOTE: In this procedure the engine and transmission are removed together.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the engine cover.

Refer to:

Engine Cover - I6 3.2L Petrol

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

3.

Remove the plenum box access panel.

Refer to:

Plenum Chamber

 (412-01 Climate Control, Removal and

Installation).

4.

Remove the battery tray.

Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

5.

Remove the air cleaner assembly.

Refer to:

Air Cleaner

 (303-12A Intake Air Distribution and Filtering -

I6 3.2L Petrol, Removal and Installation).

6.

Drain the coolant.

Refer to:

Cooling System Draining, Filling and Bleeding

 (303-03A

Engine Cooling - I6 3.2L Petrol, General Procedures).

7.

Remove the starter motor.

Refer to:

Starter Motor

 (303-06A Starting System - I6 3.2L Petrol,

Removal and Installation).

8.

Remove the catalytic converters.

Refer to:

Catalytic Converter

 (309-00A Exhaust System - I6 3.2L

Petrol, Removal and Installation).

9. Remove the lower engine stabilizer bar.

Refer to:

Engine Lower Support Insulator

 (303-01A Engine - I6 3.2L

Petrol, Removal and Installation).

10. Remove the front subframe assembly.

Refer to:

Front Subframe

 (502-00 Uni-Body, Subframe and Mounting

11.
