Frelander 2. Manual - part 168

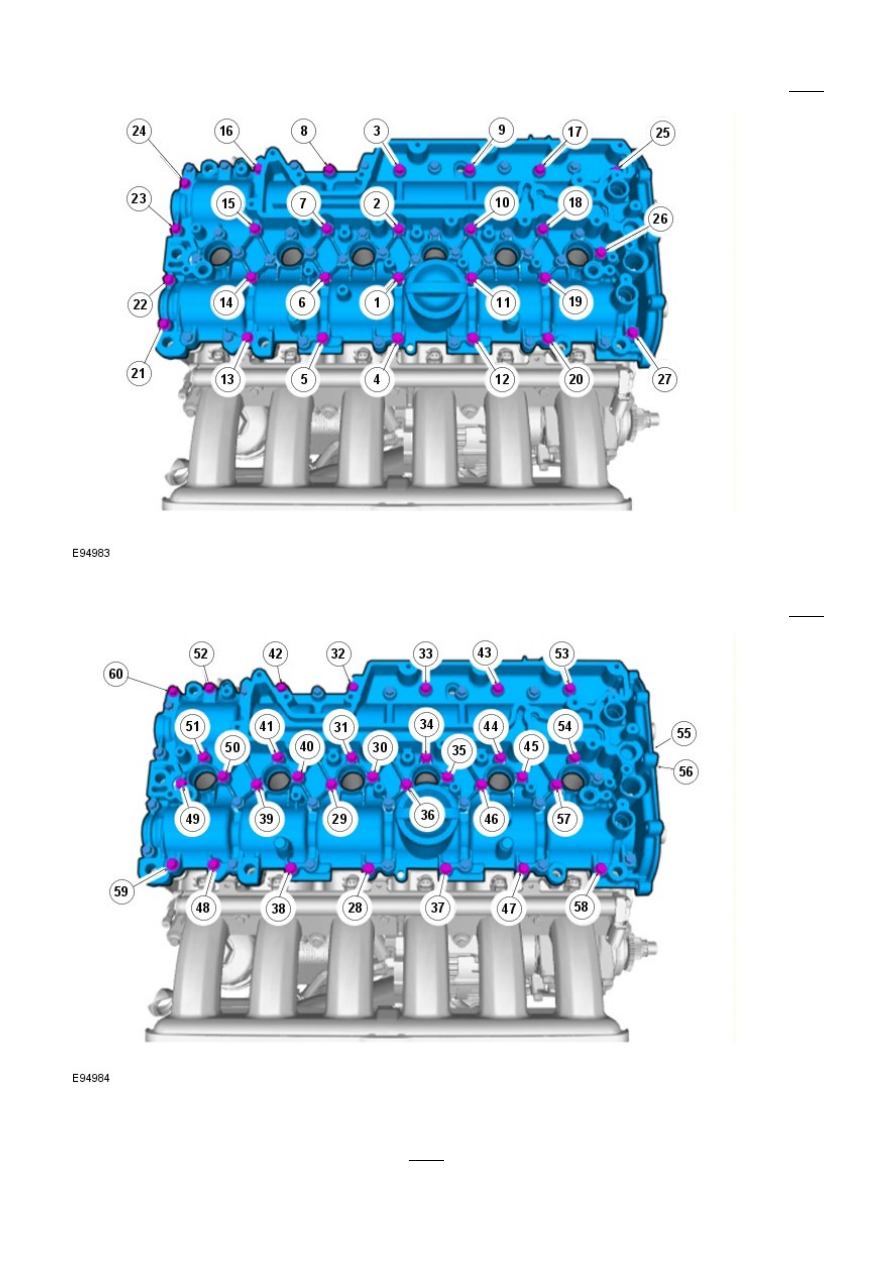

Torque:
16 Nm

9.

Torque:
16 Nm

10.

Install the lifting brackets.

Torque: 48 Nm

11.

Secure the cylinder head wiring harness.

12.

Torque: 6 Nm

13. CAUTIONS:

 Extreme cleanliness must be exercised when handling this component.

 A new O-ring seal is to be installed.

Install the CPS solenoids.

Torque: 10 Nm

13.

Connect the CPS solenoids.

14.

15. CAUTIONS:

 Apply clean engine oil to the VVT solenoid shaft.

 Extreme cleanliness must be exercised when handling this component.

 A new O-ring seal is to be installed.

Install the VVT solenoid.

Torque: 10 Nm

15.

Connect the VVT solenoid.

16.

Install the CMP sensors.

Torque: 10 Nm

17.

Connect and secure the CMP sensor electrical connectors.

18.

Connect the fuel injector electrical connectors.

19.

Connect the ground cable.

Torque: 6 Nm

20.

Install the engine mount.

Refer to:

Engine Mount RH

 (303-01A Engine - I6 3.2L Petrol, Removal and

Installation).

21.

Install the ignition coil-on-plugs.

Refer to:

Ignition Coil-On-Plug

 (303-07A Engine Ignition, Removal and

Installation).

22.

Install the crankcase vent oil separator.

Refer to:

Crankcase Vent Oil Separator

 (303-08A Engine Emission Control - I6 3.2L

Petrol, Removal and Installation).

23.

Install the timing component housing.

Refer to:

Timing Components Housing

 (303-01A Engine - I6 3.2L Petrol, Removal

and Installation).

24.

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System - General

Information, Specifications).

25.

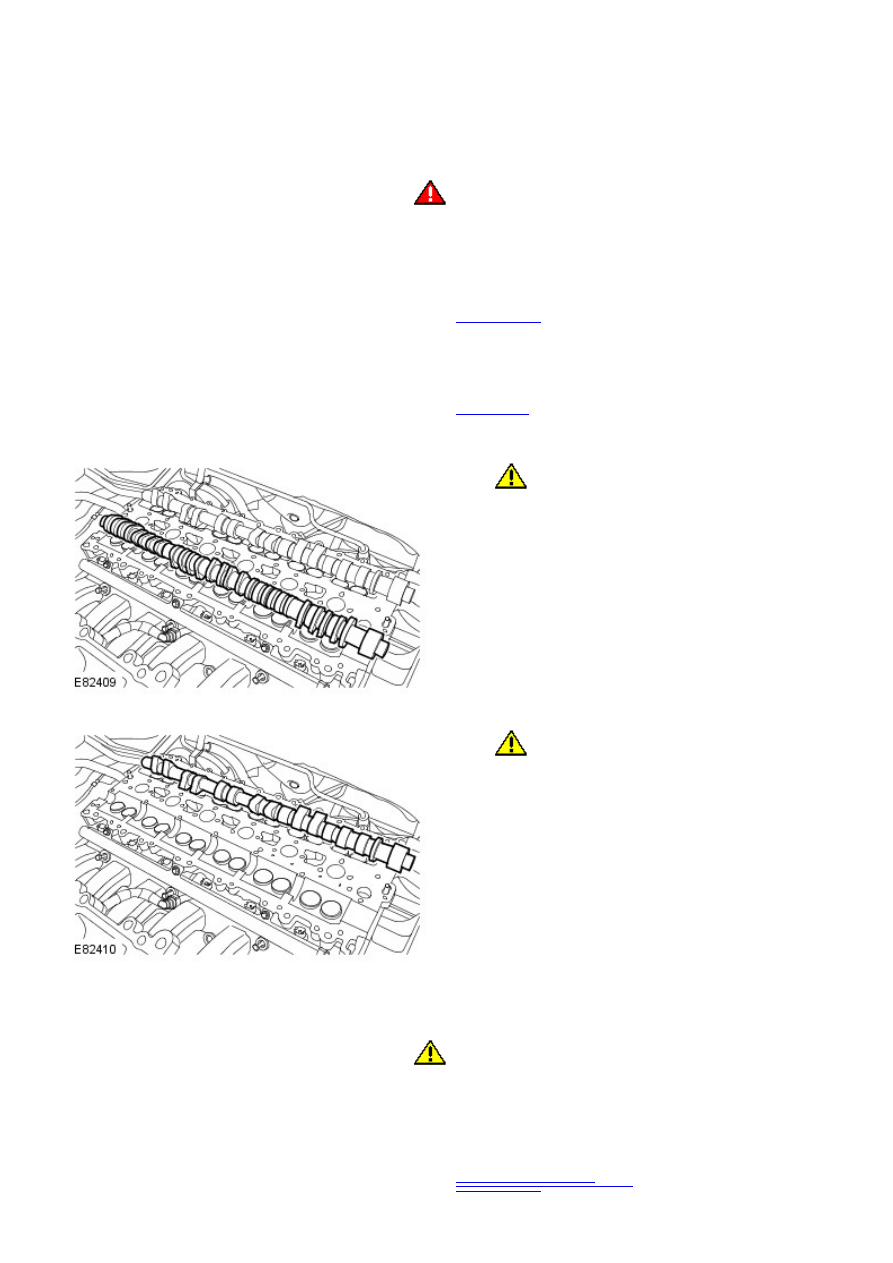

Engine - I6 3.2L Petrol - Camshafts

Removal and Installation

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the camshaft bearing housing.

Refer to:

Valve Cover

 (303-01A Engine - I6 3.2L Petrol, Removal and

Installation).

3.

4.

CAUTION: Extreme cleanliness must be

exercised when handling this component.

Remove the intake camshaft.

4.

5.

CAUTION: Extreme cleanliness must be

exercised when handling this component.

Remove the exhaust camshaft.

5.

Installation

1.

CAUTION: Extreme cleanliness must be exercised when

handling these components.

Install the camshafts.

1.

Check the valve clearances.

Refer to:

Valve Clearance Check

 (303-01A Engine - I6 3.2L Petrol,

General Procedures).

2. Install the camshaft bearing housing.

Refer to:

Timing Components Housing

 (303-01A Engine - I6 3.2L

Petrol, Removal and Installation).

3. Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

4.

Engine - I6 3.2L Petrol - Timing Chain

Removal and Installation

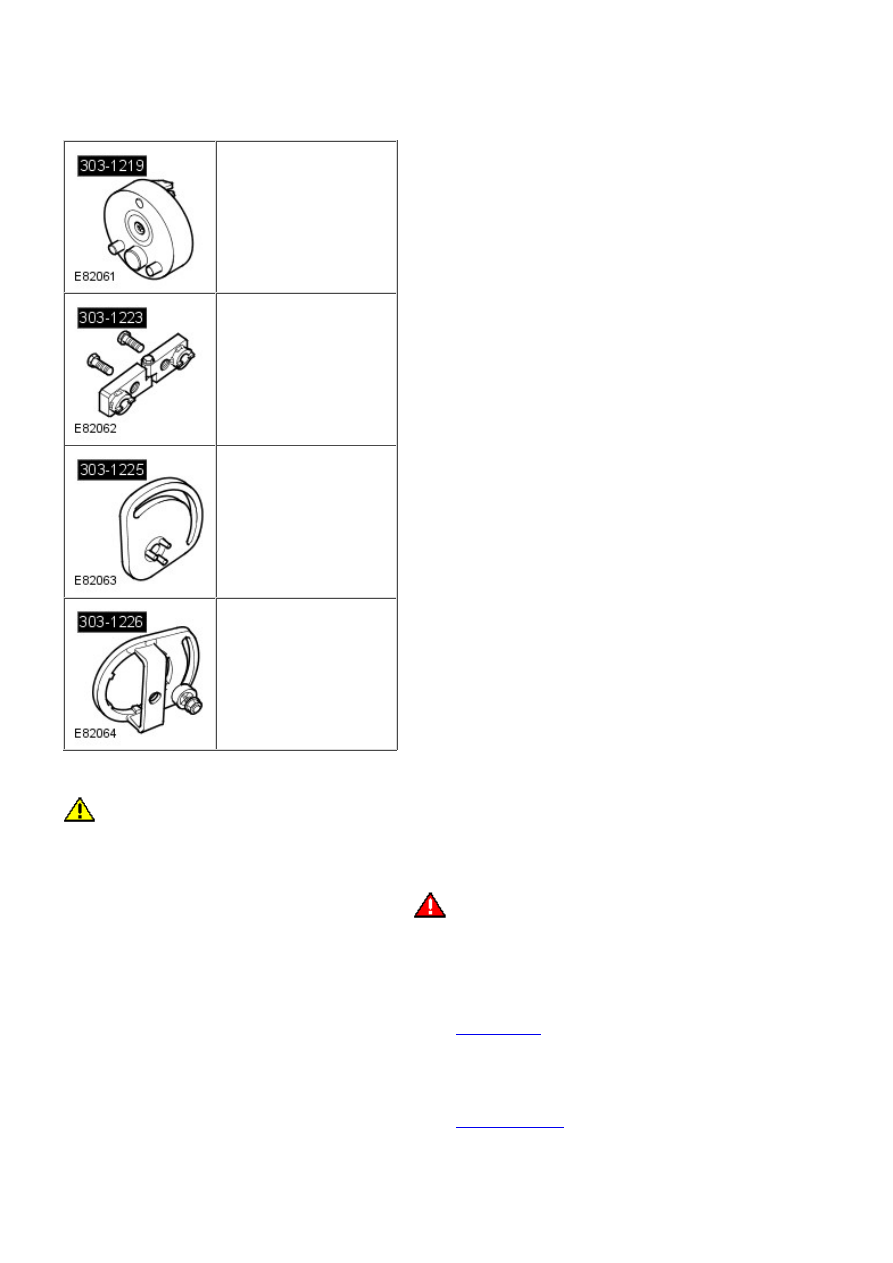

Special Tool(s)

303-1219
Locking Tool, Crankshaft

303-1223
Locking Tool, Camshaft

303-1225
Locking Tool, Camshaft Tool

303-1226
Locking Tool, Camshaft Tool

Removal

CAUTION: Extreme cleanliness must be exercised when handling these components.

• NOTE: Make sure the timing chain free length is on the tensioner run of the chain before releasing the tensioner locking
device.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the crankshaft front oil seal.

Refer to:

Engine Front Seal

 (303-01A Engine - I6 3.2L Petrol,

Removal and Installation).

3.

Remove the RH engine mount.

4.
