Frelander 2. Manual - part 140





6. CAUTIONS:

 Be prepared to collect escaping fuel.

 Make sure that the area around the component is

clean and free of foreign material.

 Always plug any open connections to prevent

contamination.

6.

7.

8.

Installation

1.

CAUTION: Make sure that the mating faces are clean and

free of foreign material.

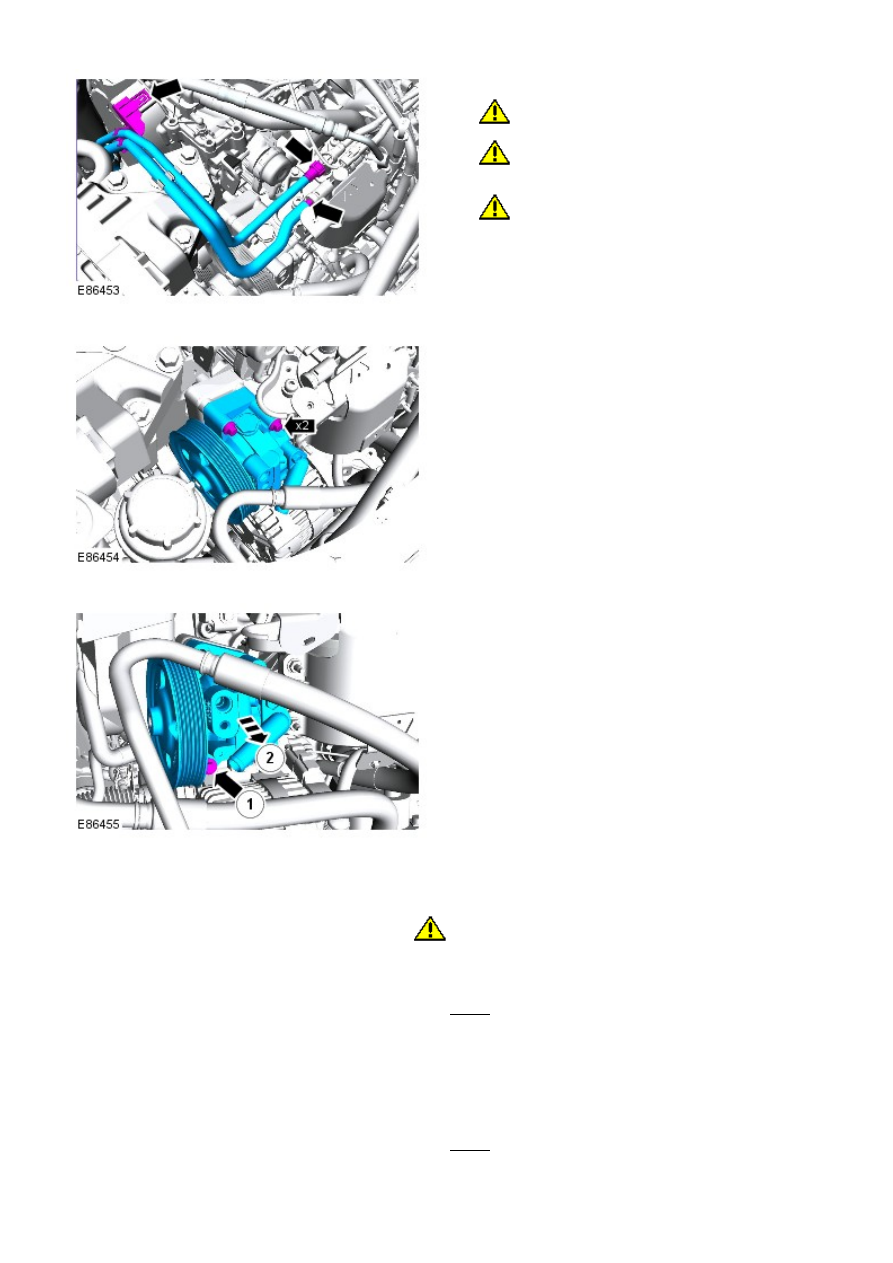

Install the power steering pump.

Torque: 24 Nm

1.

Connect the fuel lines.

2.

Connect the high-pressure power steering line to the power steering
pump.

Torque: 20 Nm

3.

Connect the power steering reservoir to power steering pump hose.

4. Install the accessory drive belt.

5.

Refer to:

Accessory Drive Belt

 (303-05B Accessory Drive - TD4 2.2L

Diesel, Removal and Installation).

Install the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

6.

Fill and bleed the power steering system.

Refer to:

Power Steering System Bleeding

 (211-00 Steering System -

General Information, General Procedures).

7.

Power Steering - Steering Gear

Removal and Installation

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the front road wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the front subframe assembly.

Refer to:

Front Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

3.

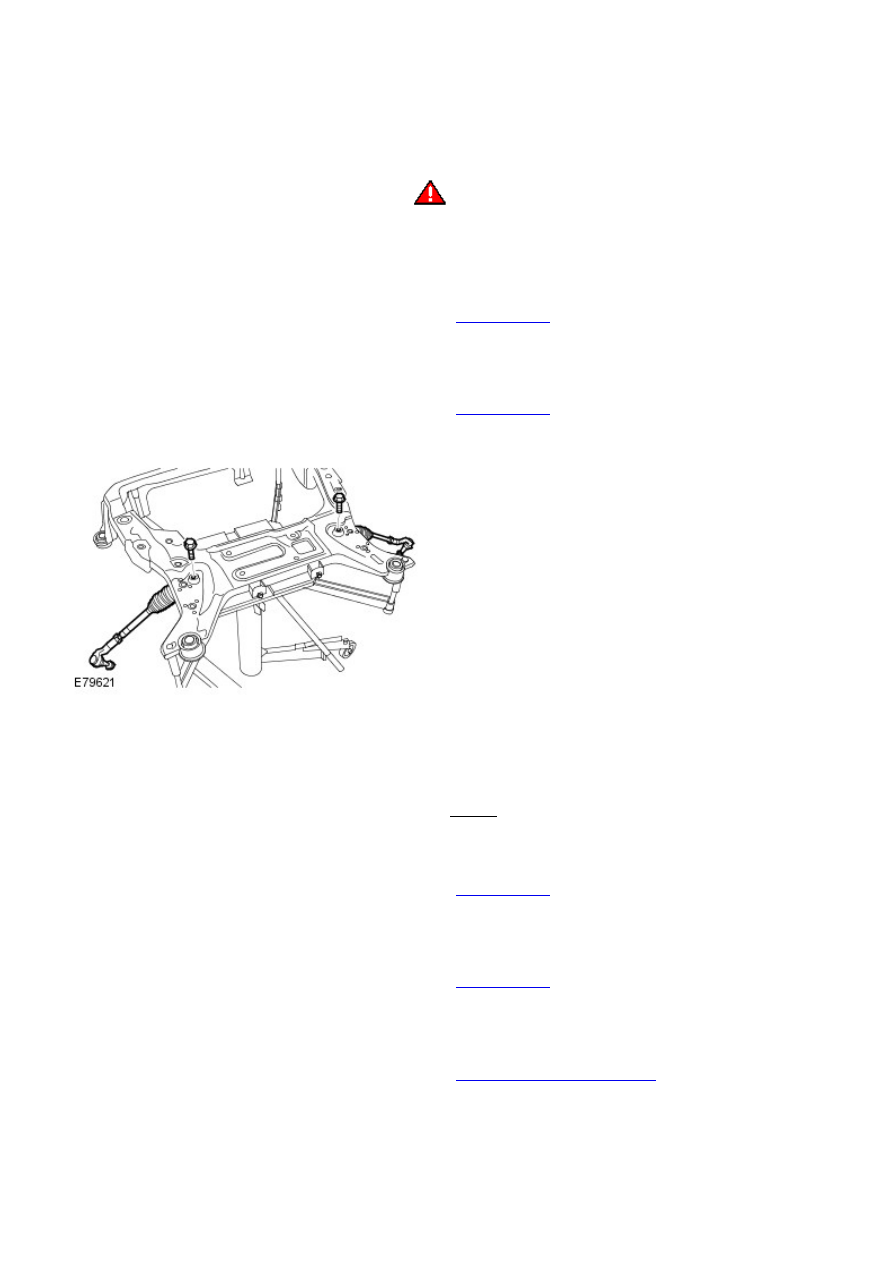

Remove the steering gear.

4.

Installation

Install the steering gear.

Torque: 105 Nm

1.

Install the front subframe.

Refer to:

Front Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

2.

Install the wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

3.

Refill and bleed the power steering.

Refer to:

Power Steering System Bleeding

 (211-00 Steering System -

General Information, General Procedures).

4.

Using only four wheel alignment equipment approved by Land Rover,
check and adjust the wheel alignment.

5.

Power Steering - Power Steering Fluid Cooler

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

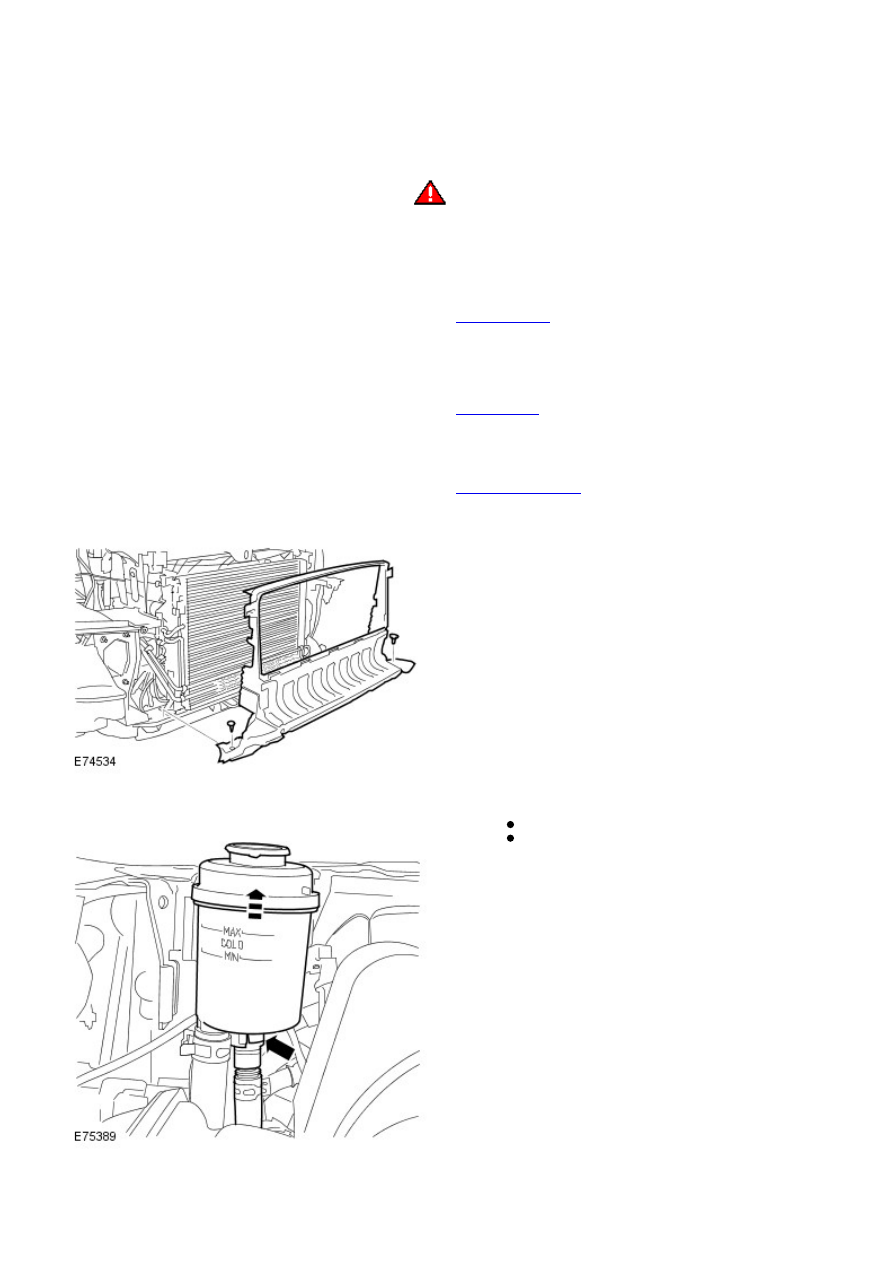

Remove the front bumper.

Refer to:

Front Bumper

 (501-19 Bumpers, Removal and Installation).

3.

Remove the RH headlamp assembly.

Refer to:

Headlamp Assembly

 (417-01 Exterior Lighting, Removal

and Installation).

4.

5.



Release the power steering fluid reservoir.
Disconnect the quick release connector.

6.
