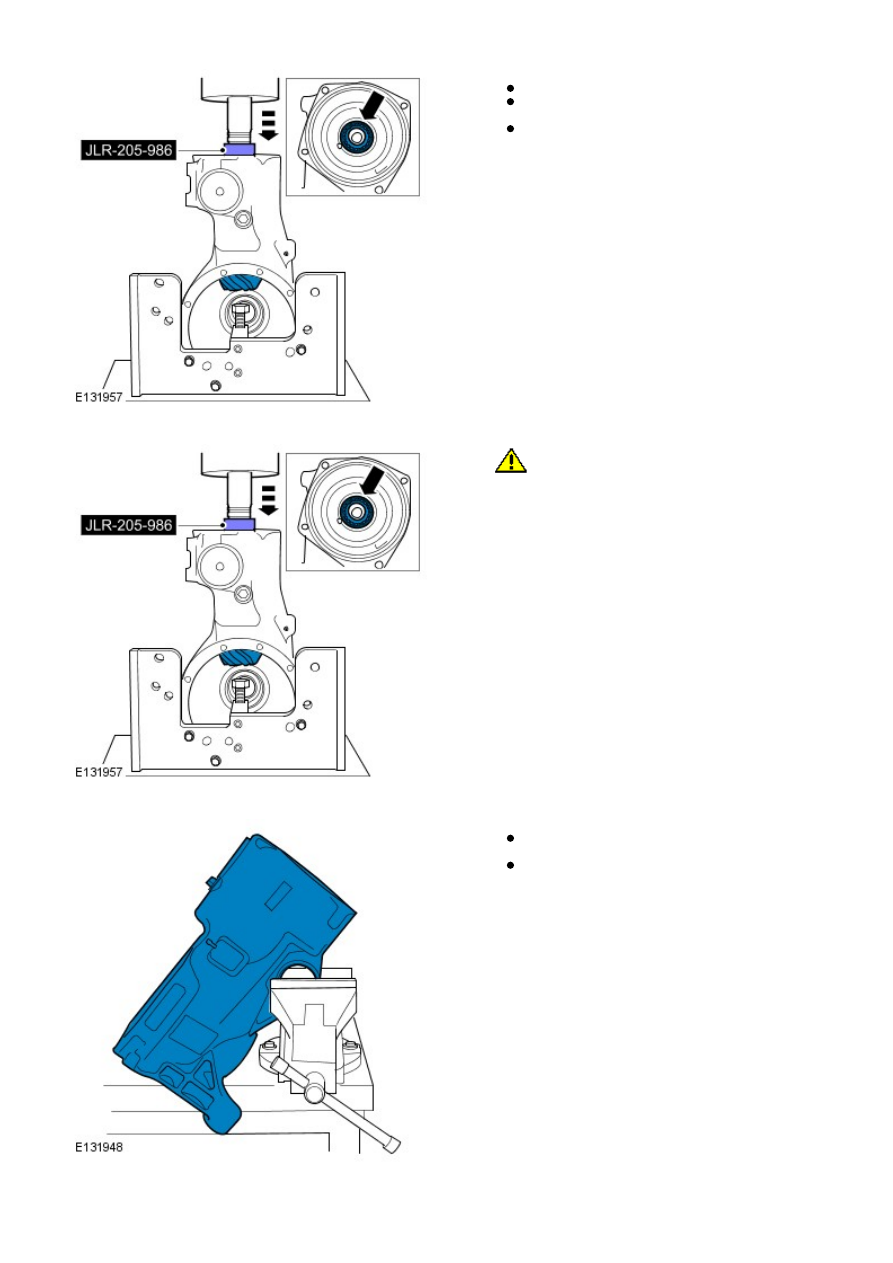

Install the pinion shaft to the differential case.
Lubricate the pinion head bearing with
differential oil.
Position the support bolt to its highest setting.

3.

4.

CAUTION: Do not clean or lubricate the new

pinion shaft tail bearing, as it is supplied coated with a
low friction oil. Failure to follow this instruction will
require the pinion shaft tail bearing to be replaced
before the differential can be successfully assembled.

Using a suitable press and the special tool install the
pinion shaft tail bearing inner race.

4.



Position the differential assembly in a suitable
vice as shown.
Remove the differential from the supporting
tool.

5.

6.

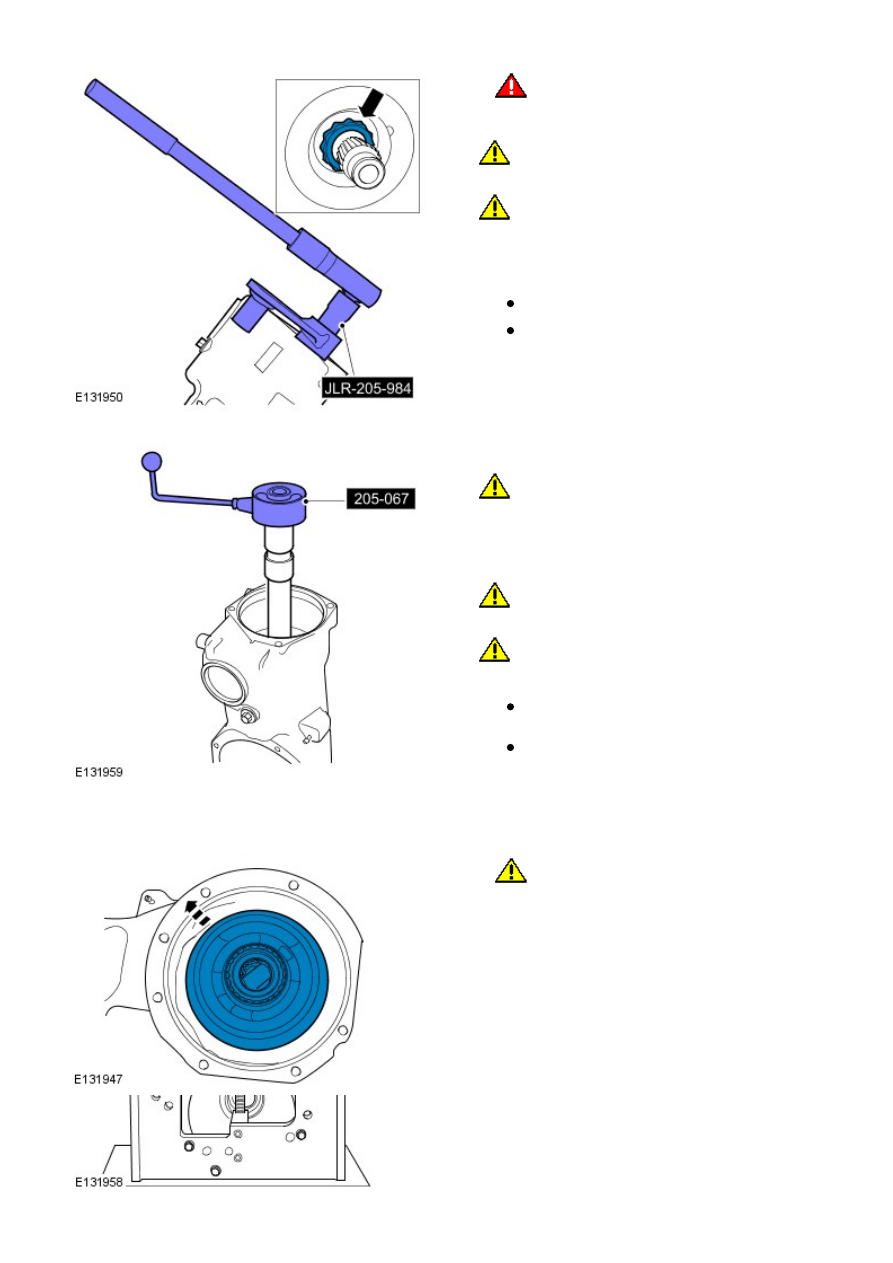

WARNING: High torque application.

• CAUTIONS:

 The special tool should be turned counter

clockwise to install the pinion shaft nut.

 Do not use air tools to install the nut. Failure to

follow this instruction may result in damage to the
component.

• NOTE: 250 Nm (184 lb.ft) is the minimum torque
requirement to begin collapsing the pinion shaft spacer.

Using the special tools install the new pinion
nut.
Tighten to 250 Nm (184 ib. ft).

6.

7. CAUTIONS:

 Make sure the specified torque to rotate the

pinion shaft is not exceeded. If excess preload is
applied to the joint the pinion shaft should be removed
and a new collapsible spacer, pinion shaft tail bearing,
pinion shaft tail bearing cup and pinion nut must be
installed.

 The special tool should be rotated at 60 rpm (1x

revolution per second) to produce a consistent reading.

 The pinion shaft should be rotated through two

full revolutions by hand before the torque measurement
is performed.

Using the special tool, check the torque required
to rotate the pinion shaft. The specified torque
is 1.1 Nm +/- 0.2 Nm
If the specified torque to rotate the pinion shaft
is not reached, using the special tools, tighten
the pinion flange nut in one degree increments
and check the rotational torque after each until
the specified torque of 1.1 Nm +/-0.2 Nm is
achieved.

7.

8.

CAUTION: Do not lubricate the pinion oil seal.

Using a suitable press, the special tool and adapter
install the pinion bearing oil seal.

8.

Install the crown wheel assembly.

9.

10. CAUTIONS:

 Make sure the mating faces are clean, failure to

follow this instruction may result in damage to the
differential.

 Make sure the new seal is not twisted when

fitting, failure to follow this instruction may result in
damage to the differential.

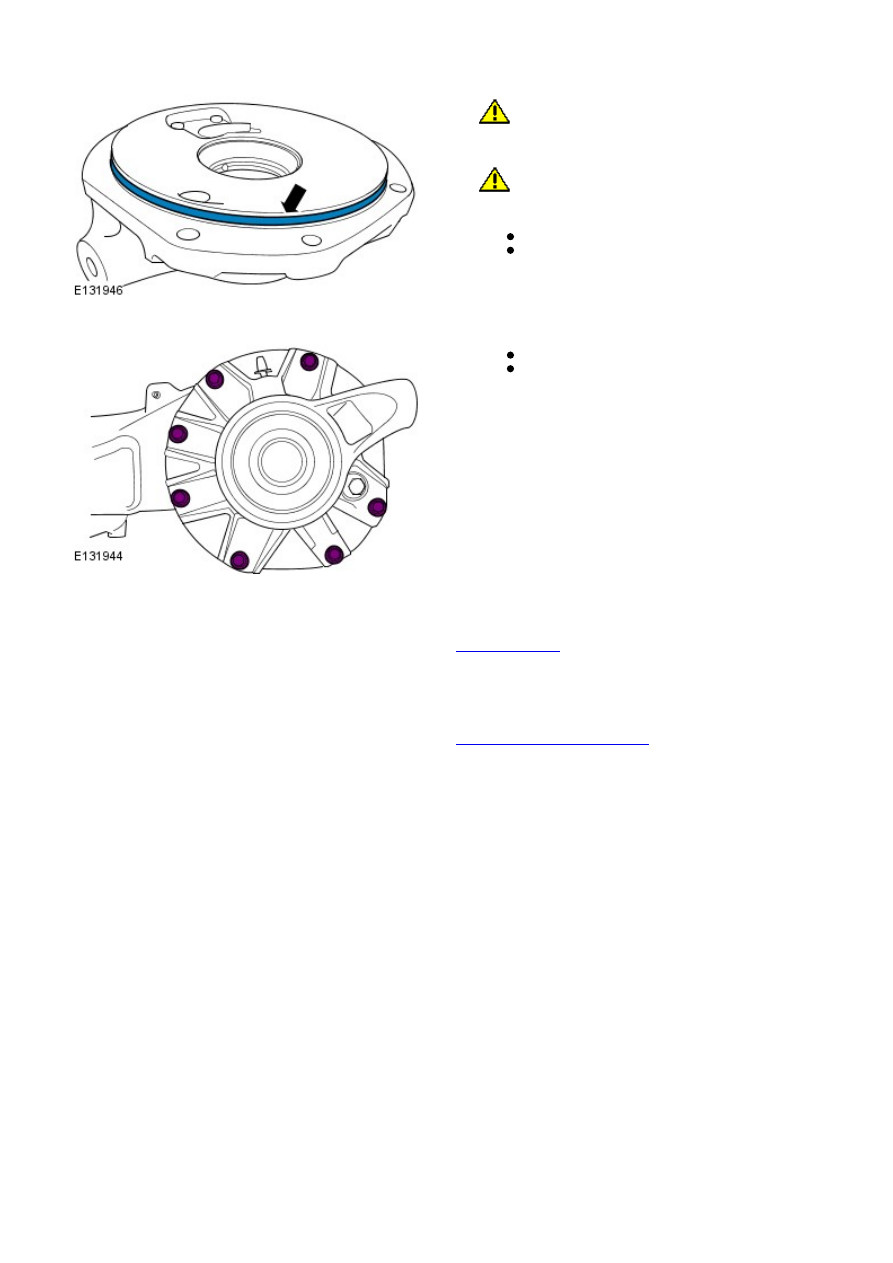

Install the differential case seal.
Apply a thin amount of clean differential oil to
the new differential casing seal.

10.



Install the differential casing bolts.
Tighten the 7 bolts to 29 Nm.

11.

Install the rear differential.

Refer to:

Differential Case

 (205-02 Rear Drive Axle/Differential,

Removal and Installation).

12.

Fill the differential case with fluid.

Refer to:

Differential Draining and Filling

 (205-02 Rear Drive

Axle/Differential, General Procedures).

13.

Rear Drive Axle/Differential - Drive Pinion Seal

Removal and Installation

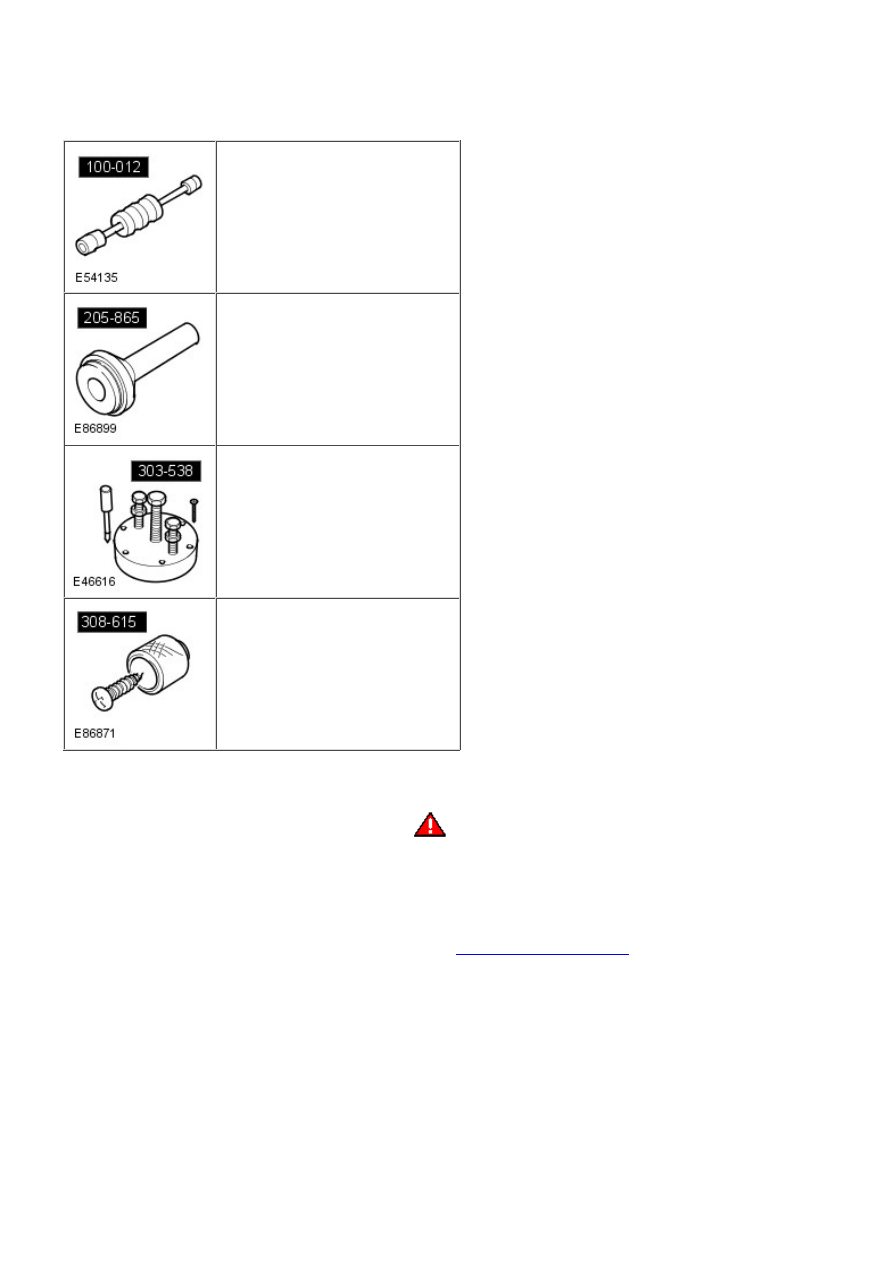

Special Tool(s)

100-012
Slide Hammer

205-865
Installer, Differential Pinion Seal

303-538
Remover/Installer, Crankshaft Oil Seal

308-615
Remover, Seals

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the active on-demand coupling.

Refer to:

Active On-Demand Coupling

 (205-02 Rear Drive

Axle/Differential, Removal and Installation).

2.
