18.

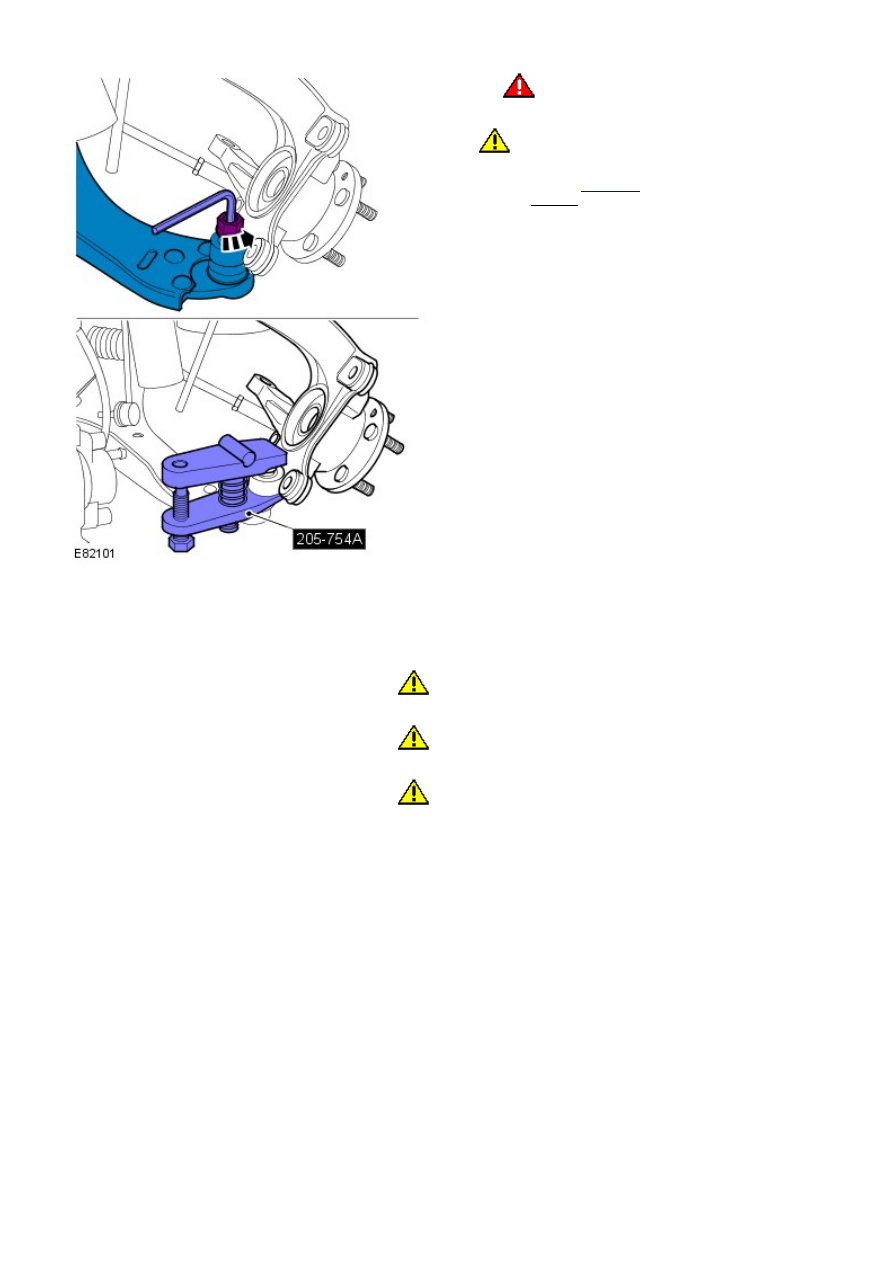

WARNING: Make sure that a new lower arm

ball joint nut is installed.

CAUTION: Make sure that the ball joint ball does

not rotate.

Special Tool(s):

205-754A

Torque: 100 Nm

18.

Installation

1. CAUTIONS:

 Make sure that the brake hose is not twisted and is correctly

located.

 Nuts and bolts must be tightened with the weight of the

vehicle on the suspension.

 Install the halfshaft bolt finger tight.

• NOTE: Make sure that all the component mating faces are clean.

To install, reverse the removal procedure.

1.

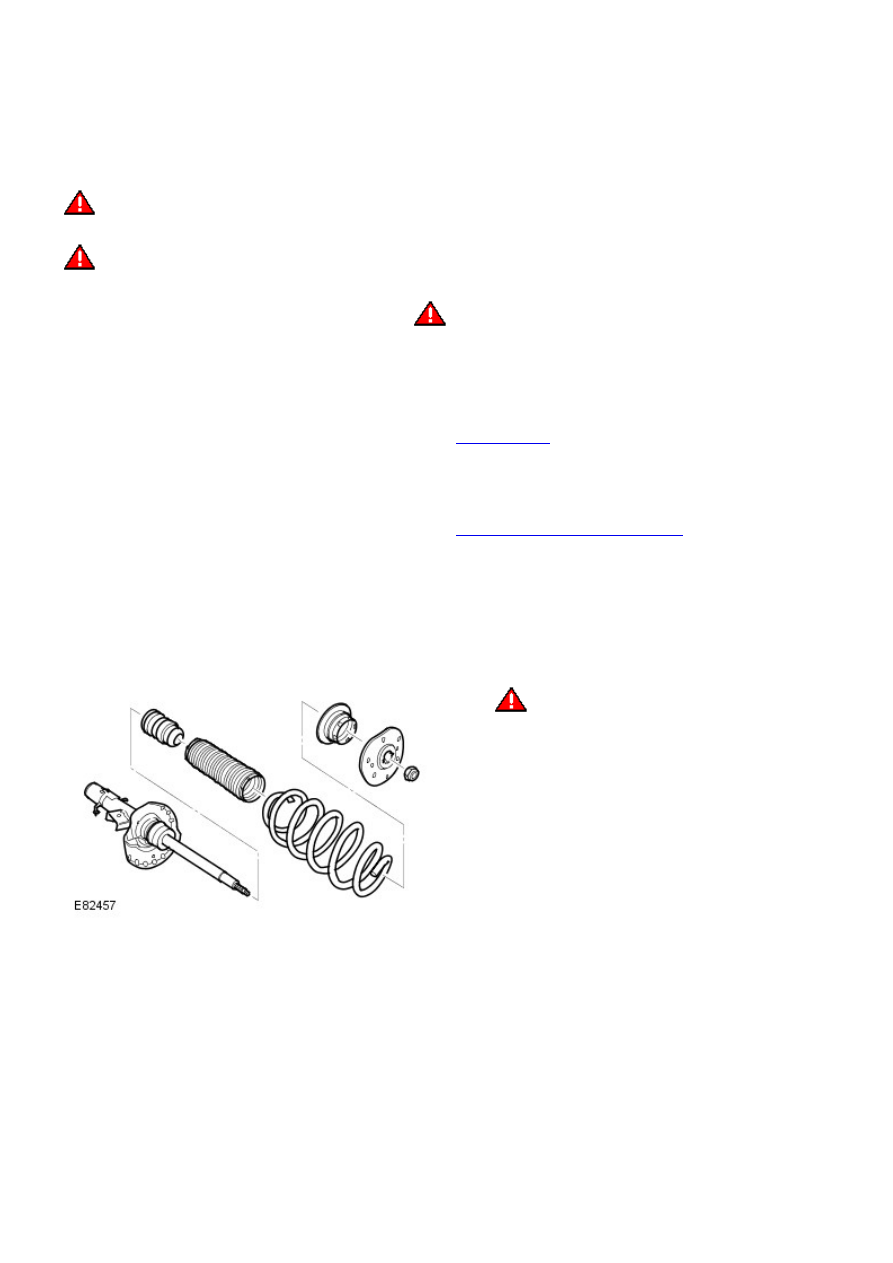

Front Suspension - Front Shock Absorber

Removal and Installation

Removal

• W ARNINGS:

 Ensure the spring compressor Safe W orking Load (SWL) meets or exceeds the spring rating quoted in the

Specifcations section.

 Always follow the spring compressor manufacturer's instructions.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the road wheel.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the spring and damper assembly.

Refer to:

Shock Absorber and Spring Assembly

 (204-01 Front

Suspension, Removal and Installation).

3.

Install the spring compressor in a vise.

4.

Install the shock absorber and spring assembly in the spring
compressor.

5.

6.

WARNING: Make sure that a new nut is

installed.

6.

Installation

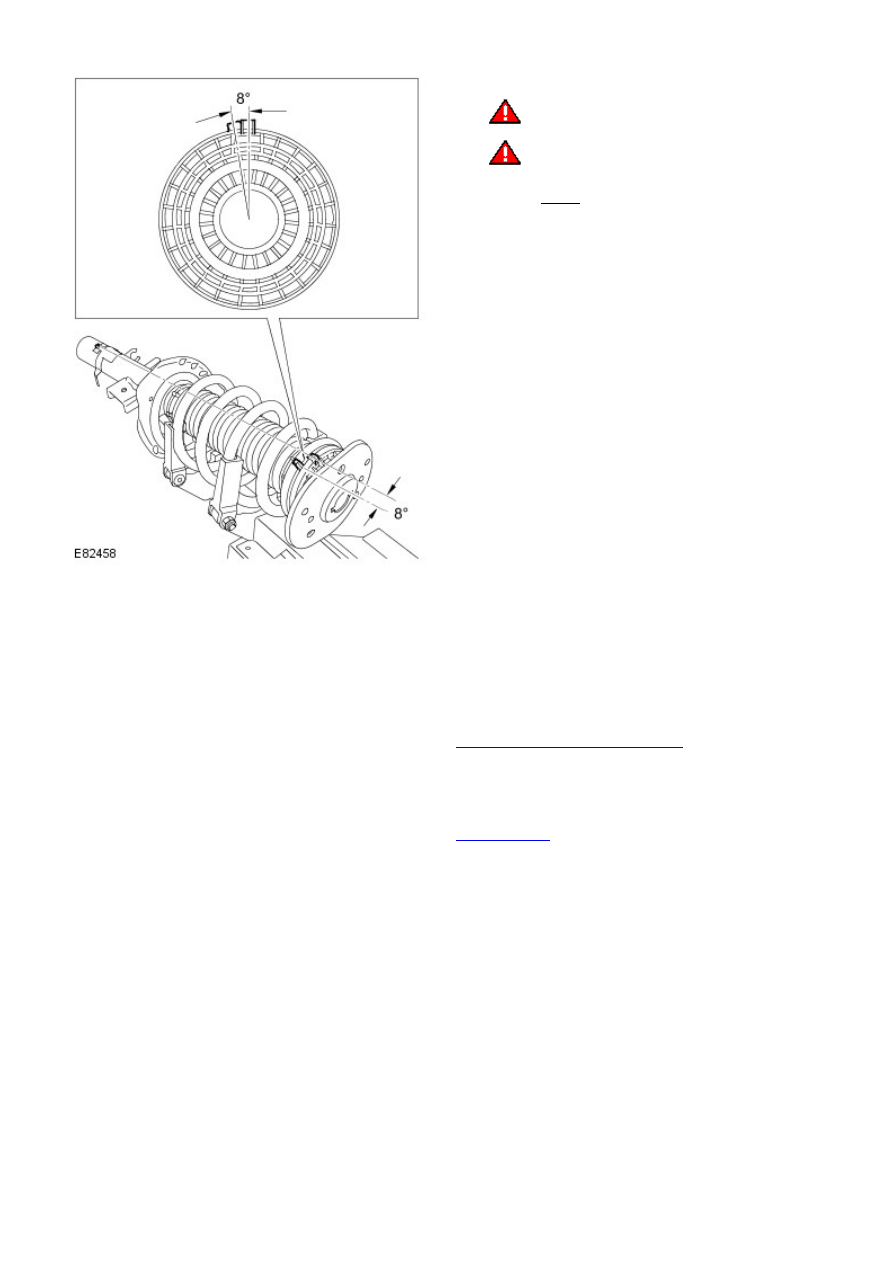

1. WARNINGS:

 Make sure that a new nut is installed.

 It is imperative that the timing marks are

aligned as shown in illustration.

Torque: 80 Nm

1.

Release the tension from the spring and damper assembly and
remove from the special tool.

2.

Remove the spring compressor from a vise.

3.

Install the spring and damper assembly.

Refer to:

Shock Absorber and Spring Assembly

 (204-01 Front

Suspension, Removal and Installation).

4.

Install the road wheel.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

5.

Front Suspension - Shock Absorber and Spring Assembly

Removal and Installation

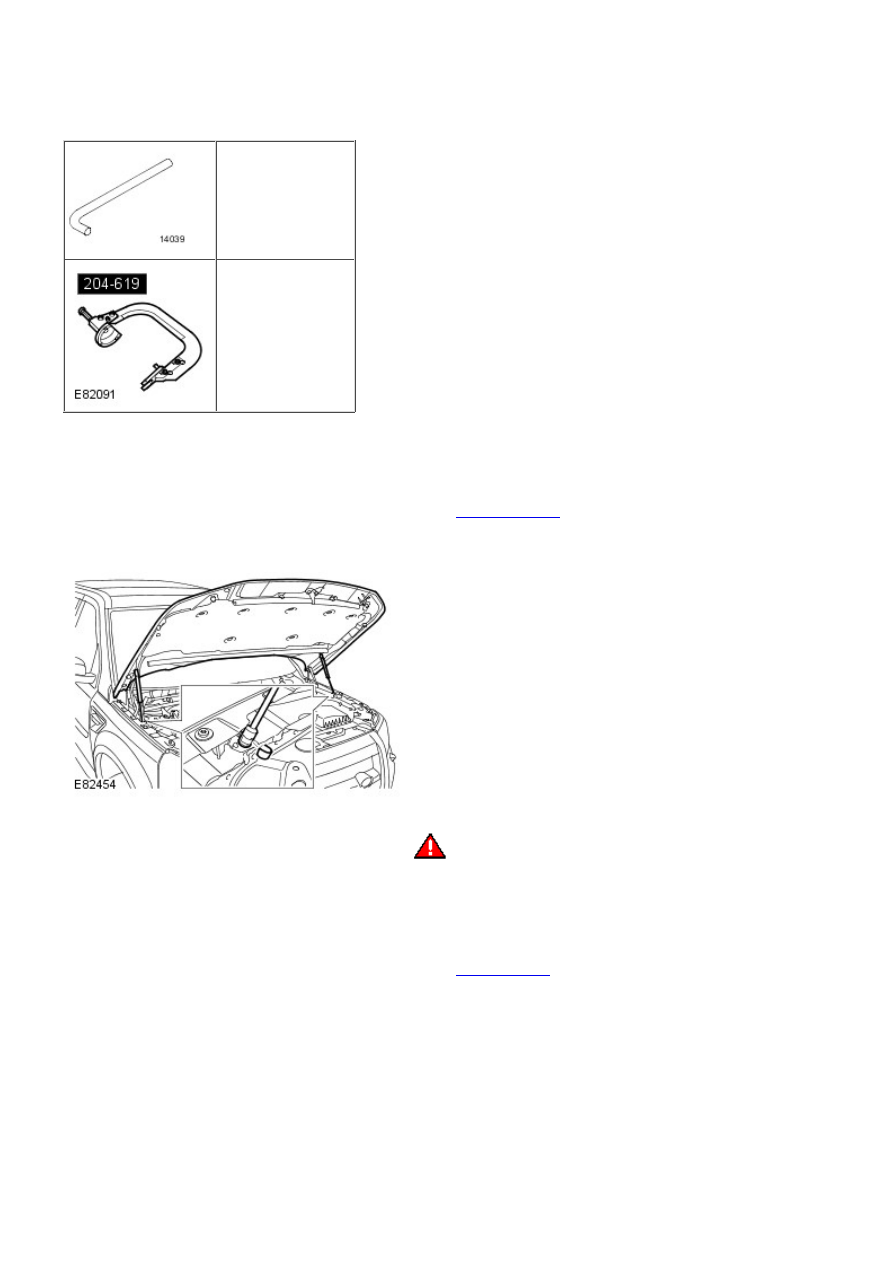

Special Tool(s)

204-159
Lever, Wheel Knuckle

204-619
G-Clamp

Removal

Remove the plenum chamber panel.

Refer to:

Plenum Chamber

 (412-01 Climate Control, Removal and

Installation).

1.

Release the hood support struts and secure the hood in
an upright position.

2.

3.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

3.

Remove the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

4.
