Frelander 2. Manual - part 55





Stage 1:
Stage 2:

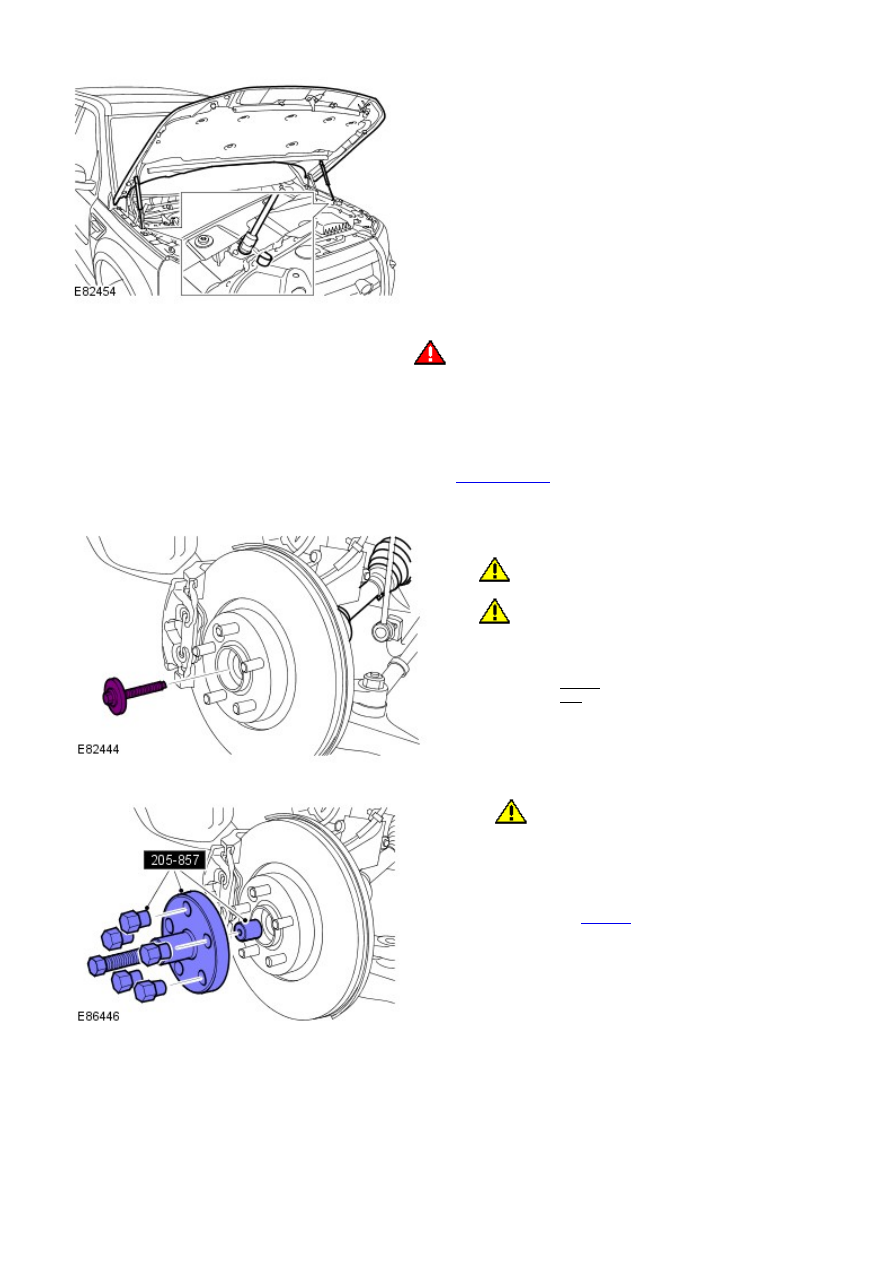

Release the hood support struts and secure the hood in
an upright position.

2.

3.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

3.

Remove the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

4.

5. CAUTIONS:

 Discard the bolt.

 Do not use air tools to install the bolt. Failure to

follow this instruction may result in damage to the
component.

Torque:

45 Nm
60°

5.

6.

CAUTION: Do not use a hammer to detach the

halfshaft from the hub assembly, failure to follow this
instruction may result in damage to the halfshaft.

Partially release the front halfshaft from the wheel
knuckle.

Special Tool(s):

205-857

6.

7.

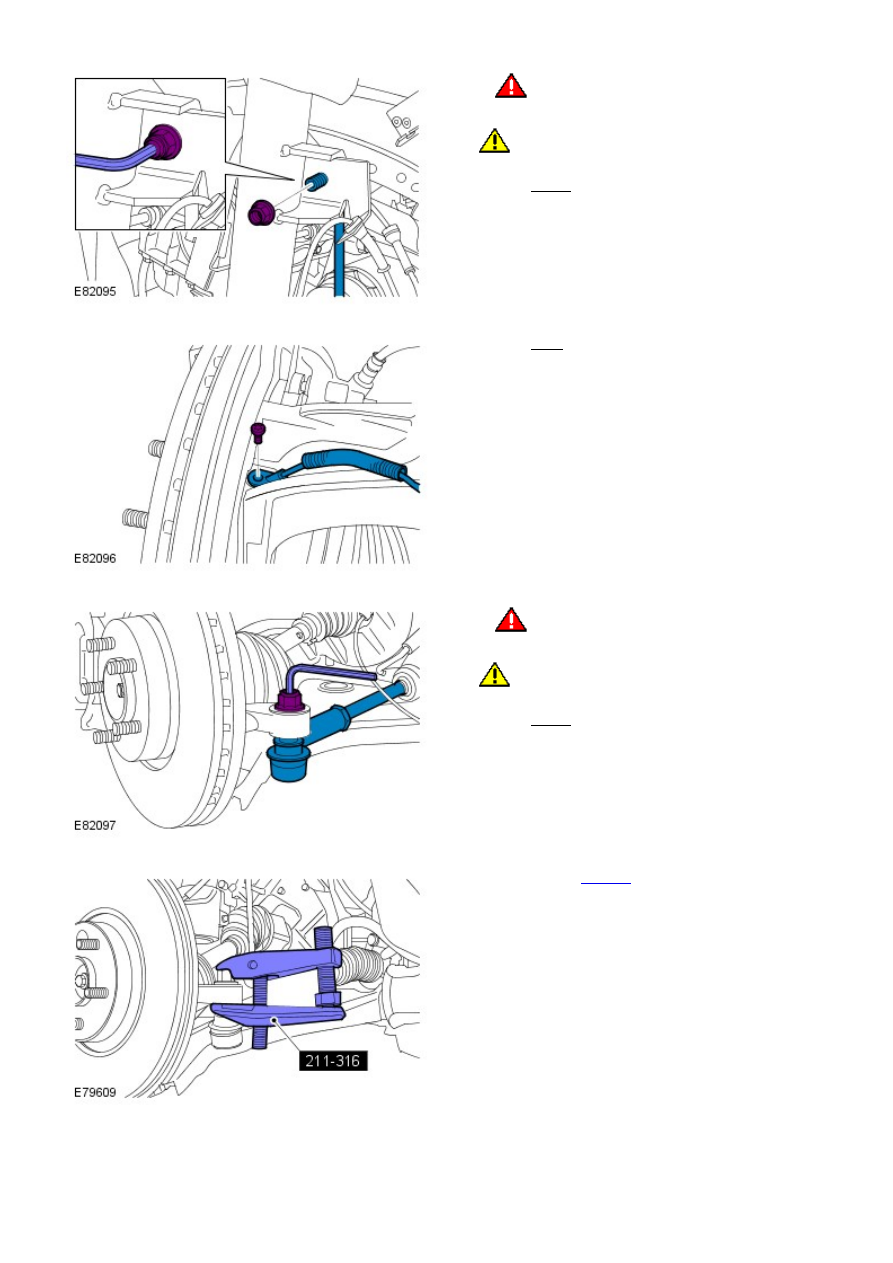

WARNING: Make sure that a new nut is

installed.

CAUTION: Make sure that the ball joint ball does

not rotate.

Torque: 60 Nm

7.

Torque: 5 Nm

8.

9.

WARNING: Make sure that a new tie-rod end

nut is installed.

CAUTION: Make sure that the ball joint ball does

not rotate.

Torque: 80 Nm

9.

Special Tool(s):

211-316

10.

11.

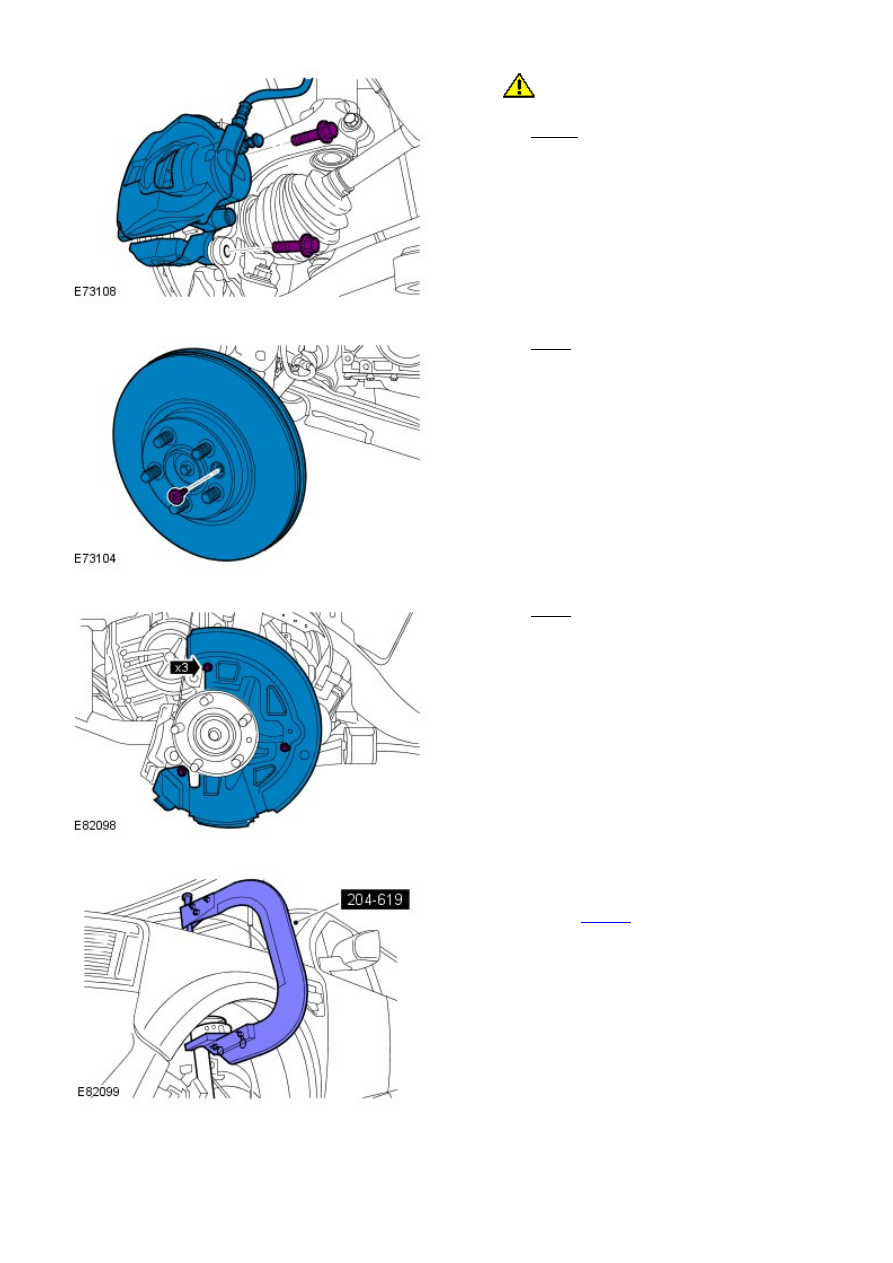

CAUTION: Make sure that no load is placed on

the brake hose.

Torque: 200 Nm

11.

Torque: 35 Nm

12.

Torque: 10 Nm

13.

14. NOTE: This step requires the aid of another
technician.

Special Tool(s):

204-619

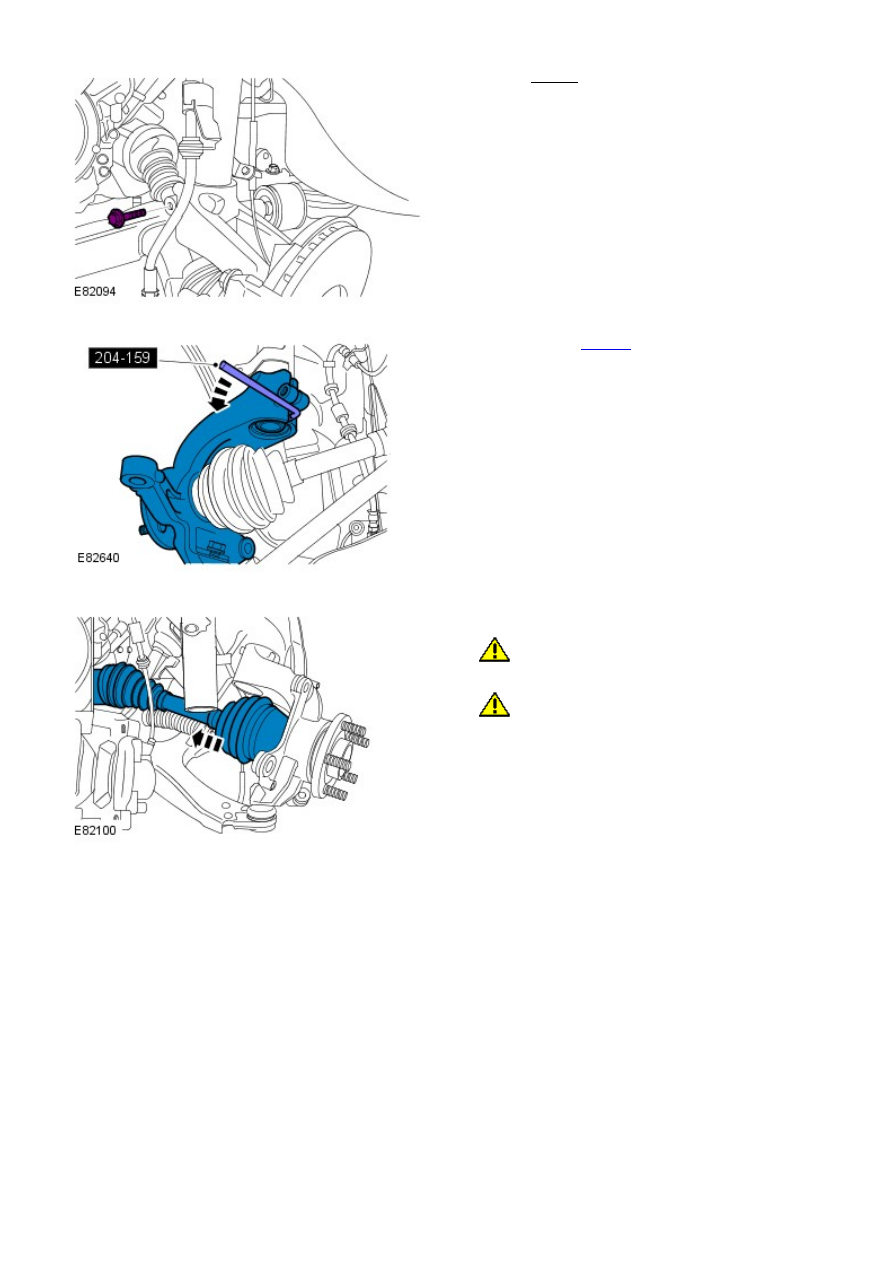

14.

Torque: 110 Nm

15.

Special Tool(s):

204-159

16.

17. CAUTIONS:

 Do not allow halfshafts to hang unsupported at

one end or joint damage will occur.

 Do not use a hammer to detach the halfshaft

from the hub assembly, failure to follow this instruction
may result in damage to the halfshaft.

17.
