Frelander 2. Manual - part 46





Maintenance Schedules - Maintenance Schedules - Diesel Engines

Description and Operation

Under Bonnet View

Item

Part Number

Description

1

-

Coolant expansion tank

2

-

Brake fluid reservoir (RH drive illustrated - LH drive on opposite side)

3

-

W indshield washer reservoir

4

-

Power steering fluid reservoir

5

-

Engine oil filler cap

6

-

Engine oil level indicator

Maintenance Operations

CAUTION: Note that the A and B Services listed on the Maintenance Check Sheet, applicable to vehicles operating

under arduous conditions, vary both in period and mileage (kilometres) to the intervals specified for those vehicles
operating under normal conditions. Reference must therefore, always be made to the 'Arduous Conditions section' for
vehicles operating under these conditions.

Unless stated otherwise, the following operations must be carried out at every service interval.

Battery

Check condition of battery.
Check/top up battery electrolyte level.

Front seats

Front seat frame fixings - Every 2 years or 30,000 miles (48,000 km)

Carefully remove the trim panels covering the seat frame fixing Torx screws.
Check that the front seat frame fixing Torx screws are secure and that the seat frames show no signs of movement.
Install the trim panels on completion.

Rear Seats

Rear seat frame fixings - Every 2 years or 30,000 miles (48,000 km)

Check that the seat frame fixings are secure and that the seat frames show no signs of movement.

Safety Belts

Safety belts - Every 2 years or 30,000 miles (48,000 km)

Front Seat Belt Mountings

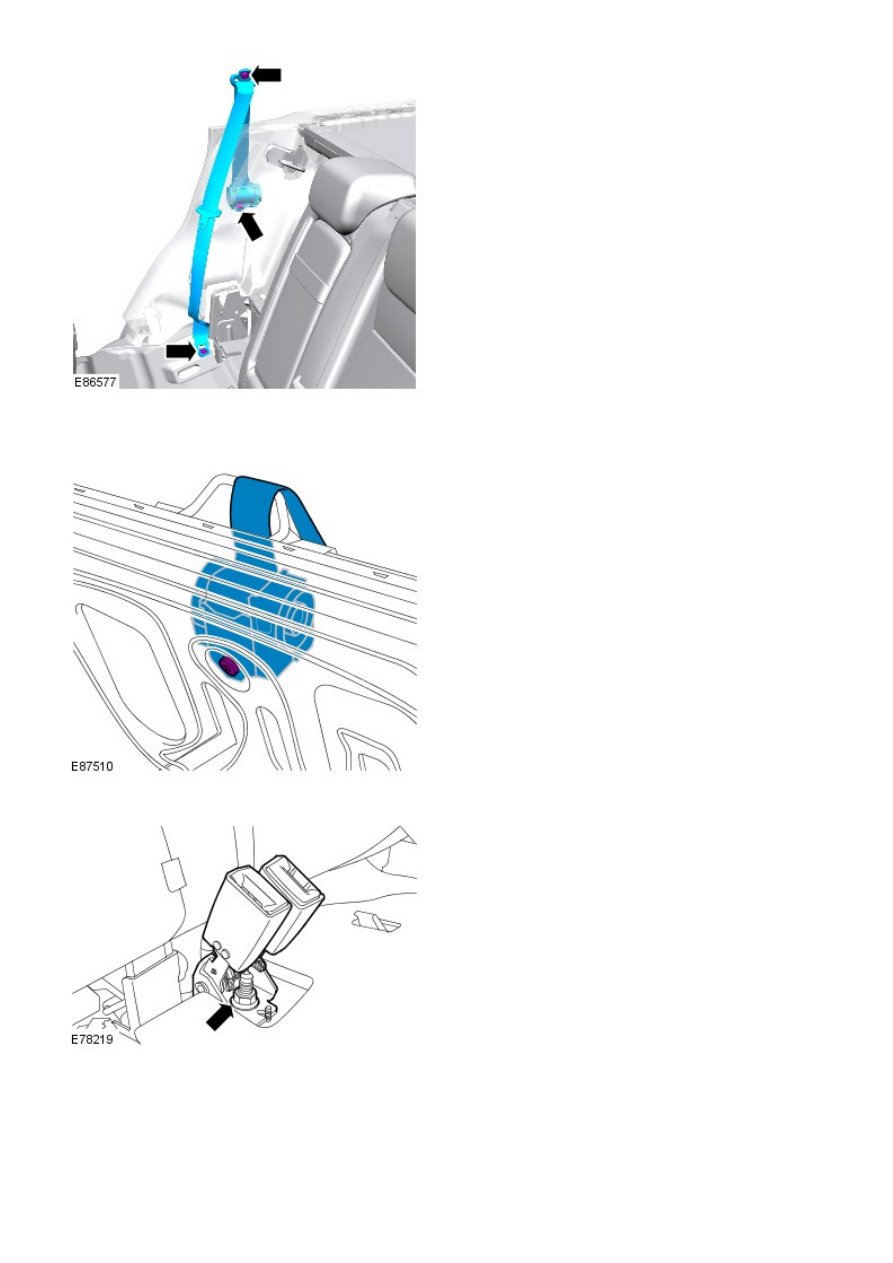

Rear Seat Belt Mountings

Reel Mounting - Center Rear Seat Belt

Buckle Mounting - Center Rear seat Belt

1. Fully extend each safety belt and check that it returns unassisted; repeat for all belts.

2. Check entire length of safety belt webbing for signs of fraying or damage: repeat for all belts.

3. Connect each safety belt to the correct buckle, check safety belt buckle and tongue are secure; check that buckle
releases tongue correctly.

4. Check all safety belt and buckle mountings and fixings for security.
