PANEL REPAIRS

PANELS

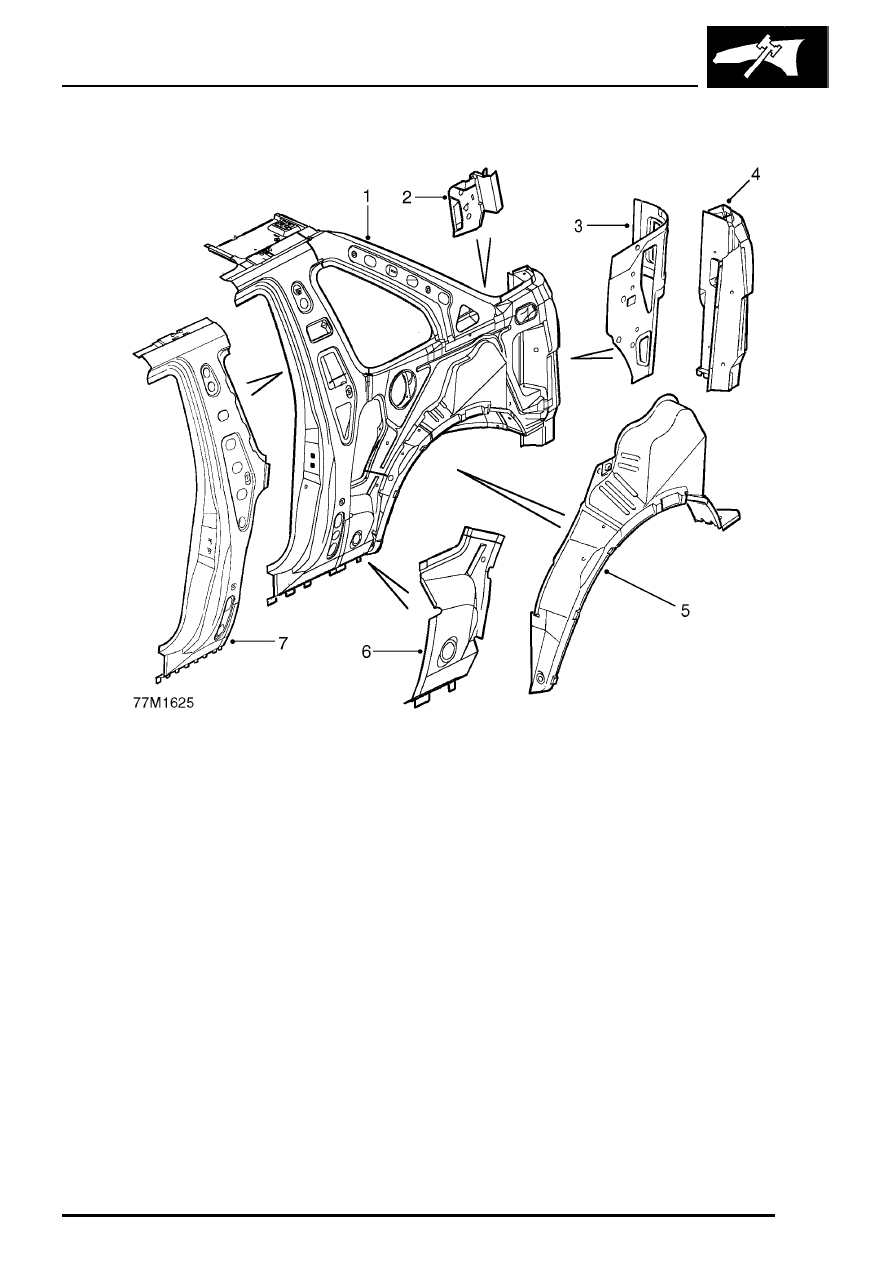

Rear inner body side panels - 3 door

1. Complete rear quarter assembly
2. Squab side reinforcement
3. Rear body side reinforcement assembly
4. Lower inner E post assembly

5. Outer rear wheelarch assembly
6. Rear quarter front lower reinforcement
7. B/C post reinforcement

PANEL REPAIRS

PANELS

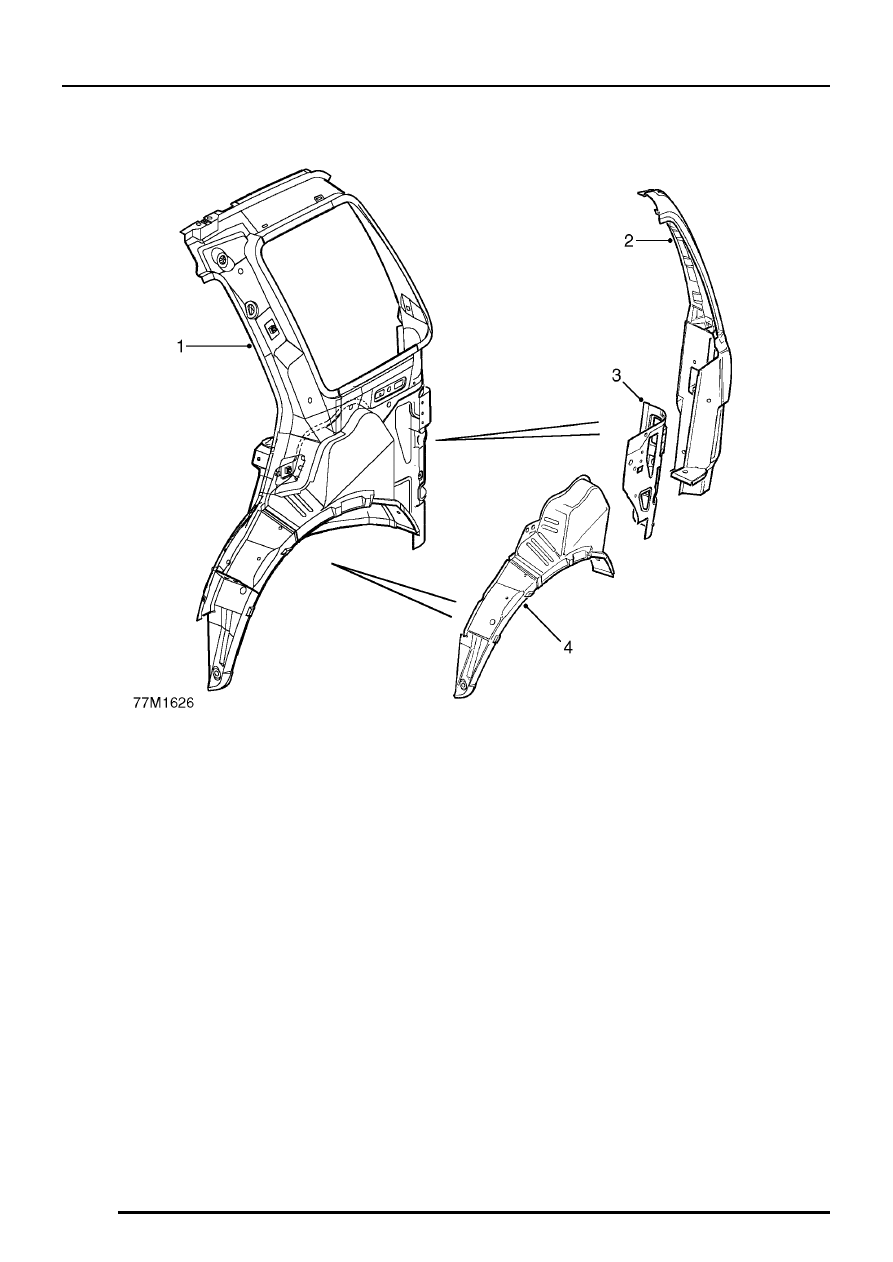

Rear inner body side panels - 5 door

1. Complete rear quarter assembly
2. Inner E post assembly

3. Rear body side reinforcement assembly
4. Outer rear wheelarch assembly

PANEL REPAIRS

PANELS

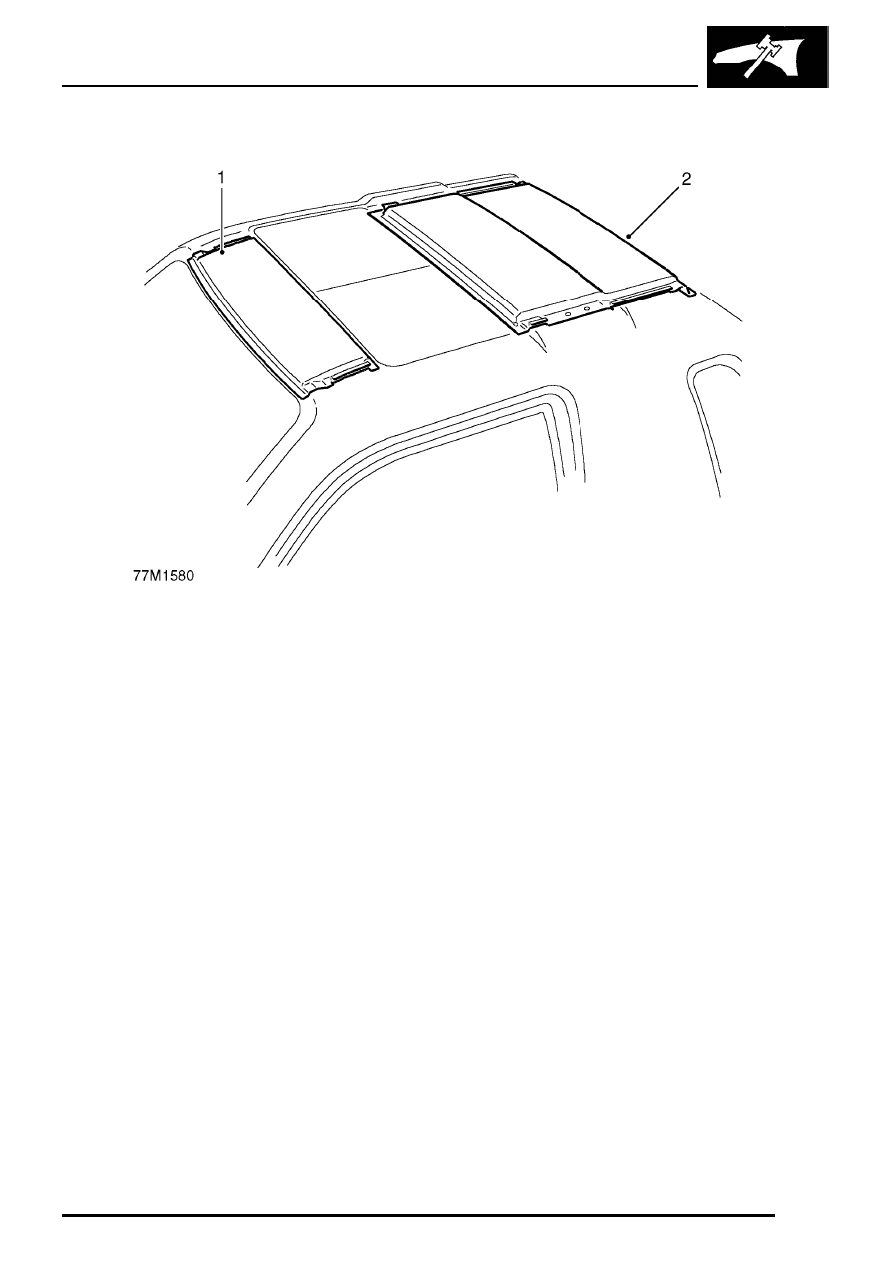

Roof assemblies - 3 door

1. Front roof assembly
2. Rear roof assembly

PANEL REPAIRS

PANELS

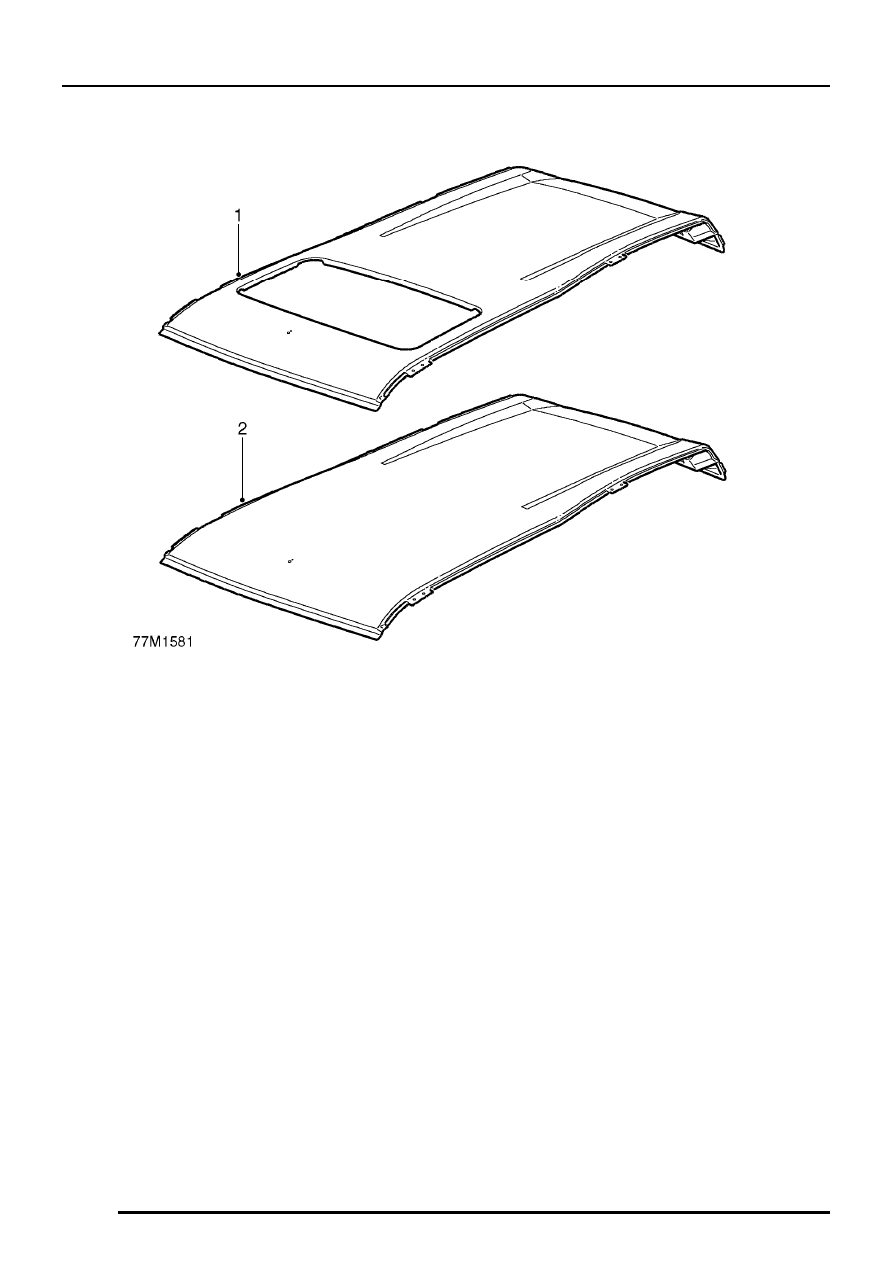

Roof assembly - 5 door

1. Roof assembly (with sunroof)
2. Roof assembly (without sunroof)
