BODY

INTERIOR TRIM COMPONENTS

15

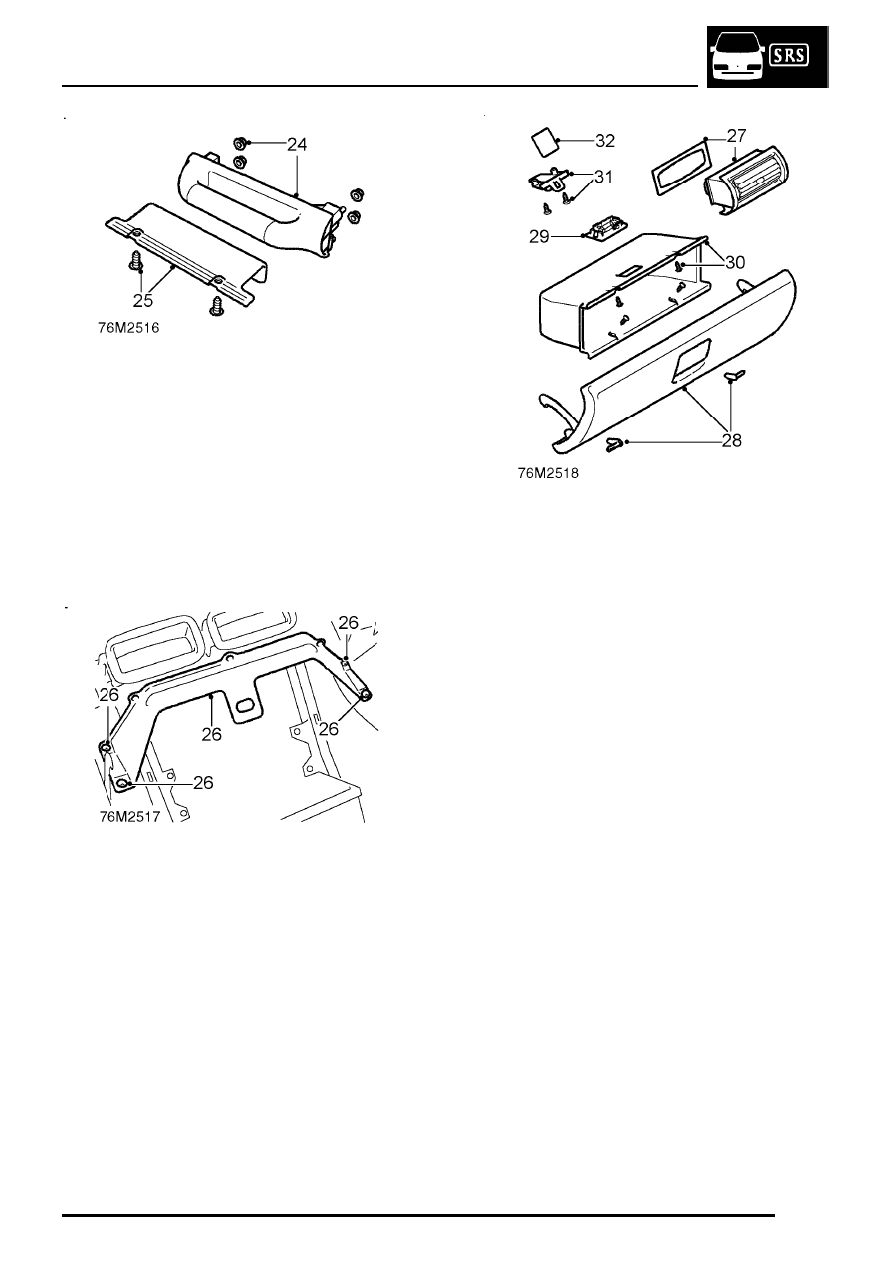

Models without passenger airbag:

24. Remove 4 nuts from grab handle and remove

handle.

Models with passenger airbag:

25. Remove 2 screws from airbag lower finisher

and remove finisher.

All models:

26. Remove 4 screws from centre bracket and

remove bracket.

27. Remove 4 face level vents and collect seals.
28. Remove glove box hinge pins and remove

glove box lids.

29. Remove glove box lamp and mat.
30. Remove 4 screws from glove box and remove

glove box.

31. Remove 2 screws from each glove box lock

and remove locks.

32. Remove switch blank.
33. Noting their fitted positions, remove 11 spire

nuts and 3 harness clips.

34. Remove fascia and coin tray mats.

BODY

16

INTERIOR TRIM COMPONENTS

35. Fit fascia and coin tray mats to replacement

fascia. Ensure mats are fully located in
position.

36. Fit spire nuts and harness clips.
37. Fit switch blank.
38. Fit glove box locks and secure with screws.
39. Fit glove box and secure with screws.
40. Fit glove box lamp and mat.
41. Fit glove box lids and secure hinge pins.
42. Position seals to face level vents and fit vents.
43. Fit centre bracket and secure with screws.

Models without passenger airbag:

44. Fit grab handle and secure with nuts.

Models with passenger airbag:

45. Fit airbag lower finisher and secure with

screws.

All models:

46. Fit instrument pack lower cover and secure

with screws.

47. Fit instrument pack and secure with screws.
48. Position harness and secure harness in clips.
49. Fit mirror and headlamp leveling switches.
50. Feed harness through fascia and connect

multiplugs to instrument pack, mirror switch
and headlamp leveling switch.

51. Connect Lucars to glove box lamp and switch.
52. Fit instrument upper cover and secure with

screws.

53. Position instrument bezel finisher, connect

multiplugs and secure finisher with screws.

Refit

1. With assistance position fascia.
2. Fit and tighten screws.

Models without passenger airbag:

3. Fit fascia stowage box.

See this section.

Models with passenger airbag:

4. Fit passenger airbag.

See RESTRAINT

SYSTEMS, Repairs.

All models:

5. Fit ’A’ post finishers.

See this section.

6. Fit clock.

See ELECTRICAL, Repairs.

7. Open driver’s glove box lid and connect

multiplugs to fuse box.

8. Fit fuse box cover and close glove box lid.
9. Fit steering column lower finisher and secure

with screws.

10. Fit wiper/indicator switch and tighten clamping

screw.

11. Connect multiplugs to wiper/indicator switch.
12. Fit rotary coupler.

See RESTRAINT

SYSTEMS, Repairs.

13. Fit front console

See this section.

BODY

INTERIOR TRIM COMPONENTS

17

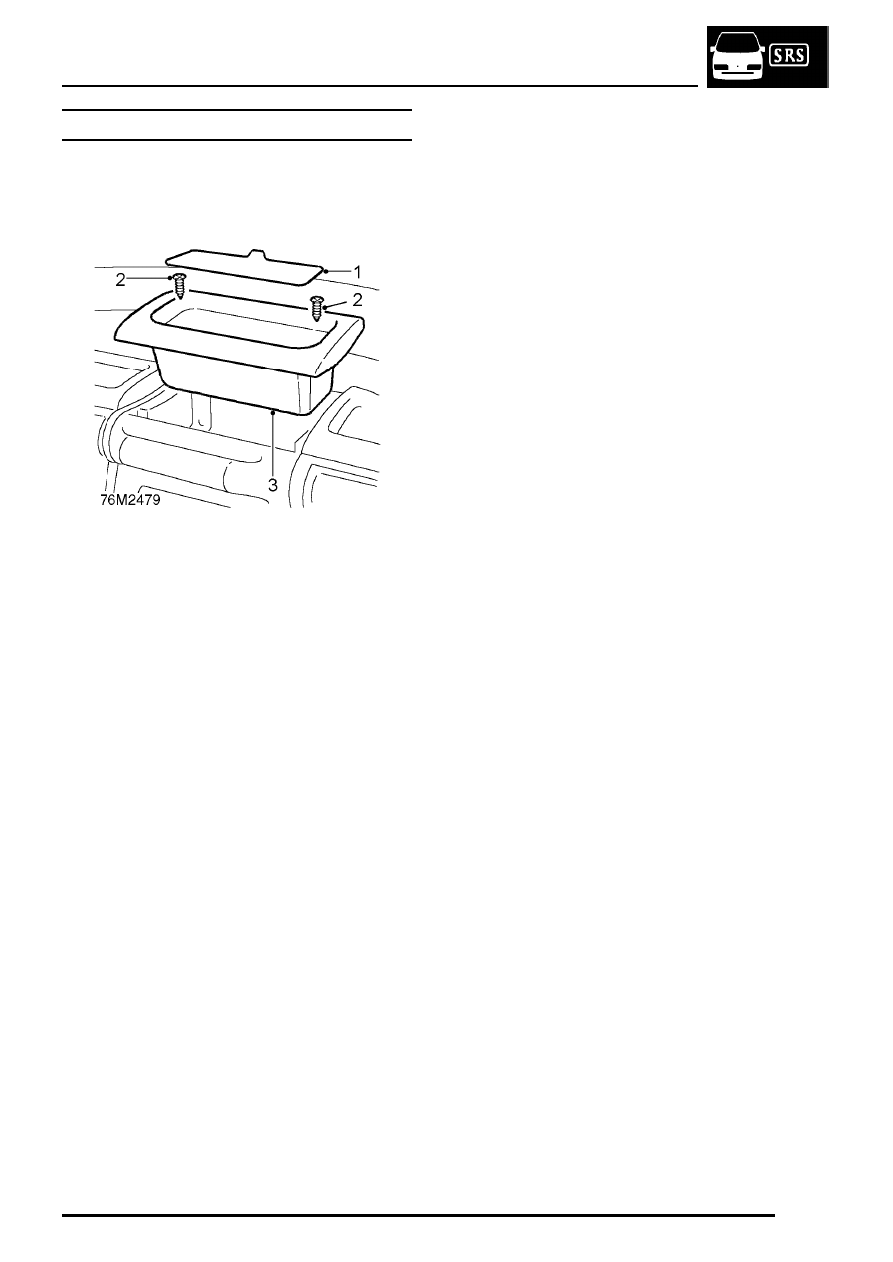

STOWAGE BOX - FASCIA

Service repair no - 76.46.45

Remove

1. Remove mat from stowage box to access

screws.

2. Remove 2 screws.
3. Remove stowage box form fascia.

Refit

1. Position stowage box and secure with screws.
2. Fit mat to stowage box.

BODY

18

INTERIOR TRIM COMPONENTS

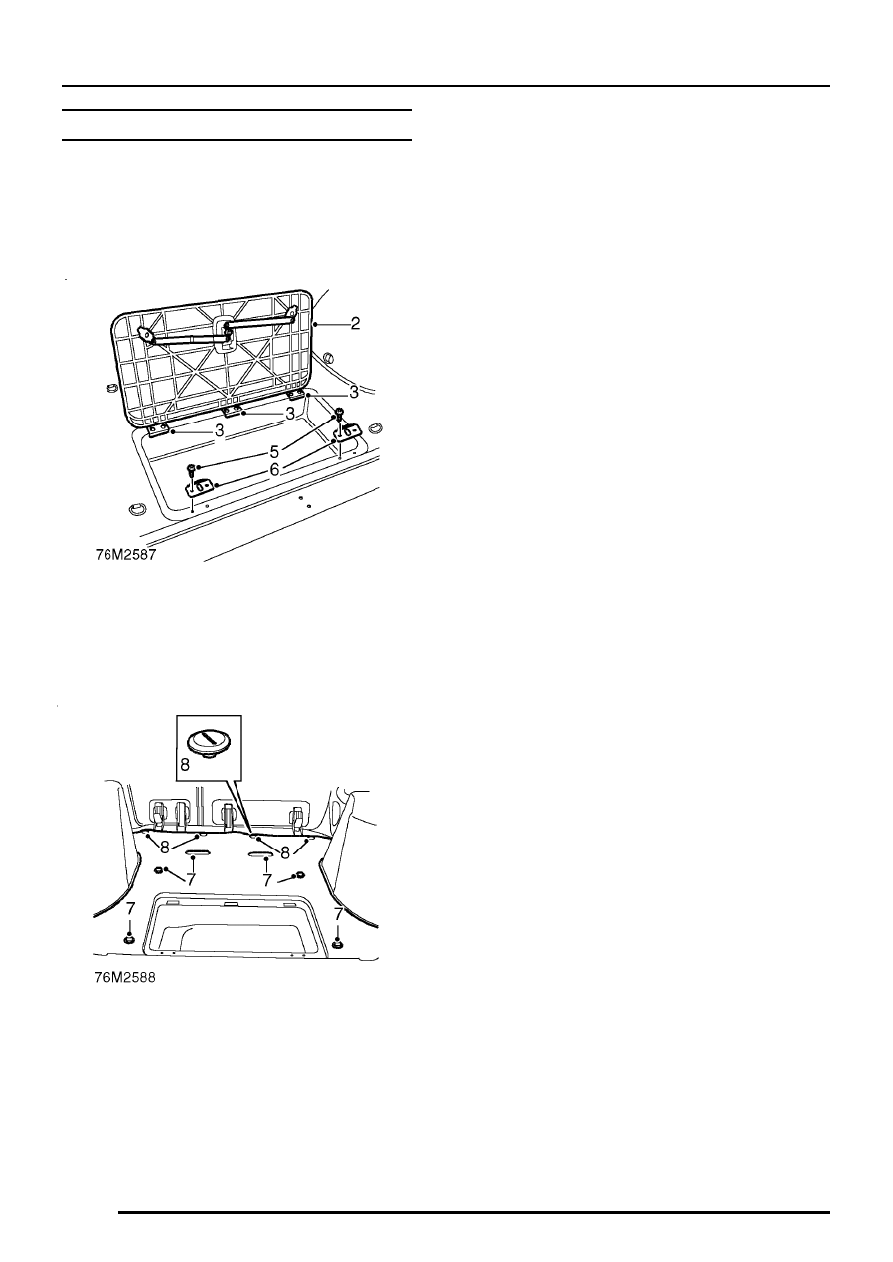

CARPET - LOADSPACE

Service repair no - 76.49.04

Remove

1. Remove both rear quarter lower trim casings.

See this section.

2. Open lid on security box.
3. Remove 6 screws securing lid.
4. Remove lid.
5. Remove 4 screws securing lid latch strikers.
6. Remove both strikers.

7. Release carpet from rear seat strikers and

lashing eyes.

8. Remove 4 buckles from rear carpet.
9. Remove carpet.

Refit

1. Position carpet in loadspace.
2. Fit buckles to rear carpet.
3. Fit lid latch strikers and secure with screws.
4. Fit lid and secure with screws.
5. Close lid.
6. Fit rear quarter lower trim casings.

See this

section.
