BODY

INTERIOR TRIM COMPONENTS

7

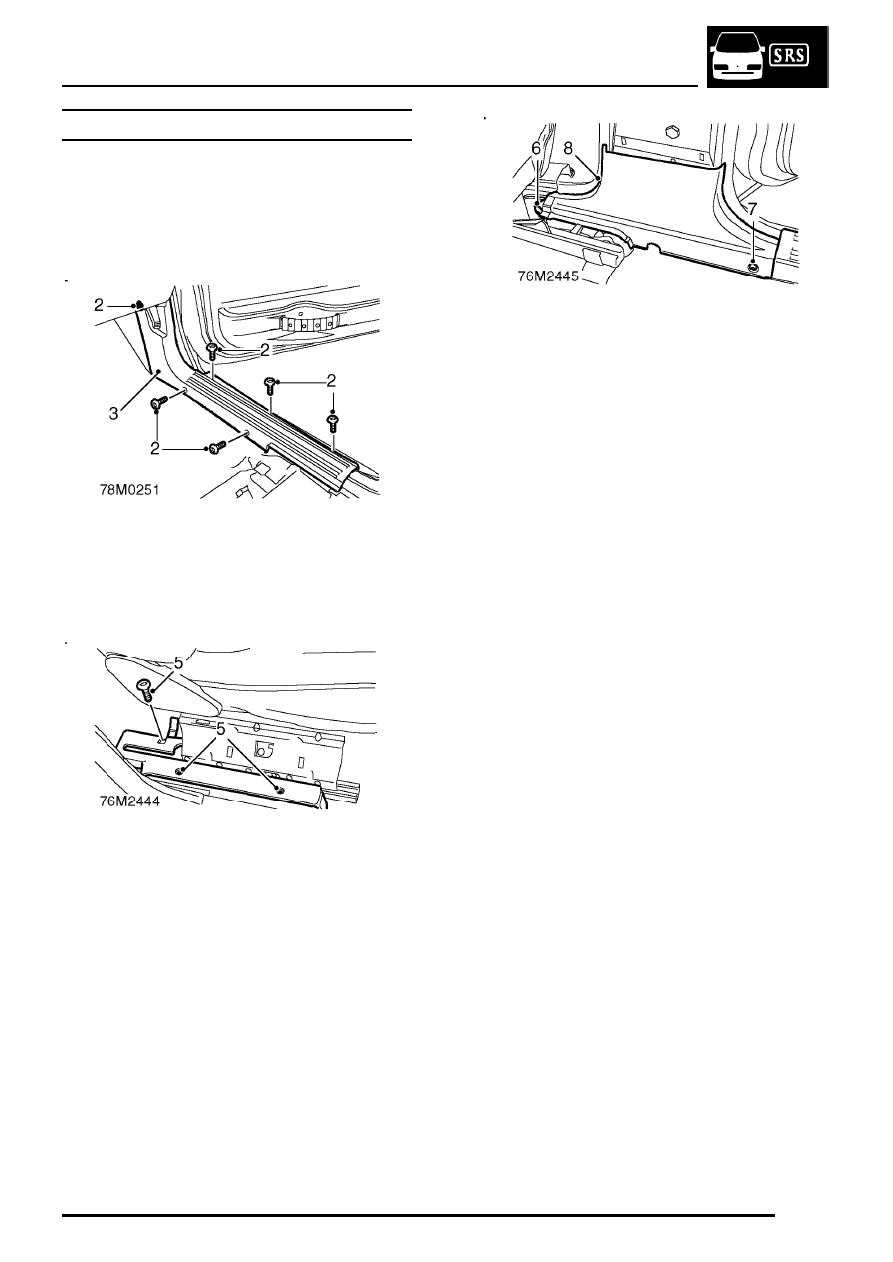

FINISHER -’B/C’ POST LOWER - 5 DOOR

Service repair no - 76.13.29

Remove

1. Remove cushion side finisher.

See Seats and

seat belts.

2. Remove scrivet and 5 Torx screws from carpet

retainer.

3. Remove front carpet retainer.
4. Release B/C’ post upper finisher and position

aside.

5. Remove 3 Torx screws from top of seat base

finisher.

6. Remove scrivet from front of B/C’ post lower

finisher.

7. Remove Torx screw from rear of B/C’ post

lower finisher.

8. Release and remove B/C’ post lower finisher

from seat base finisher.

Refit

1. Locate B/C’ post lower finisher under seat

base finisher and rear carpet retainer.

2. Fit Torx screw to rear of B/C’ post lower

finisher.

3. Fit scrivet to B/C’ post lower finisher.
4. Fit Torx screws to seat base finisher.
5. Align and secure B/C’ post upper finisher.
6. Fit cushion side finisher.

See Seats and seat

belts.

7. Fit front carpet retainer and secure with Torx

screws and scrivet.

BODY

8

INTERIOR TRIM COMPONENTS

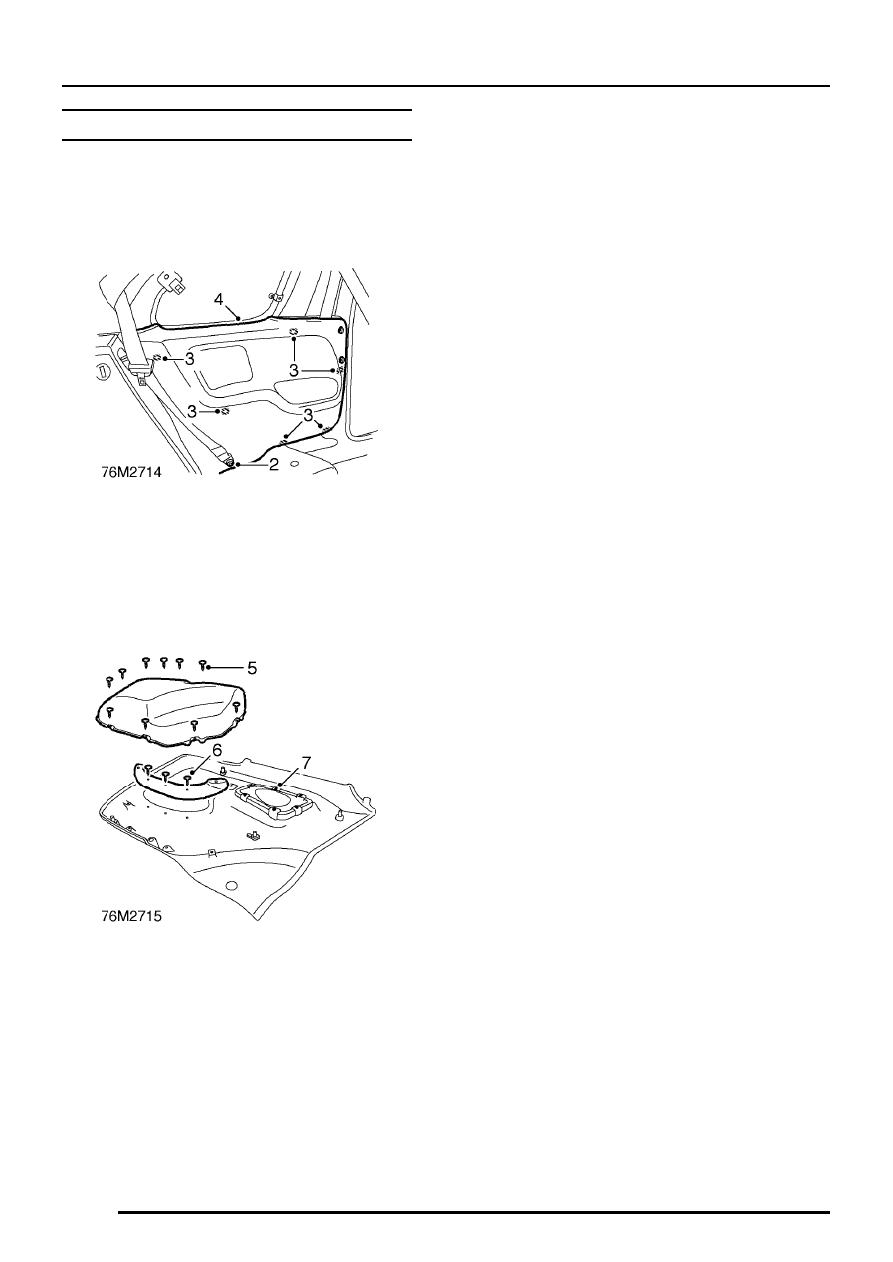

CASING - BODY SIDE - REAR

Service repair no - 76.13.57

Remove

1. Remove rear seat.

See Seats and seat belts.

2. Remove Torx bolt securing rear seat belt lower

to body and position seat belt aside.

3. Release 6 trim clips and remove trim casing.
4. Remove 6 trim fasteners from body panel.

Do not carry out further dismantling if
component is removed for access only.

5. Noting the position of the 3 long screws,

remove 10 Torx screws and remove pocket
from trim casing.

6. Remove 3 screws and remove pocket finisher.
7. Release 6 tags and remove speaker grille.
8. Position speaker grille on replacement casing

and secure tags.

9. Position pocket finisher and tighten screws.

10. Position pocket and tighten Torx screws

Refit

1. Fit trim fasteners to trim casing.
2. Position trim casing and secure clips.
3. Position seat belt and tighten Torx bolt to 50

Nm.

4. Fit rear seat.

See Seats and seat belts.

BODY

INTERIOR TRIM COMPONENTS

9

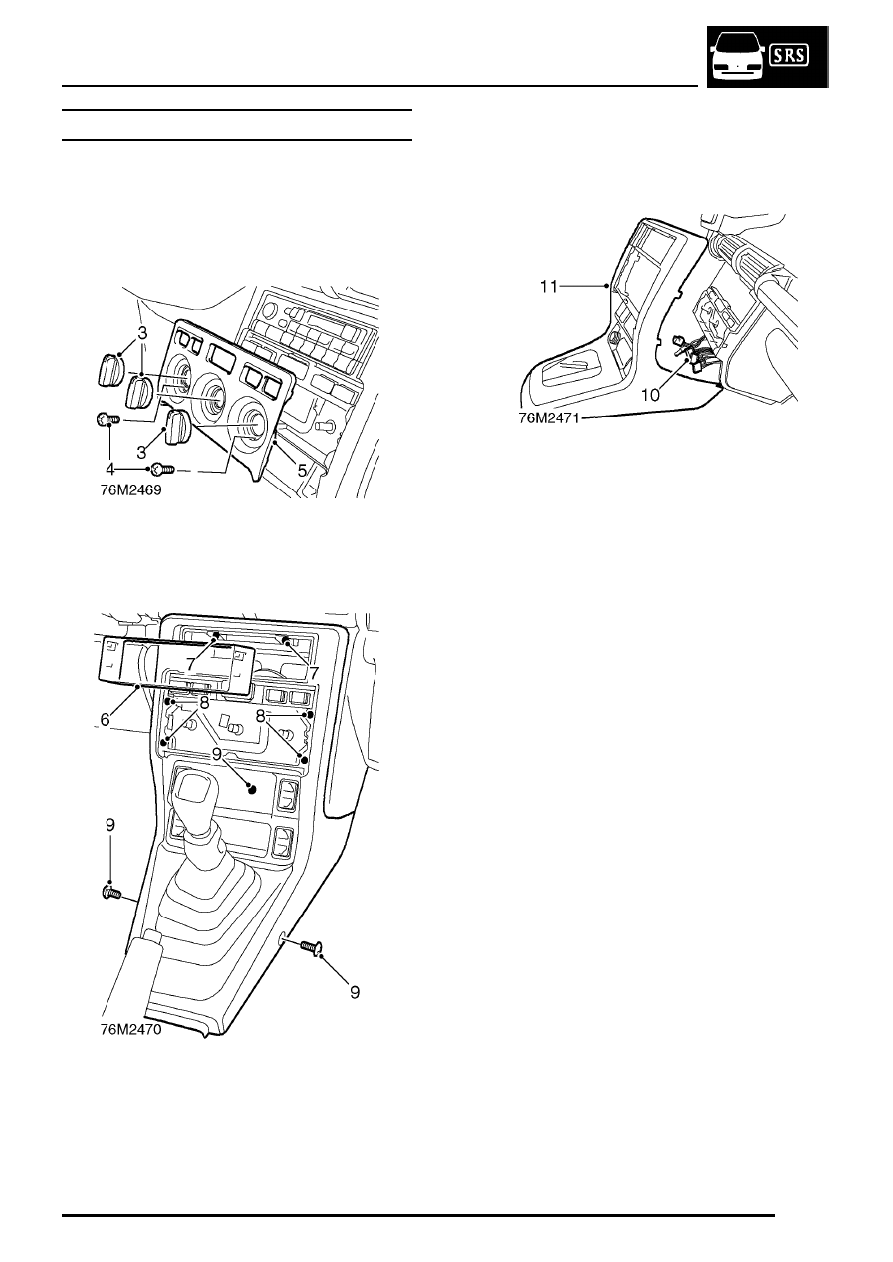

CONSOLE - FRONT

Service repair no - 76.25.01

Remove

1. Remove rear console.

See this section.

2. Remove radio.

See ELECTRICAL, Repairs.

3. Remove 3 heater control knobs.
4. Remove 2 screws from heater control panel.
5. Remove heater control panel.

6. Release tags and remove radio cage.
7. Remove 2 screws from top of console.

8. Remove 4 screws securing switch pack to

console.

9. Remove 3 screws from centre and sides of

console.

10. Release 5 multiplugs and bulb holder from

switch pack.

11. Remove console.

BODY

10

INTERIOR TRIM COMPONENTS

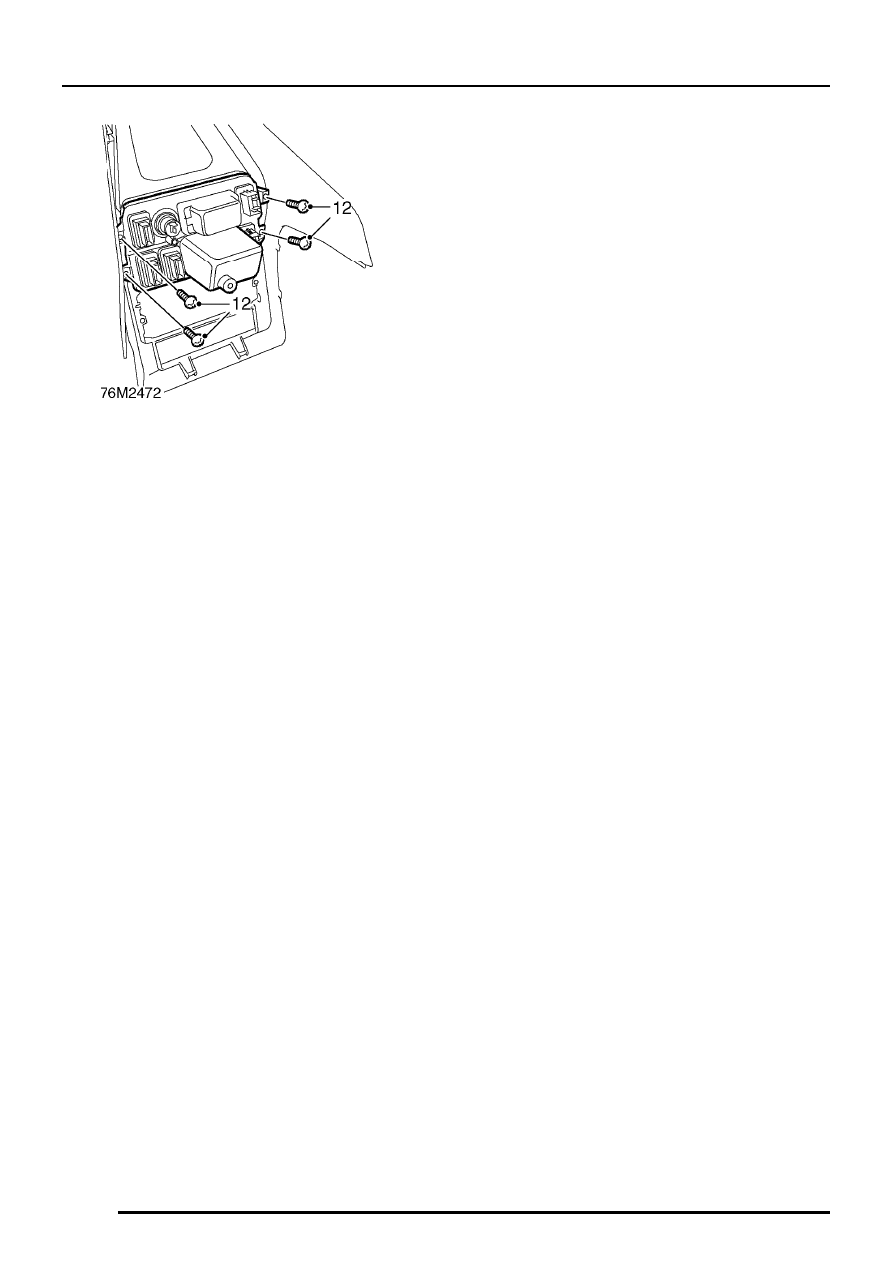

12. Remove 4 screws from switch pack assembly

and remove assembly.

Refit

1. Position switch pack assembly, fit and tighten

screws.

2. Position console to fascia.
3. Connect multiplugs and bulb holder to switch

pack.

4. Fit and tighten screws securing centre and

sides of console.

5. Fit and tighten screws securing switch pack to

console.

6. Fit and tighten screws to top of console.
7. Position radio cage to console and secure with

retaining tags.

8. Position heater control panel, fit and tighten

screws.

9. Fit heater control knobs.

10. Fit radio.

See ELECTRICAL, Repairs.

11. Fit rear console.

See this section.
