BODY

4

EXTERIOR FITTINGS

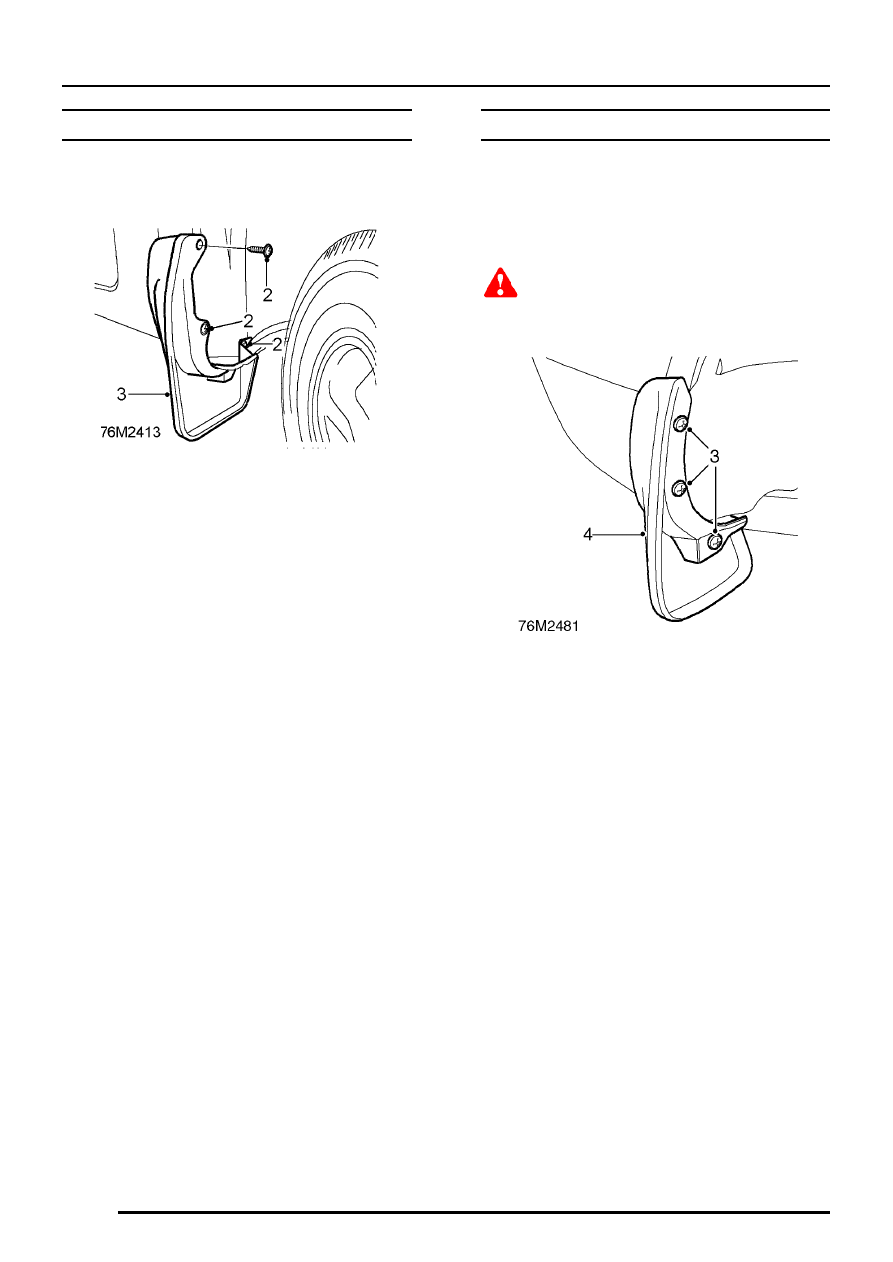

MUD FLAP - FRONT

Service repair no - 76.10.83

Remove

1. Turn steering wheel to full lock.
2. Remove 3 screws securing mud flap.
3. Remove mud flap.

Refit

1. Position mud flap to body and secure with

screws.

2. Straighten steering.

MUD FLAP - REAR

Service repair no - 76.10.85

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Remove 3 screws securing mud flap.
4. Remove mud flap.

Refit

1. Position mud flap to body and secure with

screws.

BODY

EXTERIOR FITTINGS

5

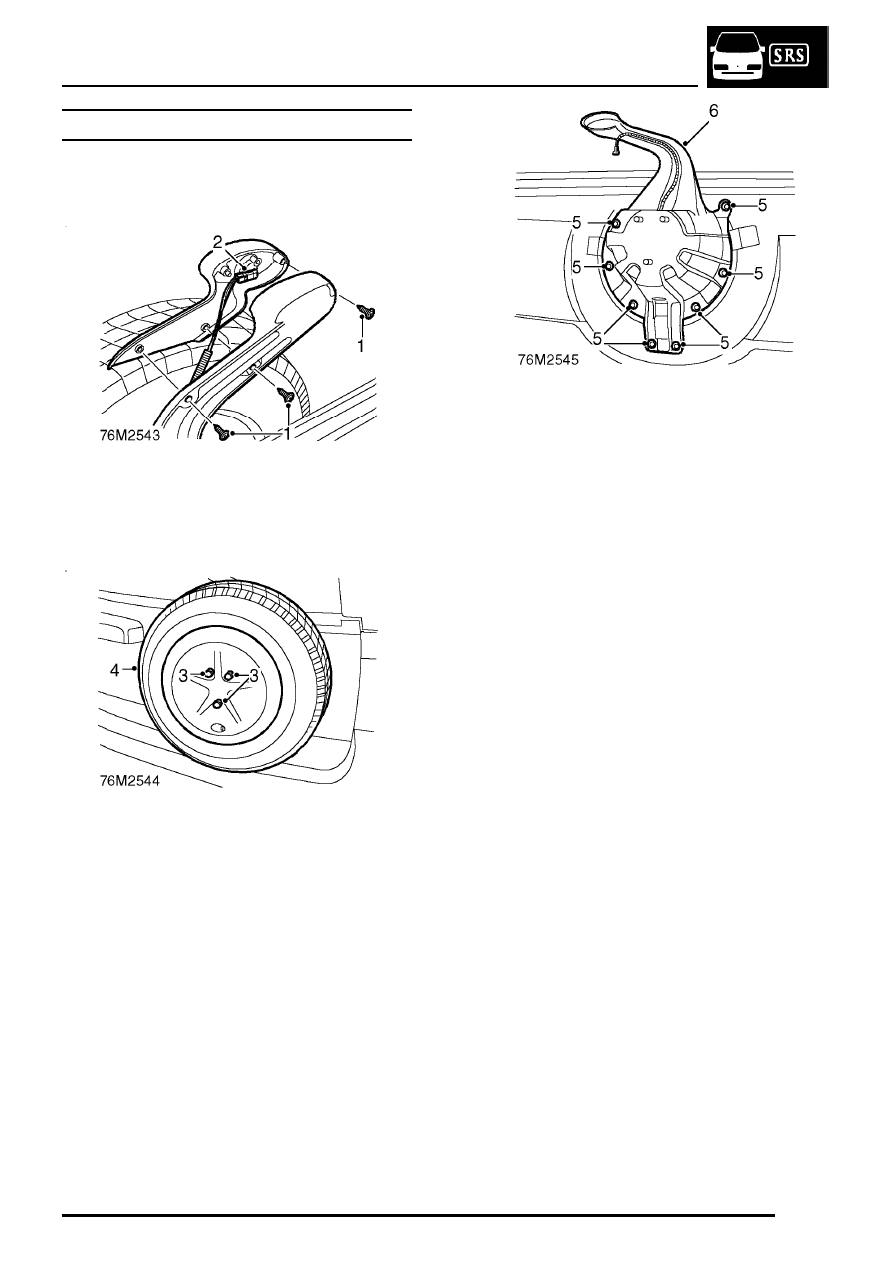

MOUNTING BRACKET - SPARE WHEEL

Service repair no - 76.11.18

Remove

1. Lower tail door glass and remove 3 screws

securing high mounted stop lamp.

2. Disconnect multiplug and remove lamp.

3. Remove 3 nuts securing spare wheel to

mounting bracket.

4. Remove spare wheel from mounting bracket.

5. Remove 6 bolts and 2 nuts securing spare

wheel mounting bracket to tail door.

6. Remove mounting bracket.

Refit

1. Position spare wheel mounting bracket to tail

door and tighten bolts to Nm.

2. Tighten mounting bracket nuts to Nm.
3. Position stop lamp and connect multiplug.
4. Fit and tighten screws securing stop lamp.
5. Fit spare wheel and tighten nuts to 45 Nm.
6. Raise tail door glass.

BODY

6

EXTERIOR FITTINGS

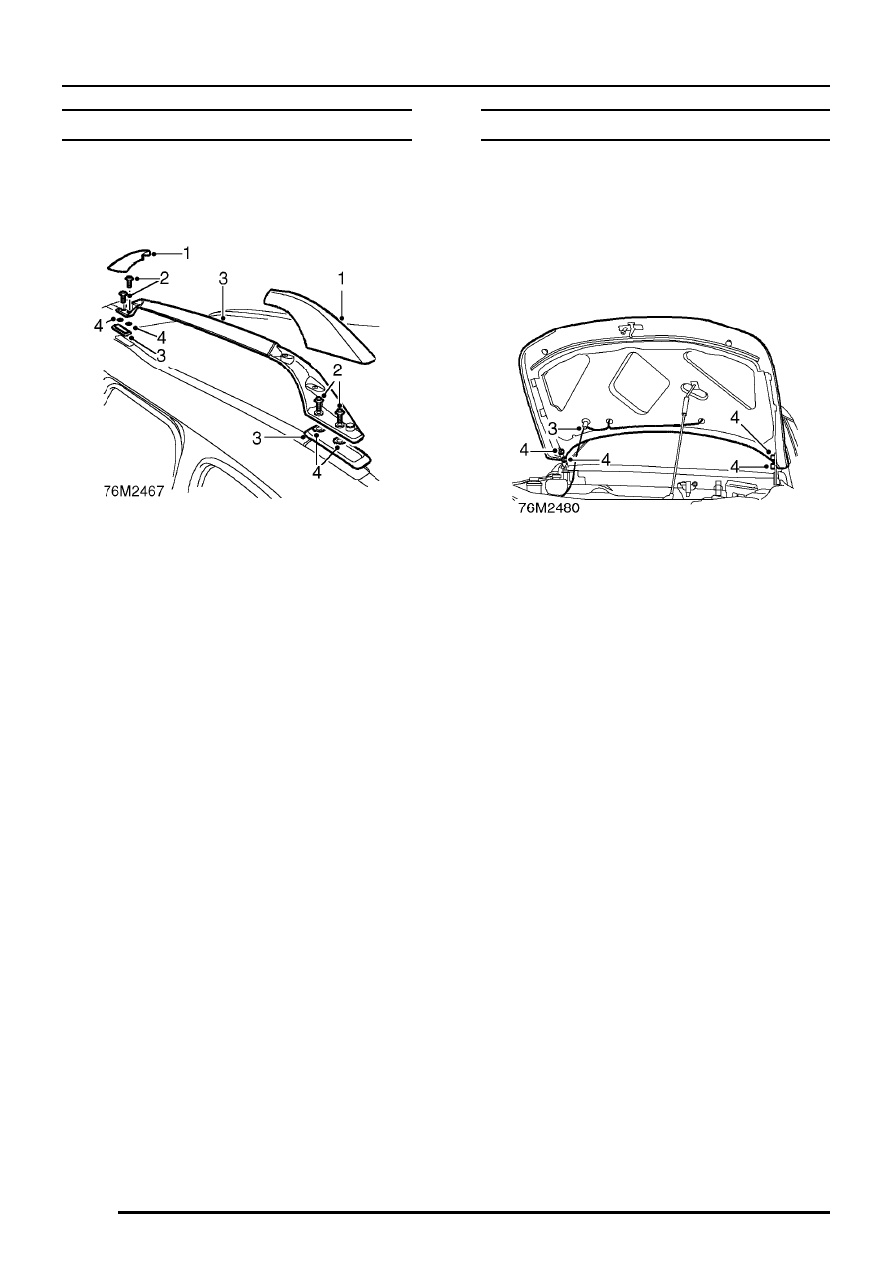

SIDE RAIL - ROOF RACK - 5 DOOR

Service repair no - 76.11.30

Remove

1. Remove finishers from feet of side rail.
2. Unscrew 4 Torx bolts securing side rail to roof

panel.

3. Remove side rail and 2 gaskets.

Do not carry out further dismantling if
component is removed for access only.

4. Remove seal from each Torx bolt.
5. Remove Torx bolts from side rail.
6. Fit Torx bolts and seals to replacement side

rail.

Refit

1. Fit gaskets to side rail.
2. Position side rail and tighten Torx bolts to 22

Nm.

3. Fit finishers to feet of side rail.

BONNET

Service repair no - 76.16.01/99

Remove

1. Support bonnet in open position.
2. Fit protection covers to wings and mark hinge

outline on bonnet if bonnet is to be refitted.

3. Disconnect windscreen washer tube at elbow

joint.

4. With assistance, remove bolts securing bonnet

and remove bonnet.

Refit

1. With assistance, position bonnet and align

hinges to marks on bonnet.

2. Lightly tighten bolts.
3. Connect windscreen washer tube.
4. Close bonnet to safety catch position, check

that bonnet is aligned to both front wings and
that gaps are equal.

5. Finally tighten hinge bolts to 9 Nm.

BODY

EXTERIOR FITTINGS

7

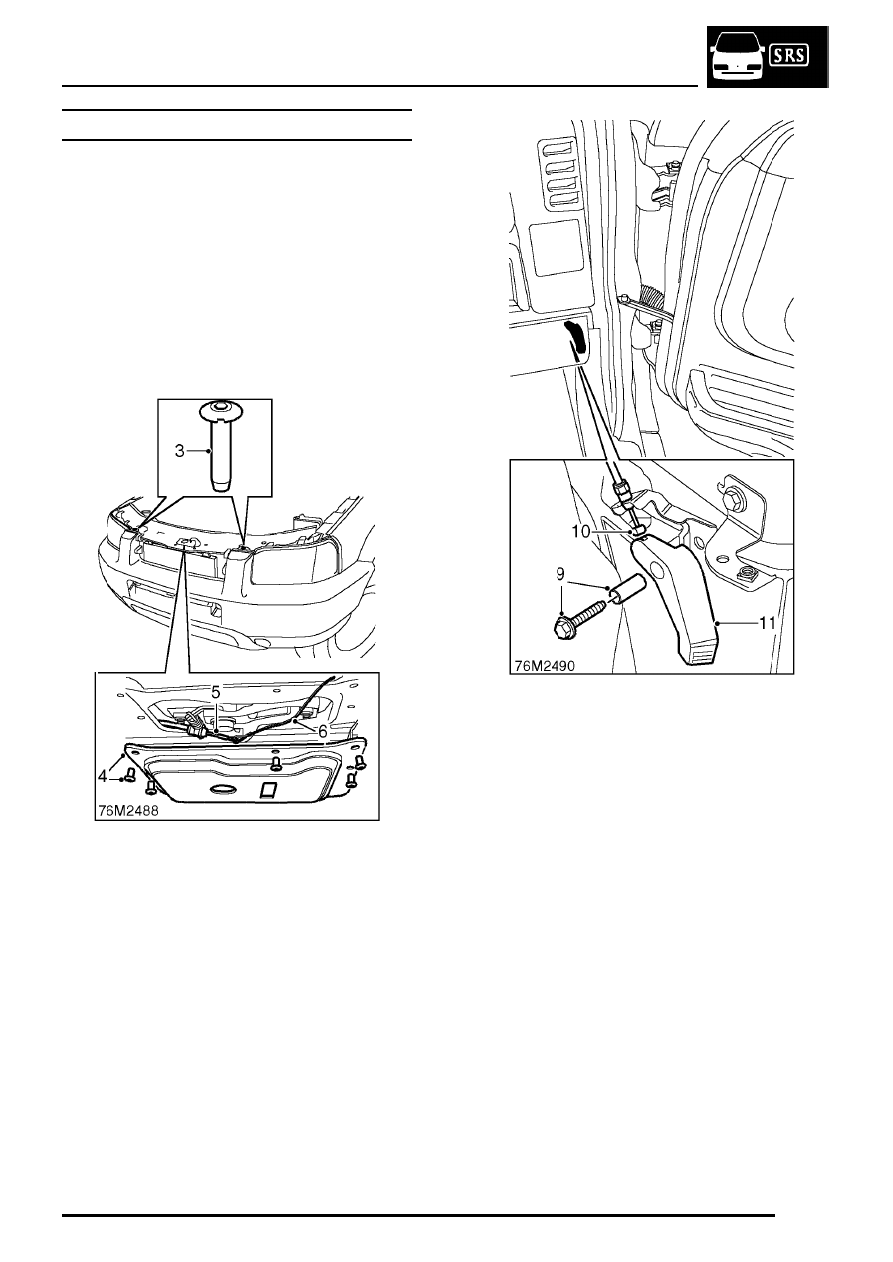

CABLE - BONNET RELEASE

Service repair no - 76.16.29

Remove

1. Remove front grille.

See this section.

Models with air conditioning:

2. Remove condenser.

See AIR

CONDITIONING, Repairs.

All models:

3. Remove radiator threaded retainers from

bonnet locking platform.

4. Drill out 5 rivets and remove bonnet bonnet

latch shield.

5. Disconnect bonnet release cable from lock.
6. Tie a draw string to end of bonnet release

cable and pull cable from bonnet locking
platform.

7. Untie draw string.
8. Remove 3 cable ties securing bonnet release

cable to main harness.

9. Remove bolt securing bonnet release lever to

’A’ post lower panel.

10. Remove bonnet release cable from lever.
11. Remove release lever.
