GENERAL INFORMATION

2

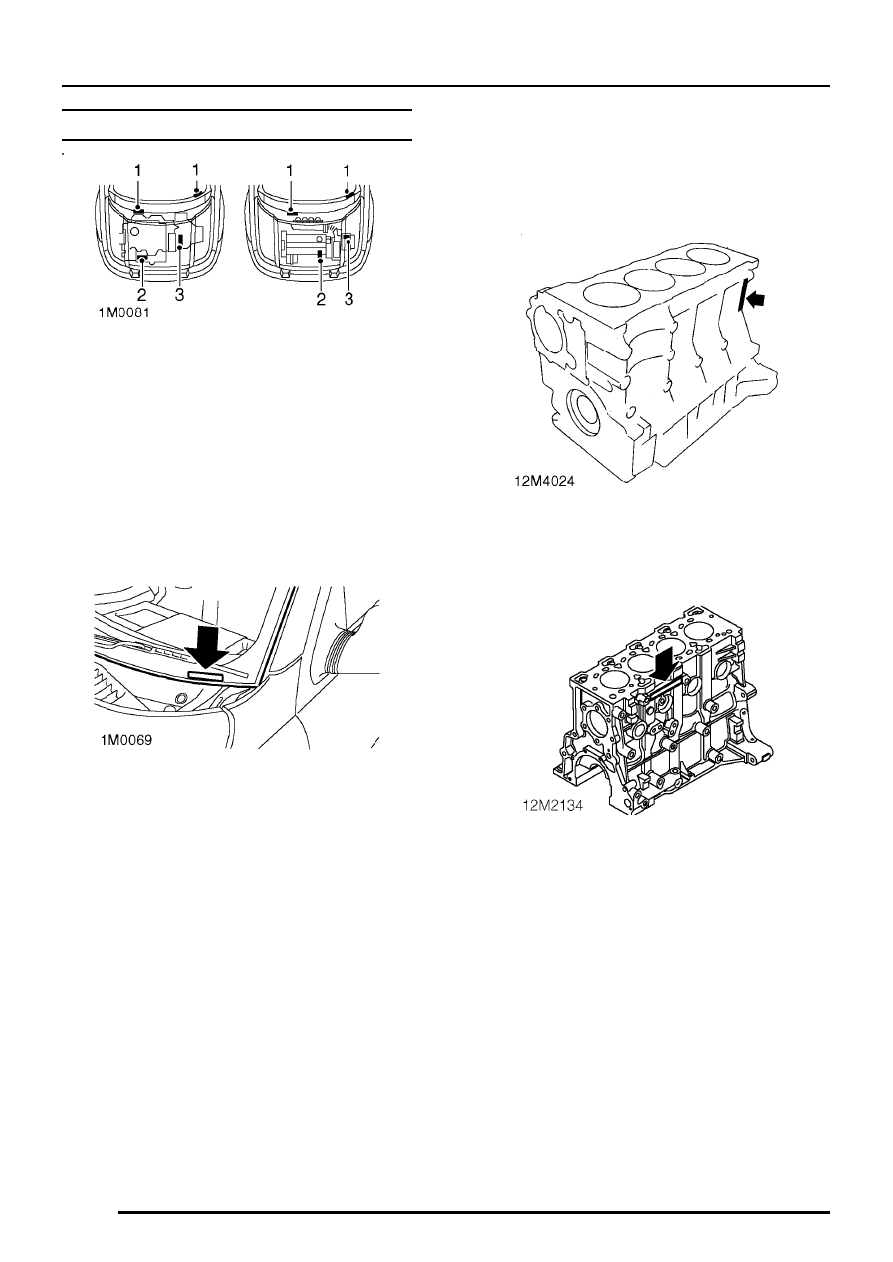

VEHICLE IDENTIFICATION NUMBER

IDENTIFICATION NUMBER LOCATIONS

1. Vehicle identification number
2. Engine number
3. Gearbox number

Vehicle Identification Number

The VIN is displayed at the centre top of the engine
bulkhead and on a plate behind the LH lower corner
of the windscreen.

Engine number

1.8 ’K’ Series Engine: Stamped on the front face of
the cylinder block adjacent to the gearbox.

2.0 ’L’ Series Engine: Stamped on the front face of
the cylinder block at top centre.

Gearbox number (3)

Manual Gearbox - PG1: Stamped on a label
attached to the front face of the clutch housing.

INFORMATION

CONTENTS

Page

LIFTING AND TOWING

JACKING

1

..................................................................................................................

TOWING

4

...................................................................................................................

TRANSPORTING THE VEHICLE BY TRAILER

5

.......................................................

EMERGENCY STARTING

5

........................................................................................

GENERAL DATA

STEERING

1

...............................................................................................................

DIMENSIONS

1

...........................................................................................................

WEIGHTS

2

.................................................................................................................

COMPONENT LOCATIONS

ELECTRONIC CONTROL UNITS

1

............................................................................

BODY REPAIRS

BODY REPAIRS

1

.......................................................................................................

BODY DIMENSIONS

DIMENSIONAL INFORMATION

1

...............................................................................

GAPS AND PROFILES

12

...........................................................................................

SEALING AND CORROSION PROTECTION

APPROVED MATERIALS

1

.........................................................................................

MATERIALS APPLICATIONS

4

..................................................................................

APPLICATION EQUIPMENT

5

....................................................................................

WATER LEAKS

8

........................................................................................................

INFORMATION

LIFTING AND TOWING

1

JACKING

The following instructions must be carried out before
raising the vehicle off the ground:

Use a solid level surface.

Apply parking brake.

Select 1st. gear in main gearbox and ensure
HDC is not selected.

CAUTION: To avoid damage to under body
components of the vehicle, adhere to the
following jacking procedures:

DO NOT POSITION JACKS OR AXLE STANDS
UNDER THE FOLLOWING COMPONENTS:

Bumpers

Brake or Fuel lines

Exhaust pipe

Suspension components

Steering rack and linkages

Fuel tank

Engine sump

Gearbox

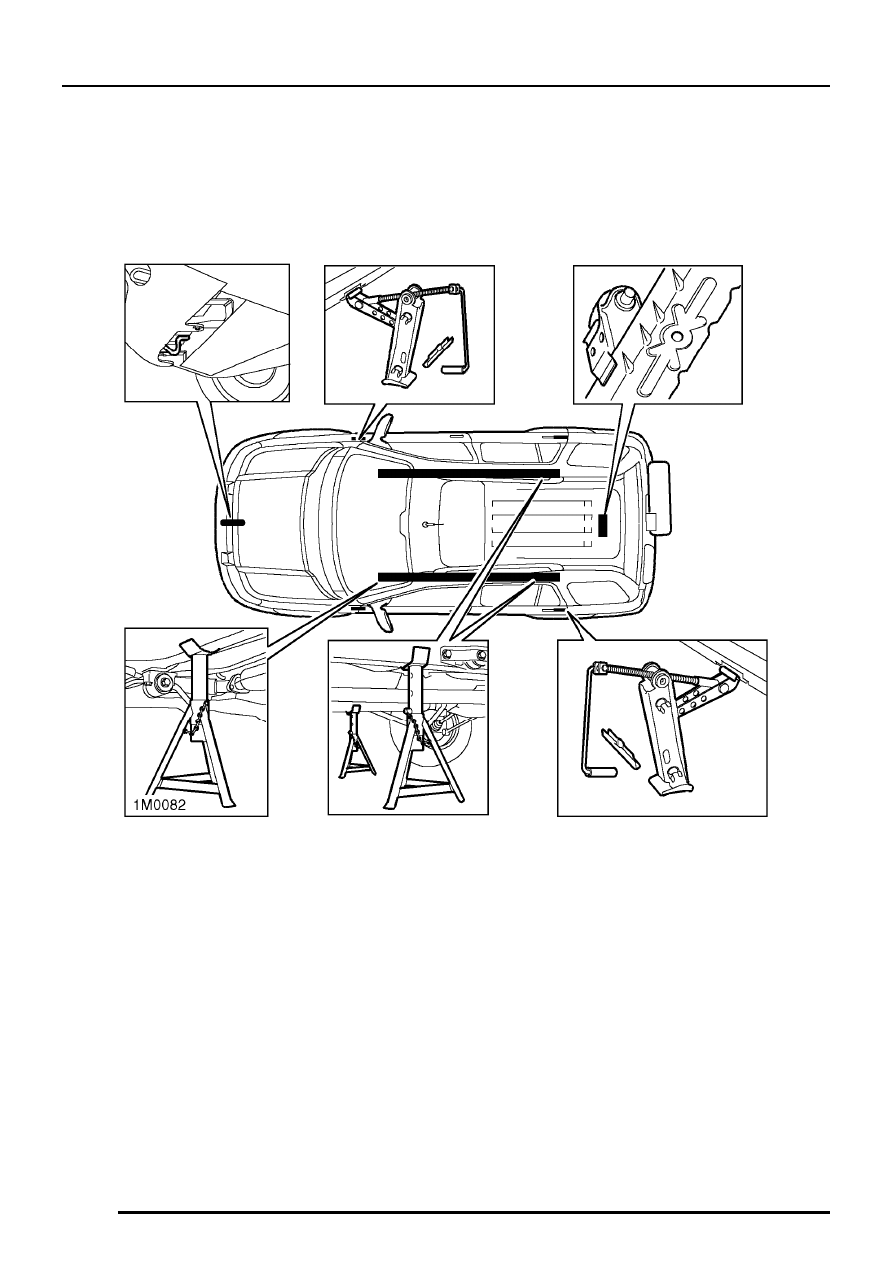

Jack or support vehicle only on approved
jacking points as detailed in the illustration
below:

INFORMATION

2

LIFTING AND TOWING
