Freelander 1. Manual - part 281





SECURITY

REPAIRS

86-4-5

Sensor - volumetric - alarm system - 5
door

$% 86.77.29

Remove

1. Remove LH rear quarter upper trim casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - upper
- 5 door.

2. Remove LH 'A' post finisher.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'A' post - upper -
renew.

3. Release front and rear LH door seals.

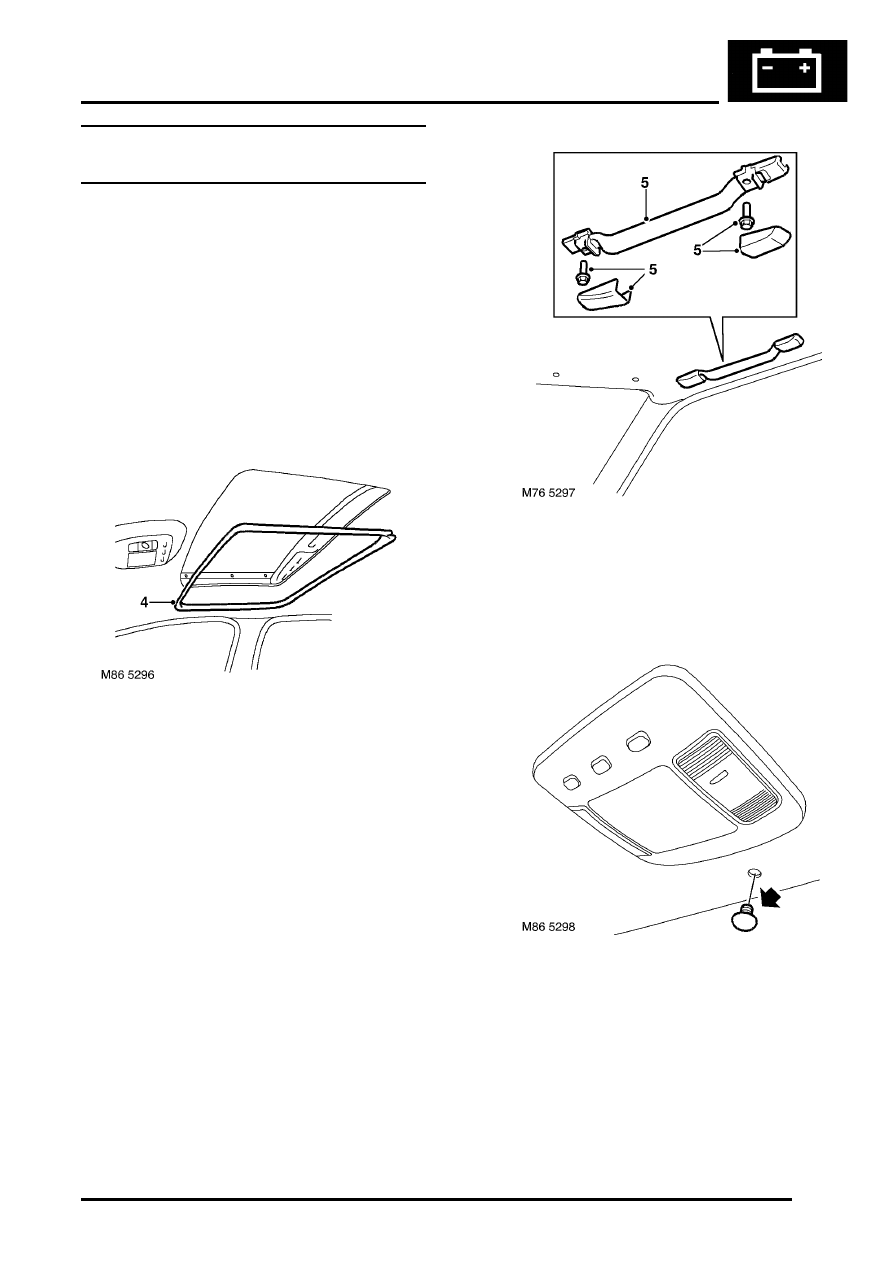

4. Release and remove sun roof finisher.

5. Remove screw covers and screws from both

LH grab handles and remove grab handles.

6. Remove LH sun visor.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Sun visor.

7. Remove trim stud from centre of headlining.

SECURITY

86-4-6

REPAIRS

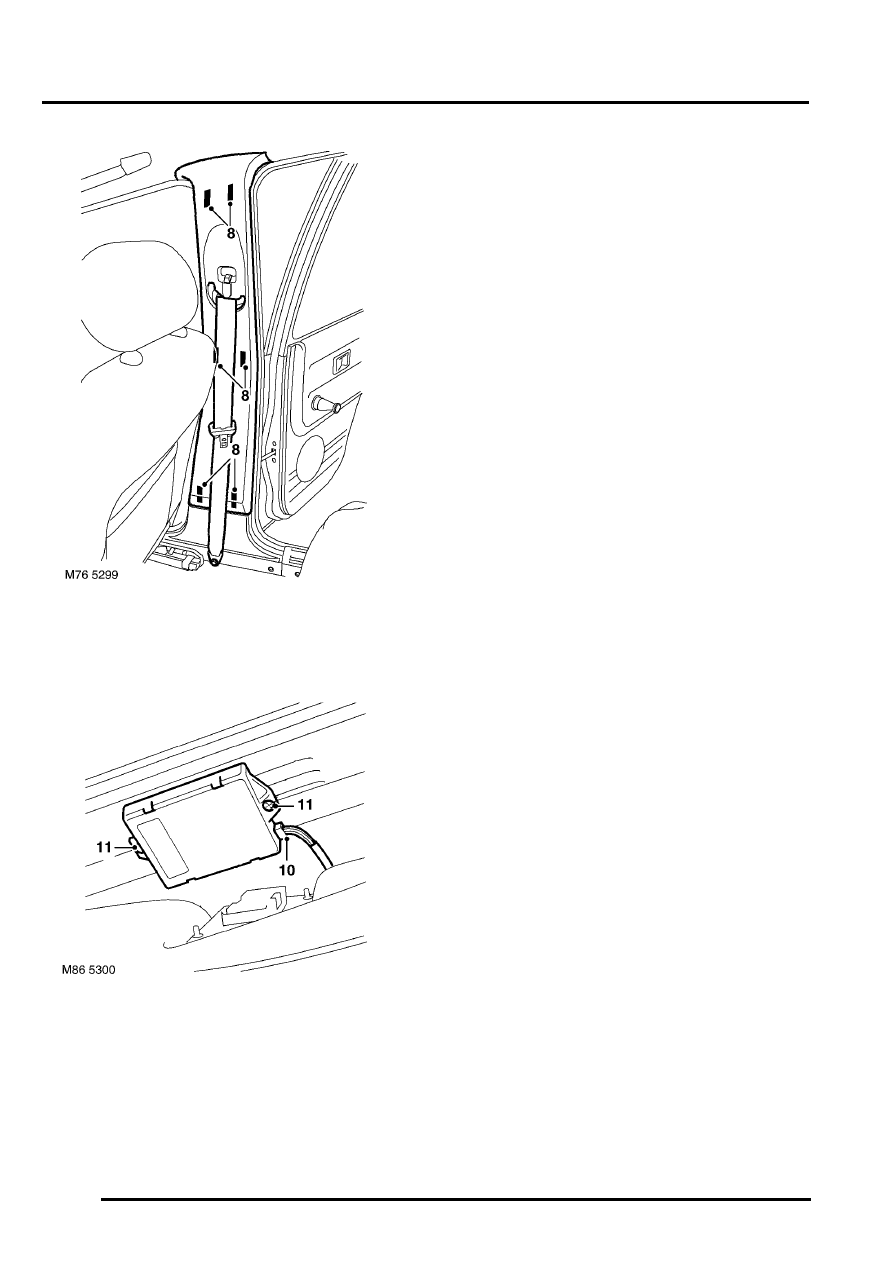

8. Release LH 'B/C' post upper finisher.
9. Carefully lower headlining to gain access to

volumetric sensor.

10. Disconnect multiplug from volumetric sensor.
11. Remove 2 screws and remove sensor.

Refit

1. Fit volumetric sensor and secure with screws.
2. Connect multiplug to sensor.
3. Position 'B/C' post upper finisher and secure

with clips.

4. Fit sun visor.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Sun visor.

5. Fit retaining stud to headlining.
6. Fit grab handles, tighten screws and fit screw

covers.

7. Fit 'A' post finisher.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'A' post - upper -
renew.

8. Position and secure sun roof finisher.
9. Fit rear quarter upper trim casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - upper
- 5 door.

10. Secure front and rear door seals.

SECURITY

REPAIRS

86-4-7

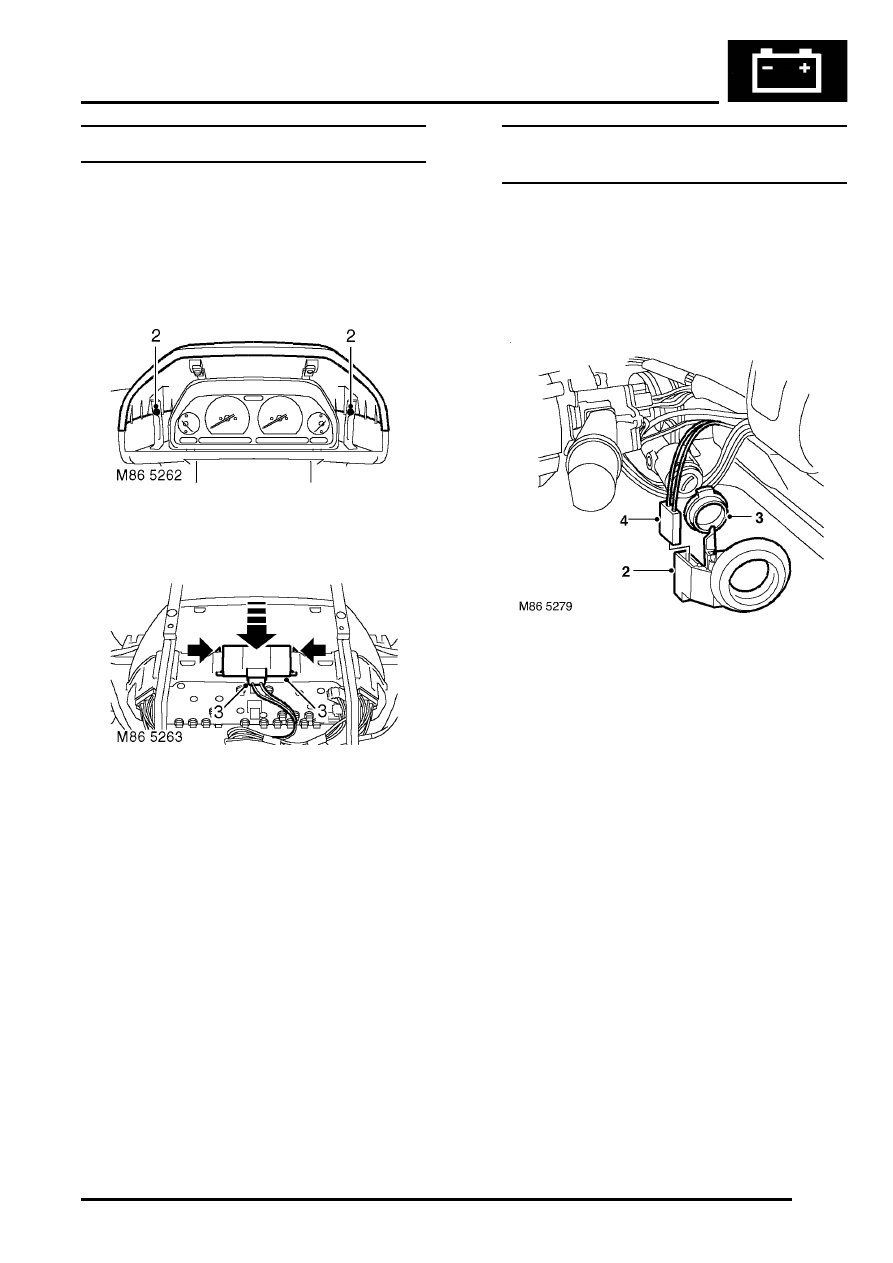

Receiver - alarm system

$% 86.77.31

Remove

1. Remove instrument cowl.



 +

 INSTRUMENTS, REPAIRS, Cowl -

instrument.

2. Remove 4 screws and remove instrument

panel upper cover.

3. Disconnect multiplug and remove alarm

receiver from instrument pack.

Refit

1. Fit alarm receiver and connect multiplug.
2. Fit instrument panel upper cover and secure

with screws.

3. Fit instrument cowl.



 +

 INSTRUMENTS, REPAIRS, Cowl -

instrument.

Coil - passive immobilisation - alarm
system

$% 86.77.35

Remove

1. Remove steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

2. Release passive coil from steering lock.
3. Collect illumination ring.
4. Disconnect multiplug and remove passive coil.

Refit

1. Fit illumination ring.
2. Fit passive coil and connect multiplug.
3. Fit steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

SECURITY

86-4-8

REPAIRS
