AIR CONDITIONING

REPAIRS

82-13

Sensor - refrigerant pressure

$% 82.20.38

Remove

1. Disconnect battery earth lead.
2. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

3. Td4 & KV6 models: Remove underbelly panel



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Release multiplug from refrigerant pressure

sensor.

WARNING: Under no circumstances should
refrigerant hoses be disconnected without
first discharging the system.

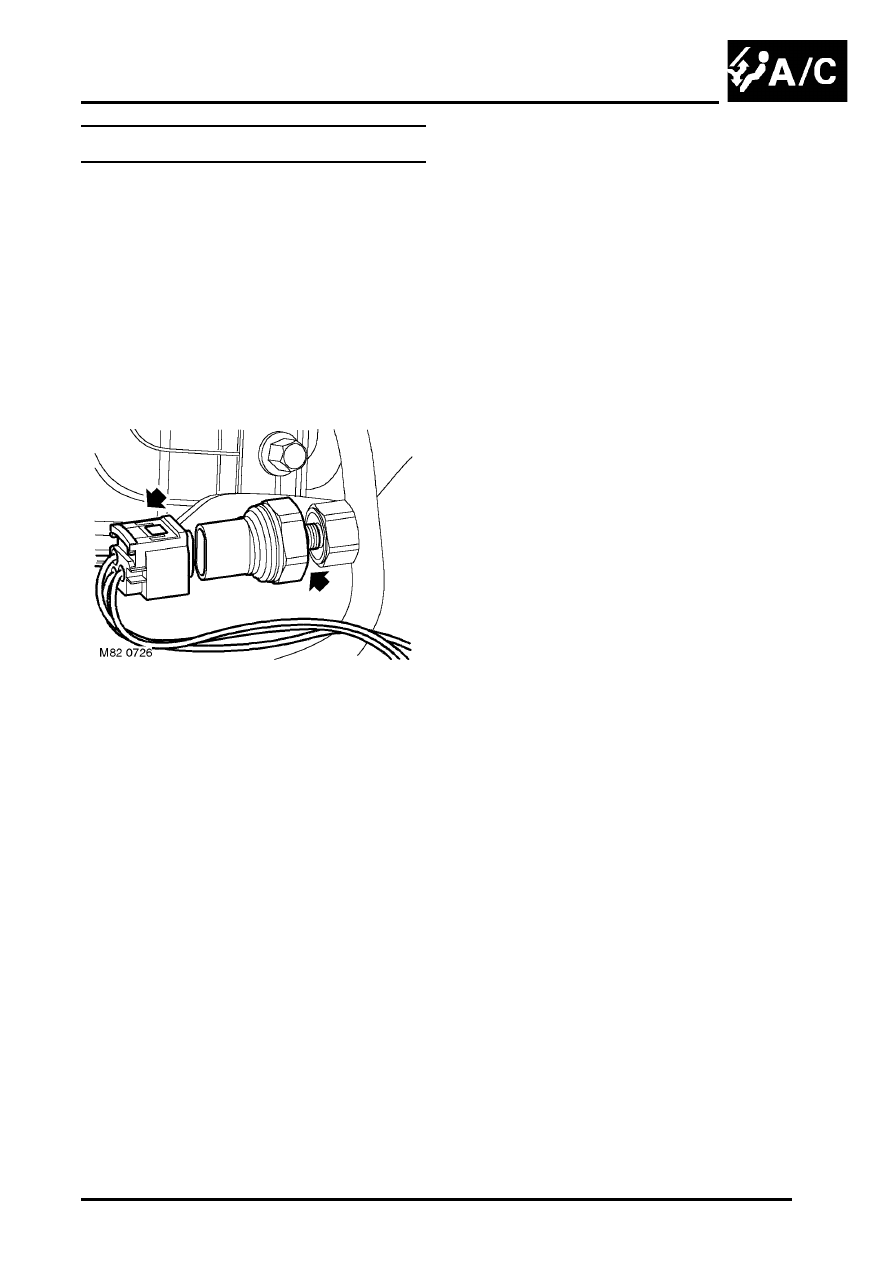

5. Remove refrigerant pressure sensor from A/C

pipe mounting. Use two spanners to avoid
straining A/C pipe mounting.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

6. Discard 'O' ring.

Refit

1. Clean refrigerant pressure switch and

surrounding area.

2. Fit new 'O' ring to sensor and tighten to 10 Nm

(7.5 lbf.ft).

3. Fit multiplug to sensor.
4. Td4 & KV6 models: Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

5. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

6. Connect battery earth lead.

AIR CONDITIONING

82-14

REPAIRS

Valve - thermostatic expansion (TXV)

$% 82.25.01

Remove

1. Disconnect battery earth lead.
2. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

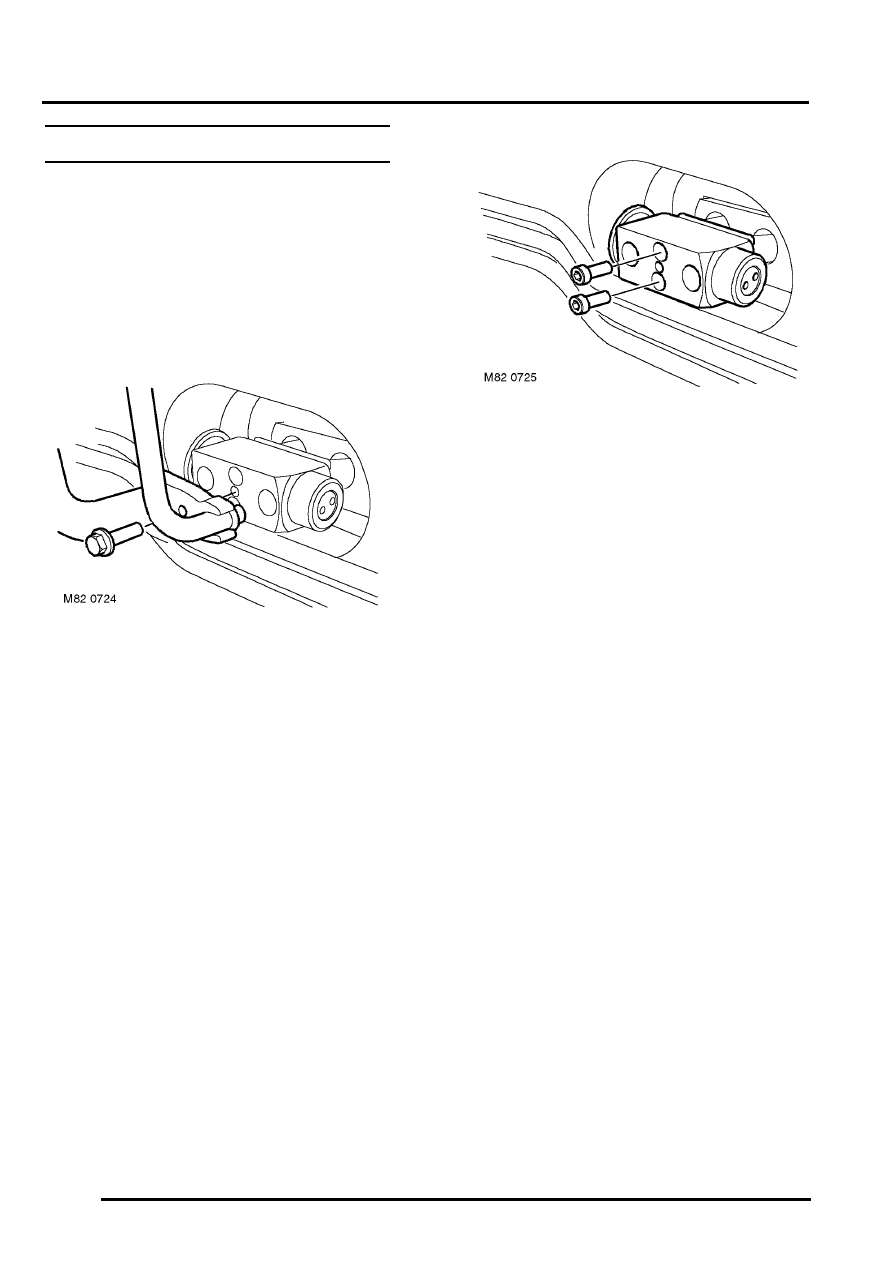

3. Remove bolt securing A/C pipes to TXV,

disconnect pipes and discard 'O' rings. Plug A/
C connections.

WARNING: Under no circumstances should
refrigerant hoses be disconnected without
first discharging the system.

4. Remove 2 Allen screws securing TXV to

bulkhead, withdraw assembly and discard 'O'
rings.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

Refit

1. Clean mating faces and seal recesses on

evaporator, TXV and block and pipe assembly.

2. Lubricate new 'O' rings with clean refrigerant oil

and fit to TXV pipes.

3. Fit block and pipe assembly to TXV and tighten

bolts to 5 Nm (3.5 lbf.ft).

4. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

5. Connect battery earth lead.

AIR CONDITIONING

REPAIRS

82-15

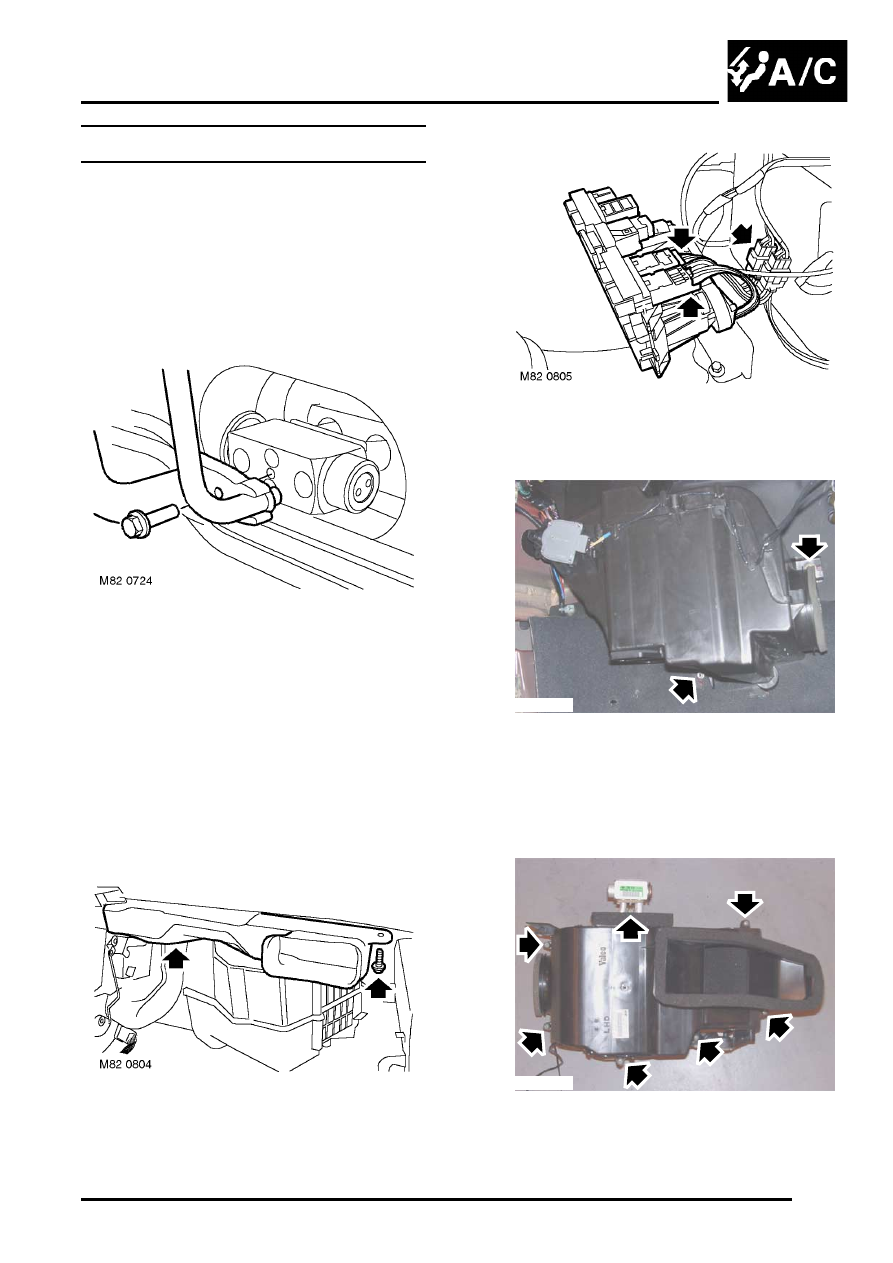

Evaporator

$% 82.25.20

Remove

1. Depressurise A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

2. Remove bolt securing pipes to TXV valve.
3. Release both pipes from TXV valve.
4. Remove and discard 2 'O' rings from pipes.

CAUTION: Immediately cap all A/C pipes to
prevent ingress of dirt and moisture into the
system.

5. Remove fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

6. Remove bolt from face level ducting and

remove ducting.

7. Disconnect 3 multiplugs from A/C switches and

heater harness.

8. Remove 2 nuts securing evaporator to body.
9. Release evaporator from drain hose and air

intake, remove evaporator assembly.

10. Release harness from evaporator securing

clips.

11. Remove 7 screws from evaporator casing and

remove top half of casing.

M820798

M820824

AIR CONDITIONING

82-16

REPAIRS

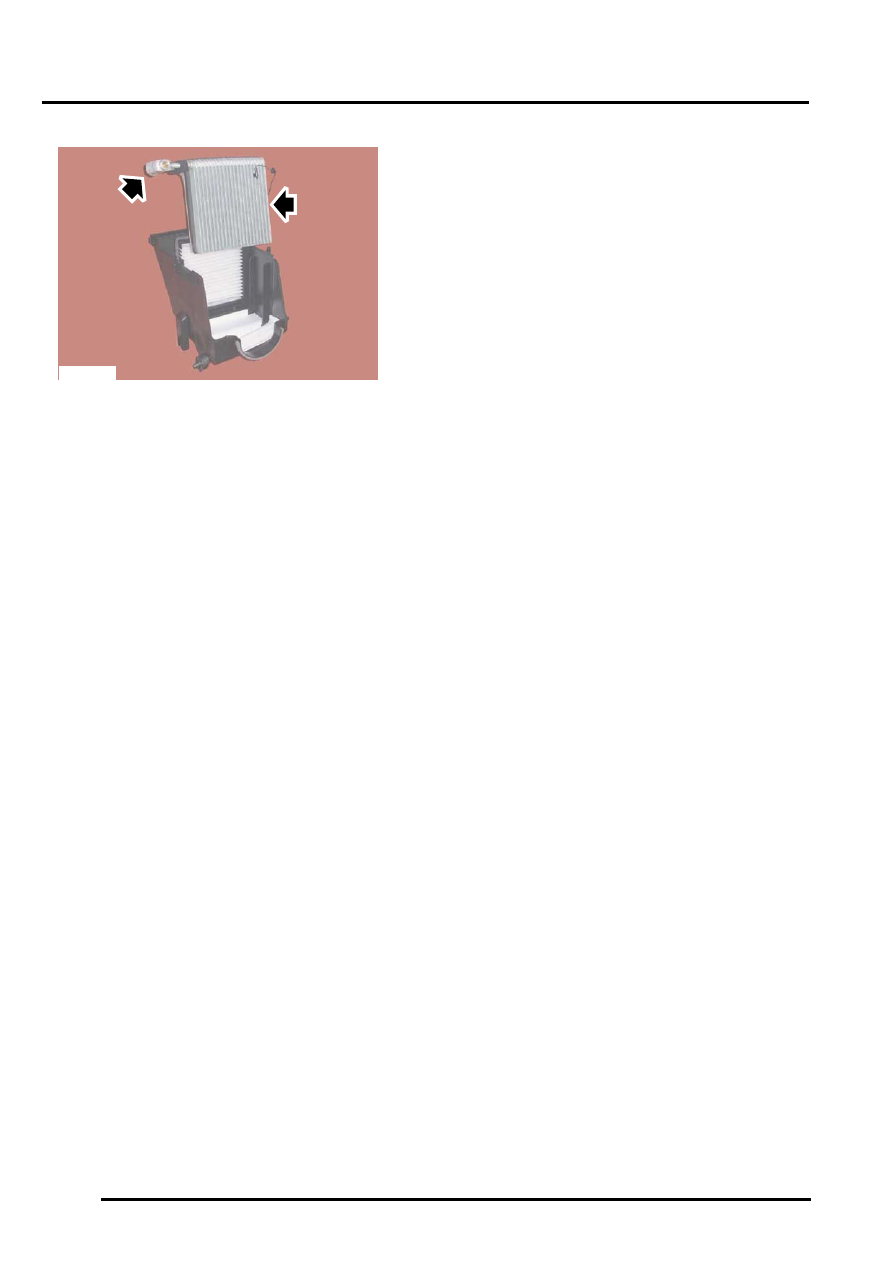

12. Remove evaporator from casing.
13. Remove 2 Allen key bolts securing TXV valve,

remove valve and discard 2 'O' rings.

Refit

1. Lubricate new 'O' rings with clean refrigerant oil

and fit to evaporator pipes

2. Fit evaporator pipes to TXV valve and fit

bracket, fit and tighten bolt to 10 Nm (7 lbf.ft).

3. Carefully fit evaporator to casing.
4. Fit top half of evaporator casing.
5. Fit 7 screws to casing.
6. Fit harness in securing clips.
7. Locate evaporator assembly to drain hose and

air intake, position evaporator to body.

8. Fit and tighten nuts securing evaporator to

body.

9. Connect multiplugs to heater harness and A/C

switches.

10. Position face level vent ducting, fit and tighten

bolt.

11. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

12. Clean evaporator pipes.
13. Lubricate new 'O' rings with refrigerant oil.
14. Fit 'O' rings to evaporator pipes.
15. Clean evaporator pipes.
16. Fit pipes to TXV valve and fit bracket, tighten

bolt to 10 Nm (7 lbf.ft).

17. Charge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

M820825
