Freelander 1. Manual - part 268





AIR CONDITIONING

REPAIRS

82-5

REPAIRS

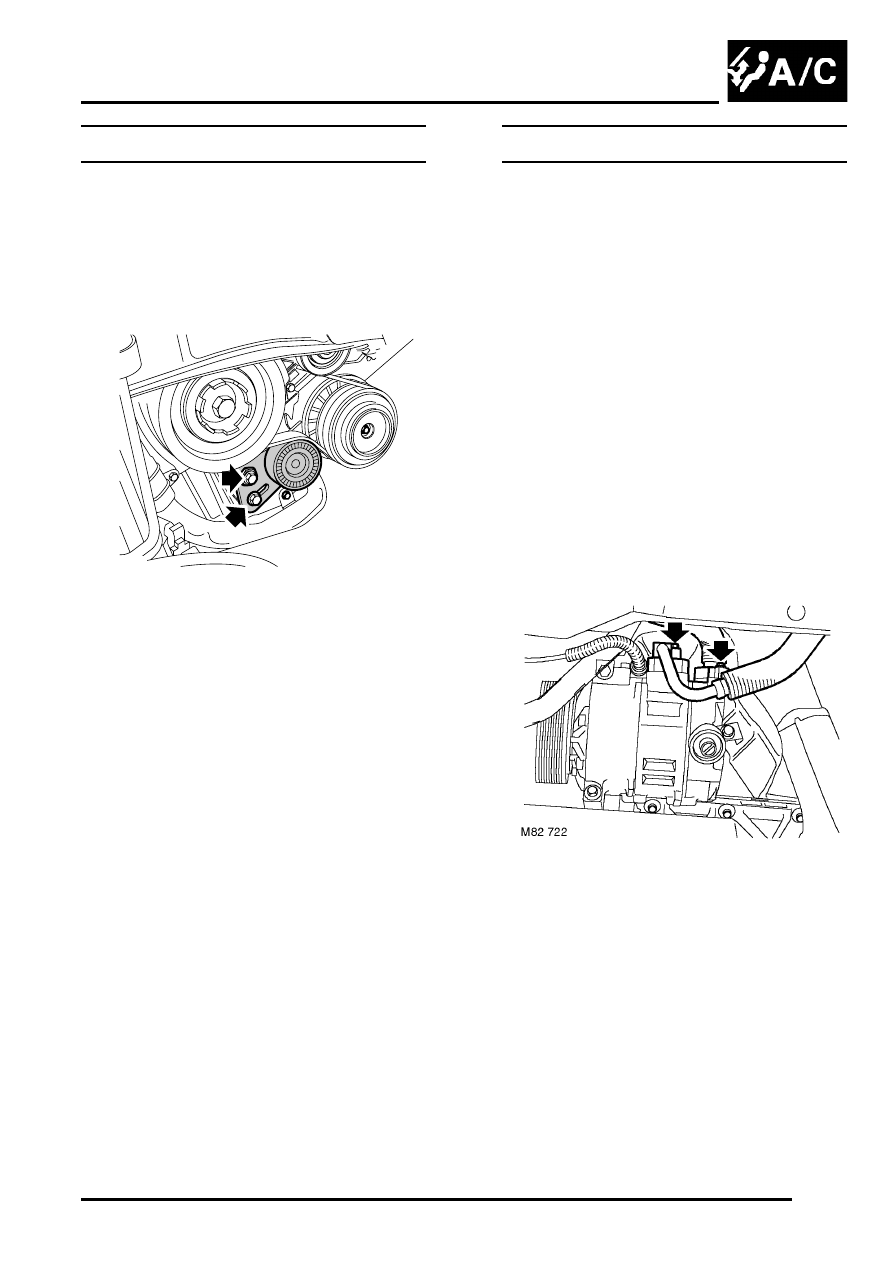

Drive belt - compressor - Td4

$% 82.10.02

Remove

1. Disconnect battery earth lead.
2. Remove ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

3. Loosen clamp and pivot bolts of compressor

drive belt tensioner.

4. Remove compressor drive belt.

Refit

1. Ensure compressor drive belt and compressor,

crankshaft and tensioner pulleys are clean.

2. Fit compressor drive belt.
3. Adjust compressor drive belt.



 +

 AIR CONDITIONING,

ADJUSTMENTS, Drive belt - compressor -
Td4.

4. Fit ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

5. Connect battery earth lead.

Compressor - Td4

$% 82.10.20

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Disconnect battery earth lead.
3. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

4. Remove compressor drive belt.



 +

 AIR CONDITIONING, REPAIRS,

Drive belt - compressor - Td4.

WARNING: Under no circumstances should
refrigerant hoses be disconnected without
first discharging the system.

5. Remove 2 bolts securing A/C pipes to

compressor. Release pipes from compressor.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

6. Remove and discard 'O' rings from A/C pipes.

M82 0721

AIR CONDITIONING

82-6

REPAIRS

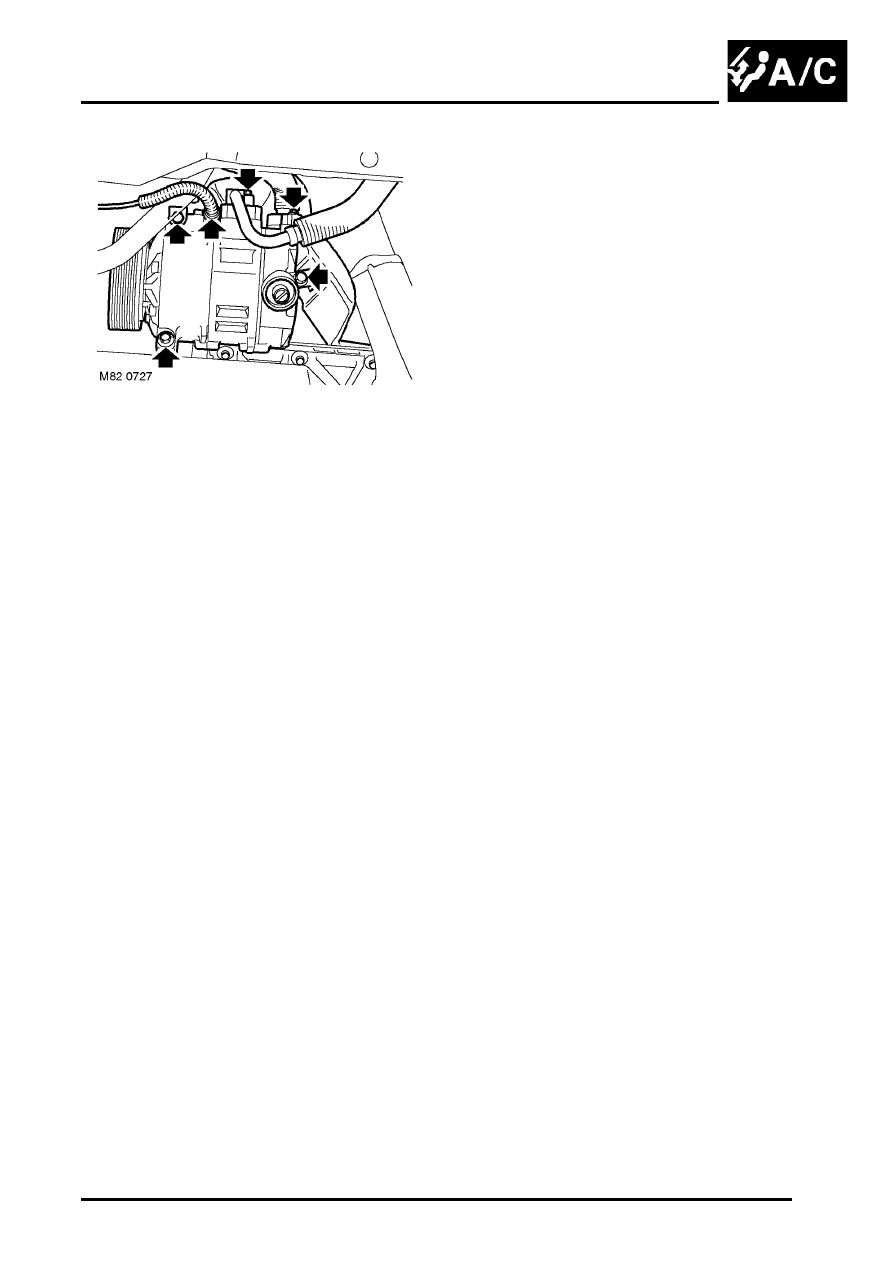

7. Loosen bolt securing compressor support

bracket to sump, do not remove.

8. Remove 3 bolts and remove compressor from

mounting bracket. Move support strap aside,
disconnect compressor multiplug and remove
compressor.

Refit

1. If a new compressor is being installed, drain the

required amount of refrigerant oil from the new
compressor.


 +

 GENERAL INFORMATION, Air

conditioning compressor replacement.

2. A new compressor is sealed and pressurised

with Nitrogen gas, slowly release the sealing
cap, gas pressure should be heard to release
as the seal is broken.

3. Ensure mating faces of A/C pipes and

compressor are clean.

4. Fit A/C compressor to mounting bracket, align

support strap and tighten bolts to 25 Nm (18
lbf.ft).

5. Connect multiplug to compressor.
6. Lubricate new 'O' rings with clean refrigerant oil

and fit to evaporator pipes

7. Position A/C pipes to compressor, fit bolts and

tighten to 22 Nm (16 lbf.ft).

8. Replace receiver drier.



 +

 AIR CONDITIONING, REPAIRS,

Receiver drier.

9. Fit compressor drive belt.



 +

 AIR CONDITIONING, REPAIRS,

Drive belt - compressor - Td4.

10. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

11. Connect battery earth lead.
12. Remove stands and lower vehicle.

Compressor - KV6

$% 82.10.20

Remove

1. Disconnect battery earth lead.
2. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

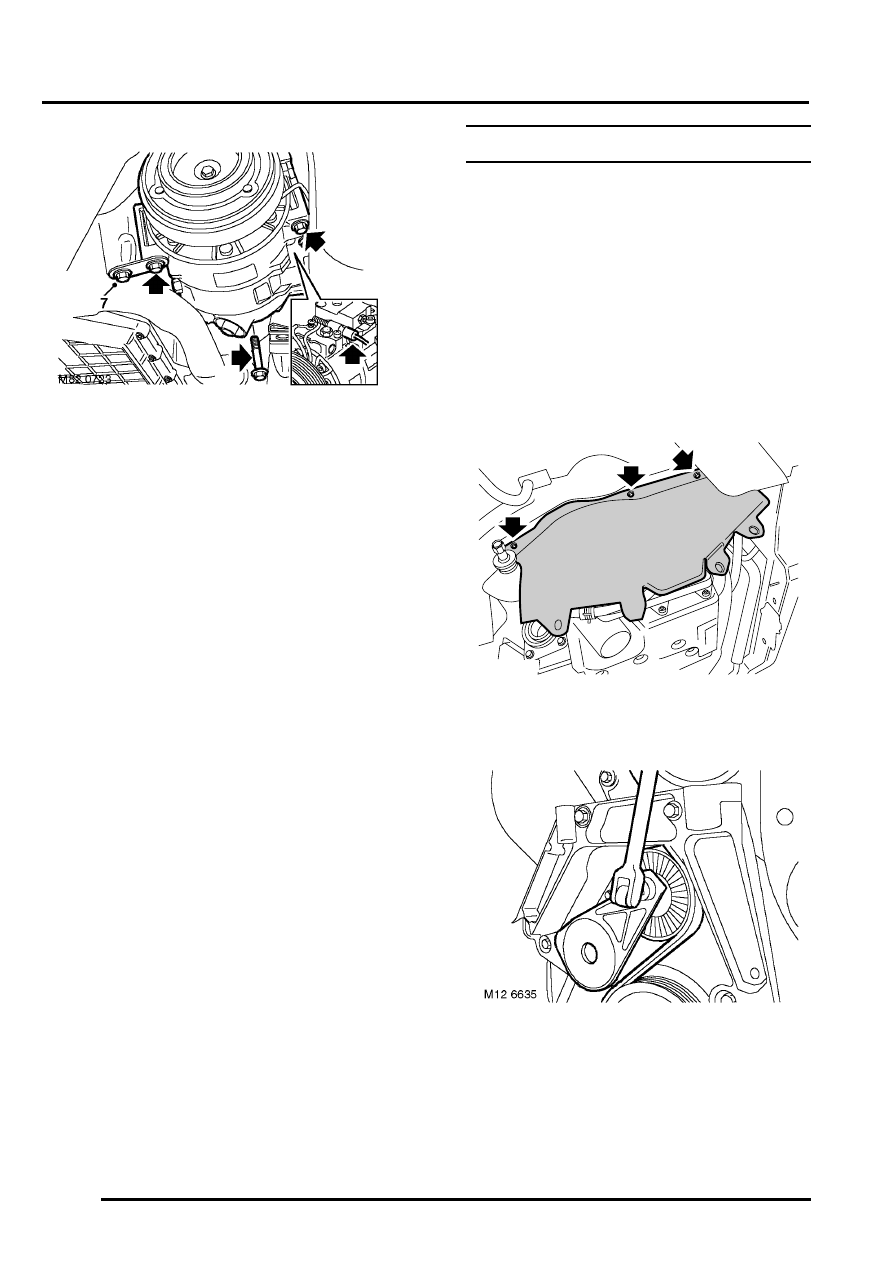

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Remove RH front road wheel.

5. Remove 3 bolts securing RH splash shield to

body and remove shield.

6. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and release drive
belt from A/C compressor pulley.

M12 6614

AIR CONDITIONING

REPAIRS

82-7

7. Remove 2 bolts securing high and low pressure

pipes to compressor. Release pipes from
compressor, remove and discard 'O' rings.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

8. Disconnect multiplug from compressor.
9. Note fitted position of heat shield on

compressor and remove 3 bolts securing
compressor to front mounting plate and
cylinder block. Remove compressor and heat
shield.

Refit

1. If a new compressor is being installed, drain the

required amount of refrigerant oil from the new
compressor.


 +

 GENERAL INFORMATION, Air

conditioning compressor replacement.

2. A new compressor is sealed and pressurised

with Nitrogen gas, slowly release the sealing
cap, gas pressure should be heard to release
as the seal is broken.

3. Clean compressor and mating face on front

mounting plate and cylinder block.

4. Position compressor, fit but do not fully tighten

lower bolt.

5. Position heat shield and fit compressor upper

securing bolts. Tighten compressor upper and
lower securing bolts to 25 Nm (18 lbf.ft).

AIR CONDITIONING

82-8

REPAIRS

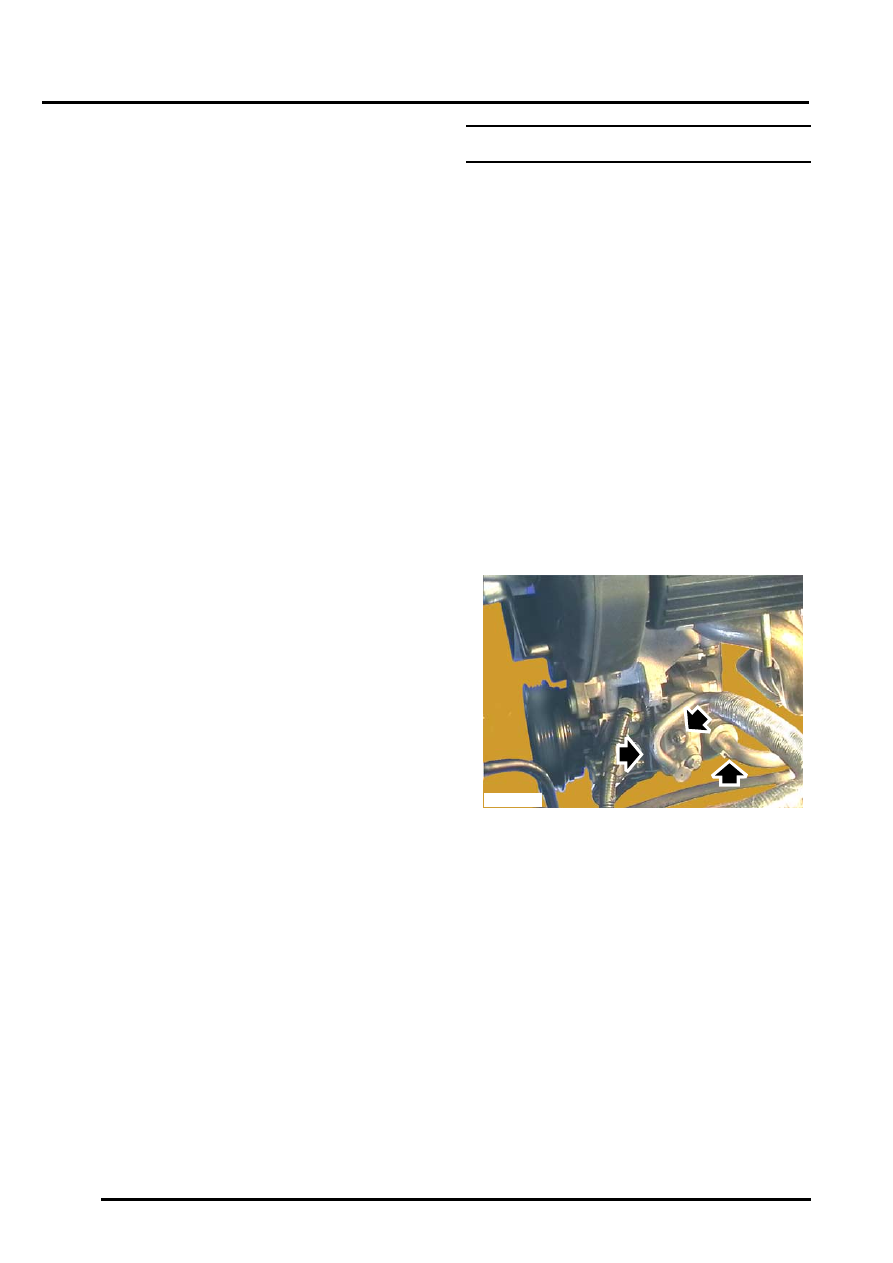

6. Remove caps from compressor and high

pressure pipe.

7. Clean compressor high pressure pipe

connection.

8. Lubricate new 'O' ring with refrigerant oil and fit

to high pressure pipe.

9. Connect high pressure pipe to compressor, fit

and tighten bolt to 25 Nm (18 lbf.ft).

10. Connect multiplug to compressor.
11. Remove caps from compressor and low

pressure pipe.

12. Clean compressor low pressure pipe

connection.

13. Lubricate new 'O' ring with refrigerant oil and fit

to low pressure pipe.

14. Connect low pressure pipe to compressor, fit

and tighten bolt to 25 Nm (18 lbf.ft).

15. Clean pulley 'V's and tensioner pulley running

surface.

16. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and fit drive belt to
pulleys.

17. Fit splash shield and secure with bolts.
18. Fit RH road wheel and tighten nuts to 115 Nm

85 lbf.ft).

19. Replace receiver drier.



 +

 AIR CONDITIONING, REPAIRS,

Receiver drier.

20. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

21. Connect battery earth lead.
22. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

Compressor - K1.8

$% 82.10.20

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

5. Remove alternator.



 +

 CHARGING AND STARTING,

REPAIRS, Alternator - K1.8.

6. Disconnect multiplug from compressor.
7. Remove 2 bolts securing A/C pipes to

compressor, release A/C pipes from
compressor.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

8. Remove and discard 'O' rings from A/C pipes.



M82 0730
