BODY SEALING MATERIALS

MATERIALS AND APPLICATIONS

77-3-1

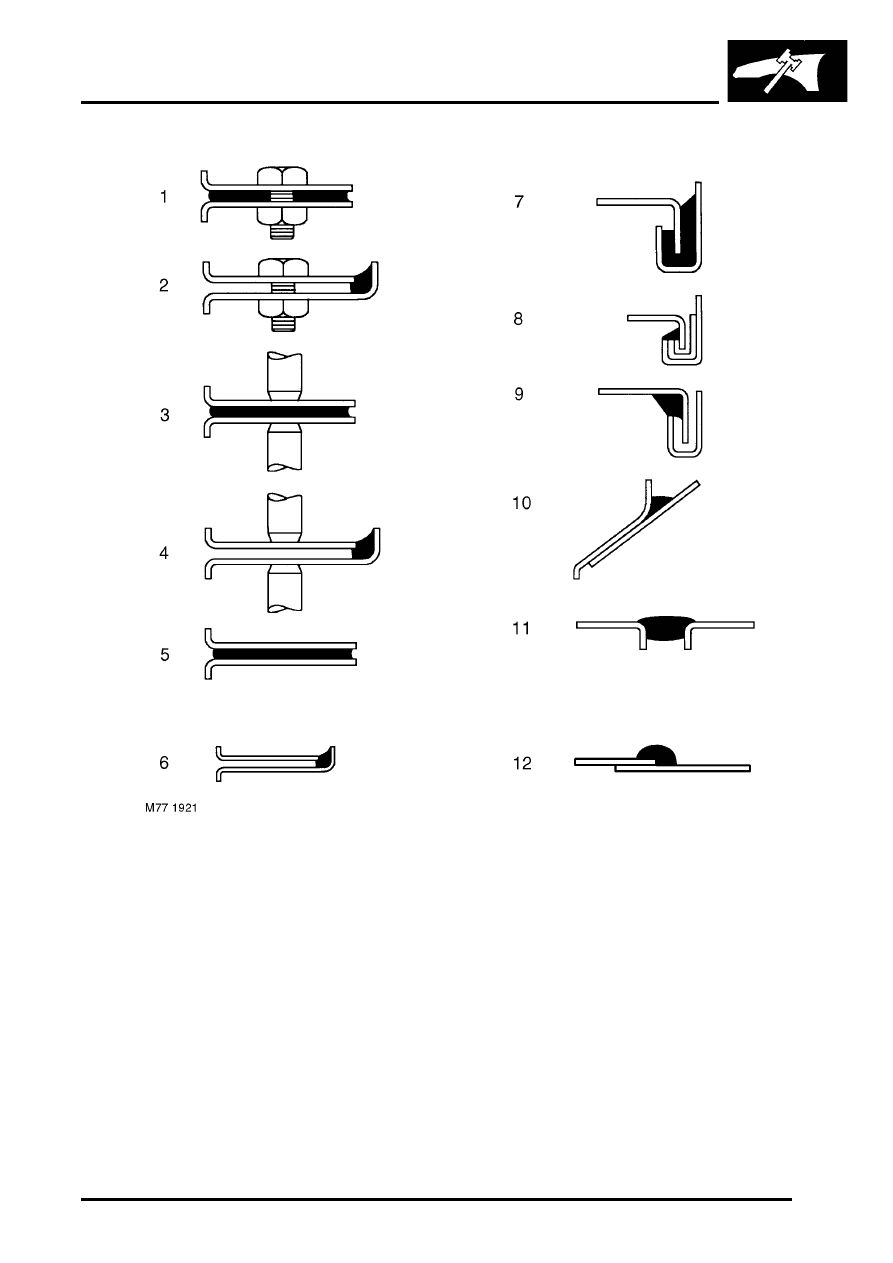

BODY SEALING MATERIALS

1 Between panels - bolted
2 Panel edges - bolted
3 Between panels - spot welded
4 Panel edges - spot welded
5 Between panels - bonded
6 Panel edges - bonded
7 Clinch joints - type (a)
8 Clinch joints - type (b)
9 Clinch joints - type (c)

10 Gaps between panels - type (a)
11 Gaps between panels - type (b)
12 Lap joint

BODY SEALING MATERIALS

77-3-2

MATERIALS AND APPLICATIONS

BODY SEALING MATERIALS

APPROVED MATERIALS

77-3-3

APPROVED MATERIALS

Description - Usage

Supplier

Part Number

Cavity waxes

Inner Cavity Wax (Amber)

3M

08901/11/21

Inner Cavity Wax (Transparent)

3M

08909/19/29

Cavity Wax

Croda

PW57

Engine bay waxes/lacquers

Astrolan Engine Bay Wax and Cosmetic Wax

Astors

DA3243/1

Engine Bay and Cosmetic Wax/Lacquer

Croda

PW197

Engine Bay Cosmetic Wax/Lacquer

Dinol

4010

Miscellaneous materials

Aerosol Auto Adhesive (Trim) - impact adhesive for trim parts

3M

08080

Flexible Parts Repair Material - rubber modified polypropylene parts

3M

05900

Sound Dampening Foam

Gurit-Essex

Betacore 7999

Sound Dampening Pillar Foam

Duramix

4330

Flexible Foam (anti-flutter) - used between panels, allows for a degree of

movement

Duramix

4320

Water Shedder Repair (Aerosol)

Teroson

-

Seam sealers

Body Caulking - type (b) gaps between panels

3M

08568

Drip Chek Clear - bolted, spot welded and bonded panel edges; type(a) and (b)
gaps between panels; type (c) clinch joints

3M

08401

Drip Chek Heavy - type (b) gaps between panels; type (c) clinch joints

3M

08531

Description - Usage

Supplier

Part Number

Seam sealers (continued)

Polyurethane Seam Sealer - bolted, spot welded and bonded panel edges; type
(a) and (b) gaps between panels; type (b) clinch joints

3M 08684/89/94

Polyurethane Sealer (Sachet) - bolted panel edges; type (b) clinch joints

3M

08703/83/88

Sprayable Sealer - lap joints

3M

08800/23

Super Seam Sealer - lap joints; type (b) clinch joints

3M

08537

Weld Thru' Sealer - between spot welded panels

3M

08626

Betafill Clinch and Brushable Sealer - type (b) clinch joints

Gurit-Essex

10211/15/20

Clinch, Joint and Underbody Coating  - lap joints

Gurit-Essex

10101/10707

Leak Chek Clear - between bolted panels; spot welded and bonded panel edges;
type (c) clinch joints; type (a) gaps between panels

Kent Industries

10075

Putty - type (b) gaps between panels

Kent Industries

-

Polyurethane Seam Sealer - bolted, spot welded and bonded panel edges;
between bonded panels; type (a) and (b) gaps between panels

PPG

6500

Polyurethane Seam Sealer - bolted, spot welded and bonded panel edges;
between bonded panels; type (b) gaps between panels

Teroson

92

Terolan Light Seam Sealer - bolted, spot welded and bonded panel edges; type
(a) and (b) gaps between panels; between bonded panels; type (c) clinch joints

Teroson

-

Terolan Special Brushable Seam Sealer - lap joints

Teroson

-

Terostat Sprayable Seam Sealer - bolted, spot welded and bonded panel edges;
between bonded panels; type (b) gaps between panels

Teroson

9320

Terostat 1K PU Seam Sealer (SE 20) - type (a) and (b) gaps between panels;
spot welded and bonded panel edges

Teroson

-

Sealing Compound - bolted, spot welded and bonded panel edges; between
bonded panels; type (b) gaps between panels

Wurths

8901001/-/6

BODY SEALING MATERIALS

77-3-4

APPROVED MATERIALS

Description - Usage

Supplier

Part Number

Structural adhesives

Automotive Structural Adhesive - between bonded panels; type (a) clinch joints

3M

08122

Two Part Structural Epoxy - between bonded and spot welded panels; type (a)
clinch joints

Ciba-Geigy

XB5106/7

Underbody sealers

Body Schutz

3M

08861

Spray Schutz

3M

08877

Crodapol Brushable Underbody Sealer

Croda

PV75

Terotex Underseal (CP 02)

Teroson

9320

Underbody waxes

Stone-chip coating (smooth)

3M

08158/9

Underbody Wax

Croda

PW61

Underbody Wax

Dinol

Tectacote 205

Weld-through primers

Weld Thru' Coating

3M

05913

Zinc Spray

3M

09113

Zinc Rich Primer

ICI

P-565 634
