PANEL REPAIRS

REPAIRS 77-2-39

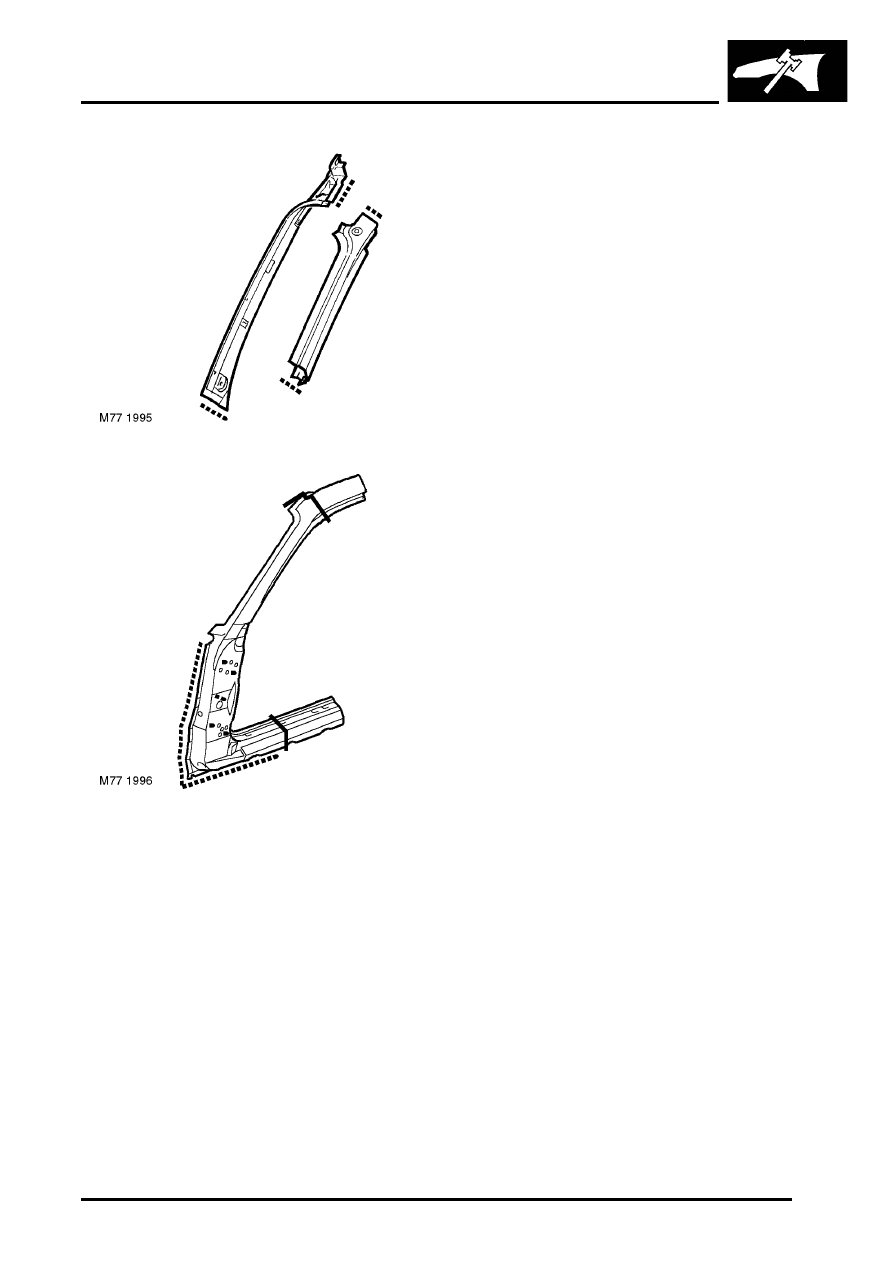

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Driver's side: Fit passenger compartment fuse

box.

2. Fit insulation pads to engine bulkhead.
3. Fit front door aperture seal.
4. Position front carpet and fit treadplate to front

door aperture.

5. Fit windscreen.



 +

 SCREENS, REPAIRS, Windscreen.

6. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

7. Fit duct of outboard face level ventilator.
8. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

9. Fit front seat.



 +

 SEATS, REPAIRS, Front seat.

10. Fit front door.



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

11. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

12. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

13. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

14. Connect all ECUs.
15. Connect alternator.
16. Connect battery earth lead.

PANEL REPAIRS

77-2-40 REPAIRS

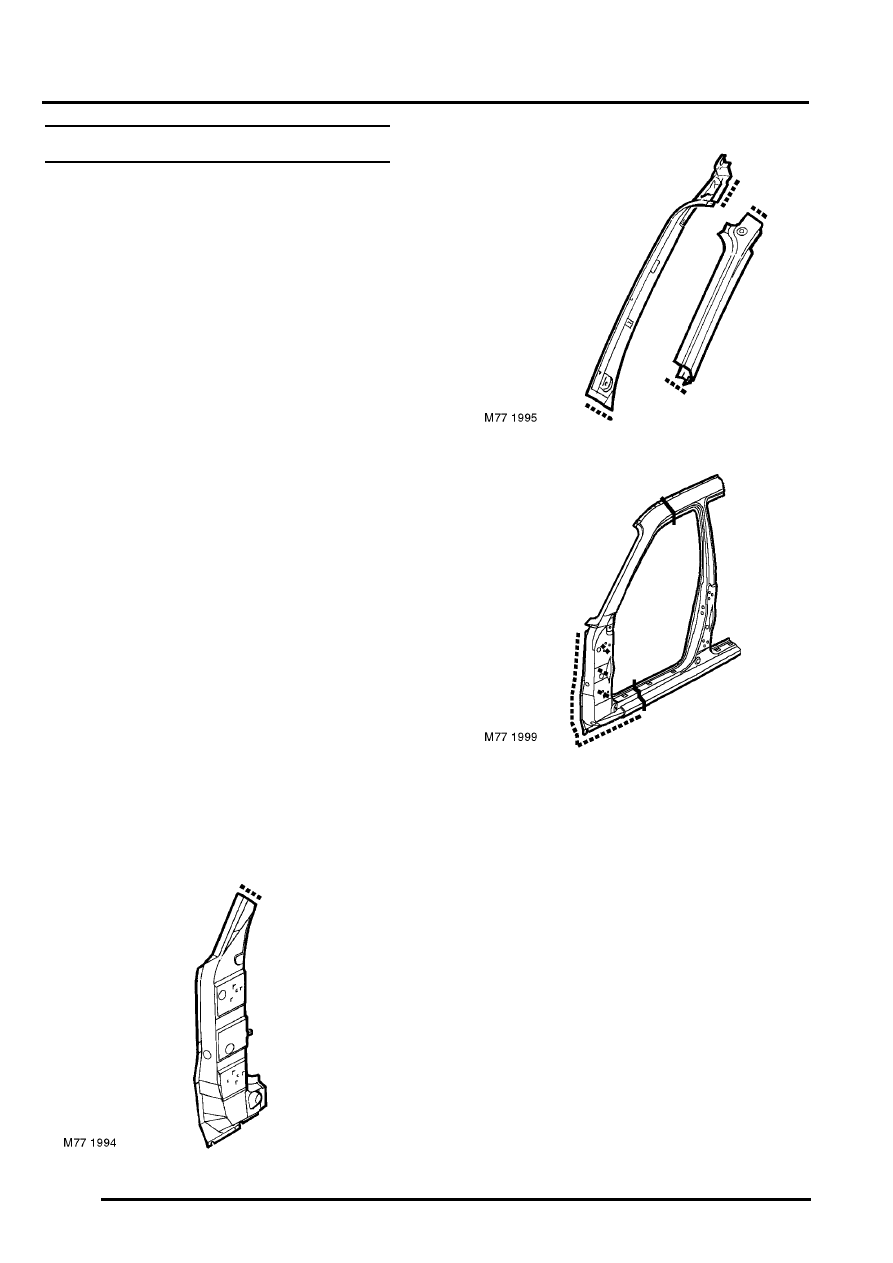

'A' post - 5 door

In this procedure, the front outer body side panel is
replaced in conjunction with the inner 'A' post and the
'A' post reinforcements.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wheel arch liner



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

6. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

7. Remove front door.



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

8. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

9. Remove fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

10. Remove duct of outboard face level ventilator.
11. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

12. Remove windscreen.



 +

 SCREENS, REPAIRS, Windscreen.

13. Remove treadplate from front door aperture.

Release front carpet and position aside.

14. Remove front door aperture seal.
15. Remove engine bulkhead insulation.
16. Driver's side: Remove passenger

compartment fuse box.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Driver's side: Fit passenger compartment fuse

box.

2. Fit insulation pads to engine bulkhead.
3. Fit front door aperture seal.
4. Position front carpet and fit treadplate to front

door aperture.

5. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

6. Fit windscreen.



 +

 SCREENS, REPAIRS, Windscreen.

7. Fit duct of outboard face level ventilator.

PANEL REPAIRS

REPAIRS 77-2-41

8. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

9. Fit front seat.



 +

 SEATS, REPAIRS, Front seat.

10. Fit front door



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

11. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

12. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

13. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

14. Connect all ECUs.
15. Connect alternator.
16. Connect battery earth lead.

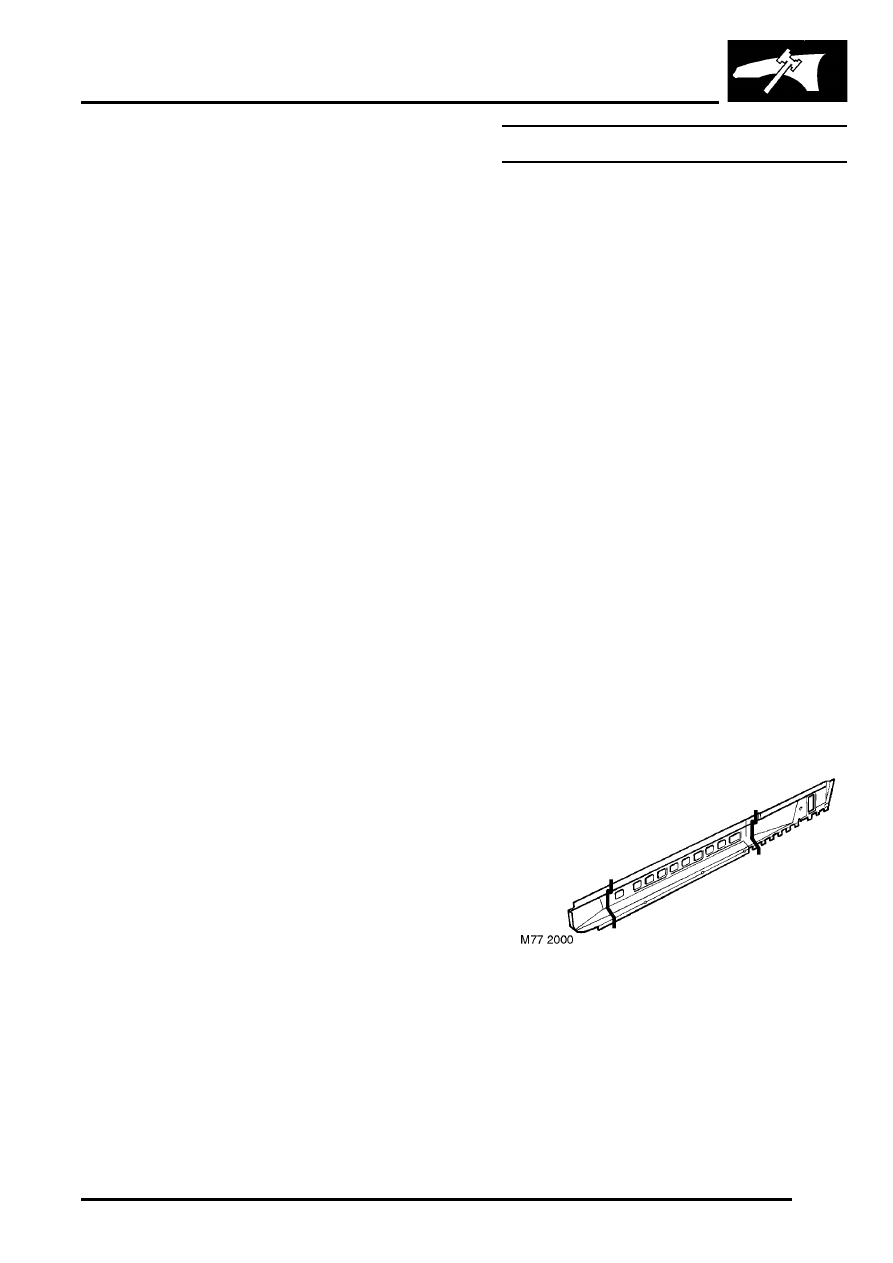

Sill reinforcement - 3 door

In this procedure, the lower outer body side panel is
replaced in conjunction with the sill reinforcement.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

6. Remove front door.



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

7. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

8. Remove rear seat.



 +

 SEATS, REPAIRS, Rear seat - LH.



 +

 SEATS, REPAIRS, Rear seat - RH.

9. Remove treadplate from front door aperture.

10. Remove side door aperture seal.
11. Remove rear body side casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - body side - rear -
LH.

12. Release carpet from inner sill and position

aside.

13. Release vehicle harness from inner sill and

position aside.

Repair

PANEL REPAIRS

77-2-42 REPAIRS

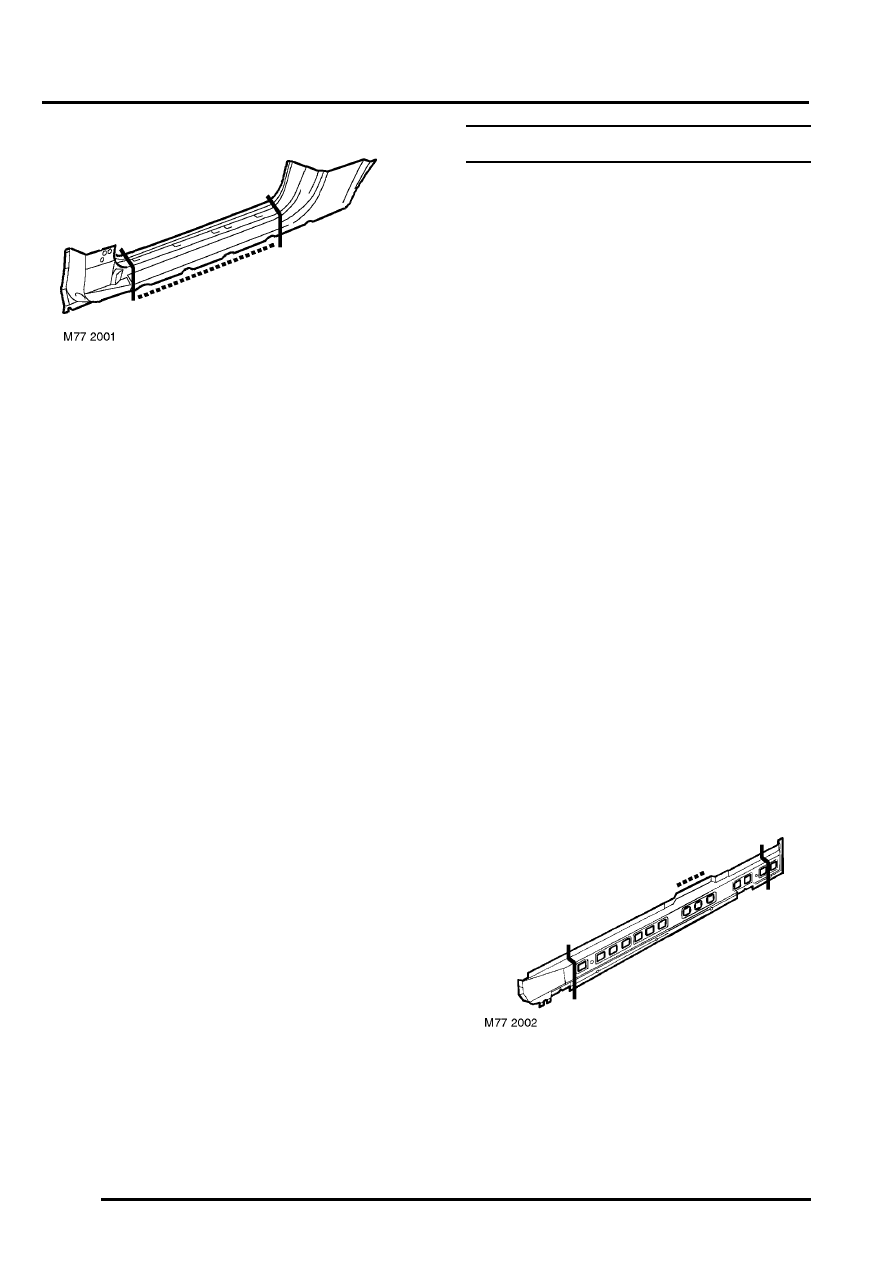

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Secure vehicle harness to inner sill.
2. Position carpet to inner sill.
3. Fit rear body side casing



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - body side - rear -
LH.

4. Fit side door aperture seal(s).
5. Fit treadplate to side door aperture(s).
6. Fit rear seat.



 +

 SEATS, REPAIRS, Rear seat - LH.



 +

 SEATS, REPAIRS, Rear seat - RH.

7. Fit front seat.



 +

 SEATS, REPAIRS, Front seat.

8. Fit front door



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

9. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

10. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

11. Connect all ECUs.
12. Connect alternator.
13. Connect battery earth lead.

Sill reinforcement - 5 door

In this procedure, the lower outer body side panel is
replaced in conjunction with the sill reinforcement.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

6. Remove front door.



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

7. Remove rear door.



 +

 DOORS, REPAIRS, Door assembly

- rear - remove for access & refit.

8. Remove 'B/C' post lower finisher.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'B' post - lower - 5
door.

9. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

10. Remove rear seat.



 +

 SEATS, REPAIRS, Rear seat - LH.



 +

 SEATS, REPAIRS, Rear seat - RH.

11. Remove treadplate from side door apertures.
12. Remove side door aperture seals.
13. Release carpet from inner sill and position

aside.

14. Release vehicle harness from inner sill and

position aside.

Repair
