PANEL REPAIRS

REPAIRS 77-2-35

Valance upper front

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wheel arch liner



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

6. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

7. Remove front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

8. Remove headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

9. Release wiring from valance and position

aside.

10. LH side: Remove ECM.
11. LH side: Remove battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

12. RH side: Remove PAS fluid reservoir.
13. RH side: Remove brake pipes from valance.

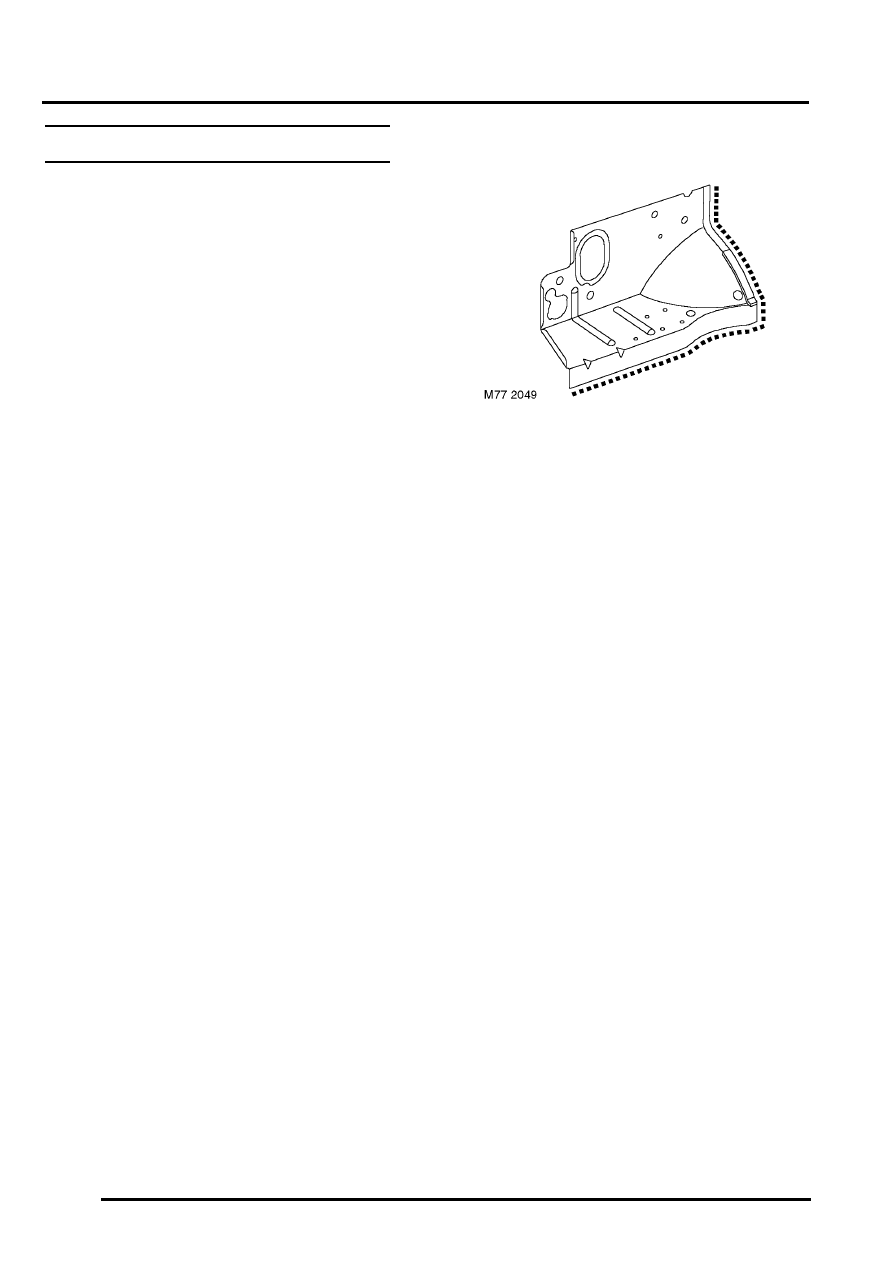

Repair

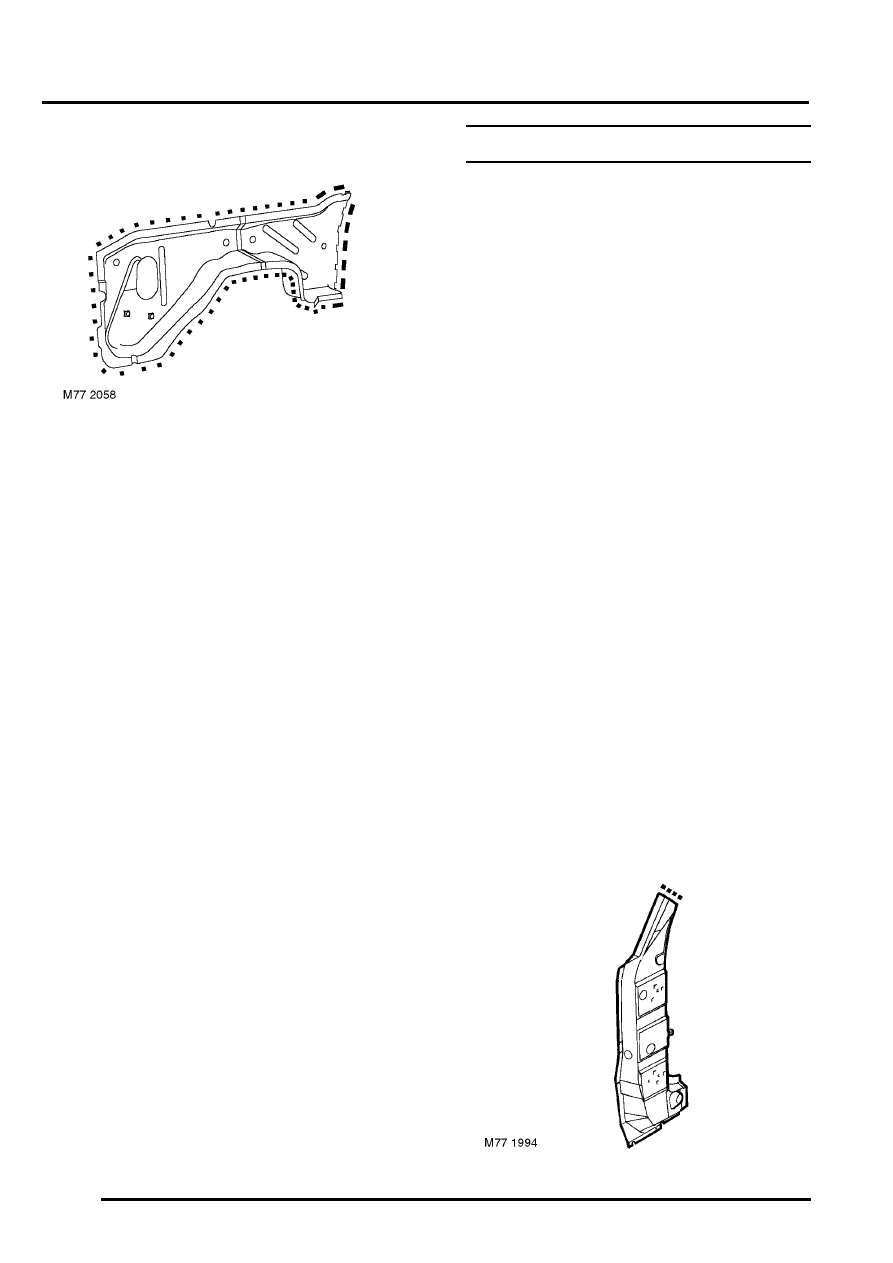

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. LH side: Fit battery. Do not connect earth lead.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

2. LH side: Fit ECM.
3. RH side: Fit PAS fluid reservoir.
4. RH side: Fit brake pipes to valance. Bleed

brakes.


 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

5. Secure wiring to valance.
6. Fit headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

7. Fit front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

8. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

9. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

10. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

11. Connect all ECUs.
12. Connect alternator.
13. Connect battery earth lead.

PANEL REPAIRS

77-2-36 REPAIRS

Valance front

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wheel arch liner



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

6. Remove engine bay shield.
7. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

8. Remove front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

9. Remove front bumper support bracket.

10. Remove radiator.



 +

 COOLING SYSTEM - K SERIES KV6,

REPAIRS, Radiator assembly.

11. Remove headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

12. Release wiring to headlamp and position aside.
13. LH side: Remove air cleaner.
14. LH side: Remove air intake hose.
15. LH side: Remove ECM.
16. LH side: Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

17. LH side: Remove engine compartment fuse

box and related wiring.

18. LH side: Remove LH front brake pipe.
19. RH side: Remove PAS fluid reservoir.
20. RH side: Remove RH front brake pipe.
21. RH side: Remove windscreen washer

reservoir.


 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer.

22. RH side: Remove PAS fluid cooler.



 +

 STEERING, REPAIRS, Oil cooler -

Td4 & K1.8 models.

Repair

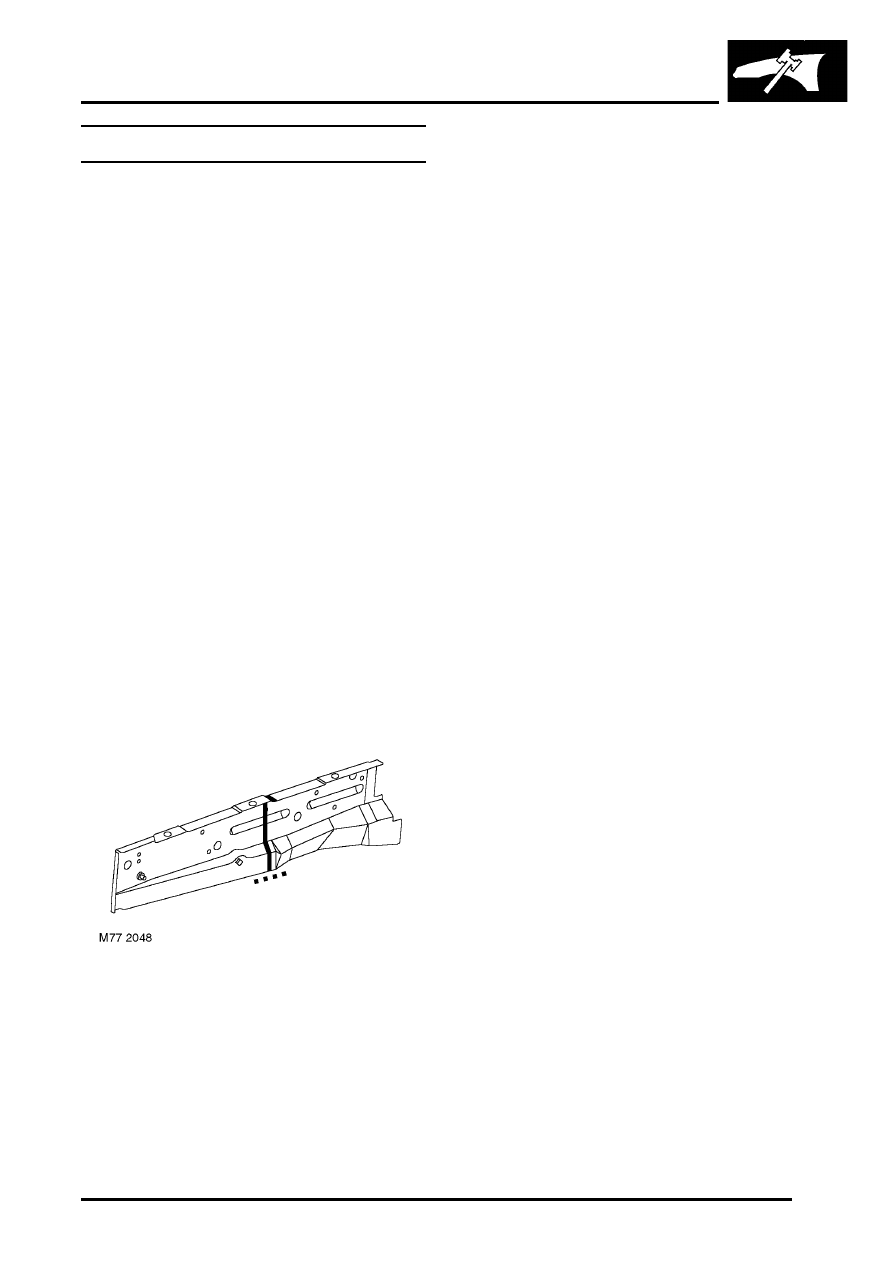

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. LH side: Fit LH front brake pipe. Bleed brake

system.


 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

2. LH side: Fit engine compartment fuse box and

related wiring.

3. LH side: Fit battery carrier. Do not connect

battery earth lead.


 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

4. LH side: Fit ECM.
5. LH side: Fit air intake hose.
6. LH side: Fit air cleaner.
7. RH side: Fit PAS fluid cooler



 +

 STEERING, REPAIRS, Oil cooler -

Td4 & K1.8 models.

8. RH side: Fit windscreen washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer.

9. RH side: Fit RH front brake pipe. Bleed brake

system.


 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

10. RH side: Fit PAS fluid reservoir.
11. Fit headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

12. Secure headlamp wiring.
13. Fit PAS fluid cooler.



 +

 STEERING, REPAIRS, Oil cooler -

Td4 & K1.8 models.

14. Fit radiator.



 +

 COOLING SYSTEM - K SERIES KV6,

REPAIRS, Radiator assembly.

PANEL REPAIRS

REPAIRS 77-2-37

15. Fit front bumper support bracket.
16. Fit front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

17. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

18. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

19. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

20. Connect all ECUs.
21. Connect alternator.
22. Connect battery earth lead.

Valance outer reinforcement

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

6. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

7. Remove front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

8. Remove headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

9. Release wiring from valance and position

aside.

10. LH side: Remove battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

11. LH side: Remove ECM.
12. LH side: Remove relay module.
13. LH side: Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

14. LH side: Remove engine compartment fuse

box and related wiring.

15. RH side: Remove PAS fluid reservoir.
16. RH side: Remove brake pipes from valance.

PANEL REPAIRS

77-2-38 REPAIRS

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. LH side: Fit engine compartment fuse box and

related wiring.

2. LH side: Fit battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

3. LH side: Fit relay module.
4. LH side: Fit ECM.
5. LH side: Fit battery. Do not connect earth lead



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

6. RH side: Fit PAS fluid reservoir.
7. RH side: Fit brake pipes to valance. Bleed

brakes


 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

8. Secure wiring to valance.
9. Fit headlamp.



 +

 LIGHTING, REPAIRS, Headlamp

assembly.

10. Fit front bumper valance.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

11. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

12. Fit front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

13. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

14. Connect all ECUs.
15. Connect alternator.
16. Connect battery earth lead.

'A' post - 3 door

In this procedure, the front outer body side panel is
replaced in conjunction with the inner 'A' post and the
'A' post reinforcements.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove front wheel arch liner.



 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

6. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front.

7. Remove front door.



 +

 DOORS, REPAIRS, Door assembly

- front - remove for access & refit.

8. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

9. Remove fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

10. Remove duct of outboard face level ventilator.
11. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

12. Remove windscreen



 +

 SCREENS, REPAIRS, Windscreen.

13. Remove treadplate from front door aperture.

Release front carpet and position aside.

14. Remove front door aperture seal.
15. Remove engine bulkhead insulation.
16. Driver's side: Remove passenger

compartment fuse box.

Repair
