Freelander 1. Manual - part 233





BODY DIMENSIONS

BODY DIMENSIONS 77-1-15

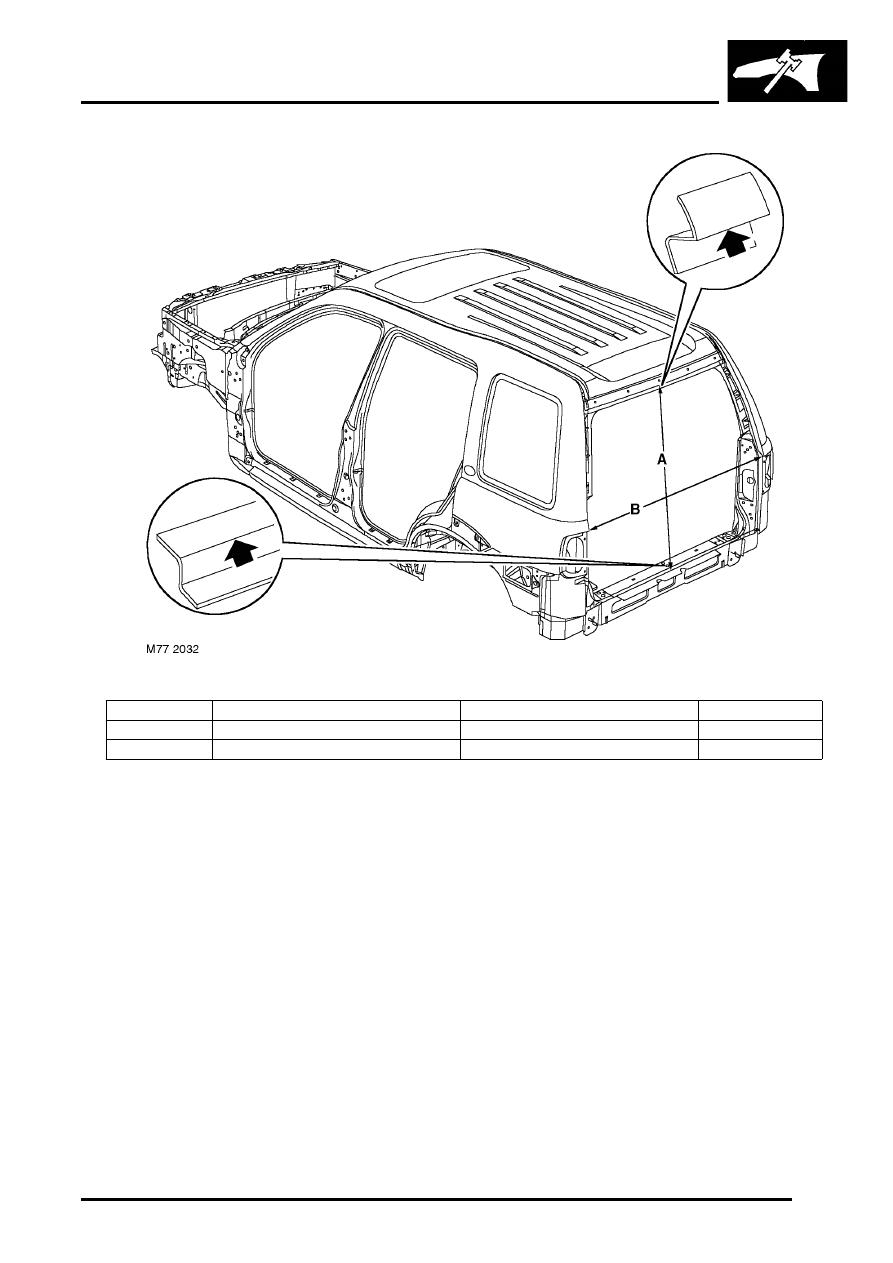

Rear end information

Item

From

To

Length

A

Waistrail reinforcement

Rear header

975.3 (38.397)

B

Rear bodyside `LH`

Rear bodyside `RH`

1258.1 (49.531)

BODY DIMENSIONS

77-1-16 BODY DIMENSIONS

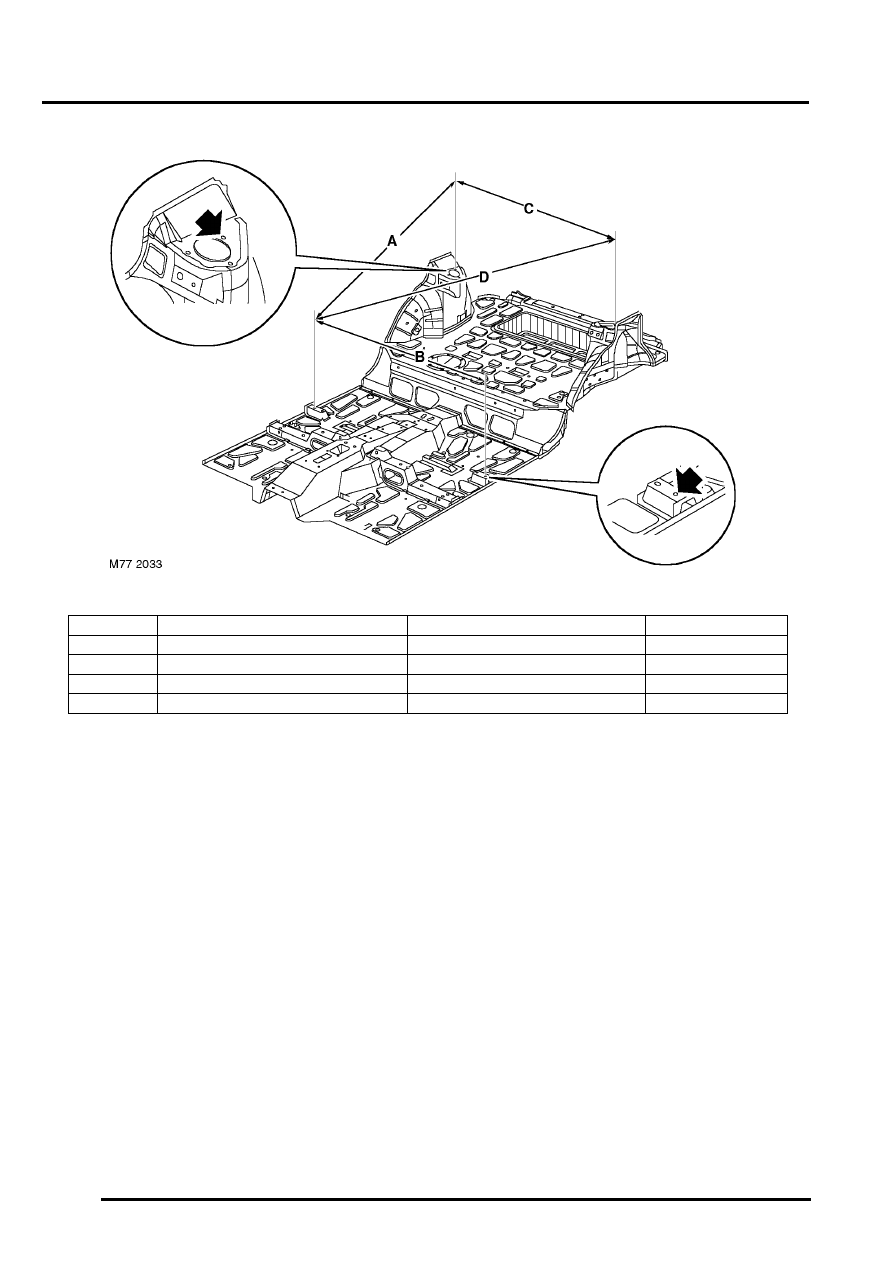

Rear floor information

Item

From

To

Length

A

Front seat, rear mounting hole

Spring location, rear fixing hole

1350 (53.149)

B

Front seat, rear mounting hole `LH`

Front seat, rear mounting hole `RH`

1298 (51.102)

C

Spring location, rear fixing hole `LH`

Spring location, rear fixing hole `RH`

1220 (48.031)

D

Front seat, rear mounting hole `LH`

Front seat, rear mounting hole `RH`

1846 (72.677)

BODY DIMENSIONS

BODY GAPS AND PROFILES 77-1-17

BODY GAPS AND PROFILES

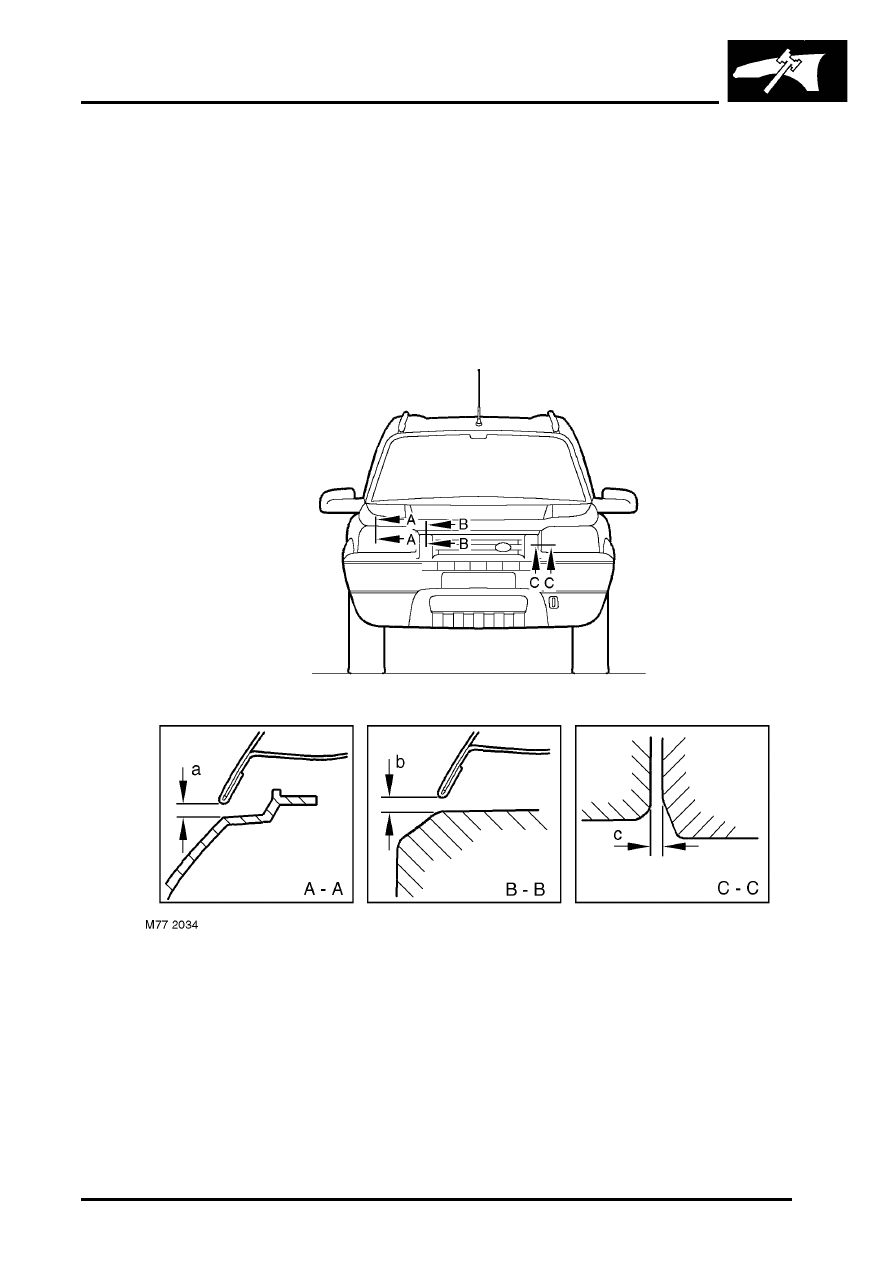

Gap and Profile Measurements
The following information is to be used as a guide to assist the technician in refitting exterior body panels and trim
items so as to achieve a correctly aligned vehicle.

Measurements shown are in millimeters and inches. The measurements shown in brackets are in inches.

Gap a - Bonnet to headlamp. Even gaps side to side, tolerance

±

 1.0 mm (0.040).

Gap b - Bonnet to bumper overrider. Even gaps side to side, tolerance

±

 1.0 mm (0.040).

Gap c - Headlamp to bumper overrider. Visually even gaps within 2.0 mm (0.080).

BODY DIMENSIONS

77-1-18 BODY GAPS AND PROFILES

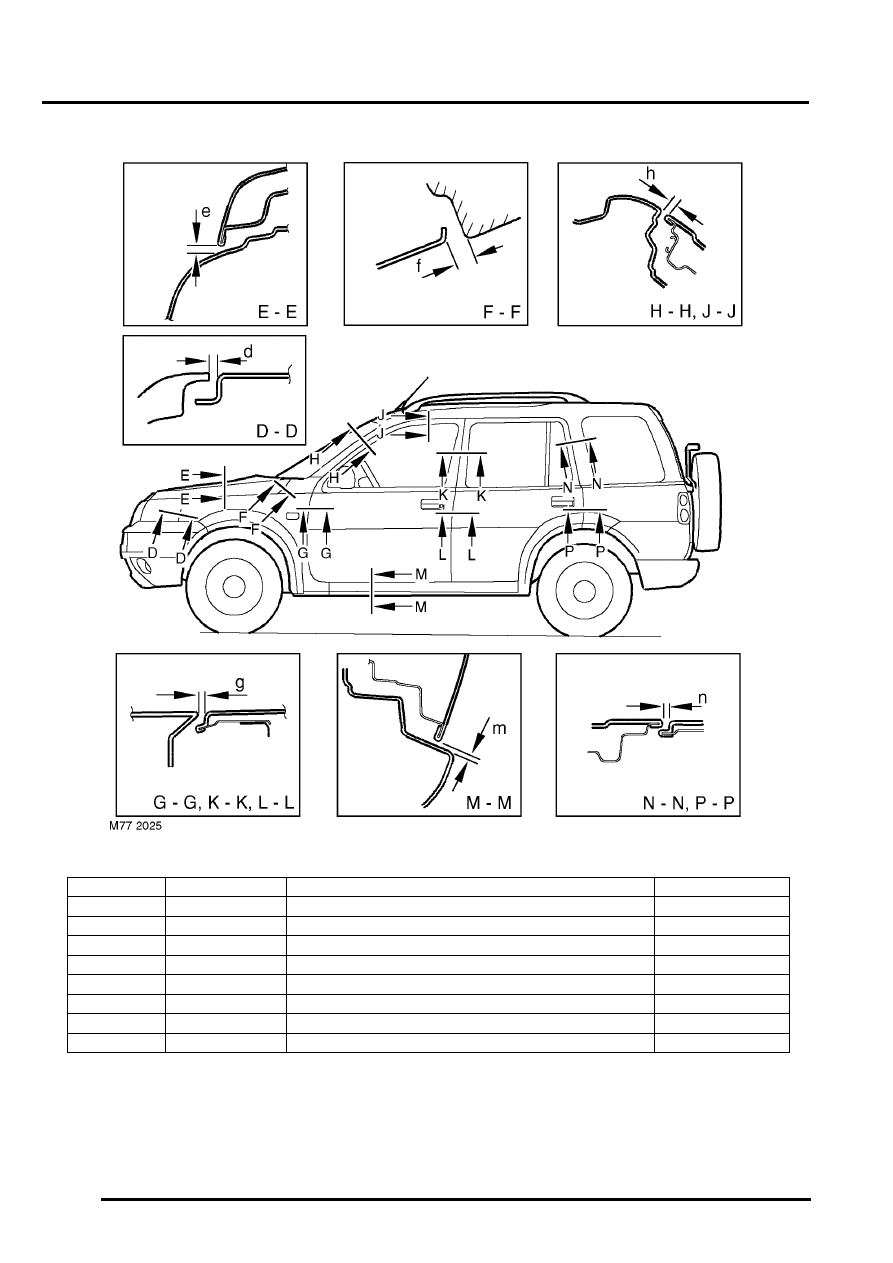

Section

Gap

Description

Dimension

D-D

d

Headlamp to wing

3.0 (0.118)

E-E

e

Bonnet to wing

6.0 (0.236)

F-F

f

Rear edge bonnet to wing

6.0 (0.236)

G-G

g

Wing to front door

5.0 (0.196)

H-H, J-J

h

Front door frame to body

5.0 (0.196)

K-K, L-L

k

Front door to rear door

5.0 (0.196)

M-M

m

Bottom of door to sill

6.0 (0.236)

N-N, P-P

n

Rear door to body

5.0 (0.196)
