Freelander 1. Manual - part 227





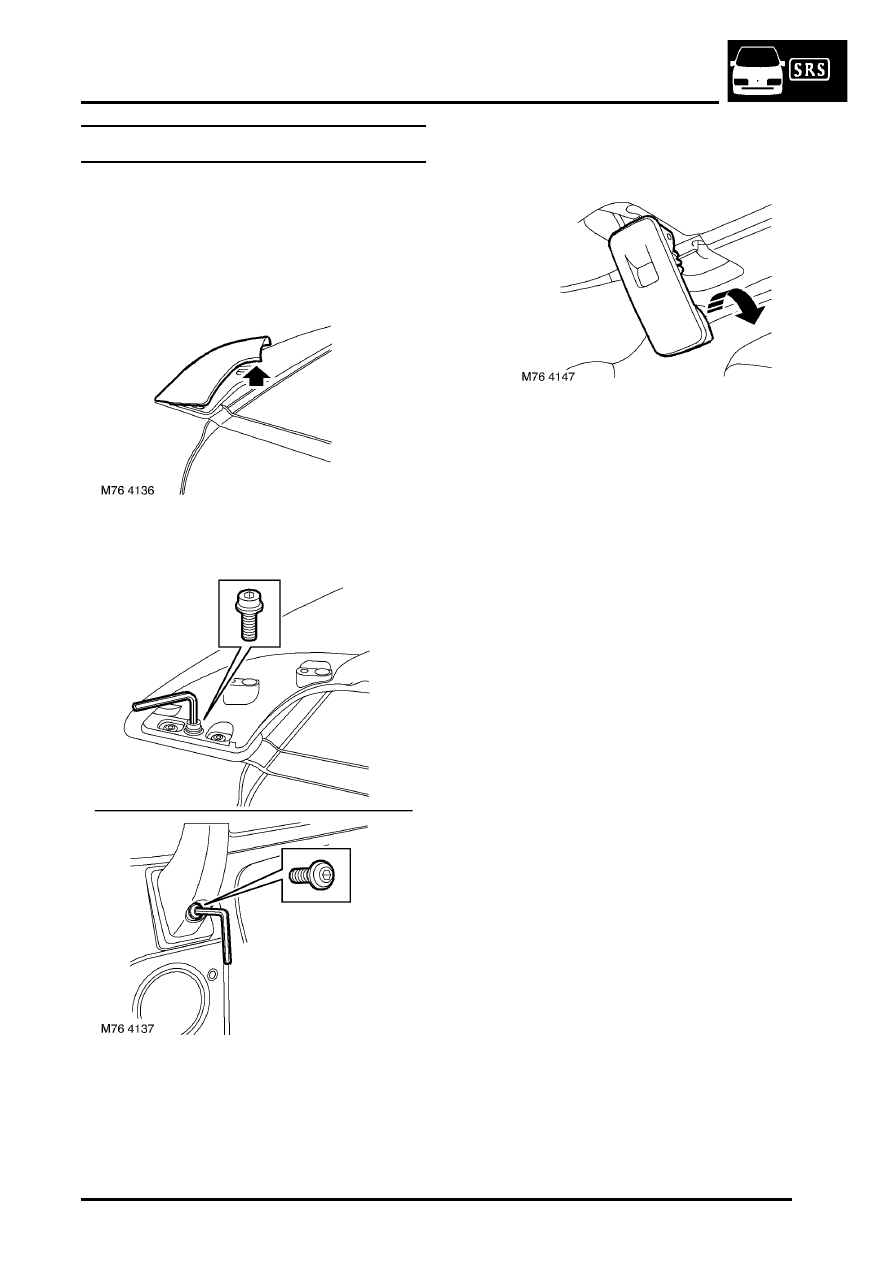

HOOD

REPAIRS

76-7-1

HOOD

REPAIRS

Hard top - remove for access & refit

$% 76.61.01.99

Remove

1. Remove covers from front of roof bars.

2. Remove 4 bolts securing roof bars and with

assistance remove roof bars.

3. Release and disengage hard-back catches and

with assistance remove hard-back.

Refit

1. With assistance position hard-back and secure

catches.

2. With assistance position roof bars, fit and

tighten bolts.

3. Fit roof bar covers.

HOOD

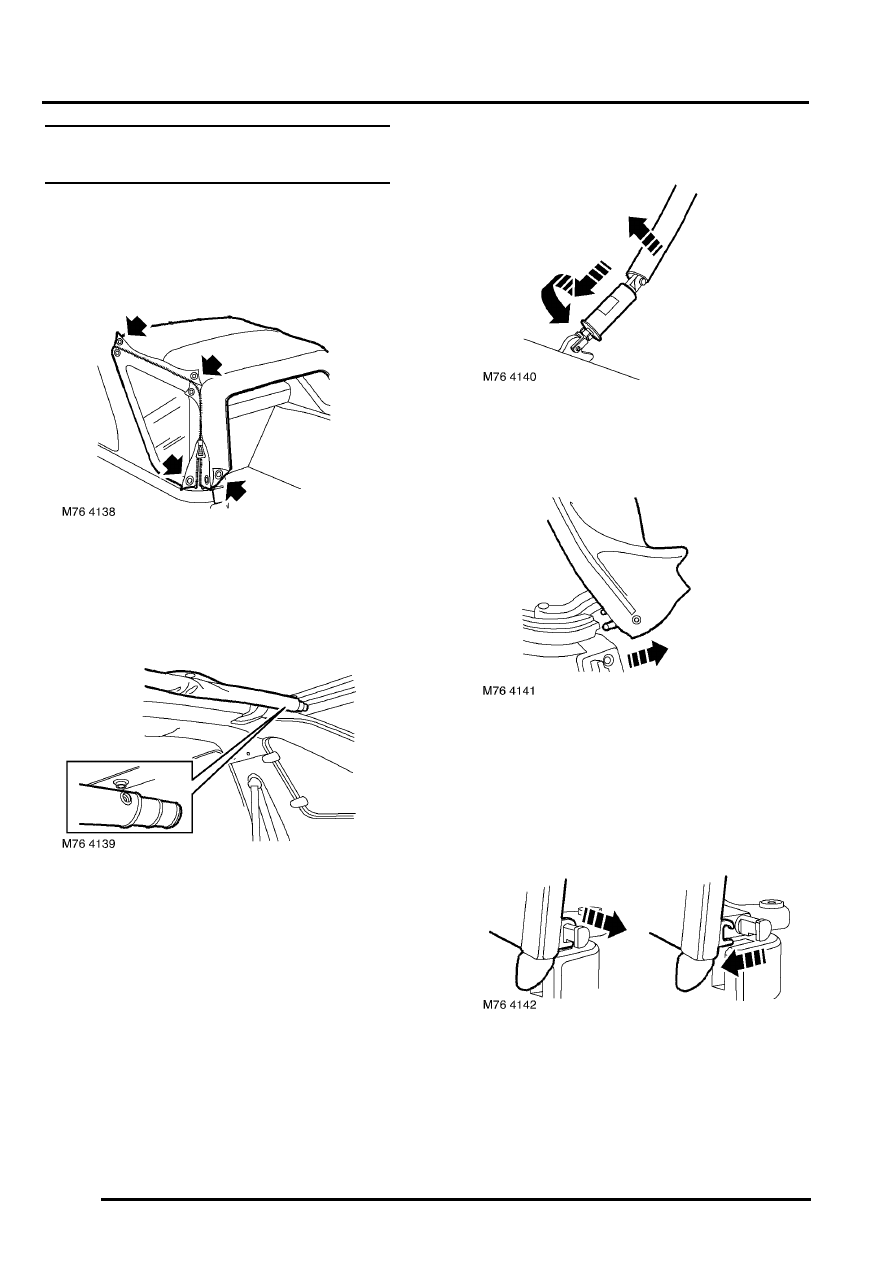

76-7-2

REPAIRS

Frame & hood cover - assembly - remove
for access & refit

$% 76.61.10.99

Remove

1. Remove both side screens, lift Velcro, release

zips and press studs.

2. Release stowage cover.

3. Release tension on side bars.

4. Release 'E' post fabric.

5. Release hood frame from rear lockbars.

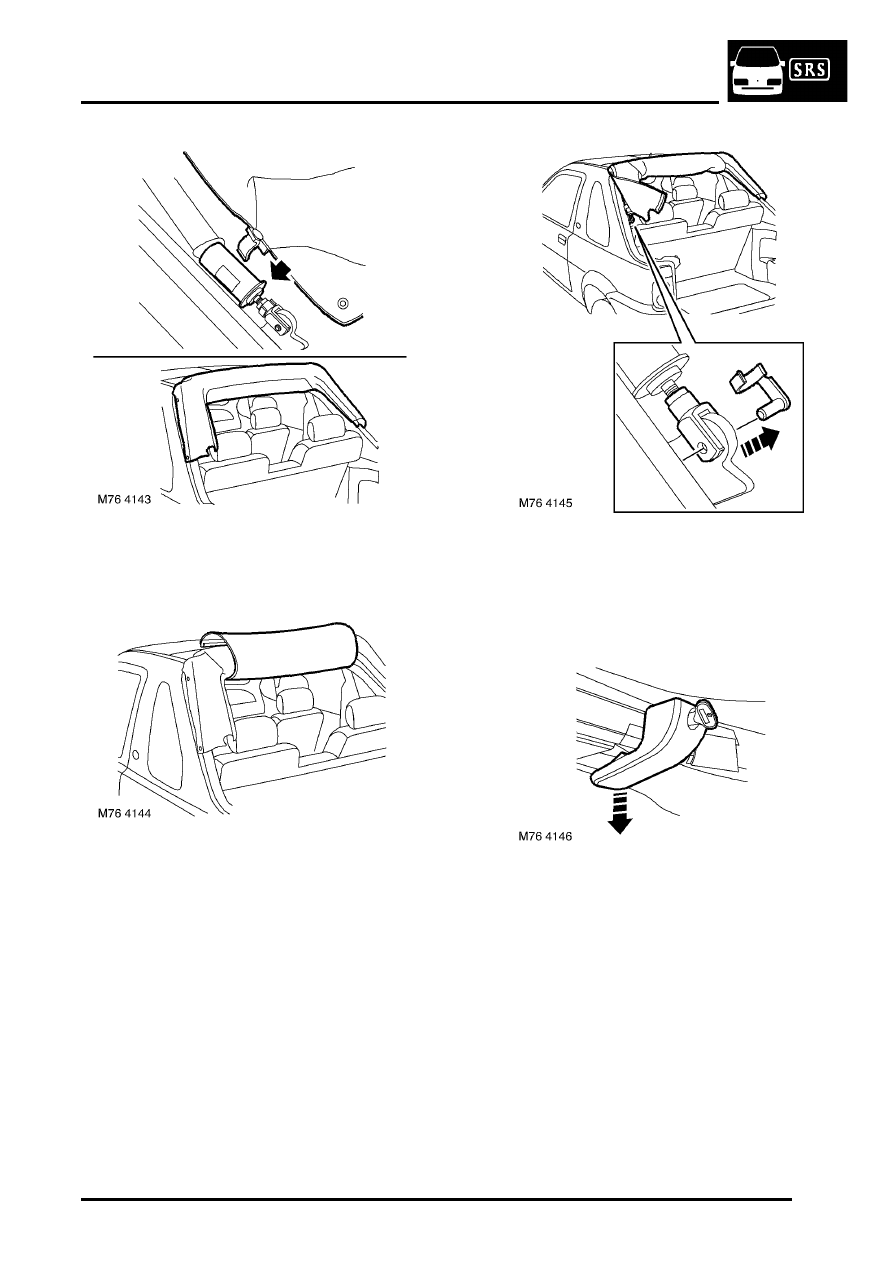

HOOD

REPAIRS

76-7-3

6. Push canvas forward and secure clips in bars.

7. Wrap up tonneau and secure in place.

8. Release and remove hinge pins, release

tension bars.

9. Loosen header clamp bolts and release header

clamps.

10. Remove soft back assembly.

HOOD

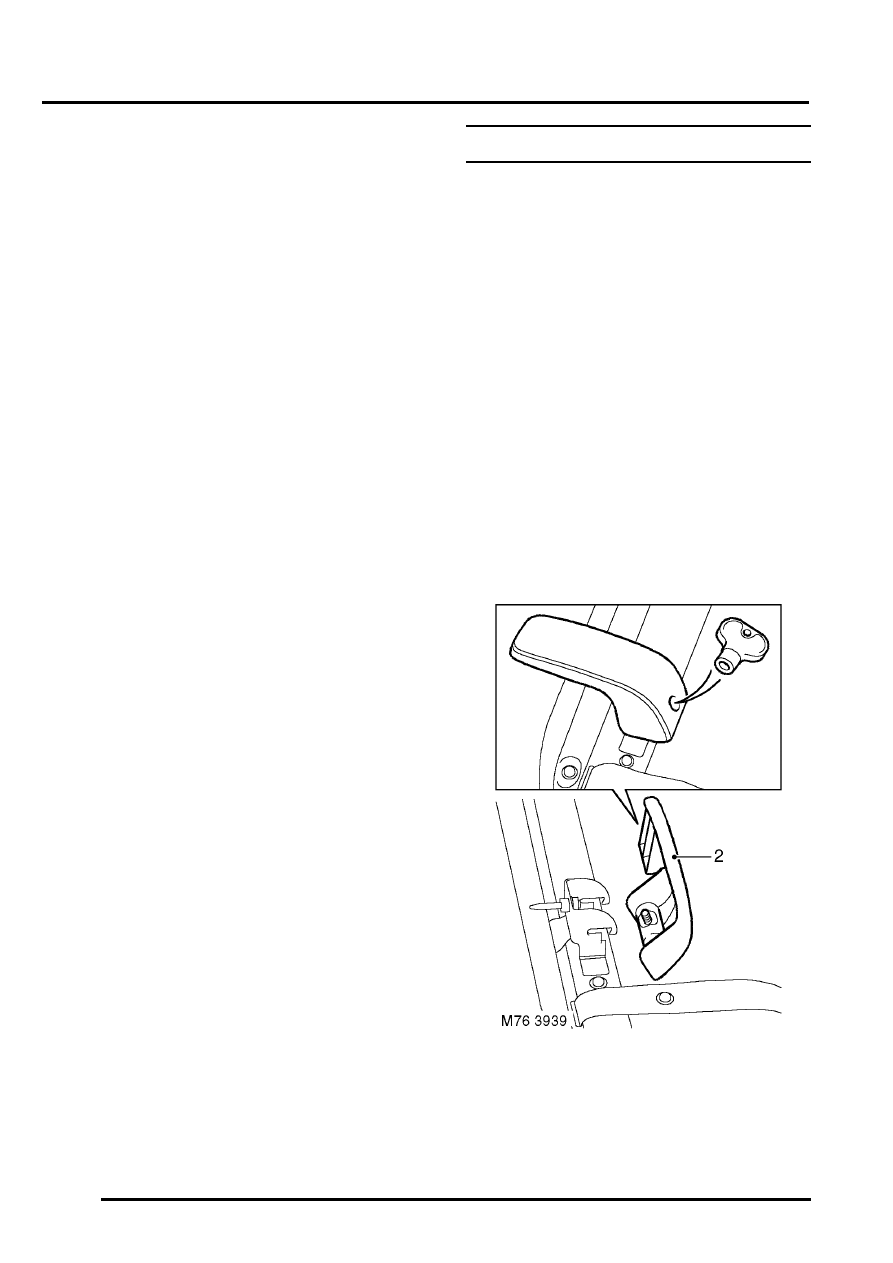

76-7-4

REPAIRS

Refit

1. Position soft back assembly, secure in header

clamps.

2. Tighten header clamps.
3. Align tension bars and fit hinge pins.
4. Release tonneau from securing tie.
5. Release clips in bars and pull canvas to the

rear.

6. Secure tail door frame lock in lock bars.
7. Secure 'E' post fabric in position.
8. Tension side bars.
9. Position tonneau cover.

10. Fit side screens, secure zips and press studs

and position Velcro covers.

Hood outer cover

$% 76.61.11

Always position trim components on a soft
covered, clean work surface.

Where necessary, transfer witness marks from the
old cover to aid assembly. New outer covers are
supplied complete with the header rail.

The following operation involves the bonding of
fabric backed vinyl. If adhesive is to be applied to the
fabric backing, Dunlop 758 adhesive or equivalant
should be used. For direct application on vinyl
surfaces, use Dunlop S1588 adhesive or equivalant.
A thin coating of adhesive should be applied to both
surfaces and then allowed to cure, until touch dry, for
between 5 and 10 mins before bond is made.

Remove

1. Remove soft-back assembly.



 +

 HOOD, REPAIRS, Hard top - remove

for access & refit.

2. Loosen catch screws with special key, release

catches from hood and remove both catches.
