SCREENS

REPAIRS

76-4-1

SCREENS

REPAIRS

Windscreen

$% 76.81.01

The following equipment is required: Cutting wire
and handles, Windscreen repair kit, Sealer applicator
gun and Suction cups

Wear protective gloves when handling glass,
solvents and primers.

Wear suitable eye protection when removing and
refitting glass.

Remove

1. Remove air intake panel.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

2. Remove sun visors and sun visor retaining

clips.

3. Remove 'A' post upper trim casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'A' post - upper -
renew.

4. Remove retaining stud from front of headlining.
5. Remove interior mirror.
6. Fit protection to bonnet and areas around

screen.

7. Cover heater ducts with masking tape.
8. Cover interior of vehicle with protective sheet.

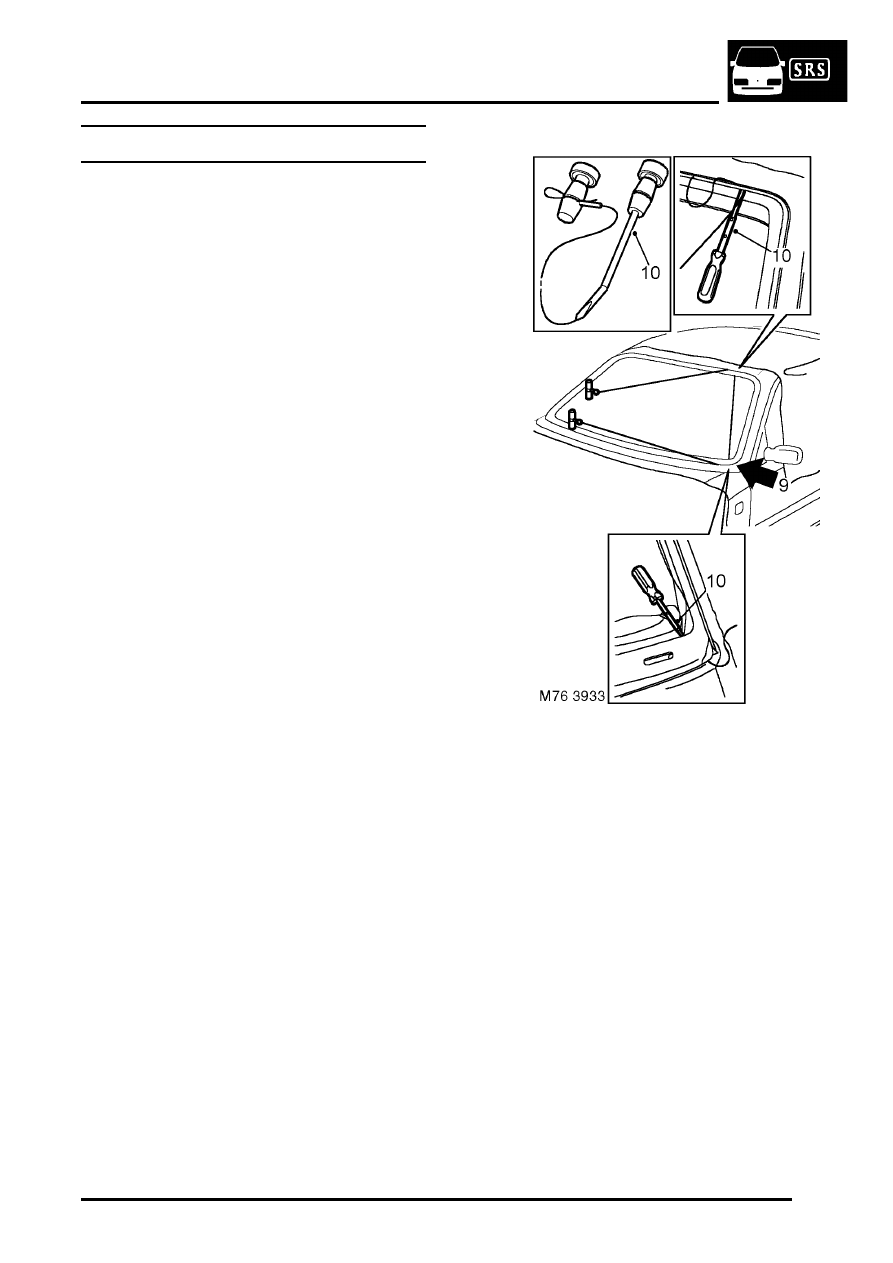

9. Make knife cut in sealant at bottom of 'A' post.

10. Insert cutting wire through previously made

knife cut and fit handles as shown, with
approximately 200 mm of wire between
handles.

11. Using suitable cutting wire, with assistance if

required, carefully cut sealer. Ensure that glass
is retained as last sealant is cut.

If multi-strand cutting wire is used, a sawing
action can be used to cut through heavy
sealant deposits around corners.

Use of a sawing action may overheat and
break single strand wire.

12. Attach suction cups and use assistance to

remove glass from body.

Lay glass on felt covered supports. Do not
stand on edge. Any chipping of glass edge
may develop into cracks.

13. Collect screen support blocks.

SCREENS

76-4-2

REPAIRS

Refit

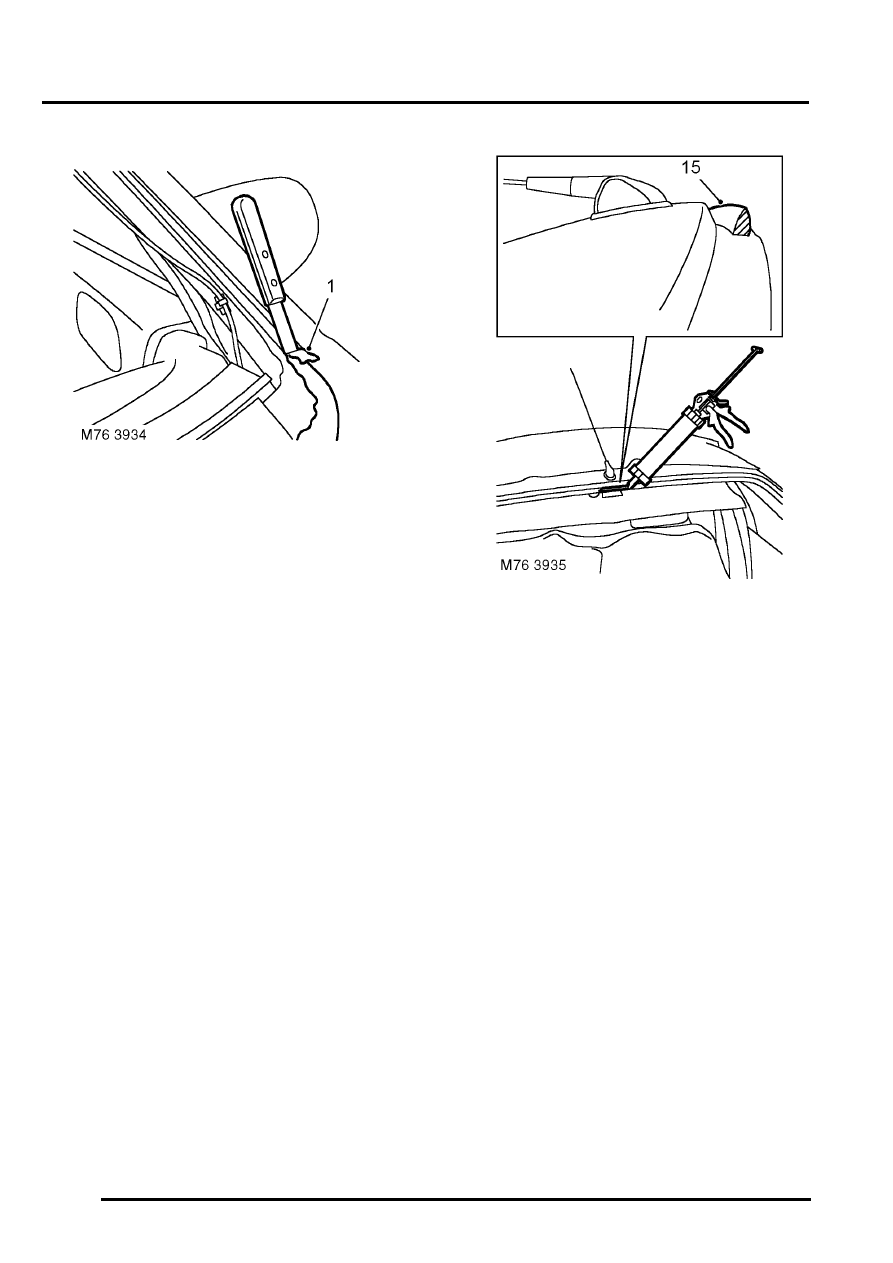

1. Carefully remove excess sealer from body

leaving a smooth surface.

2. Use a vacuum cleaner to clear away any waste.
3. Original glass: Carefully cut back old sealer to

obtain a smooth surface without damaging
obscuration band on glass.

4. Fit spacer blocks to body.
5. With assistance, locate screen to body.
6. Apply masking tape reference marks to aid

fitment.

7. With assistance, remove screen and place

aside.

8. Clean frame and edge of screen with solvent.

Do not touch cleaned or primed surfaces
with fingers.

9. Apply etch primer to any bare metal on frame.

10. Apply bonding agent to screen and allow to

cure.

11. Apply primer over etch primer on frame.
12. Apply activator over old sealer on frame.
13. Allow activator to cure.
14. Fit pre-cut nozzle to sealer cartridge, remove lid

and shake out crystals, and install in applicator
gun.

Nozzle will need modification to achieve
required bead section.

15. Apply a continuous bead of sealer around edge

of frame as shown.

16. Check for breaks and air bubbles in sealer.
17. With assistance, lift screen into place and align

to screen supports and tape.  Raise screen up
to roof on ratchet support blocks. Lightly press
glass to fully seat sealer.

18. Remove protective covers and tape.
19. Test sealer for leaks, apply additional sealer if

necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark any area that leaks. Dry
glass and sealer then apply additional sealer.

20. Fit 'A' post upper trim casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'A' post - upper -
renew.

21. Fit headlining retaining stud.
22. Fit sun visor retaining clips and sun visors.
23. Fit interior mirror.
24. Fit air intake panel.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

A curing time of 6 hours is desirable, during
this time leave a window open and do not
slam the doors. If the car must be used,
drive slowly.

SCREENS

REPAIRS

76-4-3

Glass - body side - rear

$% 76.81.18

The following equipment is required: Cutting wire
and handles Windscreen repair kit, Sealer applicator
gun, Suction cups.

Wear protective gloves when handling glass,
solvents and primers.

Wear suitable eye protection when removing and
refitting glass.

Remove

1. Remove rear quarter upper casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - upper
- 5 door.

2. Cover interior of vehicle with protective sheet.

3. Make knife cut in sealant at bottom of 'D' post.

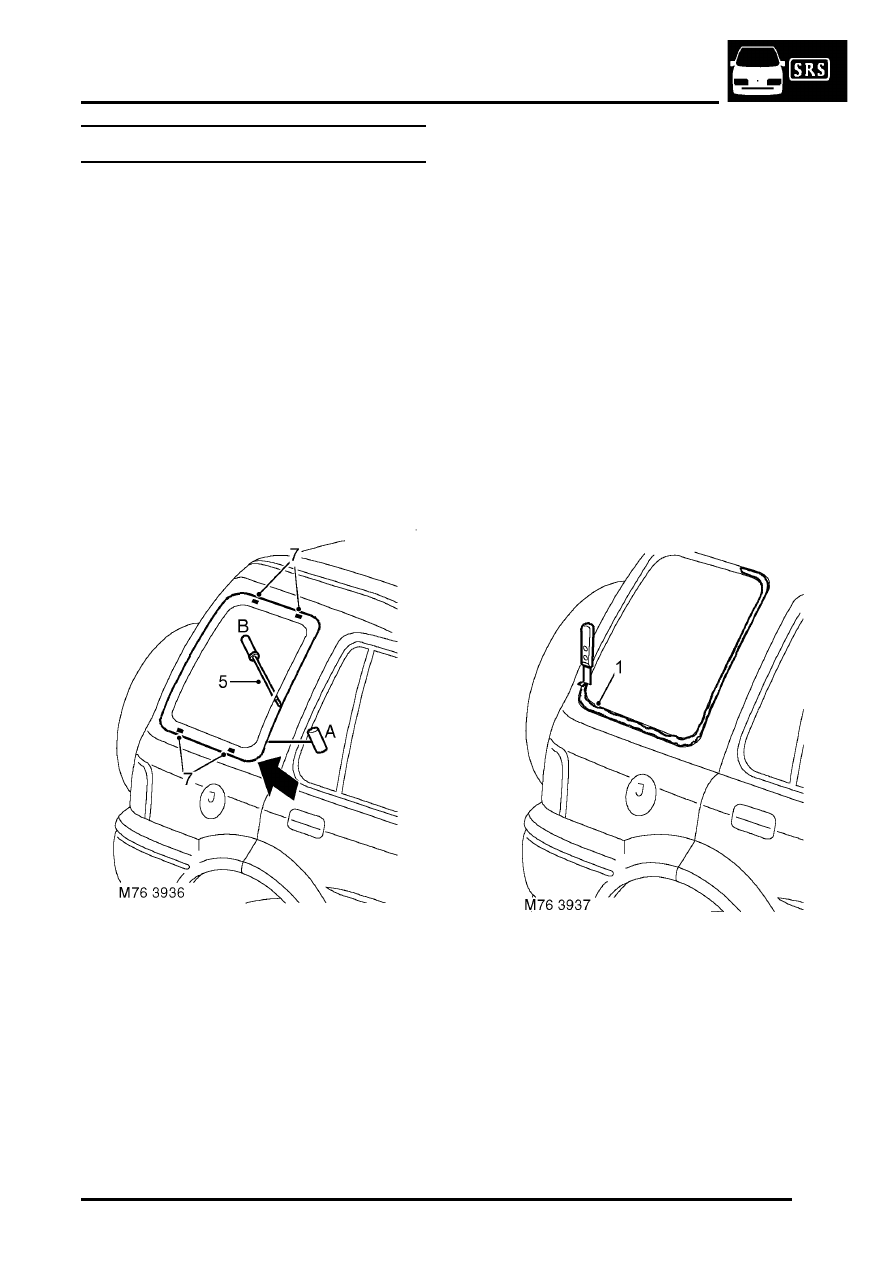

4. Insert cutting wire through previously made

knife cut and fit handles as shown, with
approximately 200 mm of wire between
handles.

5. With assistance, wedge tube of handle B

between glass and body, ahead of cutting
position, and carefully cut sealer using a
continuous pull on handle A from the outside.
Ensure that glass is retained as last sealant is
cut.

If multi-strand cutting wire is used, a sawing
action can be used to cut through heavy
sealant deposits around corners.

Use of a sawing action may overheat and
break single strand wire.

6. Attach suction cup and remove glass body.

Lay glass on felt covered supports. Do not
stand on edge. Any chipping of glass edge
may develop into cracks.

7. Collect 4 spacer blocks.

Refit

1. Carefully remove excess sealer from body

leaving a smooth surface.

2. Use a vacuum cleaner to clear away any waste.
3. Original glass: Carefully cut back old sealer to

obtain a smooth surface without damaging
obscuration band on glass.

4. Fit rubber spacer blocks to body.
5. With assistance, locate screen to body.
6. Apply masking tape reference marks to aid

fitment.

7. Remove screen and place aside.

SCREENS

76-4-4

REPAIRS

8. Clean frame and edge of screen with solvent.

Do not touch cleaned or primed surfaces
with fingers.

9. Apply etch primer to any bare metal on frame.

10. Apply bonding agent to screen and allow to

cure.

11. Apply primer over etch primer on frame.
12. Apply activator over old sealer on frame.
13. Allow activator to cure.
14. Fit pre-cut nozzle to sealer cartridge, remove lid

and shake out crystals. Install cartridge in
applicator gun.

Nozzle will need modification to achieve
required bead section.

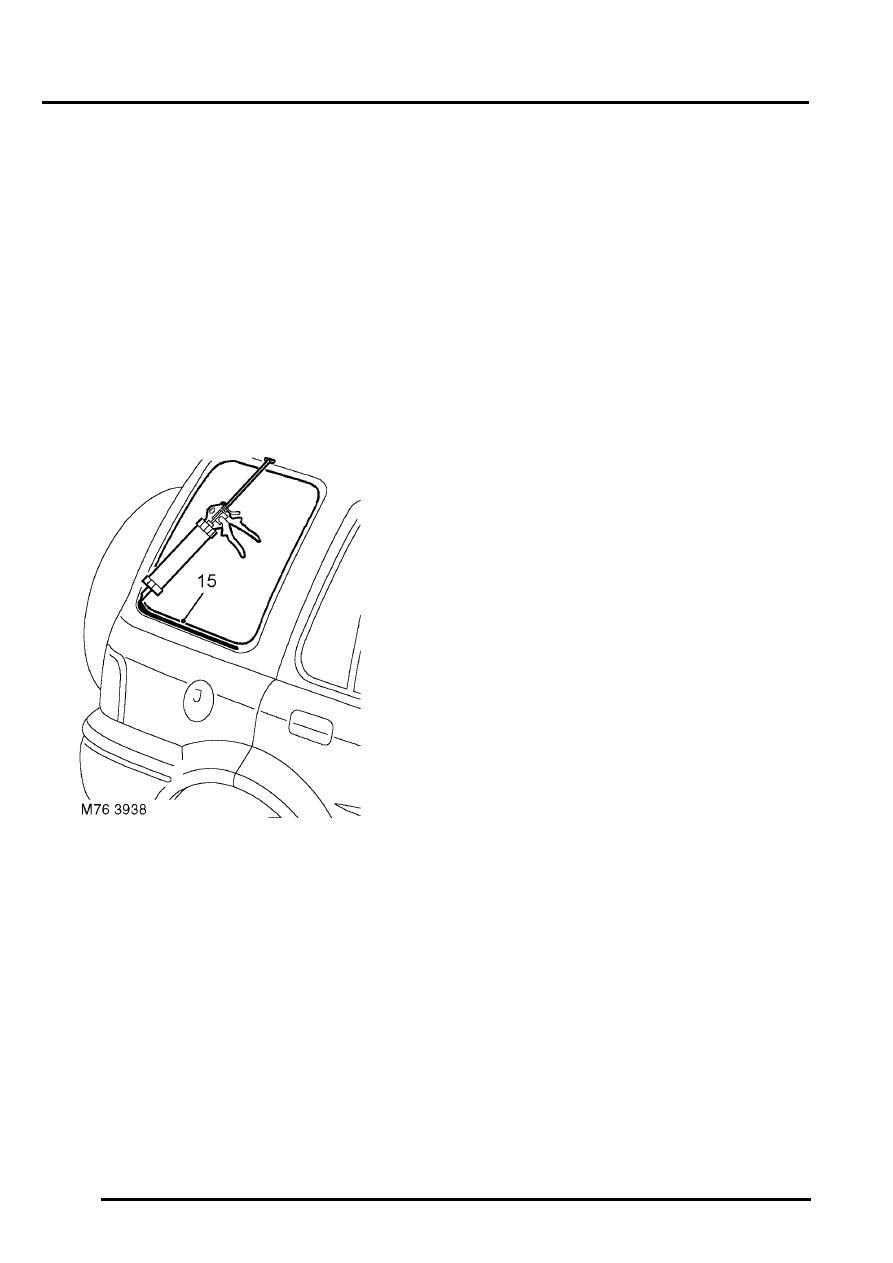

15. Apply a continuous bead of sealer around edge

of frame as shown. Make bead slightly thicker
at each corner.

16. Check for breaks and air bubbles in sealer.
17. Position glass to body and align to reference

tape.

18. Lightly press glass to fully seat sealer.
19. Secure glass with tape until sealer has cured.
20. Remove protective covers and tape.

21. Test sealer for leaks, apply additional sealer if

necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark leakage points and apply
additional sealer as necessary when area is
completely dry.

22. Fit rear quarter upper casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - upper
- 5 door.
