DOORS

REPAIRS 76-1-13

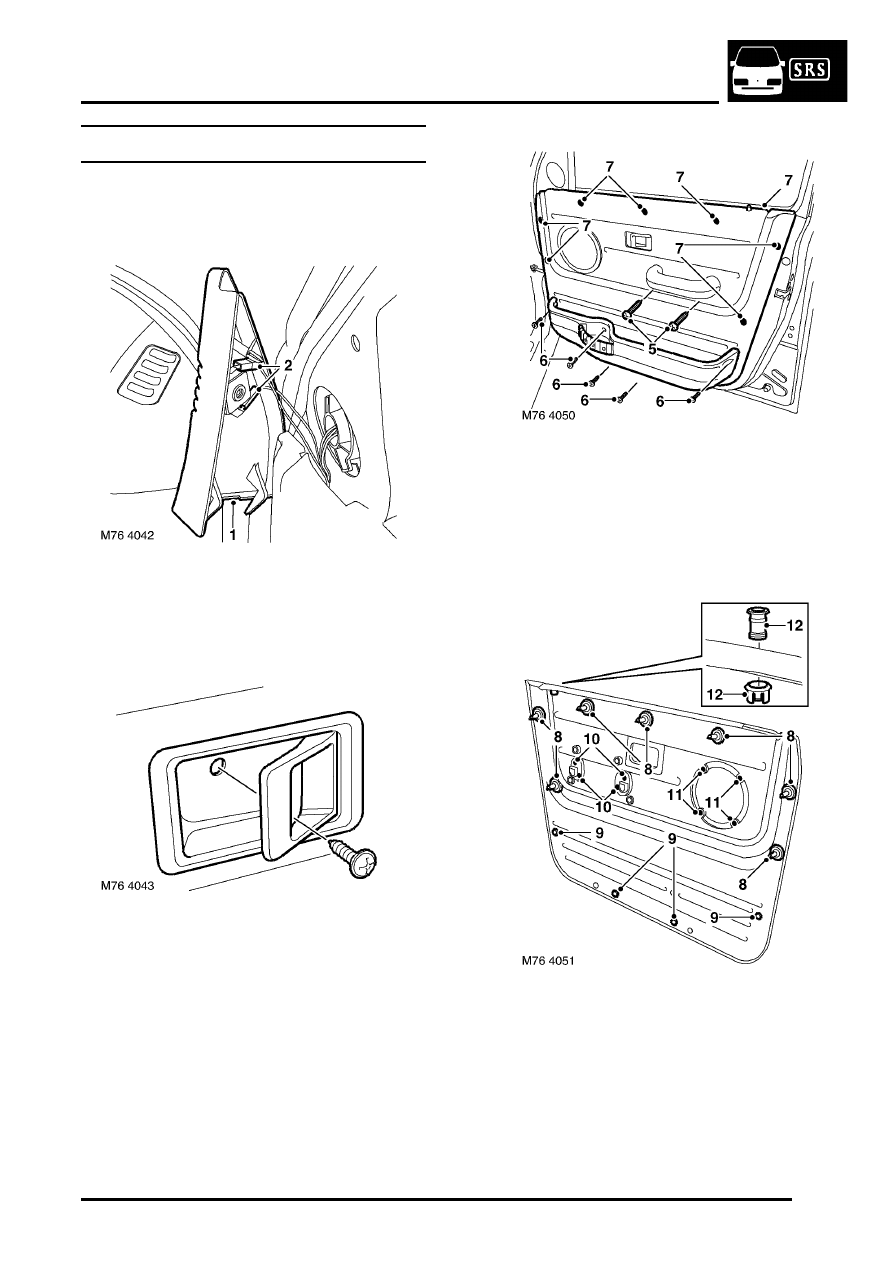

Trim casing - front door - 5 door

$% 76.34.01

Remove

1. Release cheater panel from front door.
2. Disconnect Lucars from tweeter speaker.
3. Remove cheater panel.

4. Remove screw securing door handle

escutcheon to door and remove escutcheon.

5. Remove 2 screws from door pull.
6. Remove 5 screws from door pocket.
7. Release 7 trim studs and remove casing.

NOTE: Do not carry out further dismantling if
component is removed for access only.

8. Remove 7 trim studs from casing.
9. Remove 4 Torx screws securing door pocket to

trim casing and remove pocket.

10. Remove 4 Torx screws securing door pull to

trim casing and remove door pull.

11. Remove 4 Torx screws securing door speaker

grille to trim casing and remove grille.

12. Release retainer and remove sill button guide.

DOORS

76-1-14 REPAIRS

Refit

1. Fit sill button guide to trim casing and secure

with retainer.

2. Fit speaker grille to trim casing and secure with

Torx screws.

3. Fit door pull to trim casing and secure with Torx

screws.

4. Fit door pocket to trim casing and secure with

Torx screws.

5. Fit trim studs to casing.
6. Fit trim casing to door and secure trim studs.
7. Fit screws to door pull and door pocket.
8. Fit door release escutcheon and secure with

screw.

9. Position cheater panel, connect Lucars to

tweeter speaker and fit cheater panel.

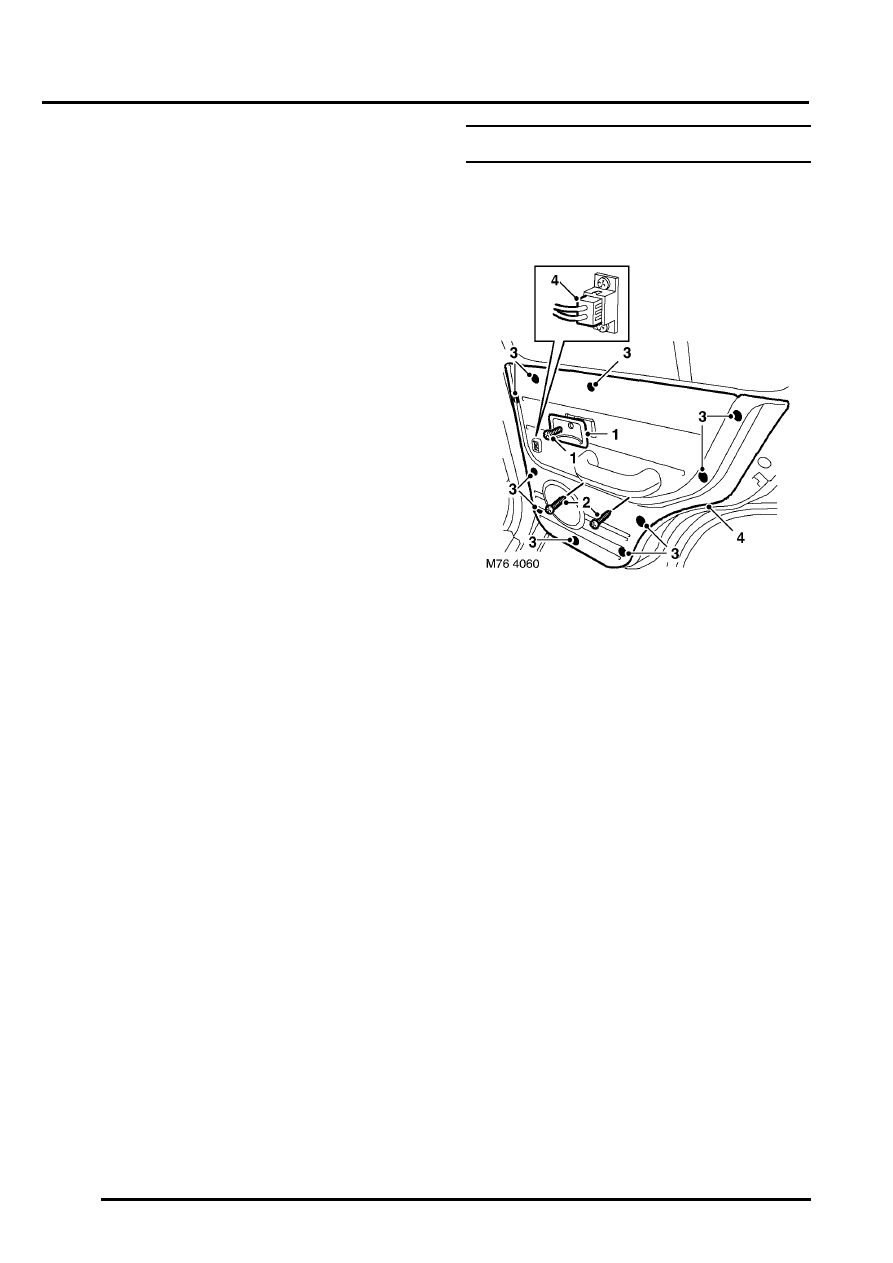

Trim casing - rear door

$% 76.34.04

Remove

1. Remove screw securing door release

escutcheon and remove escutcheon.

2. Remove 2 screws from door pull.
3. Release 10 trim studs securing trim casing to

door.

4. Disconnect multiplug and remove door trim

casing.

NOTE: Do not carry out further dismantling if
component is removed for access only.

DOORS

REPAIRS 76-1-15

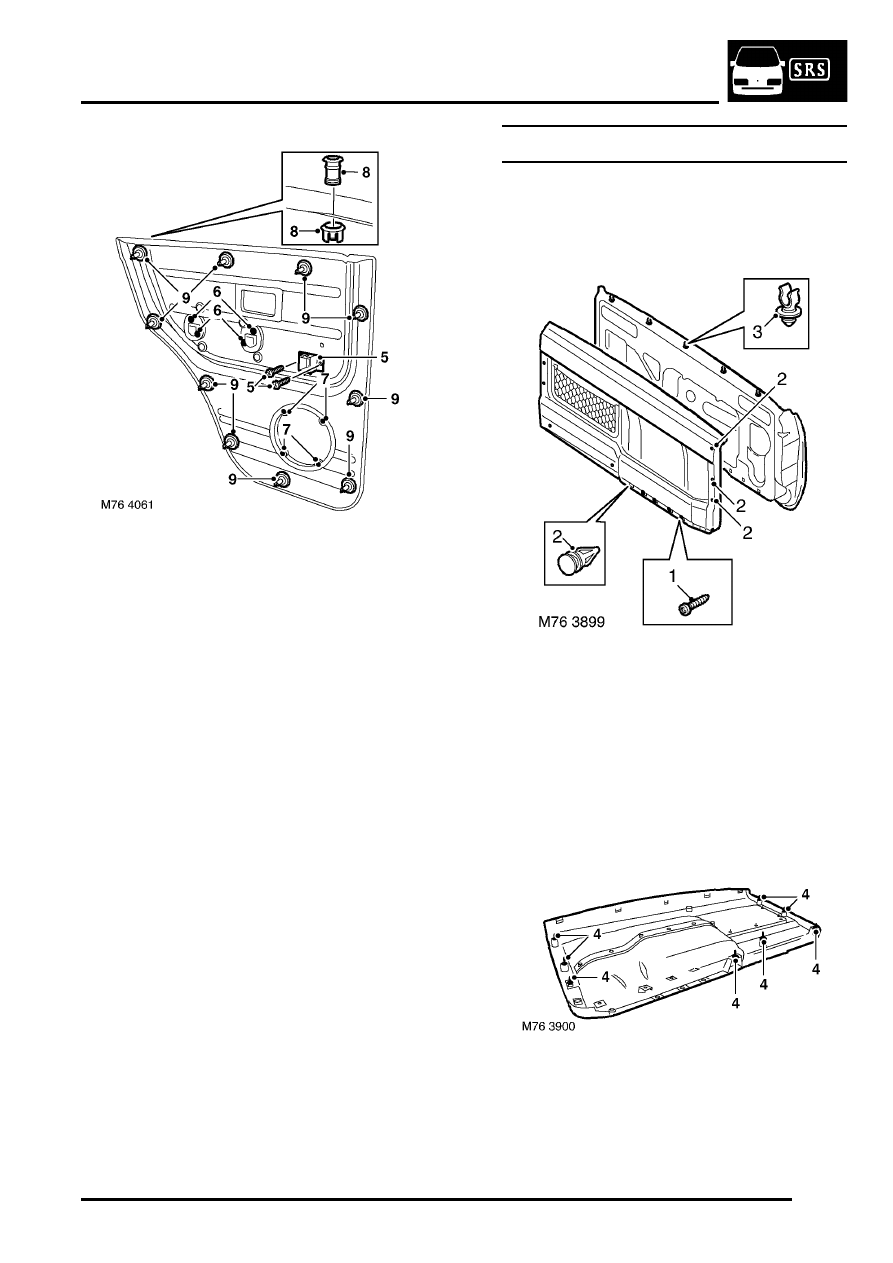

5. Remove 2 Torx screws securing window switch

to door trim and remove window switch.

6. Remove 4 Torx screws securing door pull to

trim casing and remove door pull.

7. Remove 4 Torx screws securing door speaker

grille to trim casing and remove grille.

8. Release retainer and remove sill button guide.
9. Remove 10 trim studs from door trim.

Refit

1. Fit trim studs to casing.
2. Fit sill button guide to trim casing and secure

with retainer.

3. Fit speaker grille to trim casing and secure with

Torx screws.

4. Fit door pull to trim casing and secure with Torx

screws.

5. Fit window switch to trim casing and secure

with Torx screws.

6. Position door trim casing and connect window

switch multiplug.

7. Fit trim casing to door and secure trim studs.
8. Fit screws to door pull.
9. Fit door release escutcheon and secure with

screw.

Trim casing - tail door(s) - each

$% 76.34.10

Remove

1. Remove 4 screws securing bottom of trim

casing to door.

2. Release 8 clips securing sides and bottom of

casing.

3. Release 5 clips securing top of casing and

remove casing.

4. Remove 8 trim studs from casing.

DOORS

76-1-16 REPAIRS

Refit

1. Fit trim studs to casing.
2. Position casing and secure top clips.
3. Secure clips on sides and bottom of casing.
4. Fit screws to bottom of casing.

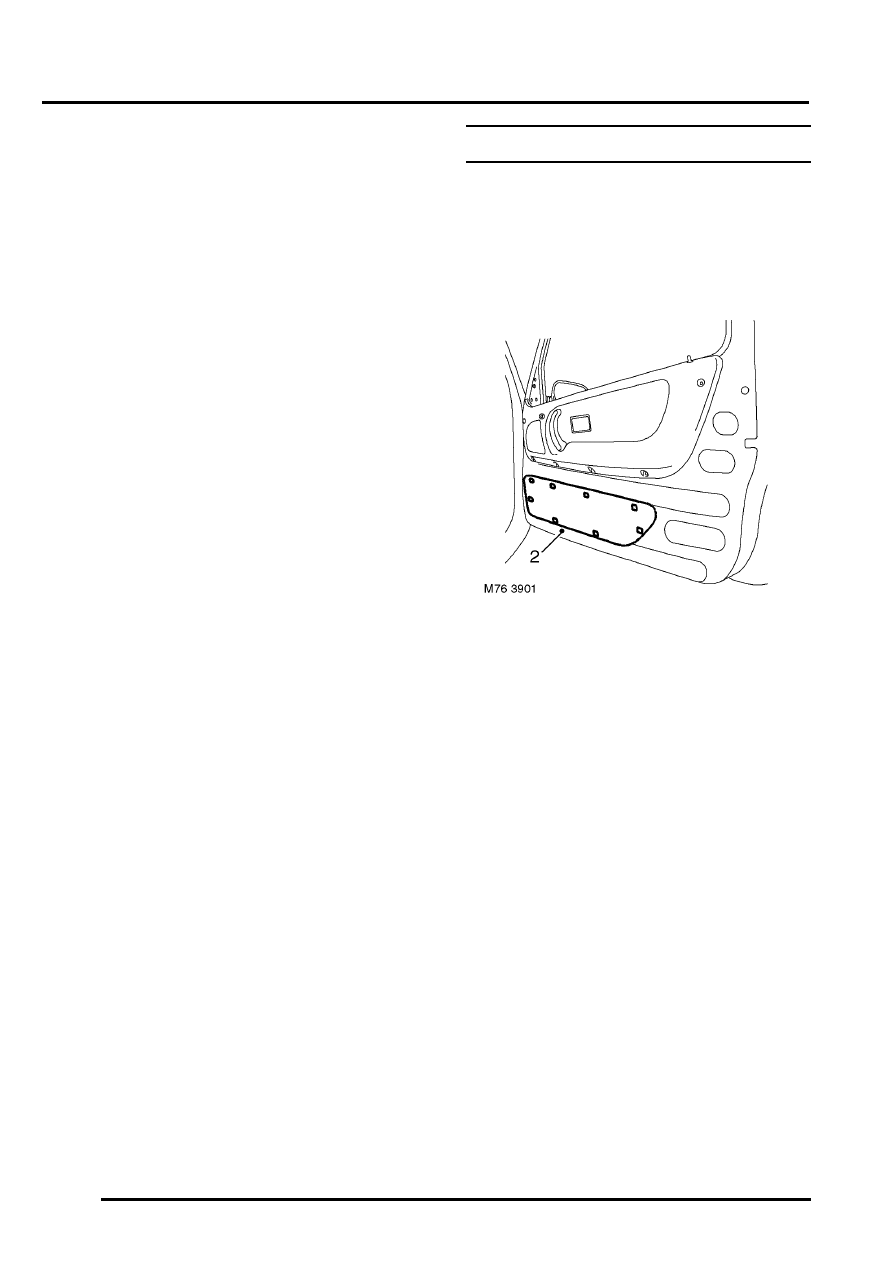

Plastic sheet - front door - lower

$% 76.34.18

Remove

1. Remove front door pocket.



 +

 DOORS, REPAIRS, Pocket - front

door.

2. Release and discard plastic sheet.

Refit

1. Clean door contact area with white spirit.
2. Position NEW plastic sheet to door and seal in

position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.

3. Fit front door pocket.



 +

 DOORS, REPAIRS, Pocket - front

door.
