BRAKES
REPAIRS
70-17
Servo assembly - LHD
$% 70.50.01
Remove
1. Td4 models: Remove air cleaner element
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
2. Remove brake master cylinder.
3. Td4 models: Remove bolt securing vacuum
reservoir and position reservoir aside.

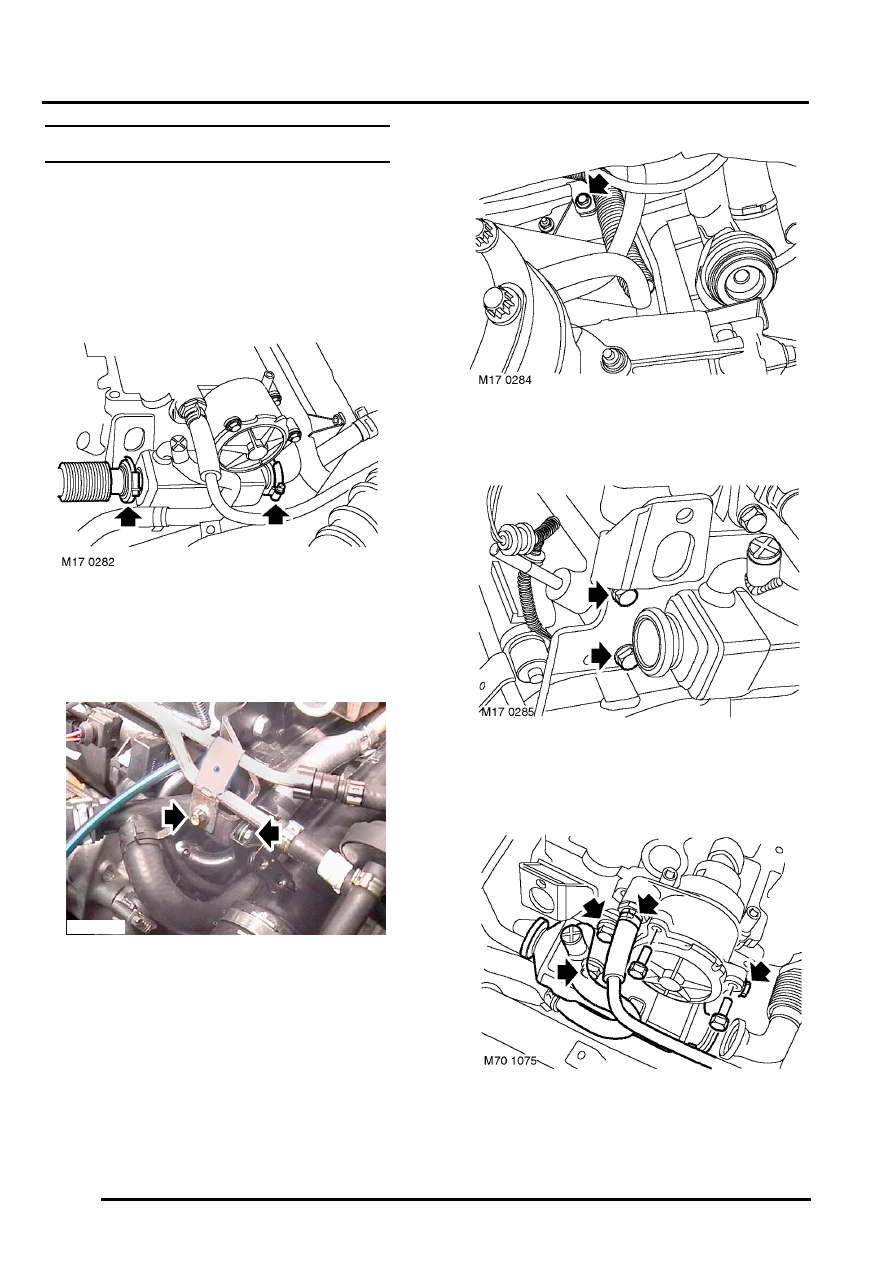

4. Remove screw securing fuel filter housing to
bracket.
5. Release fuel filter housing from bracket.
6. Release and disconnect vacuum hose from
servo.
7. Remove and discard vacuum hose seal.

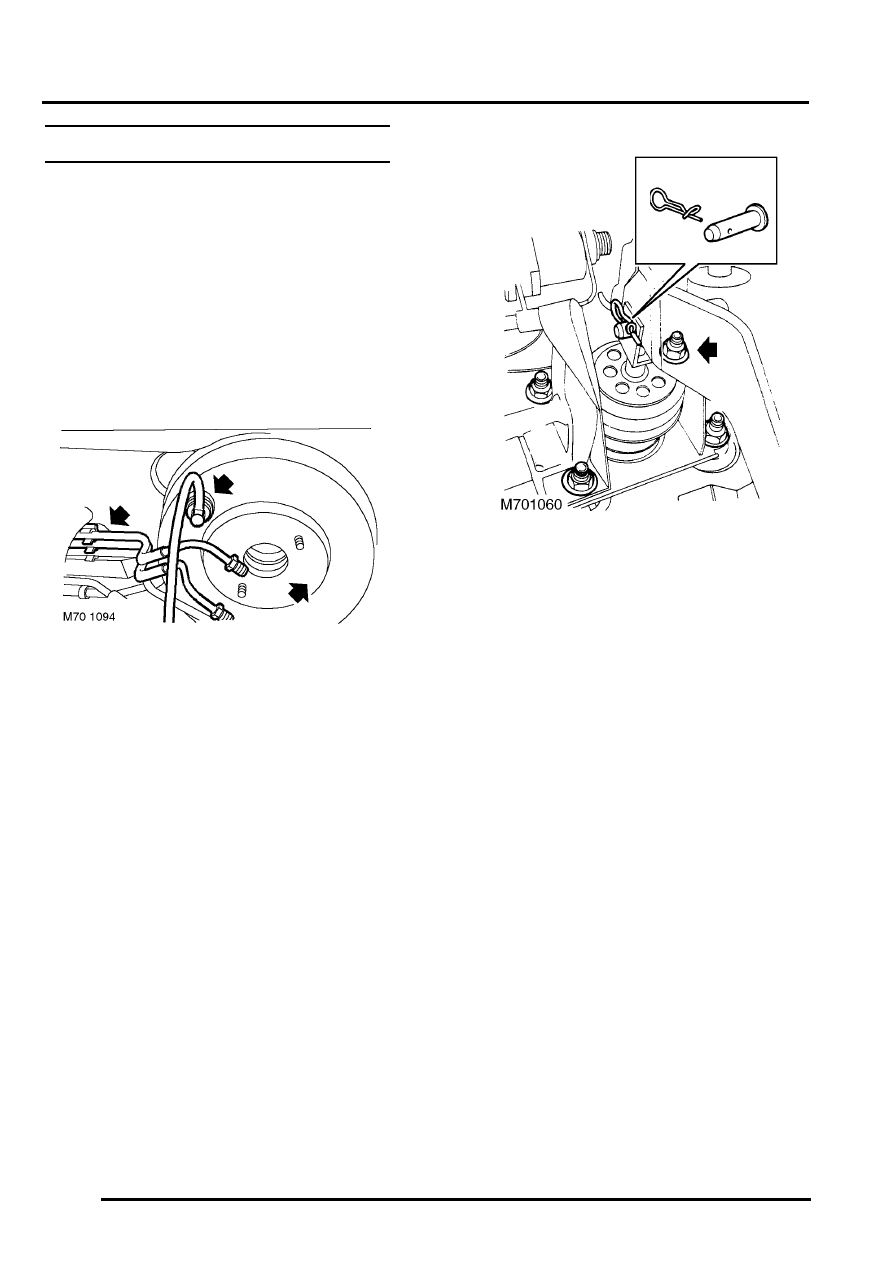

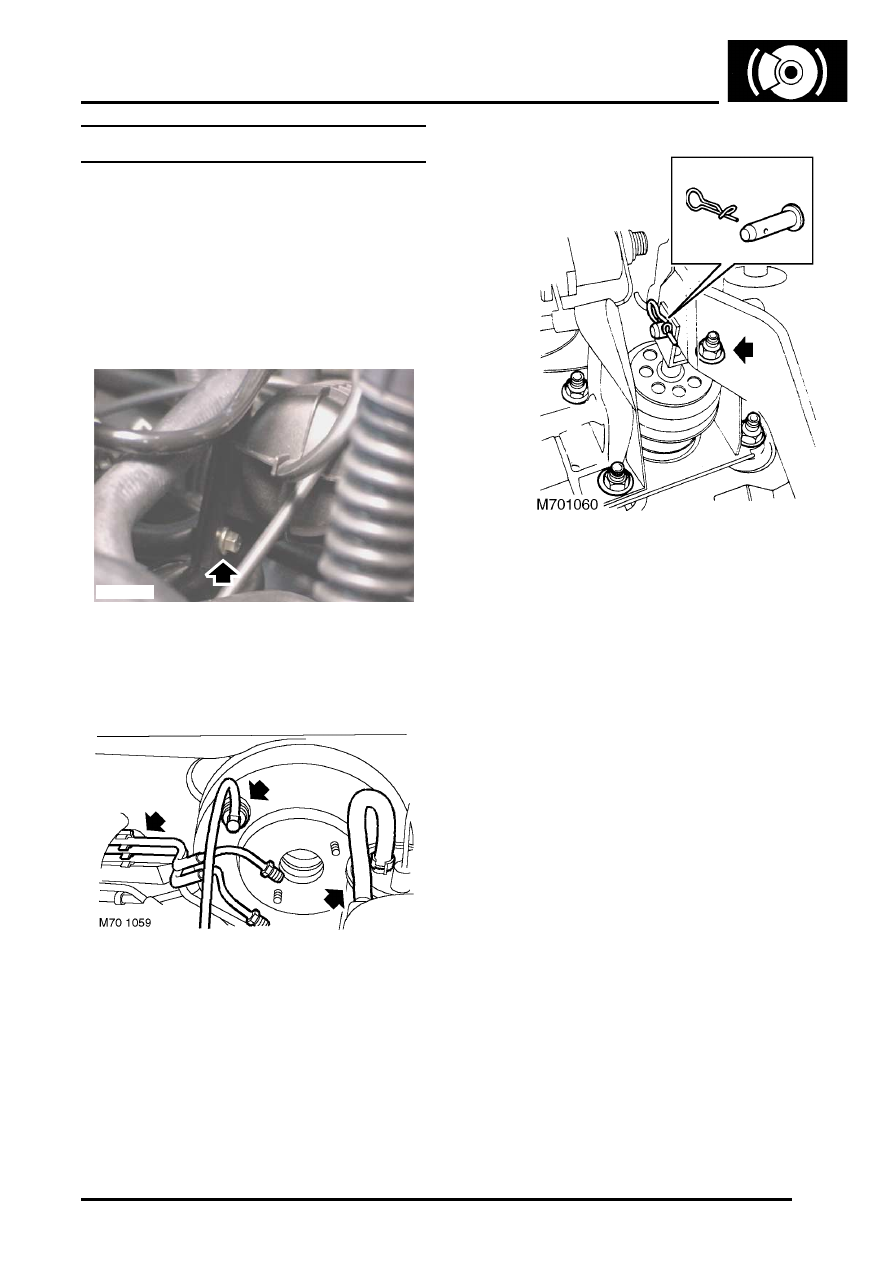

8. Release brake pipes from clips on bulkhead.
9. Remove clip and clevis pin securing brake
servo push rod to brake pedal.
10. Remove 4 nuts securing servo to body and
remove servo.
11. Remove and discard gasket.
Refit
1. Fit new gasket to servo.
2. Position servo to body, fit nuts and tighten in a
diagonal sequence to 22 Nm (16 lbf.ft).
3. Align push rod to brake pedal, fit clevis pin and
secure with new spring clip.
4. Position fuel filter to support bracket and secure
with screw.
5. Td4 models: Fit vacuum reservoir and washer
to mounting bracket, tighten bolt to 10 Nm (7.5
lbf.ft).
6. Fit new vacuum hose seal.
7. Connect vacuum hose to servo.
8. Fit brake master cylinder.
9. Secure brake pipes in retaining clips.
10. Td4 models: Fit air cleaner element.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
M70 1089
