Freelander 1. Manual - part 178





STEERING

REPAIRS

57-17

10. Remove column lock saddle and remove

column lock.

11. Models with automatic transmission:

Loosen union and release key interlock cable
from column lock.

Refit

1. Models with automatic transmission: Align

key interlock cable to column lock and tighten
union to 4 Nm (3 lbf.ft).

2. Position lock to steering column assembly and

fit shear bolts. Do not tighten shear bolts at this
stage.

3. Insert starter key, check operation of steering

lock and that key turns freely.

4. Ensure correct operation of key interlock cable.
5. Remove starter key from column lock.
6. Tighten shear bolts fully and shear heads off.
7. Position ignition switch to column, fit and

tighten screws.

8. Fit passive coil.
9. Connect multiplugs to ignition switch and

passive coil.

10. Models with automatic transmission:

Ensure correct operation of microswitch.

11. Align column cover.
12. Fit steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

13. Connect battery earth lead.

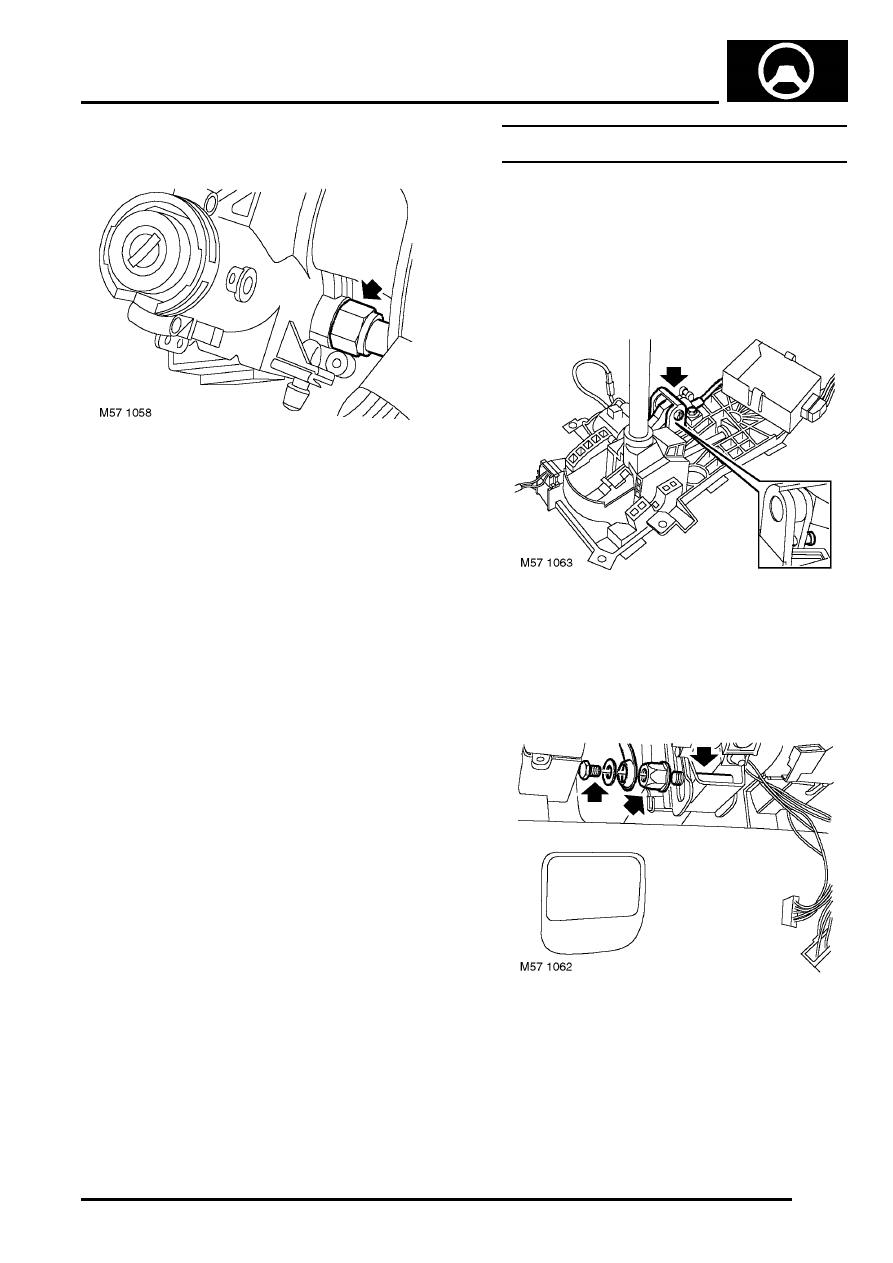

Cable - key interlock

$% 57.40.51

Remove

1. Disconnect battery earth lead.
2. Remove front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

3. Loosen bolt securing cable clamp.
4. Disconnect cable from interlock mechanism.
5. Remove key from starter switch.
6. Remove steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

7. Remove bolt securing  steering column height

adjuster lever and remove lever.

NOTE: Thread is left handed.

8. Remove nut securing height adjuster clamp

bolt  and remove bolt.

9. Collect plastic stop.

STEERING

57-18

REPAIRS

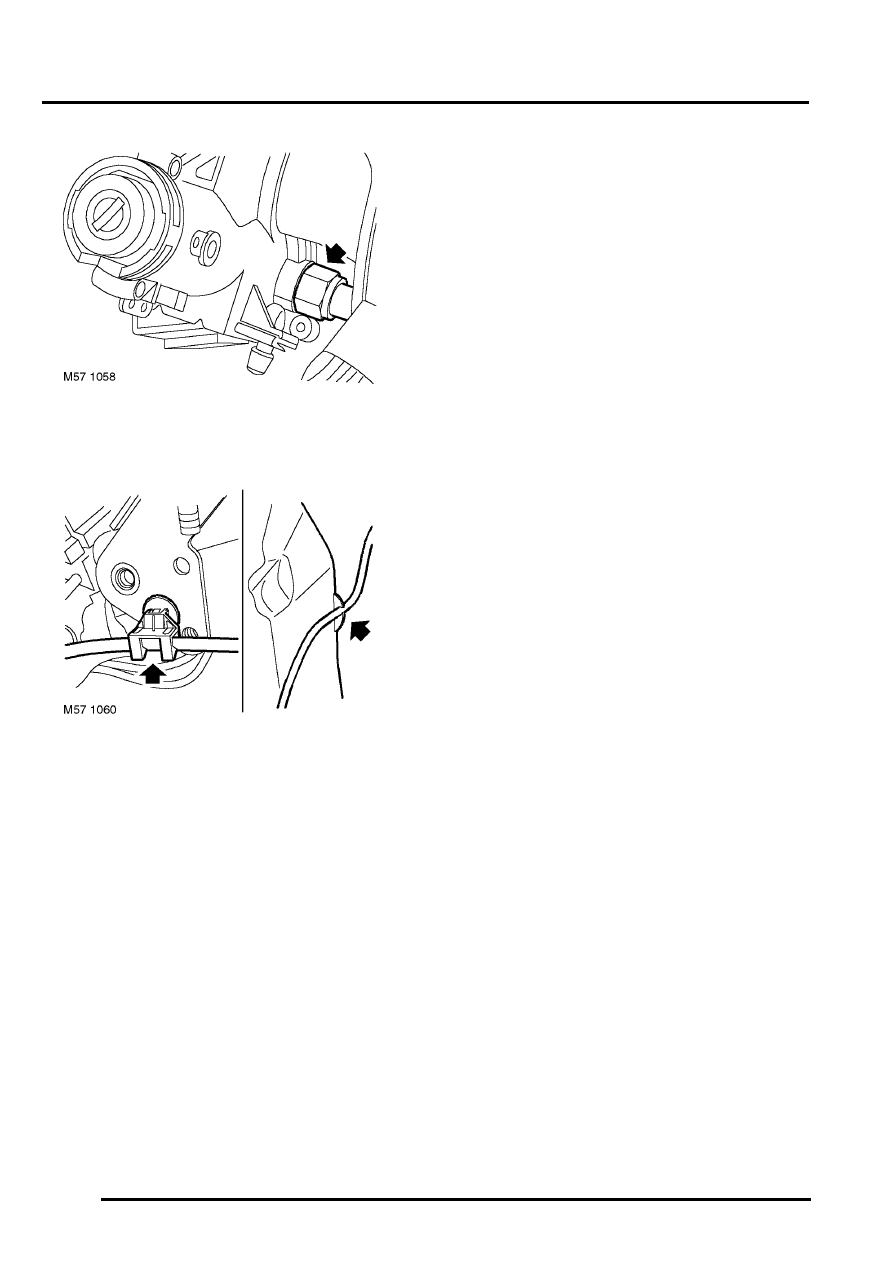

10. Loosen union and disconnect cable from

column lock.

11. Release cable from 2 retaining clips.
12. Note the cable routing, manoeuvre cable from

under heater and steering column bracket.

13. Remove cable.

Refit

1. Position cable, align to heater and steering

column bracket and  secure in retaining clips.

2. Align key interlock cable to column lock and

tighten union to 4 Nm (3 lbf.ft).

3. Fit height adjuster clamp bolt and tighten nut to

10 Nm (7.5 lbf.ft). Ensure bolt and plastic stop
are correctly located in slot in column bracket.

4. Fit height adjuster lever and tighten bolt 12 Nm

(9 lbf.ft). Ensure lever is in the fully up position
before tightening bolt. Hold clamp bolt nut to
prevent nut rotation.

5. Connect cable to interlock mechanism.
6. Check key interlock cable adjustment.



 +

 STEERING, ADJUSTMENTS, Cable

- key interlock - adjust.

7. Fit steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

column.

8. Fit front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

9. Connect battery earth lead.

STEERING

REPAIRS

57-19

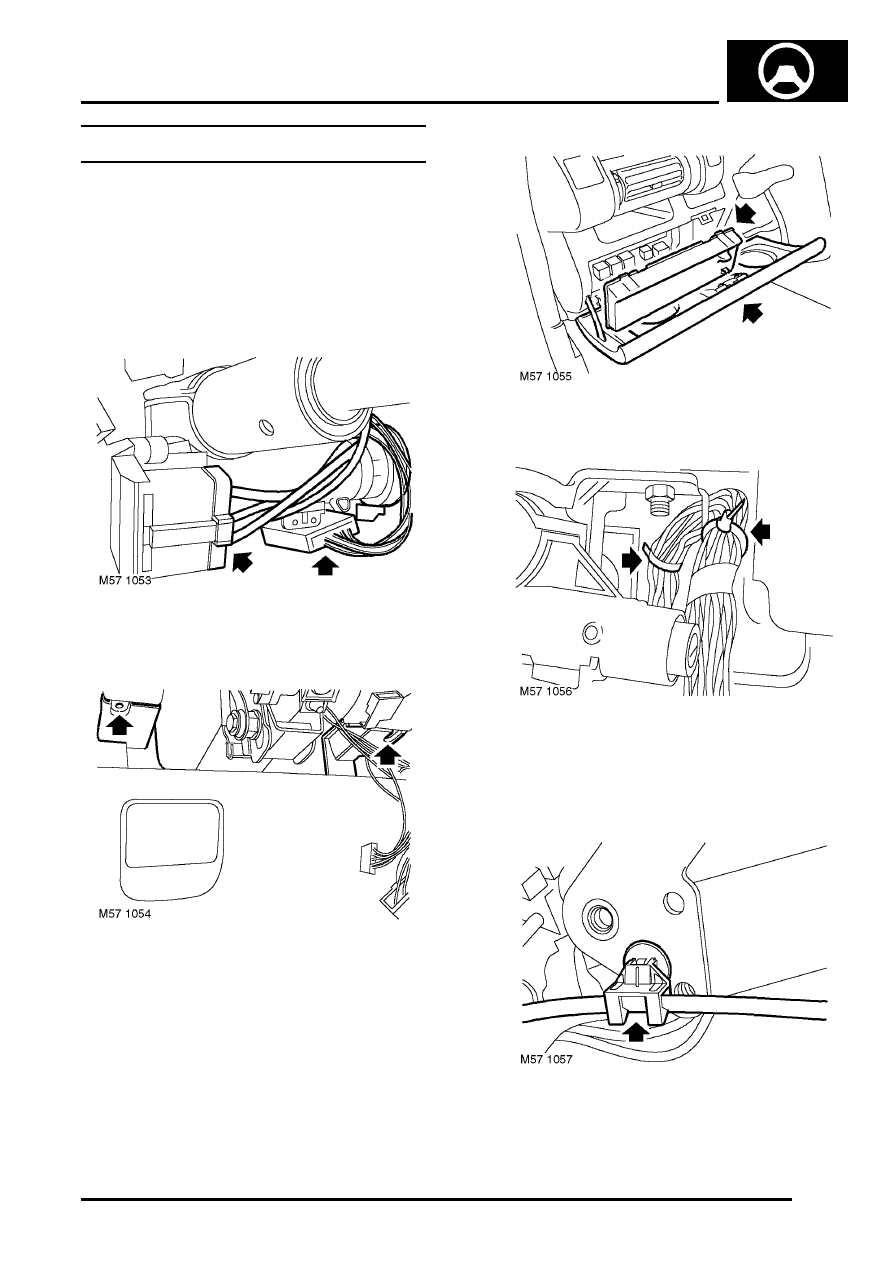

Column assembly - inner & outer

$% 57.41.01

Remove

1. Disconnect battery earth lead.
2. Remove steering column multi purpose switch.



 +

 LIGHTING, REPAIRS, Switch -

combined direction indicator/headlight/
horn.

3. Disconnect multiplugs from ignition switch and

passive coil.

4. Remove 2 screws securing steering column

aperture trim and remove trim.

5. Lower glove lid and remove fuse box cover.

6. Carefully cut 2 harness clips from LH side of

column and release harness.

7. Release 2 harness clips from RH side of

column and release harness.

8. Models with automatic transmission:

Release key interlock cable from column clip.

STEERING

57-20

REPAIRS

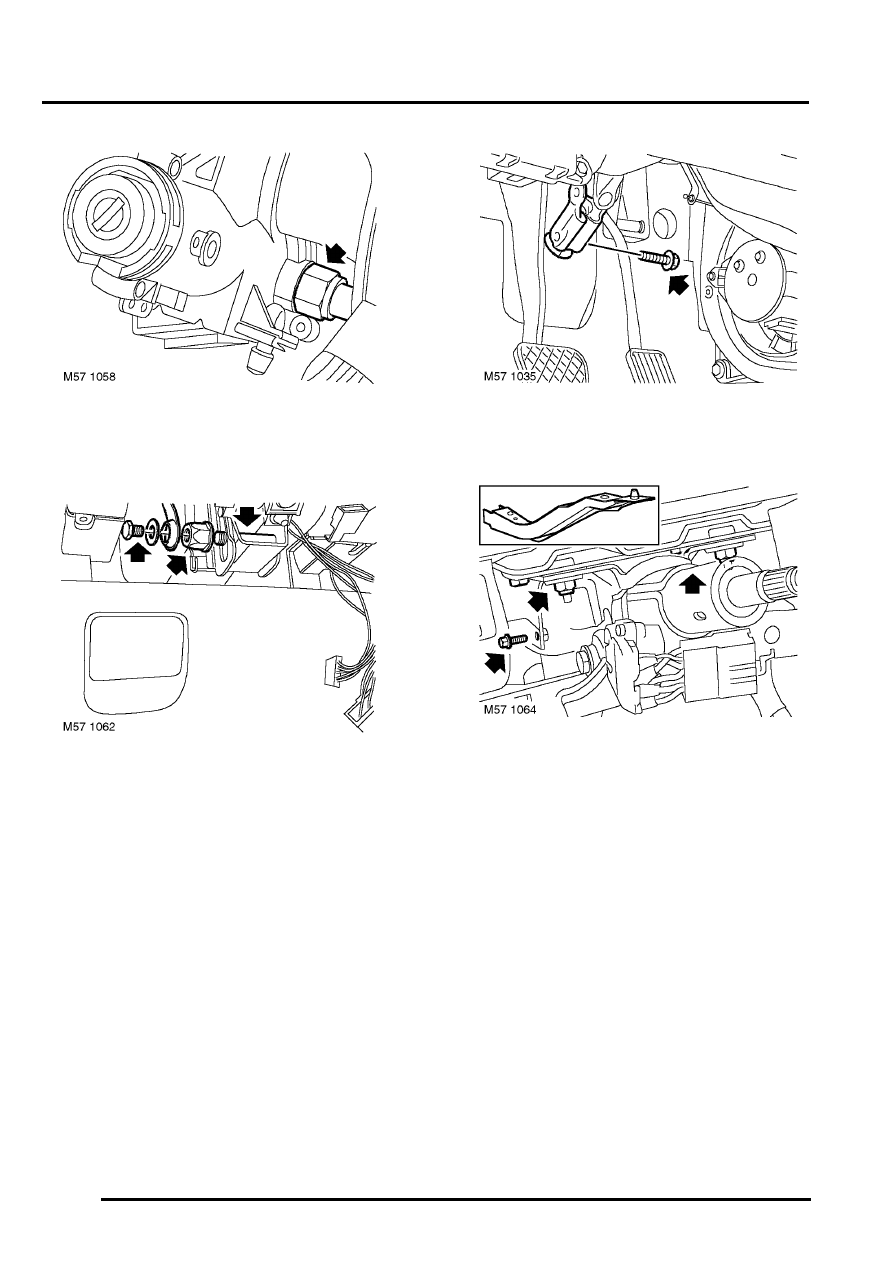

9. Models with automatic transmission:

Loosen union and release key interlock cable
from column lock.

10. Models with automatic transmission:

Remove bolt securing  steering column height
adjuster lever and remove lever.

11. Models with automatic transmission:

Remove nut securing height adjuster clamp
bolt  and remove bolt.

12. Models with automatic transmission:

Release key interlock cable from steering
column.

13. Models with automatic transmission: Fit

clamp bolt and nut to retain support bracket in
position.

14. Remove pinch bolt securing steering column to

PAS rack pinion.

15. Remove bolt securing steering column to

fusebox support bracket.

16. Remove 2 nuts and 2 bolts securing steering

column to fascia support rail.

17. Collect snubber.
18. Release steering column from support bracket

and PAS rack pinion.

19. Remove steering column assembly.
20. Remove 2 cable ties from steering column.
21. Remove key interlock cable clip.
