DRIVESHAFTS
REPAIRS
47-15
Viscous coupling assembly
$% 47.20.01
Remove
1. Remove front propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
2. Remove rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
CAUTION: When removing and refitting any
components to viscous unit, full support
must be given using the flange adjacent to
the splines. Under no circumstances should
any load be applied through the viscous
unit bearings.
3. Note the fitted position of the support bearing
on the viscous coupling.

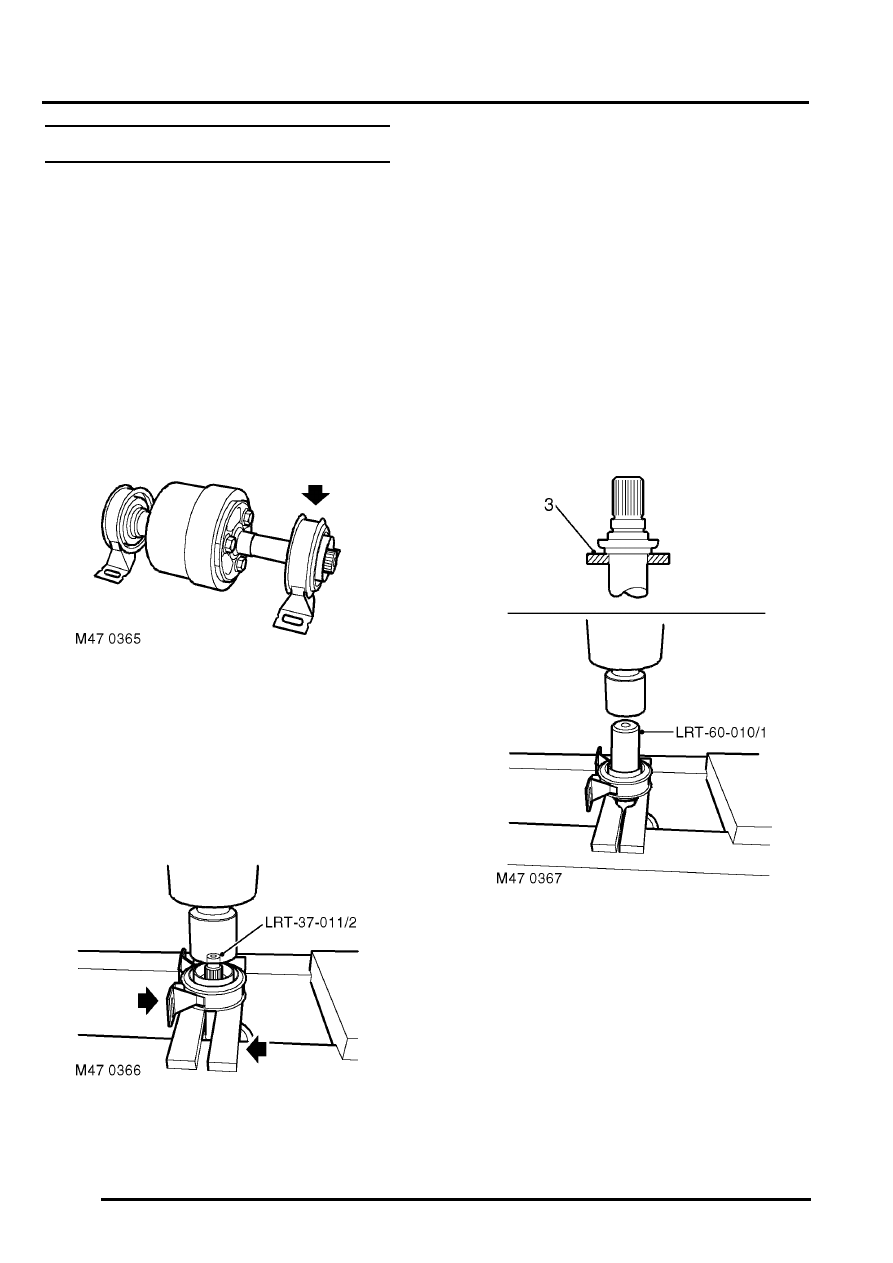

4. Position suitable press bars to support bearing
as shown, taking care that the press bars are
not positioned on the steel flinger.
5. With assistance, position viscous coupling
assembly onto press bed.
6. Position LRT-37-011/2 thrust button onto
viscous coupling splines.
7. With assistance, press the splined end of the
viscous coupling unit through the support
bearing. Take care that the viscous coupling
does not drop when free of the support bearing.
8. Remove viscous coupling assembly from
press.
Refit
1. Clean flinger, bearing journal, splines and
support bearings.
2. Ensure that cavities between bearing and outer
shrouds are packed with Texaco Novatex EP2
grease.

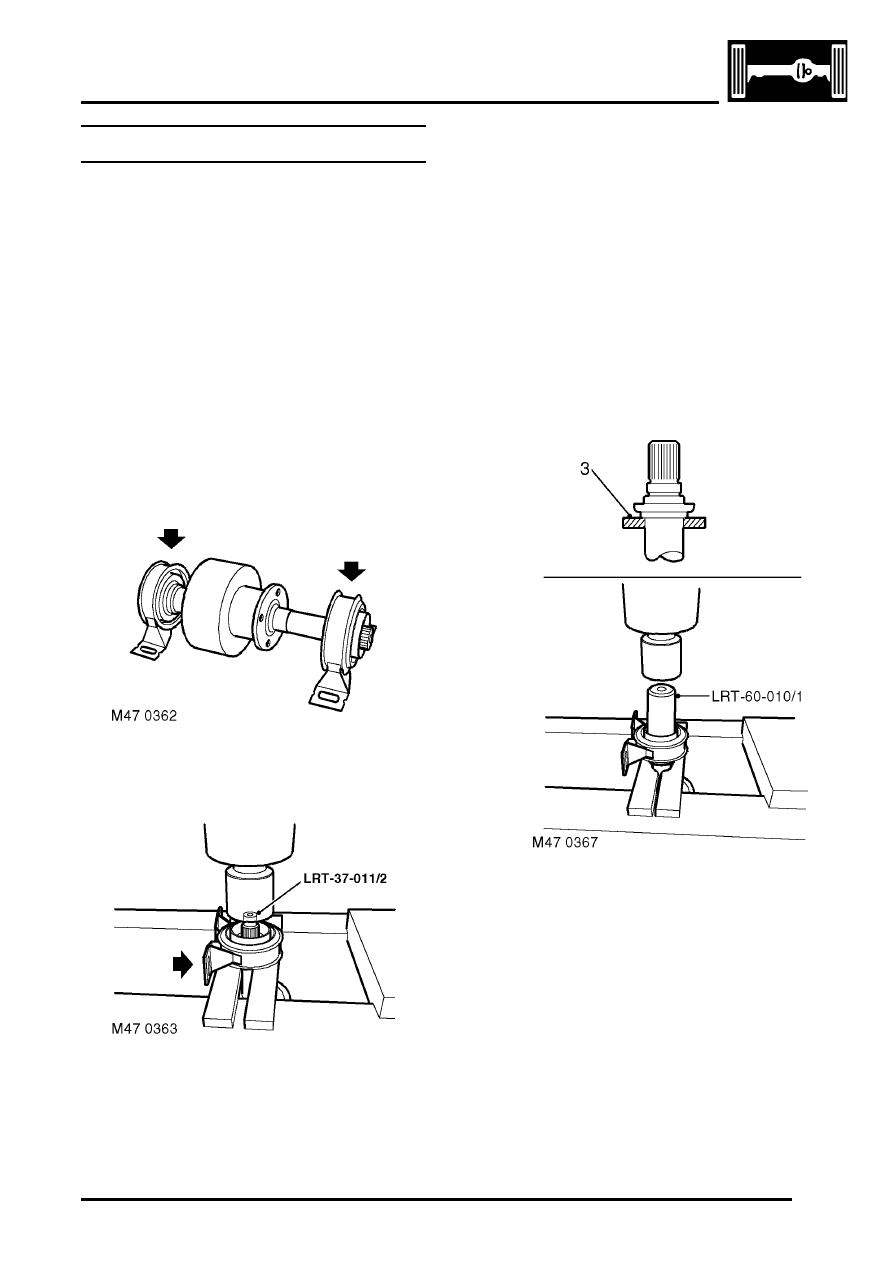

3. With assistance, position viscous coupling
assembly onto press bed and locate the press
bars onto collar on viscous coupling as shown.
4. Position LRT- 60-010/1 onto bearing inner
race, and with assistance, press support
bearing onto viscous coupling.
5. Remove viscous coupling assembly from
press.
6. Spin support bearing to confirm true running.
7. Fit front propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
8. Fit rear propeller shaft.
